User Manual for Blackmagic Design UltraStudio Mini Recorder Click to enlarge the picture
Contents of the user manual for the Blackmagic Design UltraStudio Mini Recorder
- Product category: Computer Hardware Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Computer Hardware
 |
User manual for the Blackmagic Design UltraStudio Mini Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|

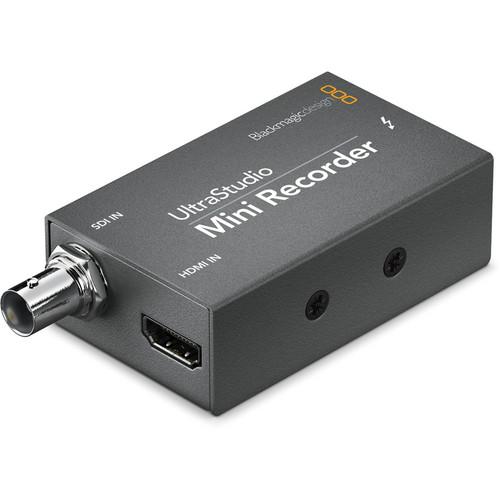

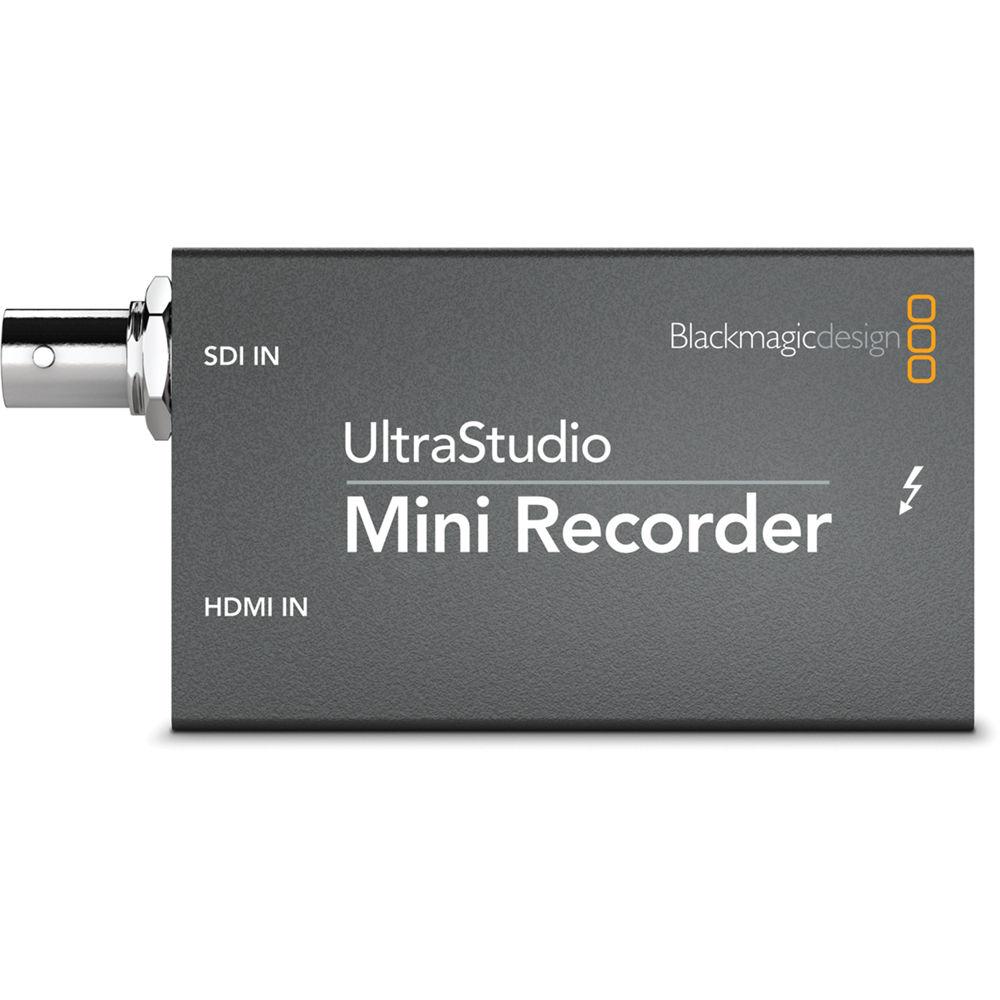

Product description The Blackmagic Design UltraStudio Mini Recorder allows you to capture an SDI or HDMI camera signal and transfer it to your computer for editing and other applications. The Mini Recorder features SDI and HDMI inputs and a Thunderbolt output, and supports resolutions up to 1080p30 / 1080i60. The Mini Recorder also comes with Blackmagic Media Express software, which will let you accept and encode incoming footage as best fits your workflow. Note: A Thunderbolt-equipped computer is required for inputting the signal into your computer. Thunderbolt and SDI/HDMI cables (not included) are also required. - The "Capture" Aspect of a Capture and Playback Device
- Connect to your camera by HDMI or SDI and output your footage to a computer by Thunderbolt to get the best quality footage possible into your editing system
3 Gb/s SDI Input
SDI input connection for decks, routers and cameras so you can record amazing quality 10-bit video in SD and HD
HDMI Input
HDMI input for amazing quality record direct from cameras, and set top boxes and gaming consoles
Thunderbolt Connection
Get blazing speeds for recording SD and HD up to 1080iHD In the Box Blackmagic Design UltraStudio Mini Recorder Media Express Software 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design UltraStudio Mini Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design BDLKULSDZMINREC Specs | SDI Video Input | 1x 10-bit SD/HD switchable | | HDMI Video Input | 1x HDMI type A connector | | SDI Audio Input | 8 channels embedded in SD and HD | | HDMI Audio Input | 8 channels embedded in SD and HD | | Computer Interface | Thunderbolt | | SD Format Support | 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC | | HD Format Support | 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60 | | SDI Compliance | SMPTE 259M and SMPTE 292M | | SDI Metadata Support | VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file
HD RP188
Closed captioning | | Sampling | Video:
4:2:2
Audio:
Television standard sample rate of 48 kHz at 24 bit | | Color Precision | 10-bit | | Color Space | REC 601, REC 709 | | HDMI Configuration | HDMI automatically configures to connected display | | HDMI Resolution | Pixel for pixel HD resolution input to connected device | | HDMI Color Precision | 10-bit | | Multiple Rate Support | SDI and HDMI are switchable between standard definition and high definition | | Copy Protection | HDMI input is unable to capture from copy protected HDMI sources
Always confirm copyright ownership before capture or distribution of content | | Colorspace Conversion | Hardware based real time | | HD Down Conversion | Software based down conversion during video playback | | Real Time Effects | Apple Final Cut Pro internal effects
Adobe Premiere Pro Mercury Playback Engine effects
Avid Media Composer 6 internal effects | | Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. | | Physical Installation | Requires computer with a Thunderbolt port | | System Compatibility | Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later
(If you encounter incompatibility issues with updated versions of OS X, please download the newest driver for the recorder from http://www.blackmagicdesign.com/support.) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.2 x 5.1 x 1.6" |
