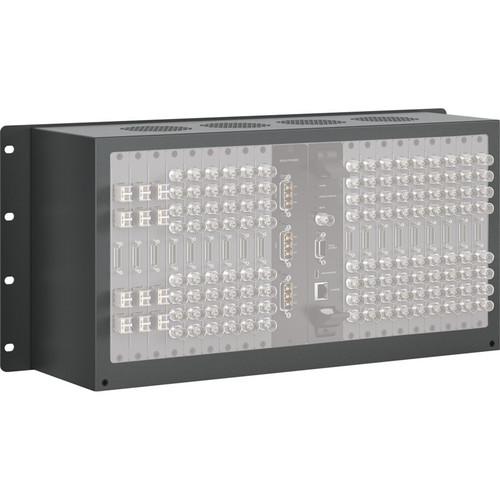

User Manual for Blackmagic Design Universal Videohub 72 Rack Frame Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Universal Videohub 72 Rack
- Product category: Routers & Switchers Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Routers & Switchers
|
User manual for the Blackmagic Design Universal Videohub 72 Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description The Blackmagic Design Universal Videohub 72 is a customizable rack frame that lets you build your own 72 x 72 SDI size router. Only 5RU high and 6" deep, the Videohub 72 is designed to accept a mix of SDI interface, crosspoint, and power supply cards, as your application sees fit. Add up to 18 BNC SDI or optical fiber SDI interfaces along with a single 72 x 72 crosspoint and power card. Other features include a removable fan tray, full auto standard detection, re-clocking, 3Gb/s SDI support, 72 x 72 deck control, and ethernet/serial control. - Universal Videohub lets you add SDI interface cards and crosspoints for a fully redundant design that keeps working 24/7.
- With no electronic components on the router motherboard, every single part can be replaced simply by hot-plugging cards.
- Cross-points are monitored constantly, and instantly change when a fault is detected!
- Router control software included free for Windows and Mac OS X.
- Firmware upgrade provided via included firmware updater application.
- Redundant power supply options are available, as well as a GPI alarm for connecting external alarms.
- Router connections preserved and restored instantly at power on independently of host computer.
- When you're ready to upgrade, all SDI interface cards, crosspoint and power supply cards can be installed into the larger Universal Videohub 288 chassis.
In the Box Blackmagic Design Universal Videohub 72 Rack Frame Router Control Software 3-Year Limited Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Universal Videohub 72 Rack Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design 72 Specs | Connections | SDI Video Input: Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI. Can be BNC SDI or optical fiber SDI.
SDI Video Output: Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI.
Multi Rate Support: Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.
Device Control: Up to 72 bidirectional Sony compatible RS-422 deck control ports via breakout cable.
Router Control: Use either RJ45 Ethernet or USB 2.0 high speed interface or Smart Control shared over IP network.
Router Configuration: Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network.
RS-422 Control: 1 x input for controlling router crosspoint switching.
Updates: USB 2.0 high speed (480Mb/s) interface.
Re-clocking: On all SDI outputs.
Reference Input: Blackburst and TriSync for SD, HD and 2K. | | Standards | SD Format Support: 625/25 PAL and 525/29.97 NTSC.
HD Format Support: 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60.
2K Format Support: 2048 x 1556/23.98/24/25.
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
SDI Video Sampling: 4:2:2 and 4:4:4.
SDI Video Rates: SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI.
SDI Color Precision: 4:2:2 and 4:4:4 10 bit.
SDI Color Space: YUV, or RGB.
SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard. | | | | Package Weight | 17.95 lb | | Box Dimensions (LxWxH) | 21.4 x 13.2 x 9.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
