Product description

4K
• Supports 4K UHD (3840 x 2160) Video.

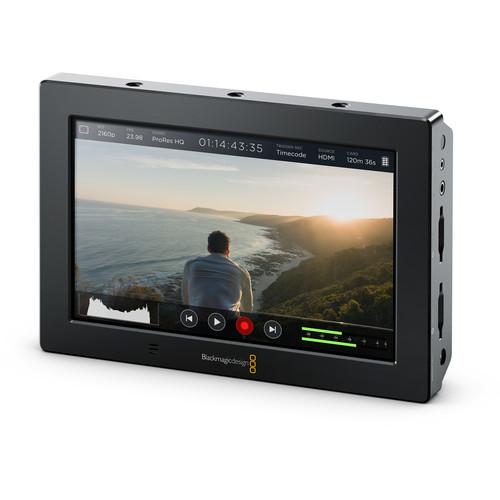

7" Full HD Display

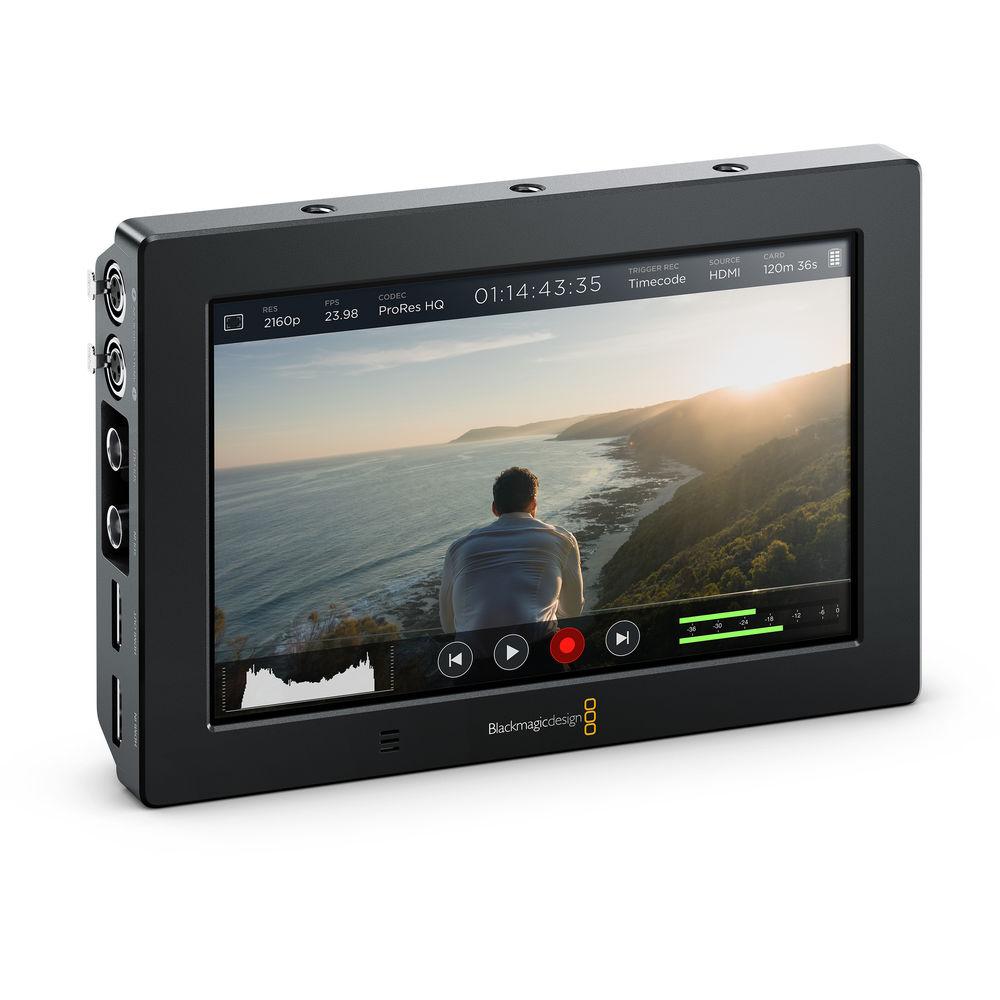

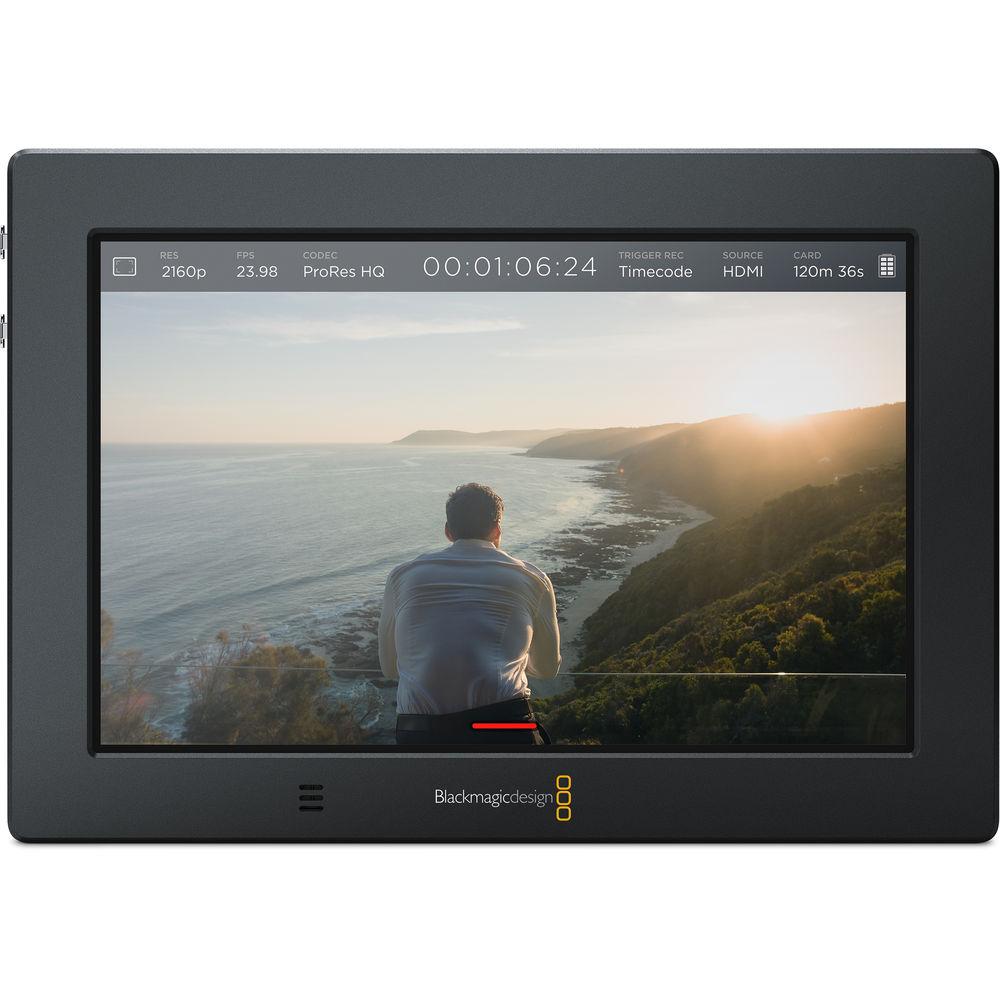

• The front of the monitor features a bright 7" 1920 x 1200 display for evaluating your shots. On-screen controls allow you to vary the brightness and contrast depending on the shooting situation, and the wide 135° viewing angle makes it easy for multiple crew members to watch at the same time. It even auto rotates so no matter which way you mount it, the picture is always displayed correctly.

Touchscreen Interface
• The 7" display provides intuitive capacitive touchscreen controls. Swipe gestures make it simple and quick to show or hide settings, such as capture resolution and format, as well as screen brightness and contrast. Swipe in another direction and you'll have access to additional controls, recording status, histogram, audio level, timecode, battery status, and more. The controls have a semi-transparent overlay, so you can still be able to keep an eye on every part of your shots.

6G-SDI and HDMI Connections

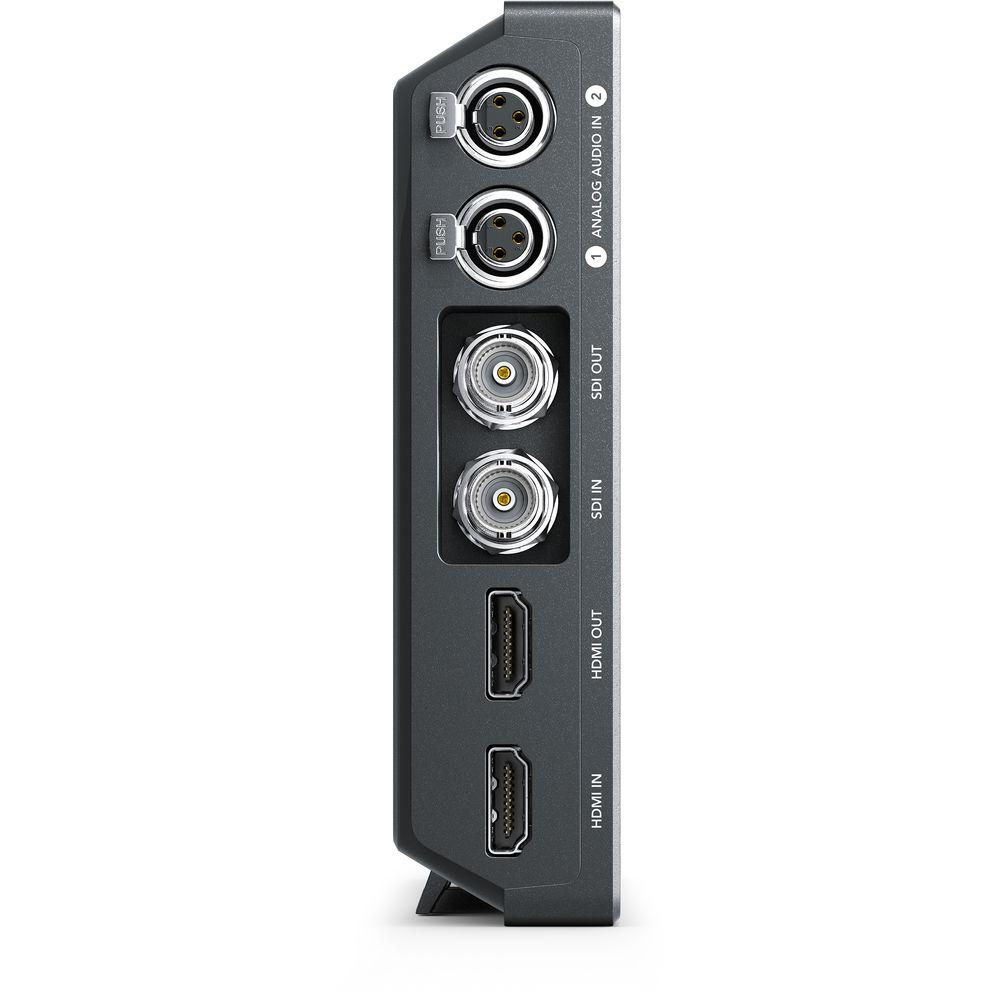

• Video and audio are captured using 6G-SDI and HDMI 2.0 inputs, allowing you to record from professional cameras and camcorders, as well as popular DSLRs and mirrorless cameras. The 6G-SDI input even allows you to monitor Ultra HD footage. Loop-through outputs are provided so you can simultaneously display the live video or recorded clips on larger screens like HD broadcast monitors or HDMI projectors while you monitor and record on the Video Assist. Audio is embedded in the output and can also be monitored on headphones using the 3.5mm stereo jack.

10-Bit 4:2:2 ProRes Recording

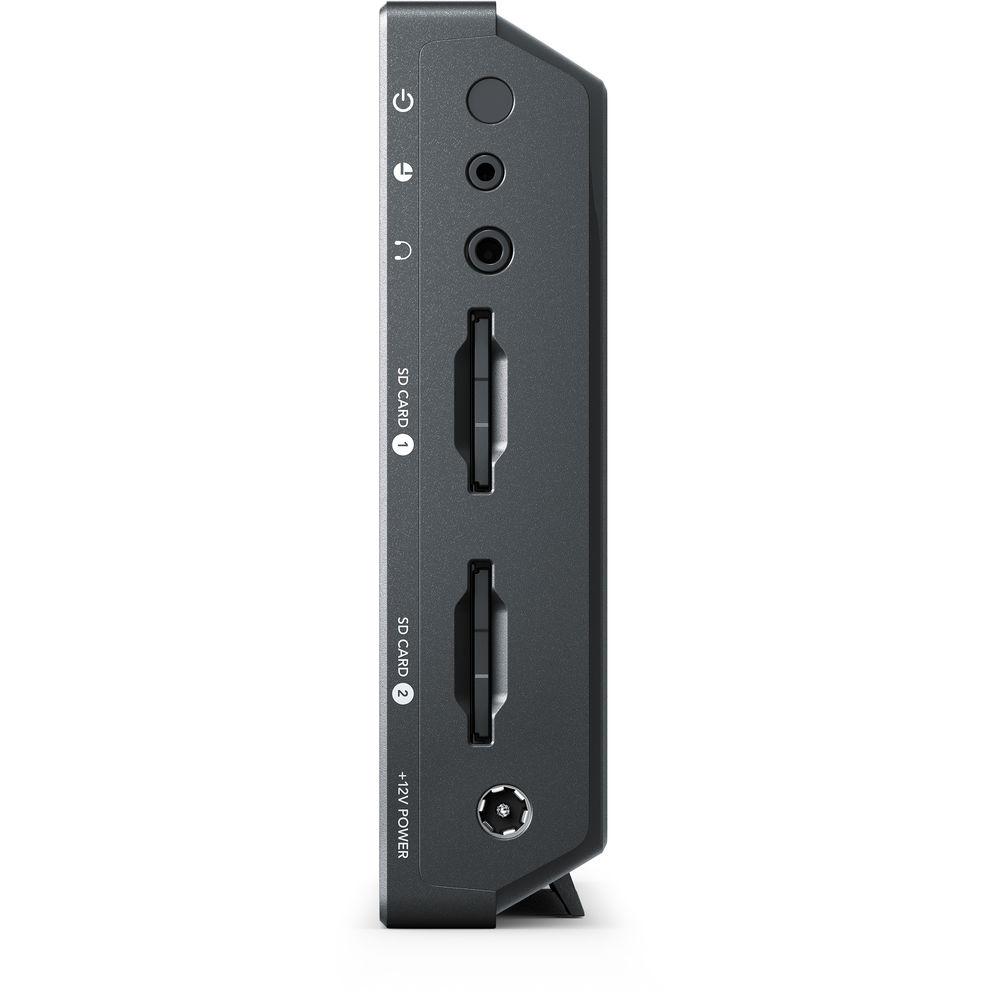

• The Blackmagic Video Assist records your video at the 10-bit 4:2:2 quality. Files are recorded on to high-speed UHS-I or UHS-II SDHC/XC cards using ProRes (HQ, 422, LT, Proxy) codecs. These are industry-standard formats, so you can start editing immediately without having to convert the files. Recording can be automatically triggered on your Blackmagic Video Assist from the start/stop button on compatible cameras, so you can remain focused on getting the shot without having to worry about operating additional gear.

  Note: High-speed UHS-II SD cards are required for Ultra HD recording. High-speed UHS-II or UHS-I cards are required for HD recording.

Compatible SD Cards
• The following cards have been tested and approved by Blackmagic for use with the Video Assist 4K:

  Ultra HD
  Transcend 64GB UHS-II SDXC
  Lexar 64GB 2000x UHS-II SDXC

  1080p60
  Delkin Devices 8GB SD 633X SDHC UHS-I
  Delkin Devices 16GB SD 633X SDHC UHS-I
  SanDisk 64GB Extreme PRO UHS-I SDXC
  Lexar 128GB 1000x UHS-II SDXC
  Lexar 256GB 1000x UHS-II SDXC

  1080i60
  SanDisk 64GB Extreme PRO UHS-II SDXC
  Lexar 32GB 633x UHS-I SDHC

  All UHS-I and UHS-II cards should be fast enough to record compressed HD video up to 60 fps, but it is recommended that you use Blackmagic's Disk Speed Test software to test and make sure. The software is downloaded from Blackmagic's website.

Power

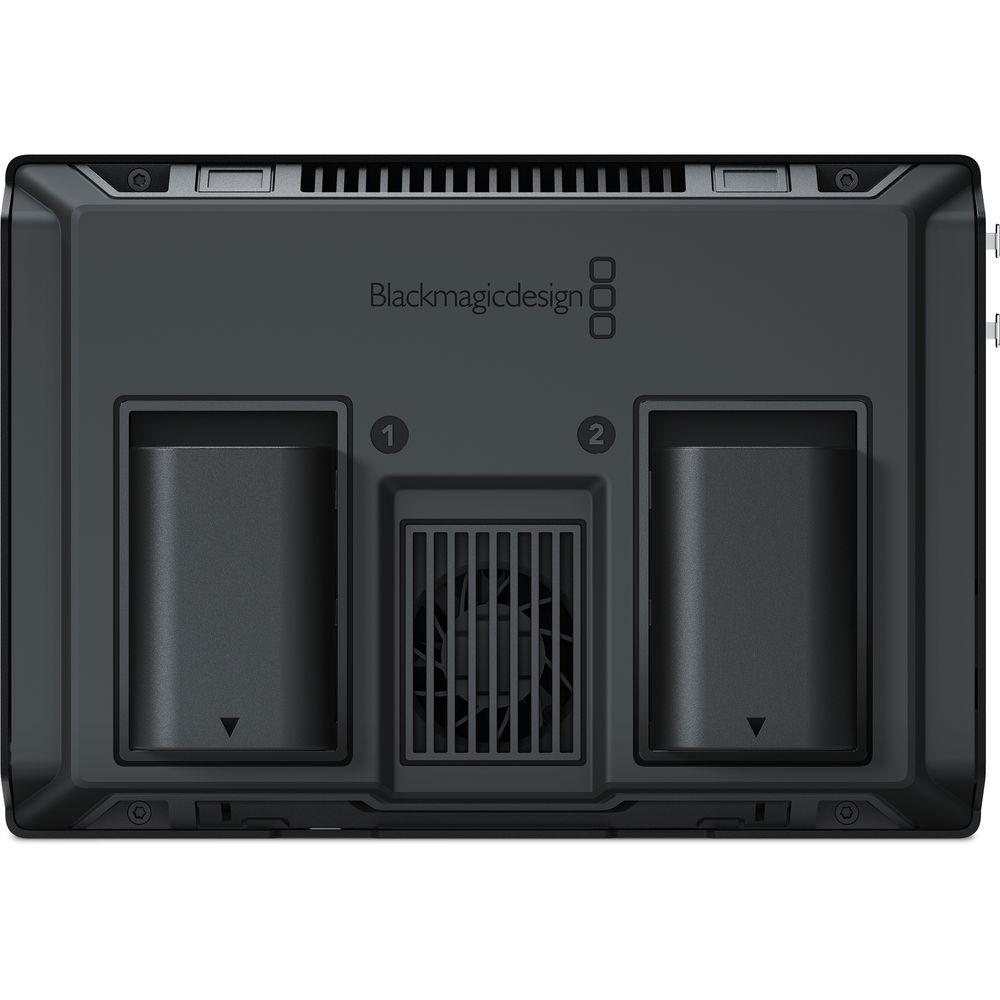

• A universal 110V to 240V AC power supply so you can use the Video Assist anywhere. Plug the AC adapter into the 12V DC input you get continuous power, or run off of dual Canon compatible LP-E6 type batteries. Intelligent battery management will use the battery with less charge first, then immediately switch to the other battery without interrupting recording. When connected to AC power, the batteries can be charged in parallel while the Video Assist is still being used.

Additional Features
• • Histogram and zebra overlays for exposure aid
  • Focus Peaking and Central Zoom to aid focus
  • Timecode over SDI and HDMI
  • Can control settings on Blackmagic Micro Cinema Camera
  • Machined aluminum housing
  • Built-in kickstand
  • Six 1/4"-20 threaded mounting holes (three on top, three on bottom)
    In the Box Blackmagic Design Video Assist 4K 7" HDMI/6G-SDI Recording Monitor
  • 12V Universal Power Supply with International Socket Adapters
  • Limited 1-Year Warranty
