User Manual for Blackmagic Design Video Assist HDMI 6G-SDI Recorder and 5" Monitor Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Video Assist HDMI 6G-SDI
- Product category: Recorders & Duplication Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Recorders & Duplication
 |
User manual for the Blackmagic Design Video Assist HDMI 6G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|

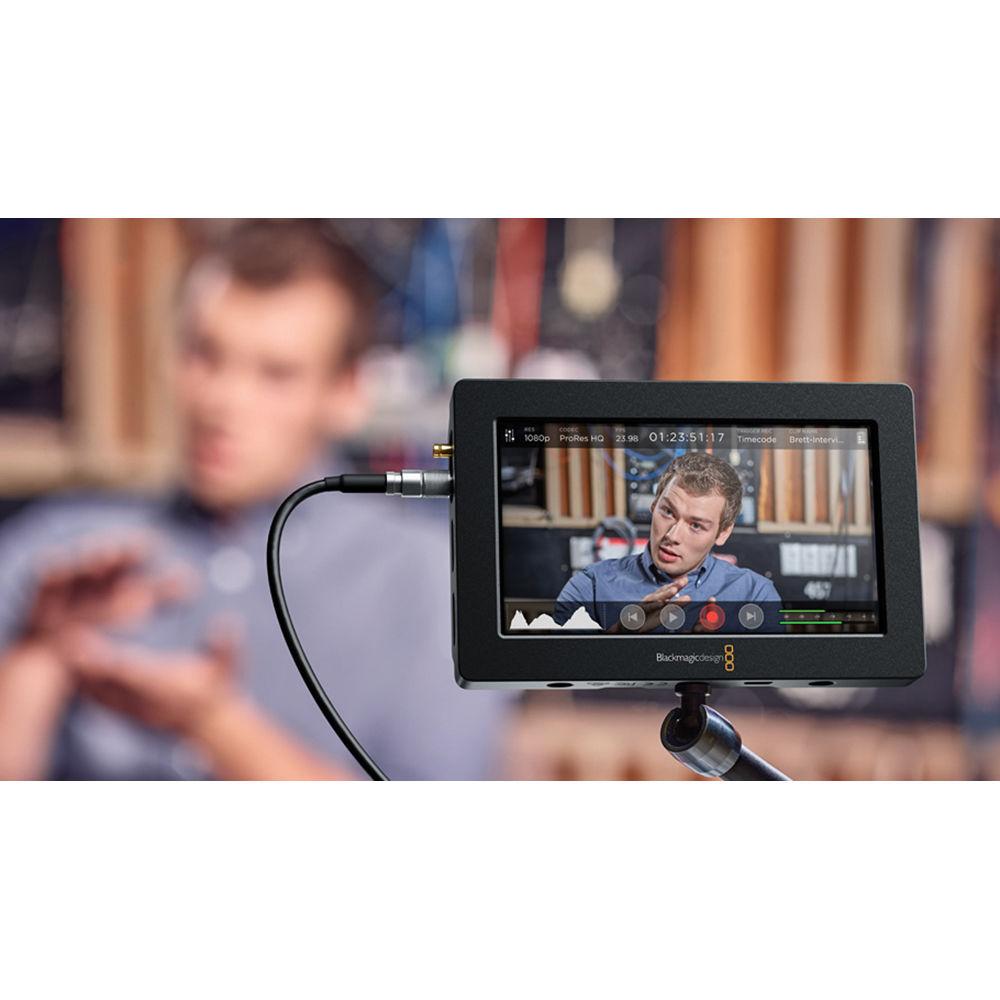

Product description Micro Cinema Camera Now In Stock Read More Add professional monitoring and high-quality recording to virtually any camera with the Blackmagic Video Assist. It features a 5" 1920 x 1080 display to help you frame and focus your shots, and provides 6G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. The Video Assist records 10-bit 4:2:2 video up to 1080p60 to high-speed U1 SDHC/XC memory cards using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNx codecs. A touchscreen interface allows you to adjust settings and access monitoring features such as histogram, zebra, focus peaking, audio meters, timecode display, and more. To power the monitor, a 110-240 VAC power adapter is included. It also has dual battery slots on the rear that you power the monitor using Canon LP-E6 type batteries. - 5" Full HD Display

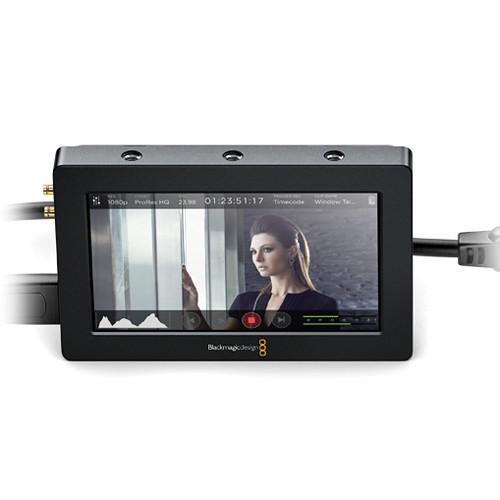

- The front of the monitor features a bright 5" 1920 x 1080 display for evaluating your shots. On-screen controls allow you to vary the brightness and contrast depending on the shooting situation, and the wide 135° viewing angle makes it easy for multiple crew members to watch at the same time. It even auto rotates so no matter which way you mount it, the picture is always displayed correctly.
- Touchscreen Interface

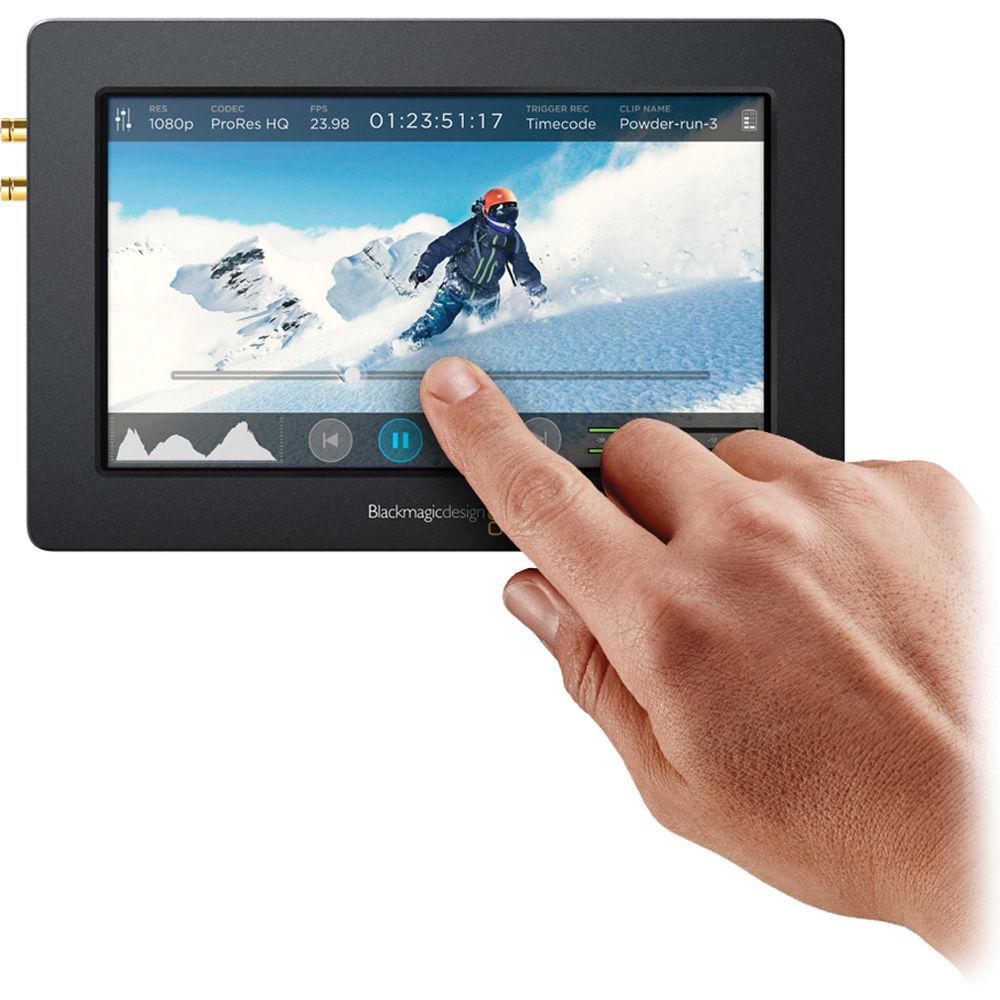

- The 5" display provides intuitive capacitive touchscreen controls. Swipe gestures make it simple and quick to show or hide settings, such as capture resolution and format, as well as screen brightness and contrast. Swipe in another direction and you'll have access to additional controls, recording status, histogram, audio level, timecode, battery status, and more. The controls have a semi-transparent overlay, so you can still be able to keep an eye on every part of your shots.
- 6G-SDI and HDMI Connections

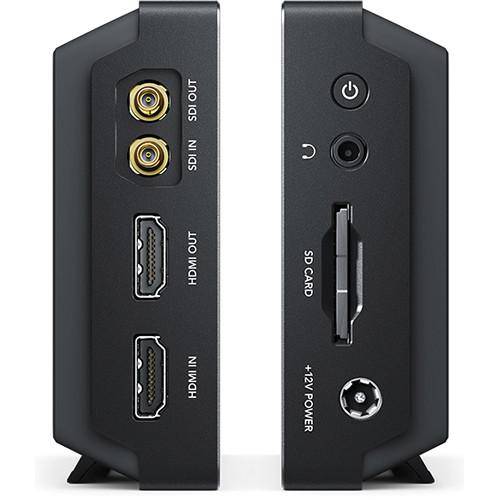

- Video and audio are captured using 6G-SDI and HDMI 1.4 inputs, allowing you to record from professional cameras and camcorders, as well as popular DSLRs and mirrorless cameras. The 6G-SDI input even allows you to monitor Ultra HD footage. Loop-through outputs are provided so you can simultaneously display the live video or recorded clips on larger screens like HD broadcast monitors or HDMI projectors while you monitor and record on the Video Assist. Audio is embedded in the output and can also be monitored on headphones using the 3.5mm stereo jack.
- 10-Bit 4:2:2 ProRes & DNxHD Recording
- The Blackmagic Video Assist records your video at the 10-bit 4:2:2 quality. Files are recorded on to high-speed U1 SD cards, using Apple ProRes (HQ, 422, LT, Proxy) or DNxHD codecs. These are industry-standard formats, so you can start editing immediately without having to convert the files. Recording can be automatically triggered on your Blackmagic Video Assist from the start/stop button on compatible cameras, so you can remain focused on getting the shot without having to worry about operating additional gear.
- Power

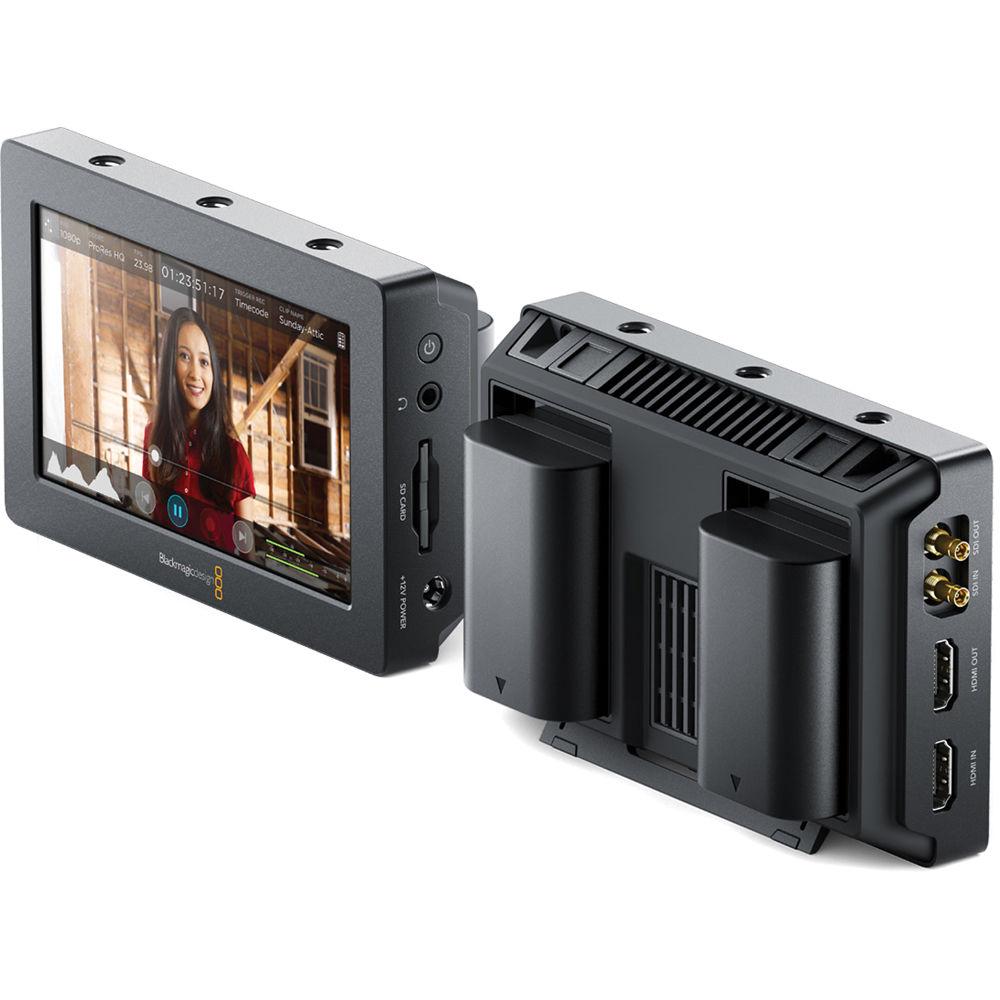

- A universal 110V to 240 VAC power supply so you can use the Video Assist anywhere. Plug the AC adapter into the 12 VDC input you get continuous power, or run off of dual Canon compatible LP-E6 type batteries. Intelligent battery management will use the battery with less charge first, then immediately switch to the other battery without interrupting recording. When connected to AC power, the batteries can be charged in parallel while the Video Assist is still being used.
- Additional Features
-
- Histogram and zebra overlays for exposure aid
- Focus Peaking and Central Zoom to aid focus
- Timecode over SDI and HDMI

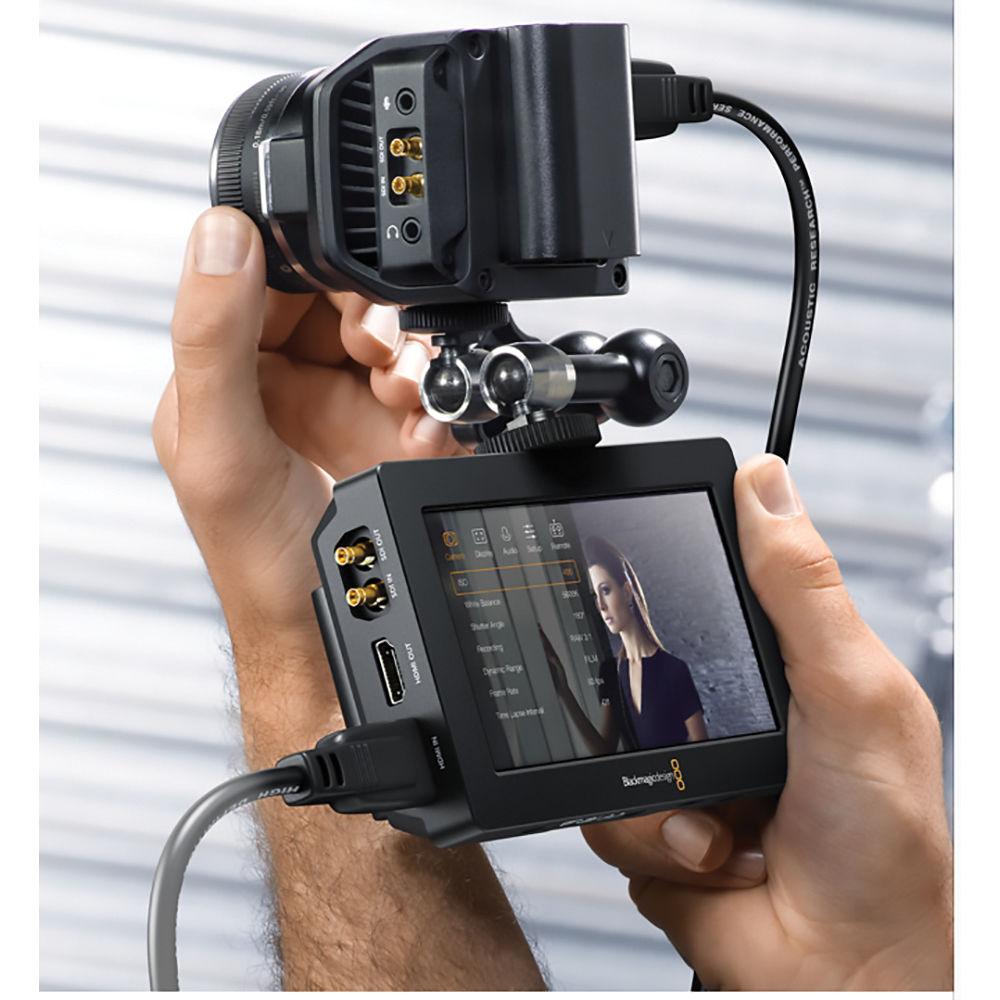

- Can control settings on Blackmagic Micro Cinema Camera
- Machined aluminum housing
- Built-in kickstand
- Six 1/4"-20 threaded mounting holes (three on top, three on bottom)
In the Box Blackmagic Design Video Assist HDMI/6G-SDI Recorder and 5" Monitor - Power Supply for Video Assist
- Limited 1-Year Warranty
User Manual PDF 404.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Video Assist HDMI 6G-SDI Recorder and 5" Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design HYPERD/AVIDAS5HD Specs | | | Panel Type | TFT LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Viewing Angle | Horizontal: 135° | | Touchscreen | Yes | | | | Video | 1 x HDMI Type A Input
1 x DIN 1.0/2.3 (6G-SDI) Input
1 x HDMI Type A Output
1 x DIN 1.0/2.3 (3G-SDI) Output | | HDCP Support | No | | Embedded Audio | HDMI: 2-Channel
SDI: 2-Channel | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x USB 2.0 (Mini-USB)
1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 50/59.94/60
PAL
NTSC
HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
480p: 60
576p: 50
PAL
NTSC | | | | Encoding Formats | 1920 x 1080
ProRes 422, LT, Proxy, HQ
DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF | | Recording Media | 1 x SDXC (UHS-I) | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Battery Type | 2 x LP-E6 | | | | Operating Humidity | 0 to 90% | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | -6 to 113°F / -21 to 45°C | | | | Dimensions (W x H x D) | 5.63 x 1.2 x 3.54" / 14.3 x 3.05 x 8.99 cm | | Weight | 12.77 oz / 362.02 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 8.2 x 7.2 x 2.6" |
