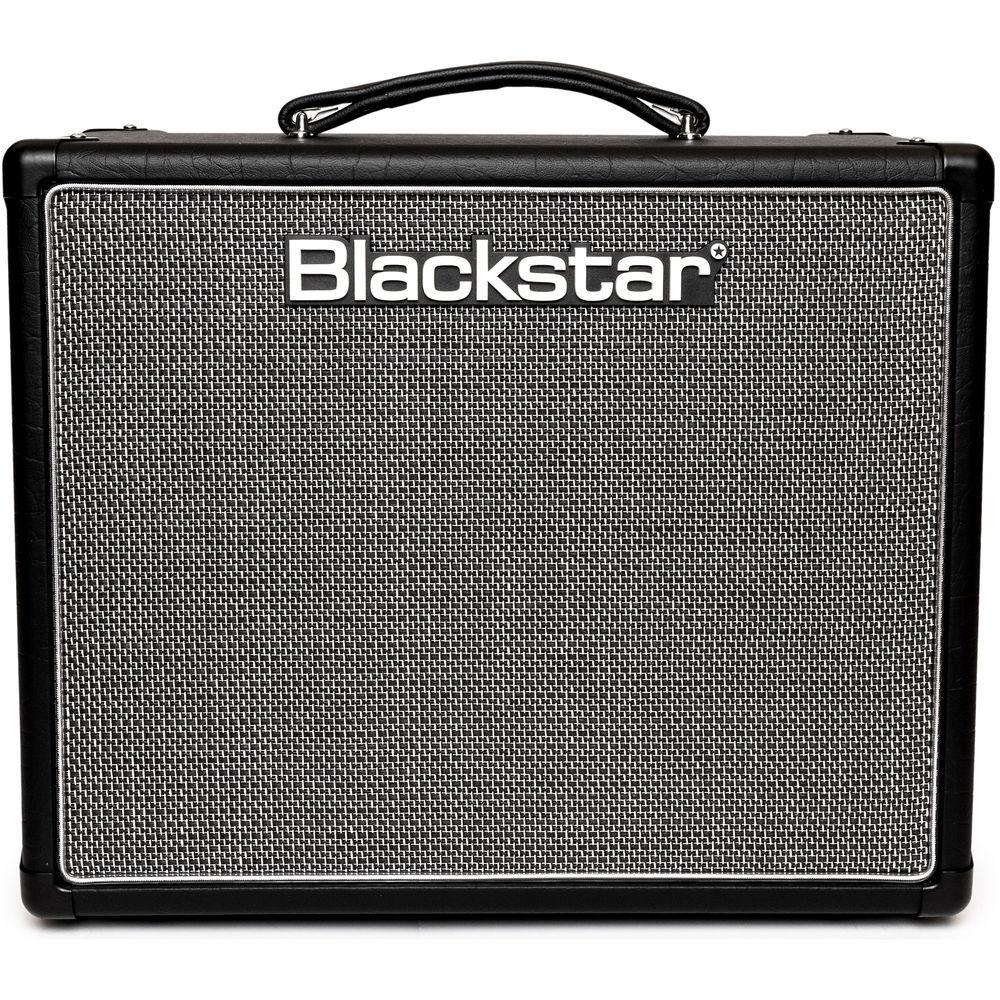

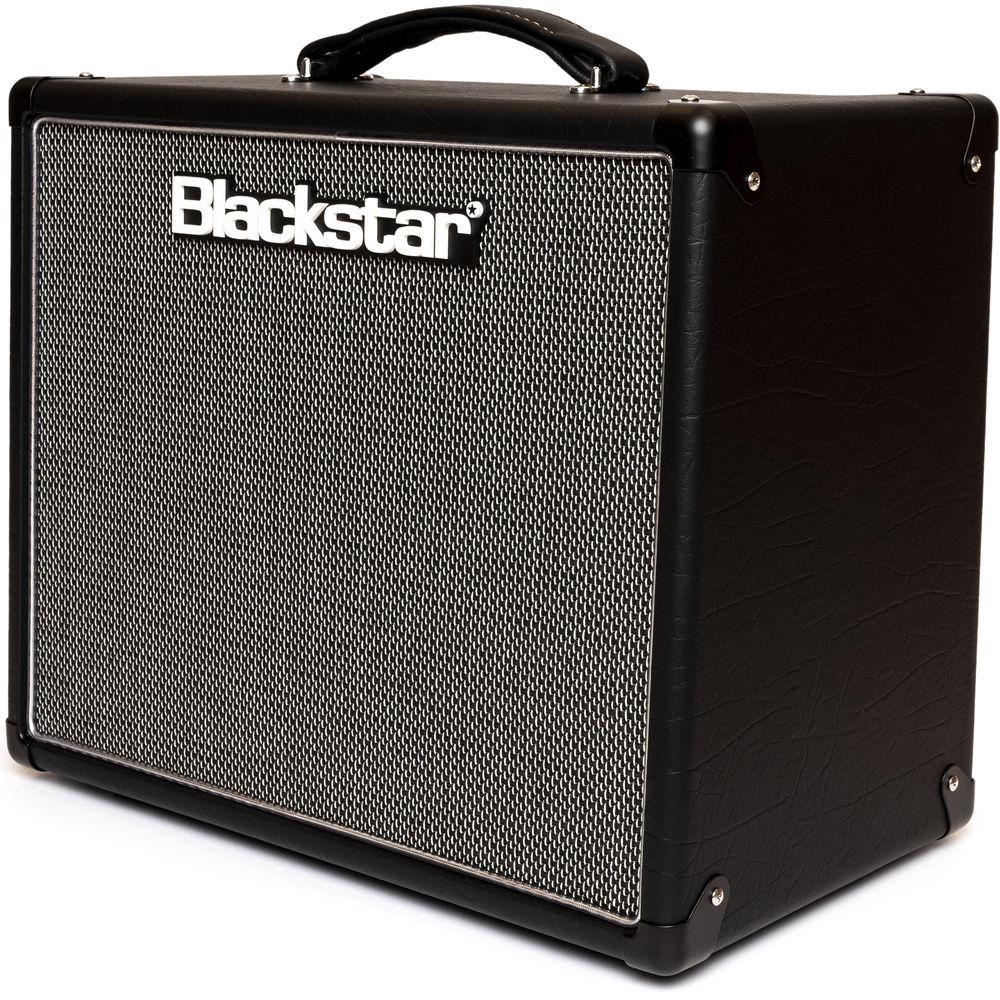

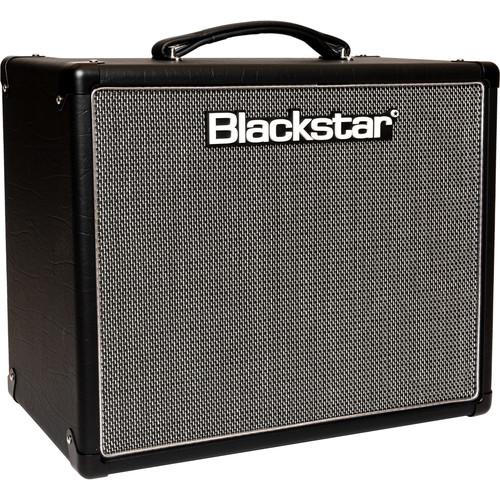

User Manual for Blackstar 5W 1x12 Tube Guitar Combo Amplifier Click to enlarge the picture
Contents of the user manual for the Blackstar 5W 1x12 Tube Guitar Combo
- Product category: Guitar Amplifiers Blackstar
- Brand: Blackstar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackstar Guitar Amplifiers
 |
User manual for the Blackstar 5W 1x12 Tube Guitar Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackstar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackstar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackstar product will considerably shorten its lifespan!
|

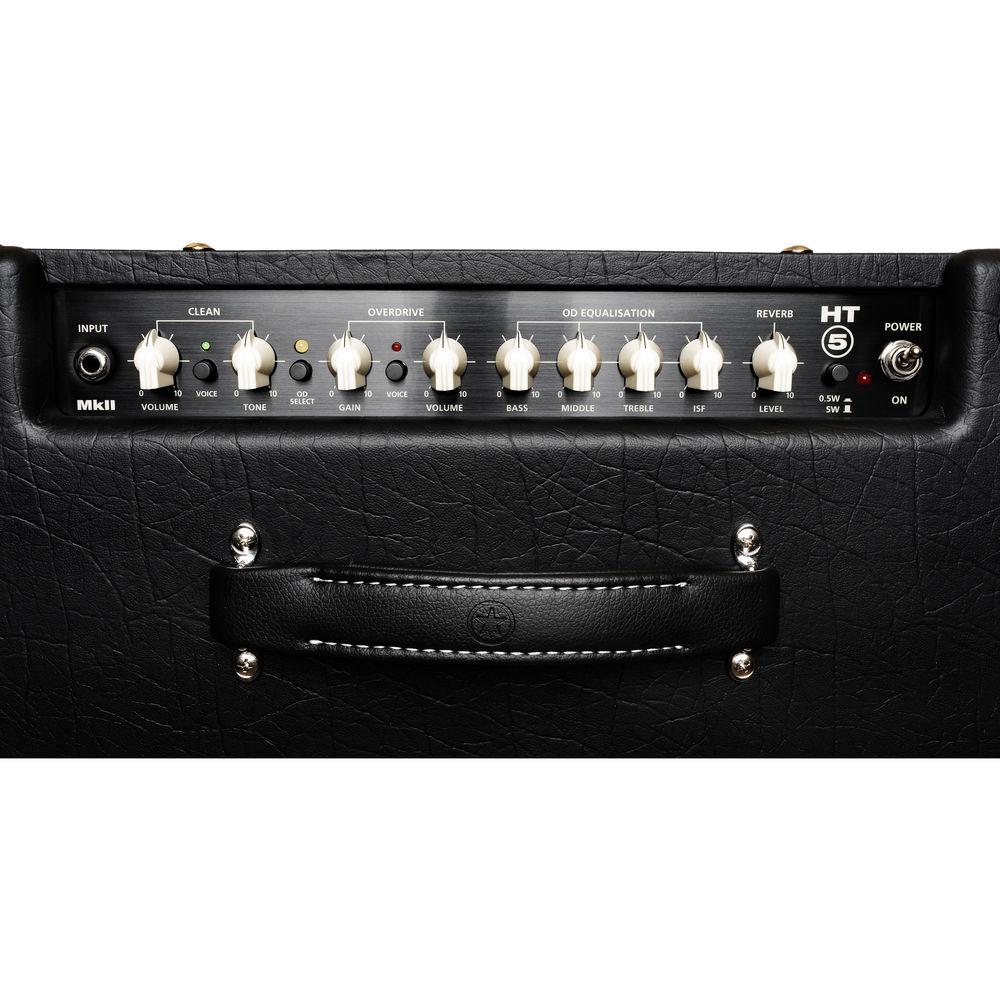

Product description Designed for electric guitar players, the Blackstar 5W Tube Guitar Combo Amplifier is capable of powering 5W into its single 12" speaker. It provides two channels, one for Clean and another for Overdrive. An included footswitch allows you to easily switch between the channels.The overdrive channel offers a three-knob tone stack and Blackstar's proprietary ISF tonal filter, while the clean section gives you a simple tone control. Reverb is also on hand for adding space to the signal. The amp's size and features make it ideal for recording, practice, jamming, performance, and more.Using a 12BH7 tube for rich harmonics and compression, the amplifier's power section produces the crunch and break-up characteristics of a traditional 100W output stage, but at a much lower volume. You secure an even lower level by pressing the output-power reduction switch, which gives you 0.5W operation. An ECC83 tube is used to drive the preamp section.This combo amp includes a 1/4" line output and an XLR DI out. Both of these respond to a voicing switch that allows you to change the tonal characteristics of the emulated signal. Choose between a 4x12" closed-back or a 1x12" open-back cabinet sound. You'll also note an effects loop with switchable level. This enables you to use the amp with guitar-level effects such as stompboxes or rackmount gear. You'll find 1/4" 16- and 8-Ohm speaker outputs, as well as a stereo MP3/line input and a USB port. UPC: 845644004973 In the Box Blackstar 5W 1x12 Tube Guitar Combo Amplifier 2-Button Footswitch Limited 3-Year Warranty on Amplifier Limited 1-Year Warranty on Speaker Limited 90-Day Warranty on Footswitch & Tubes Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackstar 5W 1x12 Tube Guitar Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

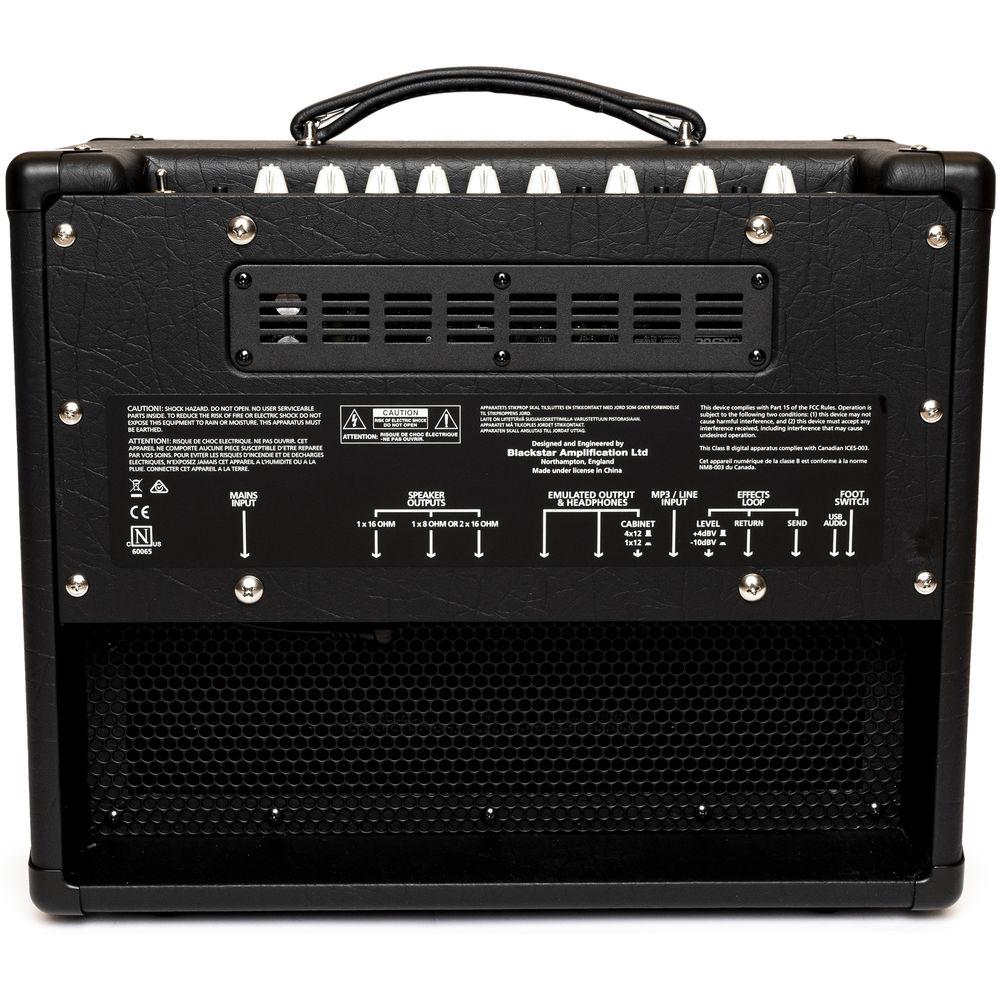

Technical parametersBlackstar HT5RMKII Specs | | | Amplifier Type | Tube | | Output Power | 5 W RMS | | Channels | 2 | | Tube Types | 1 x Preamp 12AX7/ECC83
1 x Power 12BH7 | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | Digital Reverb | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Stereo Line Level
1 x 1/4" Stereo Footswitch
1 x 1/4" Mono Effects Return | | Outputs | 3 x 1/4" Mono Speaker
1 x 1/4" Stereo Emulated Speaker
1 x XLR Mono Digital Output
1 x 1/4" Mono Effects Send
1 x USB Stereo Interface | | Tone Section | Channel 1: Channel Volume, Tone
Channel 2: Bass, Channel Volume, Gain, Mid, Tone, Treble | | | | Configuration | 1 x 12" Speaker(s) | | | | Dimensions (WxHxD) | 21.6 x 14.2 x 13.8" / 548.6 x 360.7 x 350.5 mm Amplifier | | Weight | 28.88 lb / 13.10 kg Amplifier |
