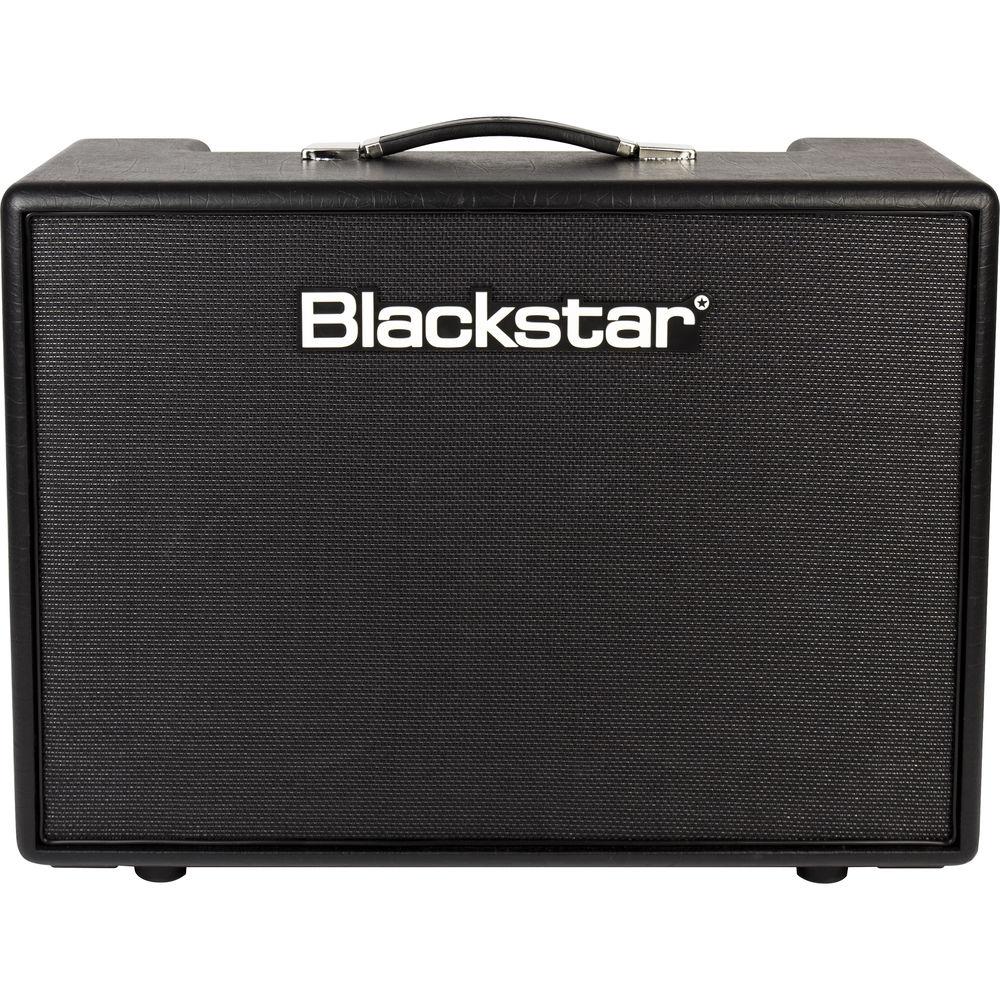

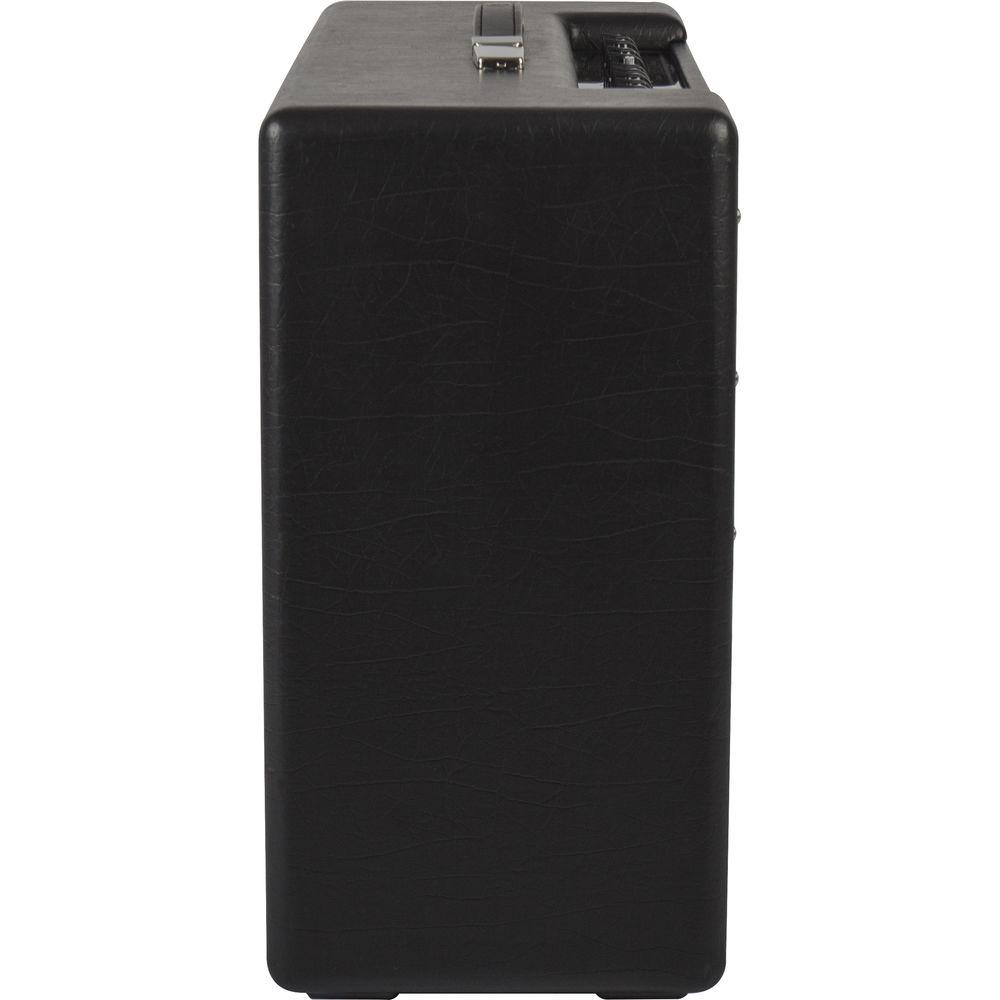

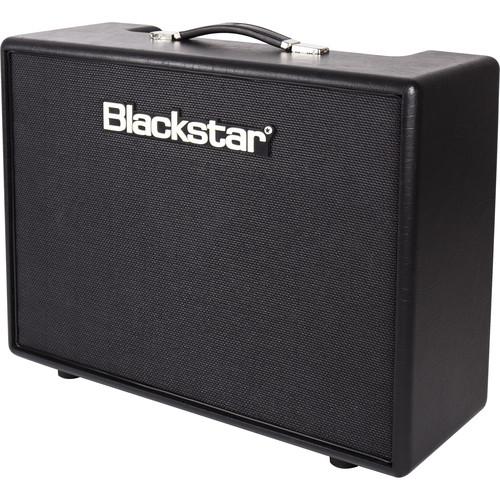

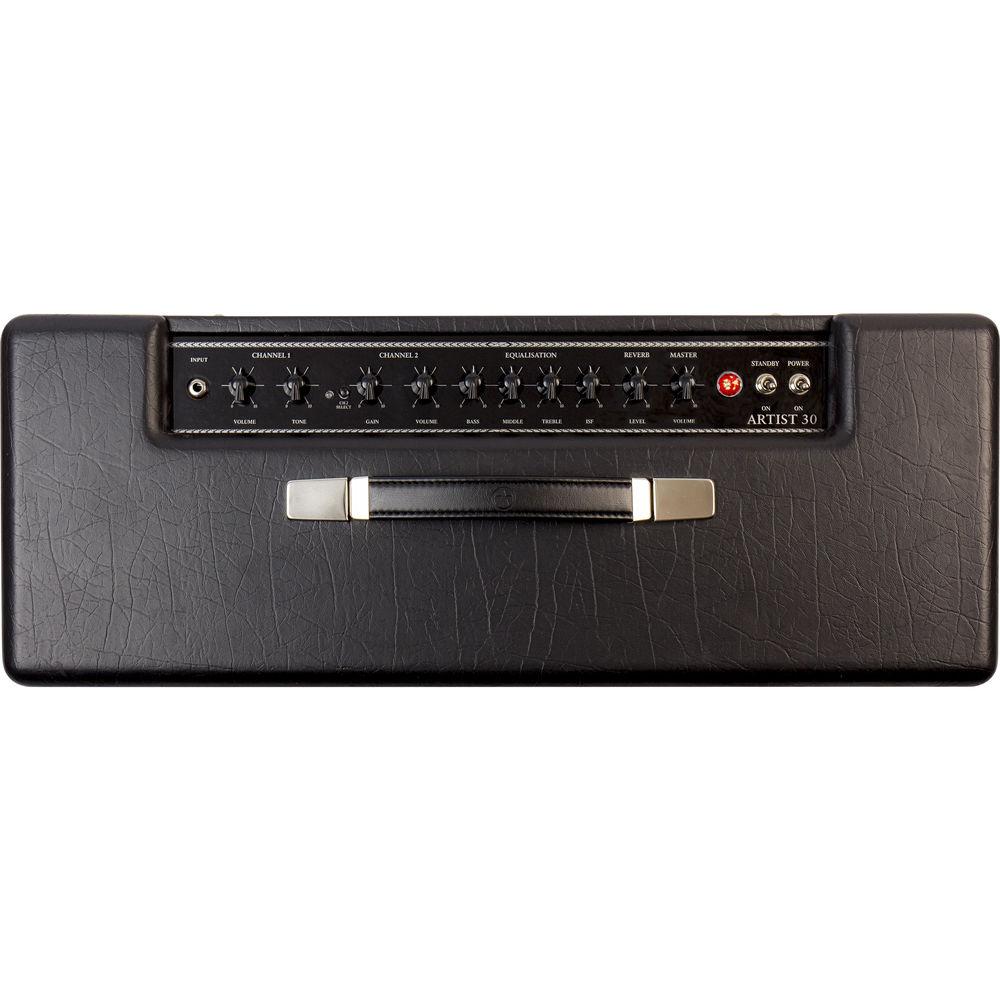

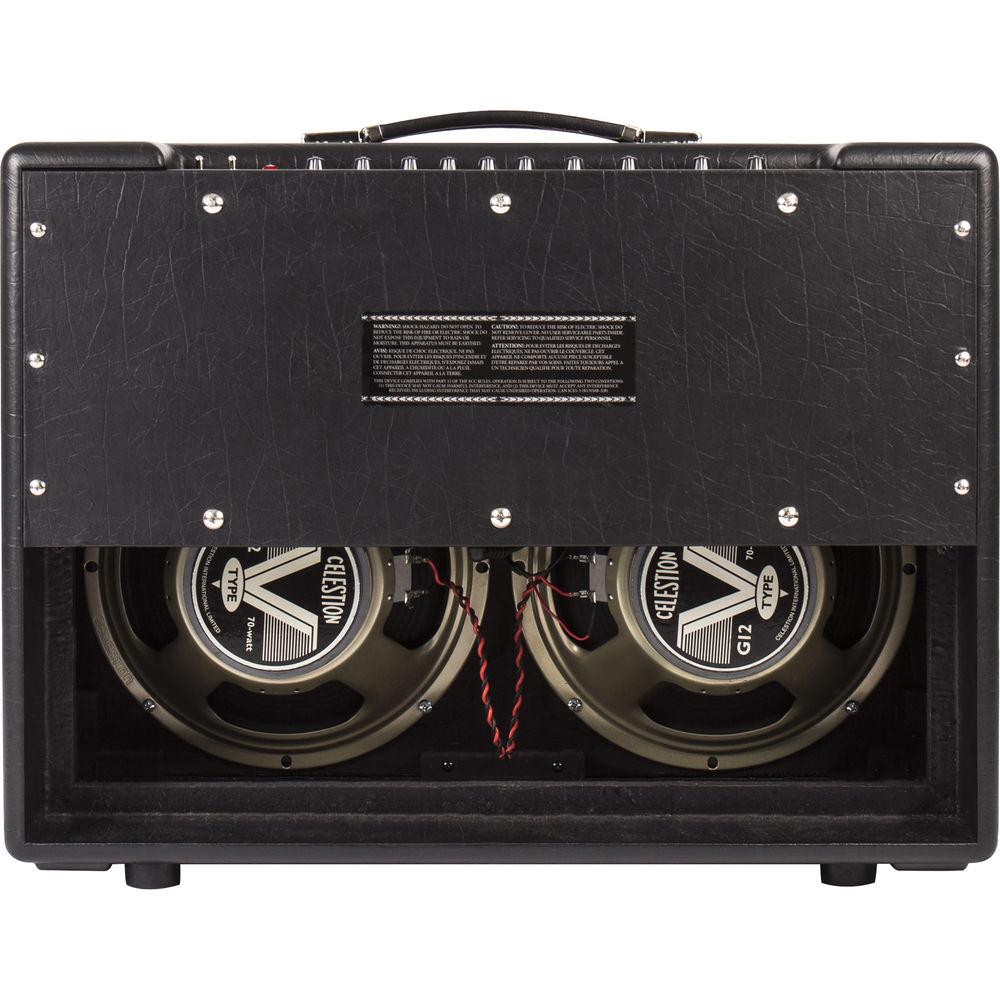

User Manual for Blackstar Artist 30 - 30W 2x12 Tube Combo Amplifier Click to enlarge the picture
Contents of the user manual for the Blackstar Artist 30 - 30W 2x12
- Product category: Guitar Amplifiers Blackstar
- Brand: Blackstar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackstar Guitar Amplifiers
 |
User manual for the Blackstar Artist 30 - 30W 2x12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackstar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackstar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackstar product will considerably shorten its lifespan!
|
Product description Designed for electric guitarists with discerning tonal tastes, the Blackstar Artist 30 is a 30W tube combo amplifier with two channels, either of which can be set for clean and/or overdriven timbres. This particular amplifier is styled in black.Its particular tube configuration allows the amplifier to retain the dynamic range typical of American 6L6 designs, while its Class-A circuitry lends guitar players the aural qualities of a classic British-style amplifier. In this manner, the amplifier gives you much in the way of tonal versatility. It also features two 12" Celestion V-Type speakers to further enhance your sound.Channel 1 includes controls for channel volume and tone, while channel 2 provides controls for gain, volume, and a set of controls for EQ. For equalization, you get a classic tone stack with bass, midrange, and treble, as well as an addition unique to Blackstar—the ISF knob, which was designed to help you fine tune your desired tone. Reverb and master volume round out the controls.With three speaker outputs and one emulated speaker output jack, possibilities for extending and routing your sound abound. A serial effects loop is also provided, complete with a pad switchable between +4 and -10 dB, to better suit many different types of output gear. You'll also find a light/dark switch on the back panel which will change the character of the amp's reverb. A footswitch jack is provided, as is the FS-8 two-way footswitch, which allows you to switch between channels and turns the reverb on and off. - Features at a Glance
-
- 2x ECC83 preamp tubes and 2x 6L6 power tubes
- Class-A amplifier
- 2 channels, clean or overdrive on each channel
- Effects loop connection with +4 / -10 dBV pad
- Classic American and British amplifier sounds
- 3 speaker outputs for 8- or 16-Ohm loads
- Emulated speaker output for recording or a line out to a PA
- Built-in reverb with light/dark character selector
- Includes FS-8 footswitch for channel selection and reverb on/off
In the Box Blackstar Artist 30 - 30W 2x12 Tube Combo Amplifier (Black) FS-8 Footswitch Limited 3-Year Warranty on Amplifier Limited 1-Year Warranty on Speakers Limited 90-Day Warranty on Pedals, Accessories, Tubes, & Fuses Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackstar Artist 30 - 30W 2x12 Tube Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackstar ARTIST30 Specs | | | Amplifier Type | Tube | | Output Power | 30 W RMS | | Channels | 2 | | Tube Types | 2 x Preamp 12AX7/ECC83
2 x Power 6L6 | | Output Impedance | 8/16 Ohms Mono
1/16/1/16 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | Digital Reverb | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Footswitch
1 x 1/4" Mono Effects Return | | Outputs | 3 x 1/4" Mono External Speaker
1 x 1/4" Mono Emulated Speaker
1 x 1/4" Mono Effects Send | | Tone Section | Channel 1: Channel Volume, Tone
Channel 2: Bass, Channel Volume, Gain, Mid, Treble | | | | Speaker Through/Output | 3 x 1/4" | | Configuration | 2 x 12" Speaker(s) | | Cabinet Type | Straight Half-Open Mono | | Construction Material | Birch | | | | Dimensions (WxHxD) | 27.2 x 21.3 x 10.2" / 690.0 x 540.0 x 260.0 mm Combo | | Weight | 49.60 lb / 22.5 kg Combo |
