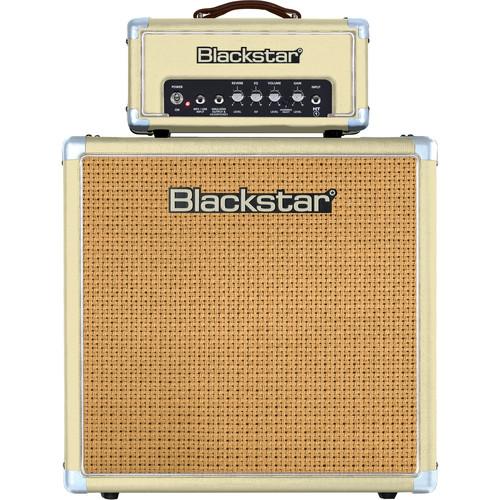

User Manual for Blackstar HT-1R 1W Amp Head with HT-112 50W Cabinet Click to enlarge the picture
Contents of the user manual for the Blackstar HT-1R 1W Amp Head with
- Product category: Guitar Amplifiers Blackstar
- Brand: Blackstar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackstar Guitar Amplifiers
|
User manual for the Blackstar HT-1R 1W Amp Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackstar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackstar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackstar product will considerably shorten its lifespan!
|
Product description Styled in a limited edition blonde finish, the Blackstar HT-1R Amp Head with HT-112 Cabinet is suitable for use in the studio and for practice. The amplifier head is tube-powered, packing the tone and features of the larger HT-5 tube amp into a compact 1W format.
The amplifier uses a low-powered push-pull design which produces the crunch and break-up characteristics of a traditional 100W output stage, but at a much lower volume. This is achieved by the use of an ECC82 dual-triode tube in push-pull configuration producing 1 watt of output, which is rich in valve harmonics and compression.
The amp features Blackstar's proprietary ISF (Infinite Shape Feature) tone control, allowing you to dial in tones that take you from the USA to the UK and anywhere in between. Use the speaker-emulated stereo output to connect to a recording device or mixing desk. Connect headphones or an MP3 player to the line input for jamming along with your favorite tracks. On the included HT-112, connect to the 16-Ohm input, and play through a speaker specifically voiced for the HT series. - Key Features at a Glance
-
- 1-watt tube amplifier
- 1 x ECC83 tube and 1 x ECC82 tube
- Push-pull power amp design
- Based on HT-5 amp
- Two channels: Clean & Overdrive
- 1x12" cabinet
- 50W output
In the Box Blackstar HT-1R 1W Amp Head with HT-112 50W Cabinet (Limited Edition Blonde) Limited 3-Year Warranty Limited 1-Year Warranty on Speakers Limited 90-Day Warranty on Tubes and Fuse Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackstar HT-1R 1W Amp Head with HT-112 50W Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackstar HT1RHPACKBLD Specs | | | Amplifier Type | Tube | | Output Power | 1 W RMS | | Channels | 2 | | Tube Types | 1 x Power 12AU7/ECC82
1 x Preamp 12AX7/ECC83 | | Output Impedance | 4/16 Ohms Mono | | Effects Loop | No | | Built-In Effects | Digital Reverb | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/8" Stereo Line Level | | Outputs | 1 x 1/4" Mono Speaker
1 x 1/4" Stereo Emulated Speaker | | Tone Section | Channel 1: Gain
Channel 2: Gain | | EQ | 1-Band Semi-Parametric | | | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Open Mono | | Power Rating | 50 W RMS | | Input Impedance | 16 ohms Mono | | | | Dimensions (WxHxD) | 12.1 x 12.0 x 6.8" / 308.0 x 305.0 x 172.0 mm Amplifier
17.4 x 9.8 x 17.5" / 443.0 x 249.0 x 444.0 mm Cabinet | | Weight | 8.82 lb / 4 kg Amplifier
23.63 lb / 10.72 kg Cabinet |
