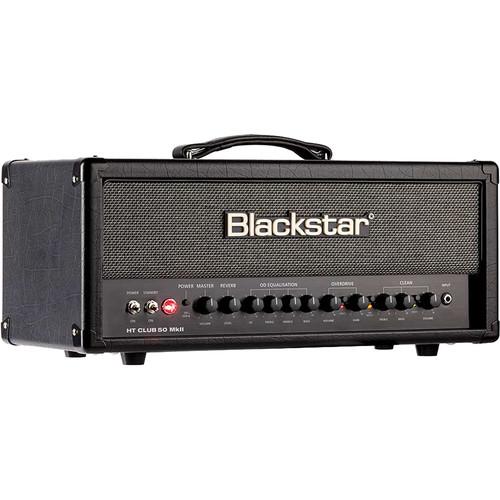

User Manual for Blackstar HT Club MKII 50 - 50W Amplifier Head for Electric Guitar Click to enlarge the picture
Contents of the user manual for the Blackstar HT Club MKII 50 -
- Product category: Guitar Amplifiers Blackstar
- Brand: Blackstar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackstar Guitar Amplifiers
 |
User manual for the Blackstar HT Club MKII 50 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackstar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackstar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackstar product will considerably shorten its lifespan!
|
Product description The Blackstar HT Club 50 MKII is an amplifier head designed for electric guitars. Utilizing dual EL34 power tubes and a preamp powered by two ECC83 tubes, the amplifier projects 50W of clean or distorted guitar tone, enough to fill a medium-sized venue.
The HT Club has two channels, each equipped with two voicing modes to craft your tone. The Clean channel has two voicing modes. One voicing mode mimics a classic British tone with increased middle and top end, and can be overdriven at higher volume settings. The other mode has a tighter sound with greater bass response and cleaner headroom, more akin to an American-style clean amplifier.
For additional distorted sounds, the Overdrive channel has its own traditional tone stack consisting of Bass, Middle, and Treble controls, as well as dual voicing modes. When the Voice switch is in the out position, the overdrive takes on a classic crunchy tonality with a tight response. Press the Voice switch in, and the amp will apply more mid-band gain, adding more body for a smoother sound with a looser response.
To complement the traditional tone stack on the overdrive channel, the HT Club 50 MKII includes Blackstar's ISF for an additional layer of tone control. The ISF shifts the response of the tone stack between a US-type response with tighter bottom end and more aggressive mids at one end, and a less-aggressive, more woody UK-type response on the other. Between the two extremes lies an infinite number of alternative tone choices.The HT Club features a natural-sounding digital reverb that enhances the amp's clean and dirty tones. A Dark/Light switch allows the overall reverb characteristics to be modified and adjusted for different tastes and playing styles, while a power reduction control lets you reduce power handling down to 10% of full wattage, making playing at low levels no less powerful for the lack of volume. Additional amenities on the rear panel of the amp include an effects loop which can be configured for -10 dBV or +4 dBu, depending on the type of equipment being run in the loop. For studio recording and larger venues, a cabinet-voiced direct-out sends a line-level signal, which can be routed to an audio interface or a mixing board, precluding the need for a microphone. For this purpose, XLR and 1/4" jacks are both provided.
You can also use the amp's USB port to route digital audio to your recording interface. In this operation, the HT Club 50 MKII provides four discrete outputs: stereo emulated (left channel), stereo emulated (right channel), preamp output (for use with your own effects and cabinet IRs), and a dry signal.
The amp features a panoply of external speaker jacks, as well as an included footswitch for changing between channels and voicings. For expanded footswitch usage, make use of Blackstar's separately-available five switch footswitch. - Key Features at a Glance
-
- 50W power handling
- Tube compliment of 2 ECC83 and 2 EL34
- Two footswitchable channels
- Four footswitchable voices
- Boutique clean channel with expanded tone controls over original model
- High-gain overdrive channel
- Patented Infinite Shape Feature (ISF)
- Power reduction down to 10% of full wattage
- Master volume
- Digital reverb with Dark/Light switch
- Speaker-emulated output with 1 x 12" or 4 x 12" voicing
- Effects loop with effects level switch
- USB for recording
- 2-way footswitch included
In the Box Blackstar HT Club MKII 50 - 50W Amplifier Head for Electric Guitar 2-Way Footswitch Limited 3-Year Warranty for Amplifier Limited 90-Day Warranty for Tubes Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackstar HT Club MKII 50 - 50W Amplifier Head for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Blackstar HT Club MKII 50 - 50W Amplifier Head for Electric Guitar can be downloaded in PDF format at the link stated below.
Technical parametersBlackstar HT Club MKII 50 Specs | | | Amplifier Type | Tube | | Output Power | 50 W RMS | | Channels | 2 | | Tube Types | 2 x Preamp 12AT7/ECC82
2 x Power EL34/6CA7 | | Output Impedance | 16 Ohms Mono
8/16 Ohms Mono
16 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | Digital Reverb | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
2 x 1/4" Stereo Footswitch | | Outputs | 3 x 1/4" Mono External Speaker
1 x 1/4" Mono Emulated Speaker
1 x 1/4" Mono Effects Send
1 x XLR Mono Emulated Speaker
1 x USB Stereo Interface | | Tone Section | Channel 1: Bass, Channel Volume, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Tone, Treble | | | | Dimensions (WxHxD) | 22.0 x 8.7 x 9.6" / 558.0 x 220.0 x 245.0 mm Amplifier | | Weight | 32.19 lb / 14.6 kg Amplifier |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
