User Manual for Blackstar HT Stage 100 MkII 100W Guitar Amplifier Head Click to enlarge the picture
Contents of the user manual for the Blackstar HT Stage 100 MkII 100W
- Product category: Guitar Amplifiers Blackstar
- Brand: Blackstar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackstar Guitar Amplifiers
 |
User manual for the Blackstar HT Stage 100 MkII 100W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackstar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackstar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackstar product will considerably shorten its lifespan!
|

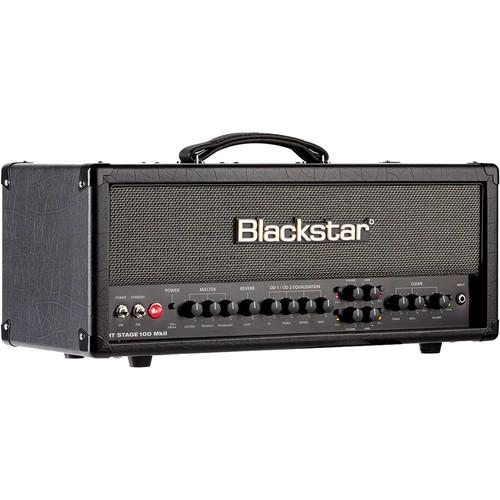

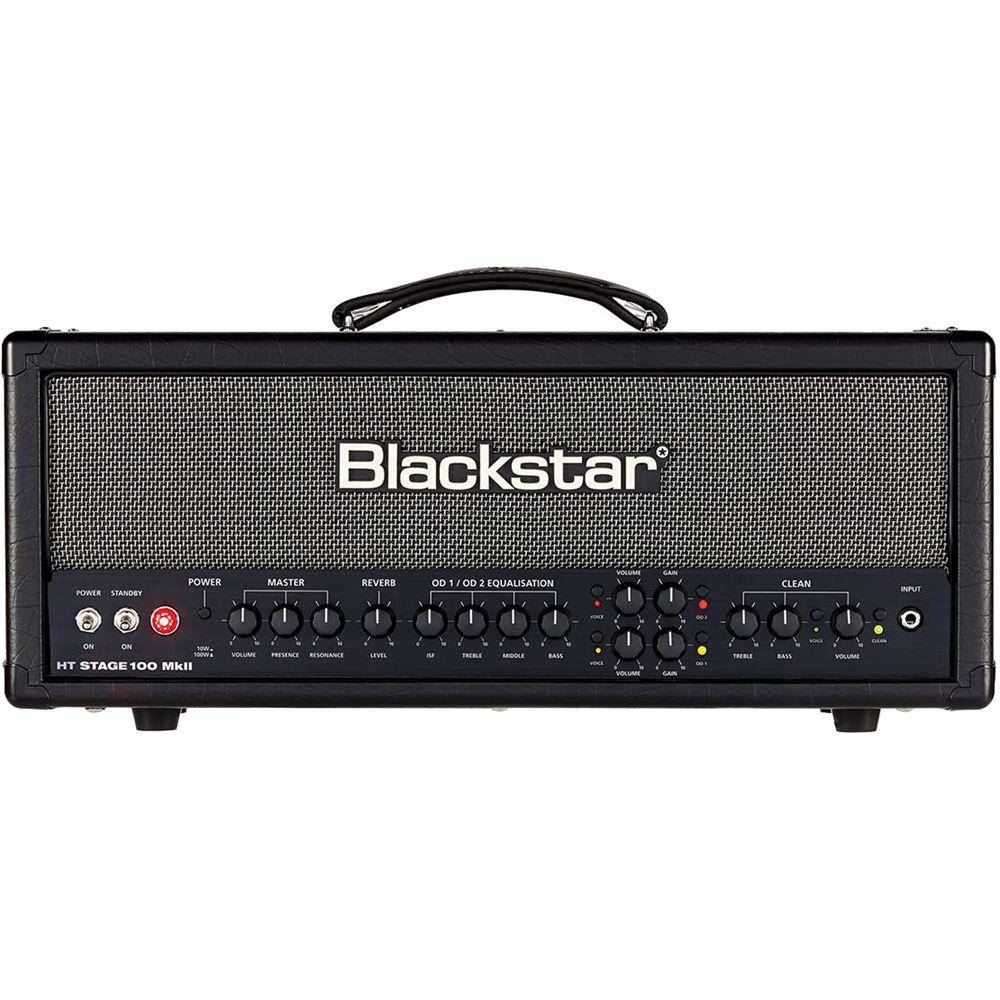

Product description The Blackstar HT Stage 100 MKII is an amplifier head designed for electric guitars. Utilizing four EL34 power tubes and a preamp powered by two ECC83 tubes, the amplifier handles 100W of clean or distorted guitar tone. Combined with appropriate cabinets, this makes the amplifier more than suited to handle all sorts of venues.
The HT Stage 100 MKII sports three channels, each equipped with two voicing modes to craft your tone. In the clean channel, one voicing mode mimics a classic British tone with increased middle and top end. It can be overdriven at higher volume settings. The other voicing mode has a tighter sound with greater bass response and cleaner headroom, more akin to an American-style clean amplifier.
For additional distorted sounds, the two Overdrive channels have their own traditional tone stack consisting of Bass, Middle, and Treble controls, as well as dual voicing modes. When the Voice switch is in the out position, the overdrive takes on a classic crunchy tonality with a tight response. Press the Voice switch in, and the amp will apply more mid-band gain, adding more body for a smoother sound with a looser response.
To complement the traditional tone stack on the overdrive channels, you'll find two ISF knobs that provide an additional layer of tone control. The ISF knob shifts the response of the tone stack between a US-type response with tighter bottom end and more aggressive mids at one end, and a less-aggressive, woodier UK-type response on the other. Between the two extremes lies an infinite number of alternative tone choices. Master controls are provided for volume, presence, and resonance. This amp features five 1/4" speaker jacks of varying impedances, as well as an included footswitch for changing between channels and voicings. For expanded footswitch usage, make use of Blackstar's separately-available five-switch footswitch. - Reverb and Power Reduction Settings
- The HT Stage 100 MkII features a natural-sounding digital reverb that enhances the amp's clean and dirty tones. A Dark/Light switch allows the overall reverb characteristics to be modified and adjusted for different tastes and playing styles, while a power reduction control lets you reduce power handling down to 10% of full wattage, making playing at low levels no less powerful for the lack of volume.
- Effects Loop, Line Out, and USB Interface

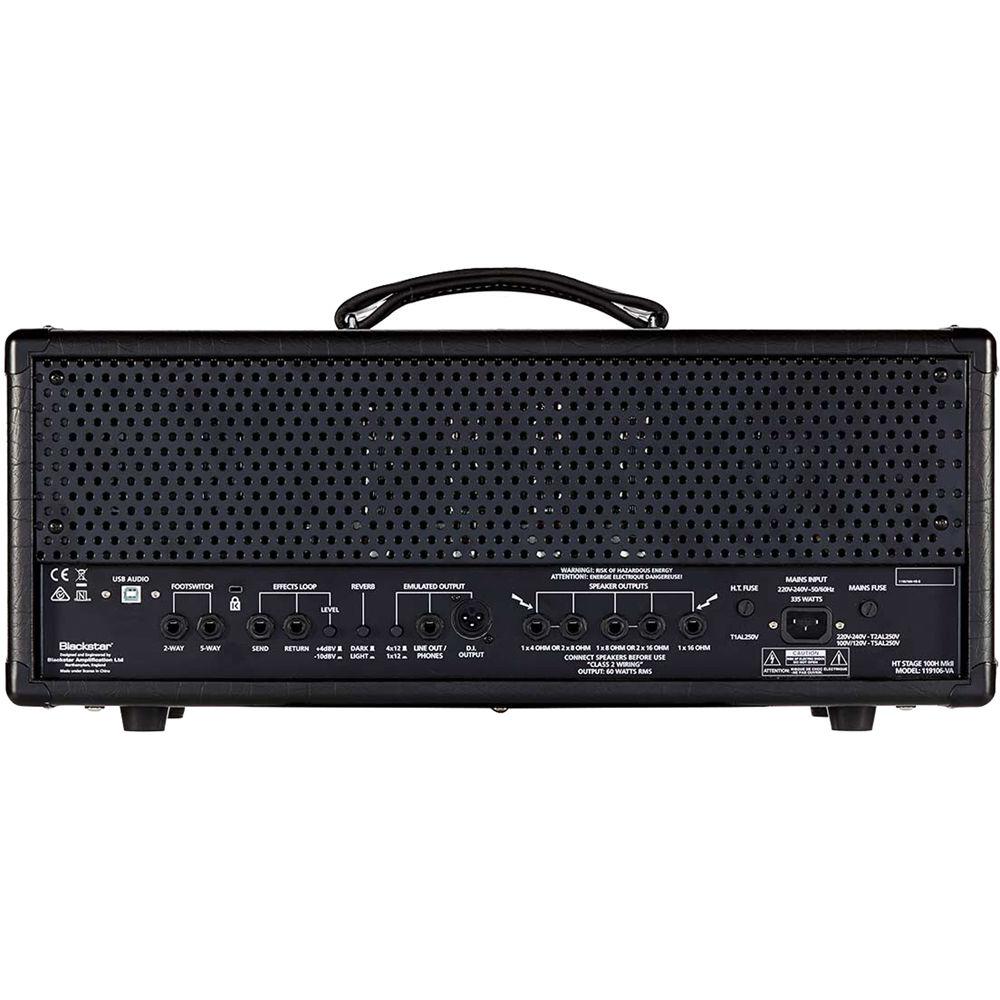

- Additional amenities on the rear panel of the amp include an effects loop, which can be configured for -10 dBV or +4 dBu, depending on the type of equipment being run in the loop. For studio recording and larger venues, a cabinet-voiced direct-out sends a line-level signal which can be routed to an audio interface or a mixing board, precluding the need for a microphone. For this purpose, XLR and 1/4" jacks are both provided.
You can also use the amp's USB port to route digital audio to your recording interface. In this operation, the HT Stage 100 MkII provides four discrete outputs: stereo emulated (left channel), stereo emulated (right channel), preamp output (for use with your own effects and cabinet IRs), and a dry signal. Furthermore, the amplifier accepts two channels of digital signal from your computer. - Key Features at a Glance
-
- 100W operation
- Tube compliment of 2 ECC83 and 4 EL34
- Three footswitchable channels
- Six footswitchable voices
- Boutique clean channel with expanded tone controls over original model
- 2 high-gain overdrive channels
- 2 x ISF tone knobs per channel
- Power reduction down to 10% of full wattage
- Master volume, resonance, and presence controls
- Digital reverb with Dark/Light switch
- Speaker emulated output with 1 x 12" or 4 x 12" voicing
- Effects loop with effects level switch
- USB for recording or playback
- 2-way footswitch included
In the Box Blackstar HT Stage 100 MkII 100W Guitar Amplifier Head 2-Way Footswitch Limited 3-Year Warranty for Amplifier Limited 90-Day Warranty for Tubes Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackstar HT Stage 100 MkII 100W Guitar Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackstar HT Stage 100 MkII Specs | | | Amplifier Type | Tube | | Output Power | 100 W RMS | | Channels | 3 | | Tube Types | 4 x Power EL34/6CA7
2 x Preamp 12AX7/ECC83 | | Output Impedance | 16 Ohms Mono
8/16 Ohms Mono
4/8 Ohms Mono
4/8 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | Digital Reverb | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
2 x 1/4" Stereo Footswitch
1 x USB Stereo Digital | | Outputs | 5 x 1/4" Mono External Speaker
1 x 1/4" Mono Effects Send
1 x 1/4" Mono Emulated Speaker
1 x XLR Mono DI
1 x USB Stereo Interface | | Tone Section | Channel 1: Bass, Channel Volume, Presence, Resonance, Treble
Channel 2: Bass, Gain, Mid, Preamp Volume, Presence, Resonance, Tone, Treble
Channel 3: Bass, Gain, Mid, Preamp Volume, Presence, Resonance, Tone, Treble Overdrive channels share equalization; all channels share presence and resonance control | | | | Dimensions (WxHxD) | 23.3 x 9.6 x 8.9" / 591.0 x 245.0 x 225.0 mm Combo | | Weight | 39.24 lb / 17.8 kg Combo |
