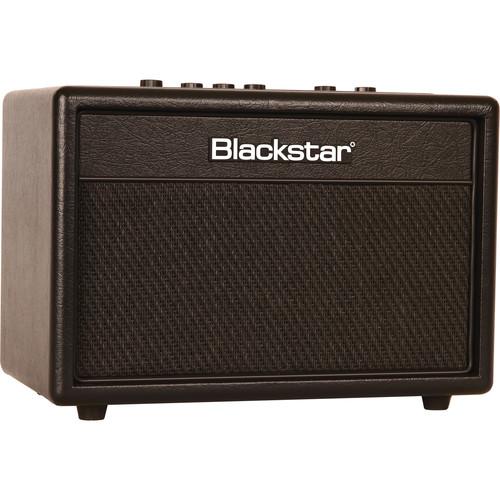

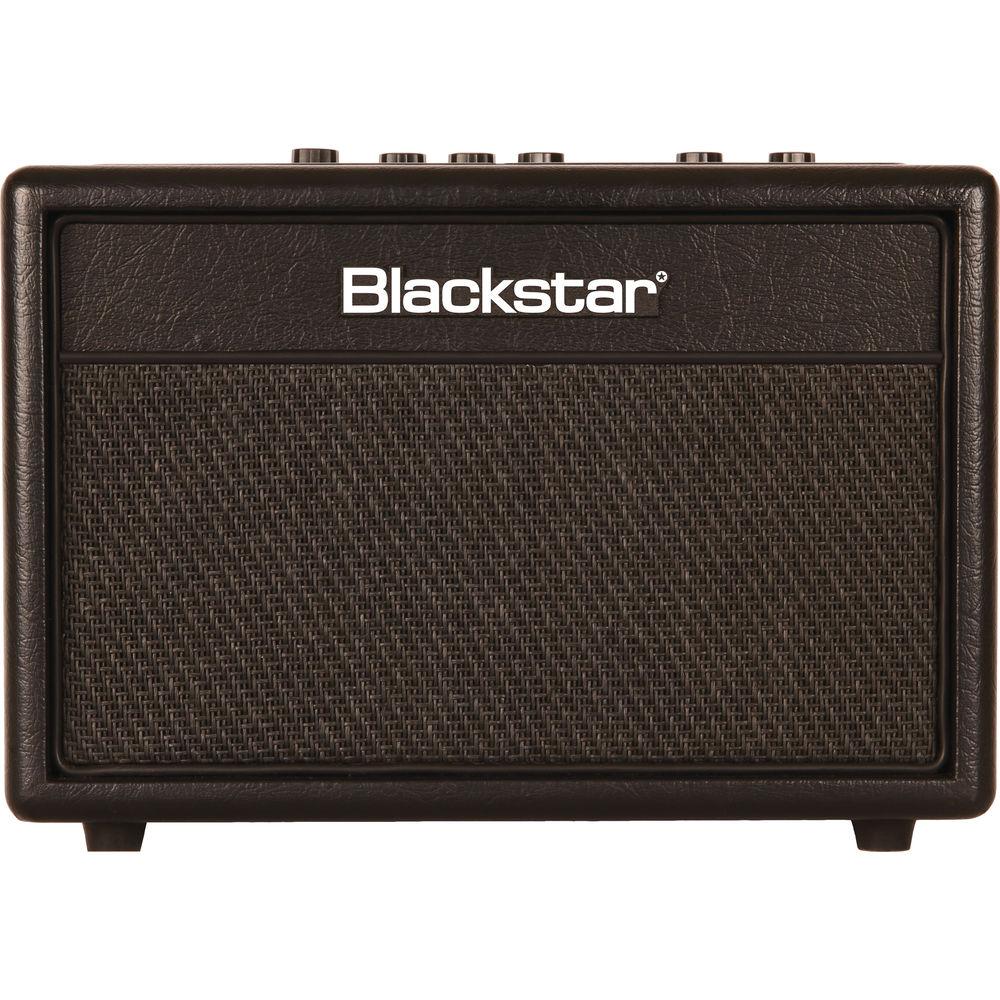

User Manual for Blackstar ID:Core BEAM Bluetooth Amplifier Click to enlarge the picture
Contents of the user manual for the Blackstar ID:Core BEAM Bluetooth Amplifier
- Product category: Guitar Amplifiers Blackstar
- Brand: Blackstar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackstar Guitar Amplifiers
 |
User manual for the Blackstar ID:Core BEAM Bluetooth Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackstar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackstar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackstar product will considerably shorten its lifespan!
|

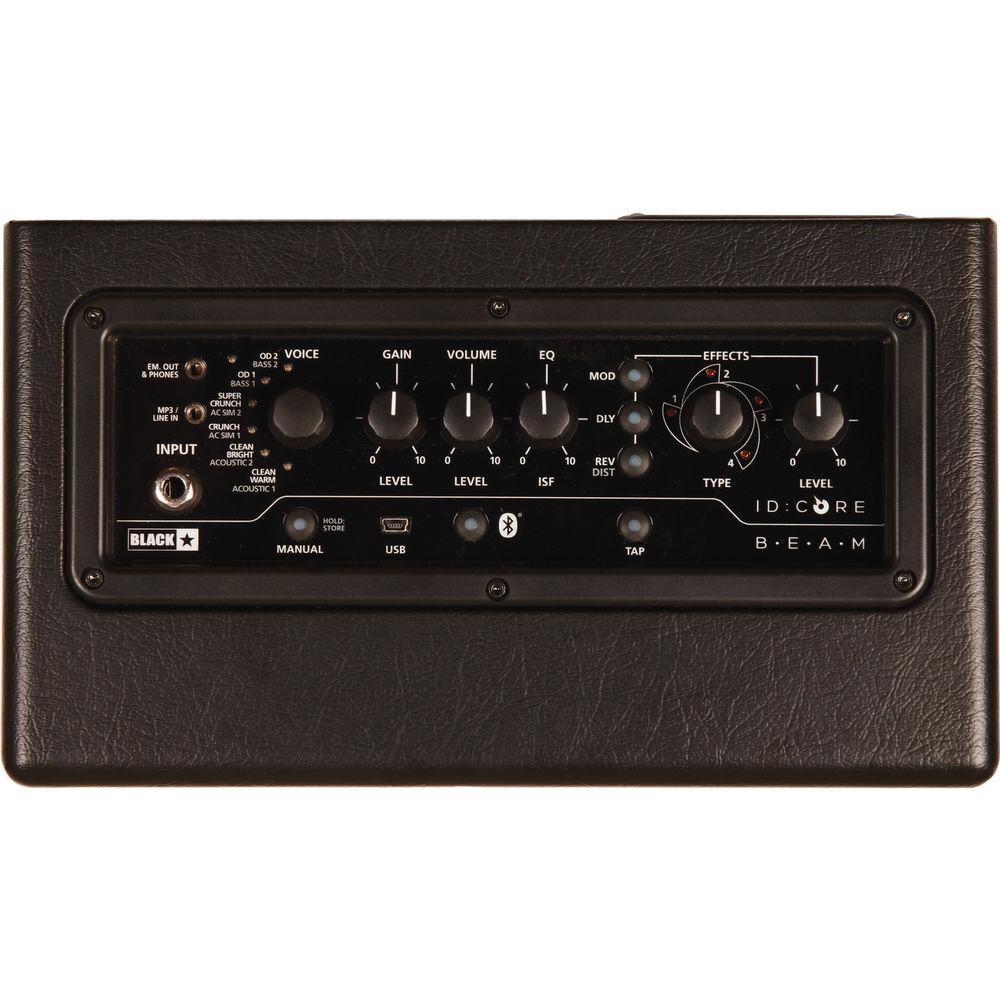

Product description The ID:Core BEAM from Blackstar is a 20W amplifier with twelve stereo effects, six voice channels, and a stereo MP3/line in for jamming or listening to music. It can be used in several environments for applications such as at home, in the studio or in rehearsals. The ID:Core BEAM features two unique controls that allow you to custom design your own sound. The Infinite Shape Feature (ISF) and the voice control. The voice control has the following settings: Clean Warm, Clean Bright, Crunch, Super Crunch, Overdrive 1 and Overdrive 2. By using the voice control and the ISF together allows you to design the sound you are thinking of in your head. In addition, the effects section delivers Super Wide Stereo, modulation, delay, and reverb effects simultaneously so you can also store them with your sounds. The Blackstar Insider software is used to edit and store up to 12 of your patches and it can be uploaded and downloaded via the online community. Finally, a USB connector allows you to record from an amp directly to your computer. An emulated speaker output and MP3/line input completes the package. - Bluetooth
- To use the Bluetooth feature you have two options. Discoverable Mode (slow flash): to pair simply go to the devices page of your Bluetooth device, select your ID:Core BEAM, then play your music. Scanning Mode (fast flash): reconnect automatically to a previously paired device, or press again to enter Discoverable Mode.
- Infinite Shape Feature (ISF)
- The ISF control allows you to choose the exact tonal signature you prefer. Fully counter clockwise has a more American characteristic with a tight bottom end and more aggressive middle, and fully clockwise has a British characteristic which is woodier and less aggressive
- Six Voice Channels
- The voice control has six different channels - Clean Warm, Clean Bright, Crunch, Super Crunch, Overdrive 1, and Overdrive 2
- Effects
- In addition to the 12 vintage style studio quality effects - four modulations, four delay and four reverb effects, there are new effects for the bass guitar. There is a bass envelope effect and a bass distortion effect available with the rotary control and level control, affecting the overall sound
- MP3/Line In
- Stereo MP3/line in can be used for jamming with your guitar or listening to music in Super Wide Stereo
- Built-In Tuner
- Holding the tap and manual switches together for one second will engage the tuner. The recall indicator LED will flash continuously to indicate the amplifier is in tuner mode
- LED Indicators
- LED's alert you to several conditions of the amplifier
UPC: 845644002849 In the Box Blackstar ID:Core BEAM Bluetooth Amplifier Limited 3-Year Warranty for Amplifier Limited 1-Year Warranty for speakers Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackstar ID:Core BEAM Bluetooth Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackstar IDCOREBEAM Specs | | | Amplifier Type | Hybrid | | Output Power | 20 W RMS | | Channels | 1 | | Built-In Effects | Chorus, Delay, Digital Reverb, Flanger, Phaser, Tremolo | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Footswitch
1 x 1/8" Series Line Level | | Outputs | 1 x 1/4" Mono Emulated Speaker | | EQ | 3-Band Semi-Parametric | | | | Configuration | 2 x 3" Speaker(s) | | Cabinet Type | Straight Closed Stereo | | Power Rating | 20 W | | | | Dimensions (WxHxD) | 11.5 x 8.0 x 6.5" / 291.0 x 202.0 x 166.0 mm Combo | | Weight | 8.60 lb / 3.9 kg Combo | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 14.0 x 10.4 x 8.0" |
