User Manual for Blackstar U500 Unity Series 2x10" 500W Bass Amplifier Click to enlarge the picture
Contents of the user manual for the Blackstar U500 Unity Series 2x10" 500W
- Product category: Bass Amplifiers Blackstar
- Brand: Blackstar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackstar Bass Amplifiers
 |
User manual for the Blackstar U500 Unity Series 2x10" 500W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackstar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackstar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackstar product will considerably shorten its lifespan!
|

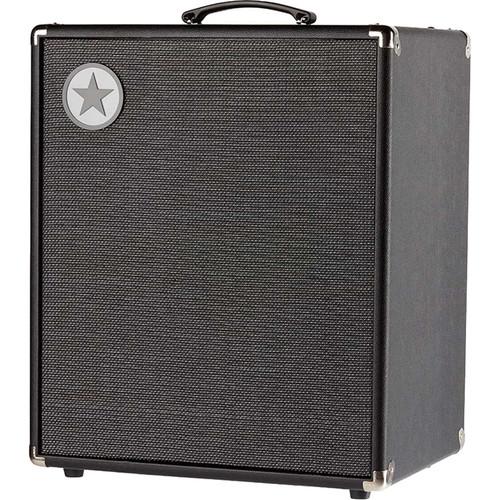

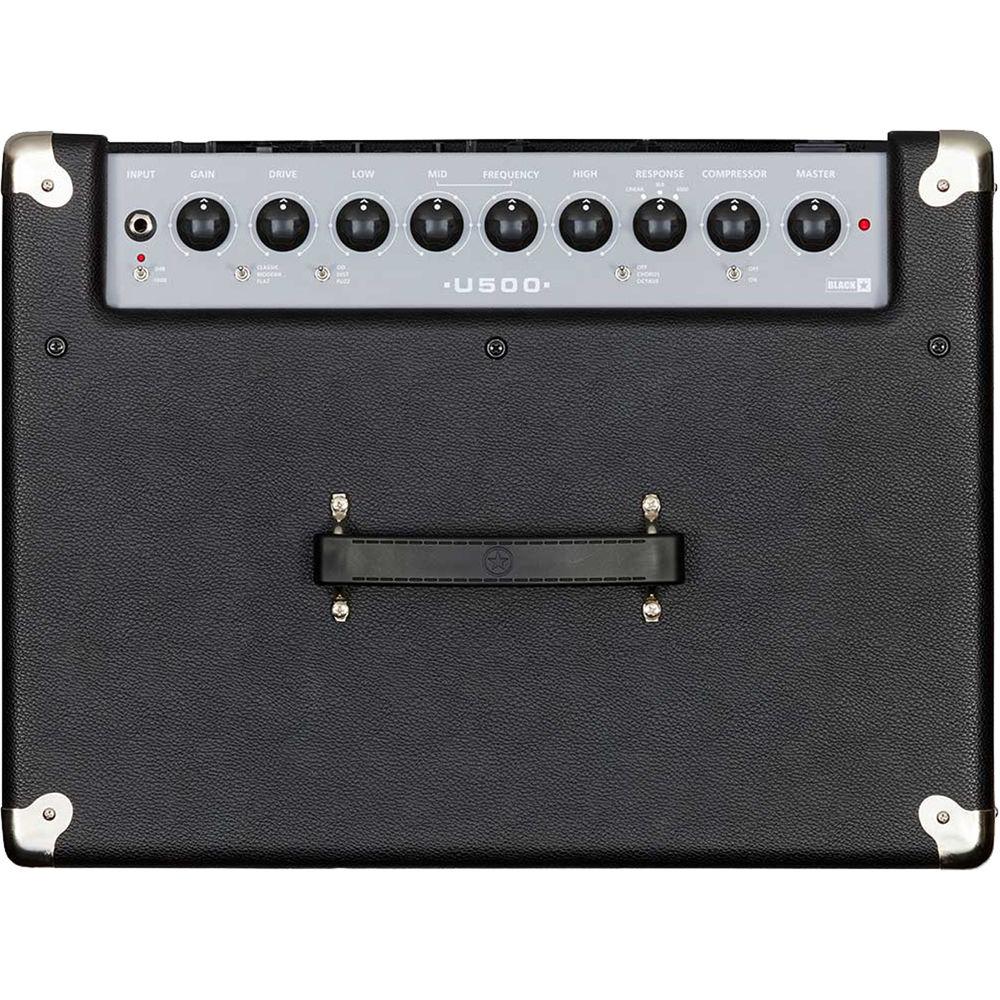

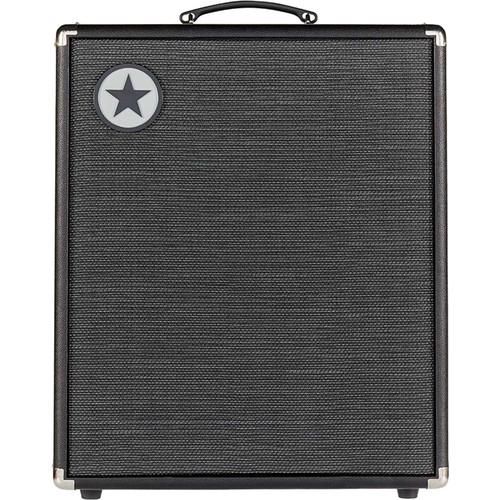

Product description The Blackstar U500 is a Unity Series 2x10" 500W bass amplifier designed to deliver versatile tones, built-in effects, and stage-worthy power for bassists recording in the studio and performing in concerts. It features 500W of solid-state power driving two custom-designed Eminence Opus 10" speakers mounted in a closed-back cabinet. Available via dedicated top-panel controls are three amp voices, three overdrive types, and three power amp response types. Built-in adjustable effects include chorus, octaver, and compression. A footswitch is provided for hands-free toggling of the chorus and octaver. Effectively manage your gain structure using the input gain, clip indicator, -10 dB pad, master volume. The pad allows easy accommodation of basses with low-output passive pickups or hot active electronics. Shape your tone with the 3-band EQ, which boasts a semi-parametric mid band. Connect your mobile device to the 3.5mm aux input and play along with backing tracks or your favorite songs. Utilize the 1/4" series effects loop to patch in your own stompboxes or rack effects. Output connections include an XLR for linking to a Blackstar U250ACT (available separately), an XLR line output with a ground-lift switch, and a 1/4" headphone jack with an independent level control. A USB audio output allows direct recording to your computer. Speaker emulation for the USB and line/headphone outputs is selectable via a rear-panel button. - 500W of solid-state power through two custom-designed Eminence Opus 10" speakers
- Selectable Voices: Classic for valve-inspired growl with vintage EQ, Modern for high-headroom dynamics and advanced EQ, and Flat for clean transparency
- Selectable response control provides the compression and feel of different power amp stages—Linear for power and articulation, 6L6 for the compression and punch of 6L6 power tubes, and 6550 for the dynamics and headroom of high-power 6550 tubes
- Selectable Overdrive: Overdrive for a smooth, open, harmonically rich grit, Distortion for balanced pedal-like distortion, and Fuzz for full-on fuzz
- 3-band EQ with semi-parametric mid band
- Chorus and octaver selectable via top panel or footswitch

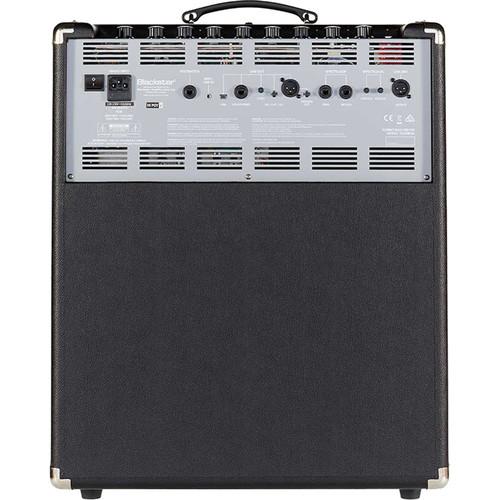

- Rear-panel controls for chorus level and octave blend
- Built-in compressor with on/off switch and rotary control
- Input gain control, switchable -10 dB pad, and master volume
- LED indicators for input clipping and power status
- 3.5mm aux input for playing along with music from your mobile device
- Dedicated Cab Link XLR output allows linking to a U250ACT Unity 250 active cabinet (available separately)
- XLR 3-pin line output with ground-lift switch
- 1/4" line/headphone output with independent level control
- Selectable speaker-emulated output mode
- USB audio output for direct recording to a computer
- Includes footswitch and power cable
UPC: 845644004126 In the Box Blackstar U500 Unity Series 2x10" 500W Bass Amplifier Power Cable Footswitch Limited 3-Year Warranty for Cabinet and Amplifier Limited 1-Year Warranty for Speaker Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackstar U500 Unity Series 2x10" 500W Bass Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackstar U500 Specs | | | Amplifier Type | Solid-State | | Output Power | 500 W | | Channels | 1 | | Tube Types | None | | Effects Loop | Yes, Series | | Built-In Effects | Chorus, Compression, Distortion/Overdrive, Octave | | Presets & Storage | None | | Master Volume | Yes | | Inputs | 1 x 1/4" Hi Instrument
1 x 1/8" Stereo Aux | | Outputs | 1 x XLR Mono Line Level
1 x 1/4" Stereo Headphone
1 x USB Stereo Interface | | Tone Section | Gain | | EQ | 3-Band Semi-Parametric | | | | Speaker Inputs | None | | Speaker Through/Output | 1 x XLR | | Configuration | 2 x 10" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 500 W | | Construction Material | MDF | | Covering | Tolex | | | | Dimensions (WxHxD) | 17.2 x 22.0 x 25.4" / 43.7 x 55.9 x 64.5 cm Combo | | Weight | 65.69 lb / 29.80 kg Combo | | | | Package Weight | 60.25 lb | | Box Dimensions (LxWxH) | 27.0 x 23.5 x 18.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
