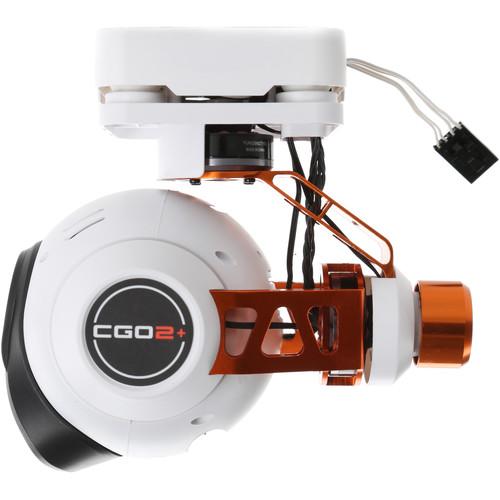

User Manual for BLADE CGO2-GB 1080p60 Camera with 3-Axis Gimbal for Chroma Quadcopter Click to enlarge the picture
Contents of the user manual for the BLADE CGO2-GB 1080p60 Camera with 3-Axis
- Product category: BLADE Accessories BLADE
- Brand: BLADE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLADE BLADE Accessories
|
User manual for the BLADE CGO2-GB 1080p60 Camera with 3-Axis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLADE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLADE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLADE product will considerably shorten its lifespan!
|
Product description The CGO2-GB+ for Blade Chroma combines a 12-megapixel, 1080p60 camera and a 3-axis brushless gimbal into a single unit designed to capture stabilized aerial video and still images. A built-in microphone enables audio recording and can be turned on or off via the separately available ST-10+ transmitter/ground station unit or using a mobile app. Photos can be captured in JPEG or DNG RAW and it is possible to snap photos while recording video. The camera features a wide angle 130-degree FOV lens. While the gimbal that supports it features a control angle accuracy of ±0.02°. High-quality video and stills are recorded to a separately available microSD card up to 128GB in size. Low-quality, upload-friendly versions can be saved onto a mobile device.
Note: This version of the CGO2-GB+ includes mounting hardware and cables for installation with the Blade Chroma. Additional hardware may be required for use on other aircraft. Use with the ST-10+ requires installation of the ST-10+ receiver (available separately) - Wireless Video Monitoring
- For live view and remote operation, the camera features an integrated 5.8 GHz Wi-Fi downlink that enables operation and viewing from the separately available ST-10+ Personal Ground Station. You can also pair with a mobile device using the free mobile app – available at Google Play and iTunes app stores. The app or ST-10+ offer control over resolution, white balance, ISO, and shutter speed
- Integrated 3-Axis Gimbal
- A 3-axis motorized stabilization system is built into the CGO2-GB+. The helps compensate for vibration and other sources of unwanted camera shake and acts to keep the camera level even as the aircraft banks
- Recording Resolutions
- Video: 1080p at 60, 50 or 48 fps
Photo: 12 MP UPC: 605482587324 Table of Contents
|
Upload User Manual
Have you got an user manual for the BLADE CGO2-GB 1080p60 Camera with 3-Axis Gimbal for Chroma Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLADE CGO2+ Specs | | | Focus | Fixed | | Resolution | Video: 1080p at 60, 50 or 48 fps
Photo: 12 MP | | White Balance | Automatic | | Audio | Audio recording via integrated microphone (turn on/off with app) | | Recording Media | microSDHC/XC Class 10: 4 to 128 GB | | | | Frequency | 5.8 GHz | | Transmit Power | 500 mA (average) to 600 mA (peak) at 12 V (7.2 W maximum) | | Range | Up to 984.3' / 300 m line-of-sight | | Power Requirements | 7 to 14 VDC (powers from flight battery) | | | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 4.5 x 5.3 x 2.9" / 115 x 135 x 74 mm | | Weight | 6.5 oz / 185 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 7.9 x 7.4 x 3.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
