User Manual for BLADE Inductrix FPV Pro Racing Drone Click to enlarge the picture
Contents of the user manual for the BLADE Inductrix FPV Pro Racing Drone
- Product category: See All Drones BLADE
- Brand: BLADE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLADE See All Drones
 |
User manual for the BLADE Inductrix FPV Pro Racing Drone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLADE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLADE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLADE product will considerably shorten its lifespan!
|

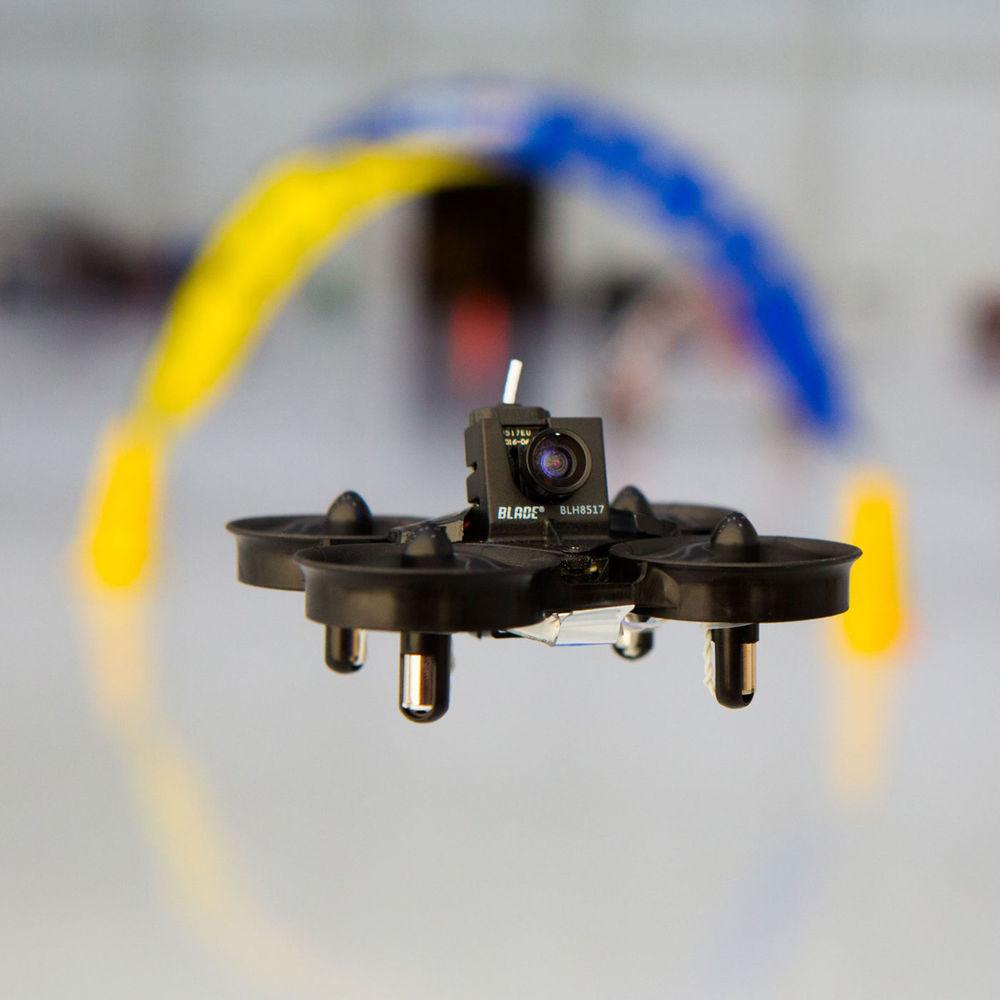

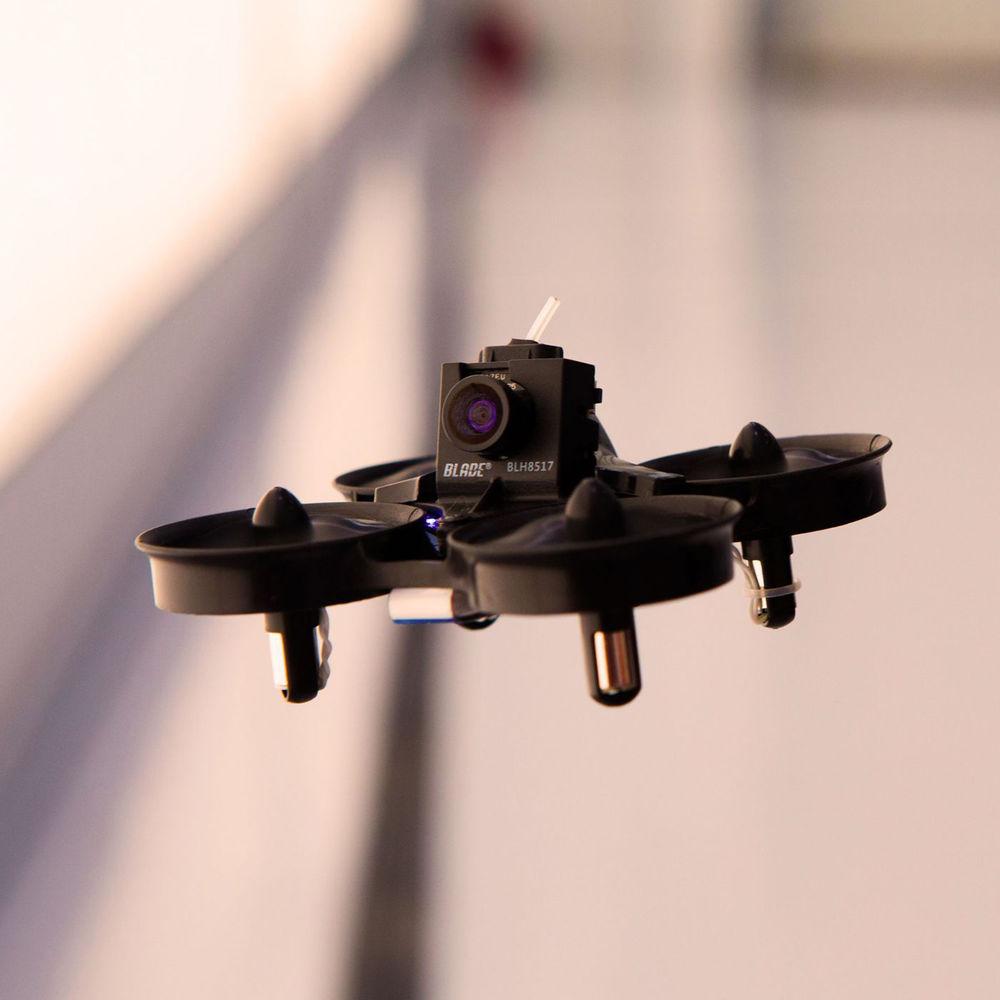

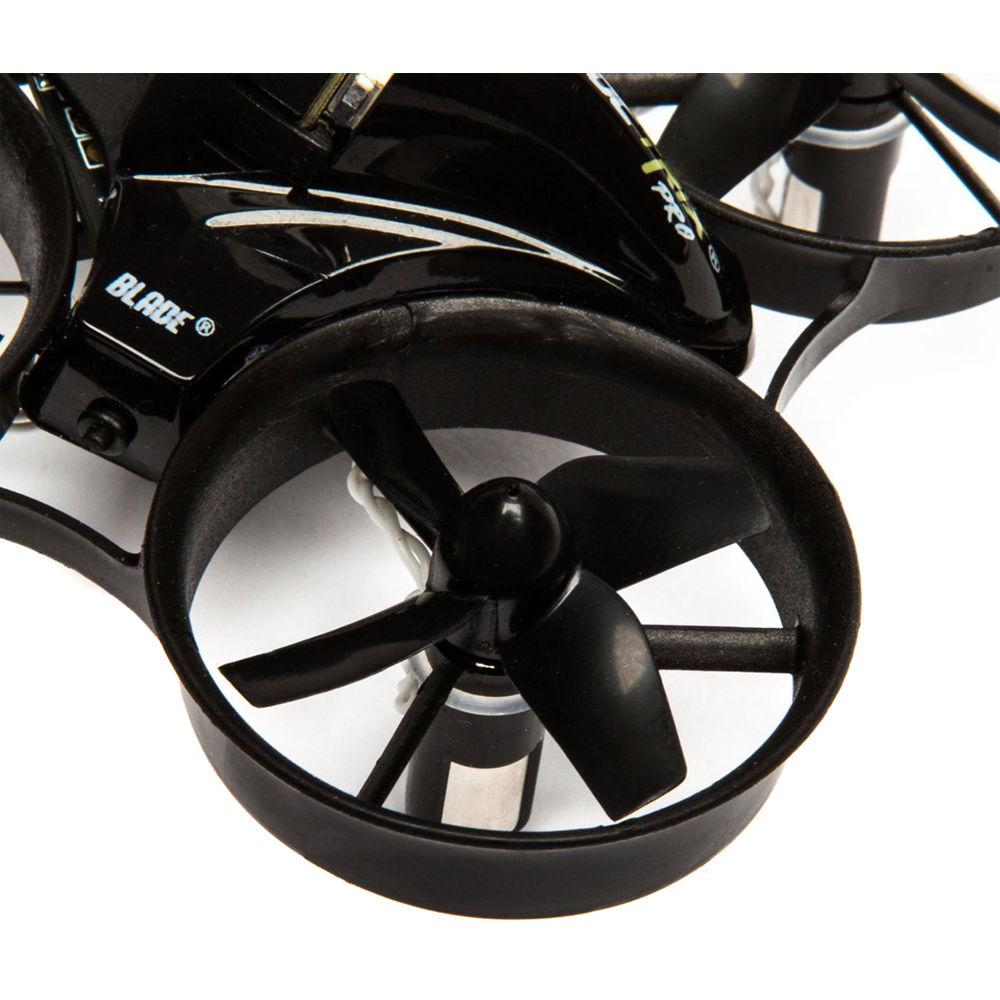

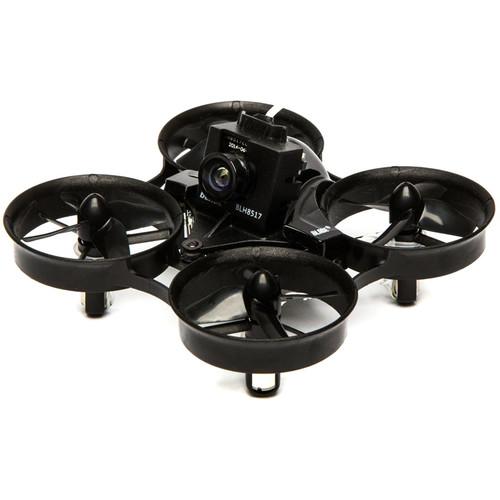

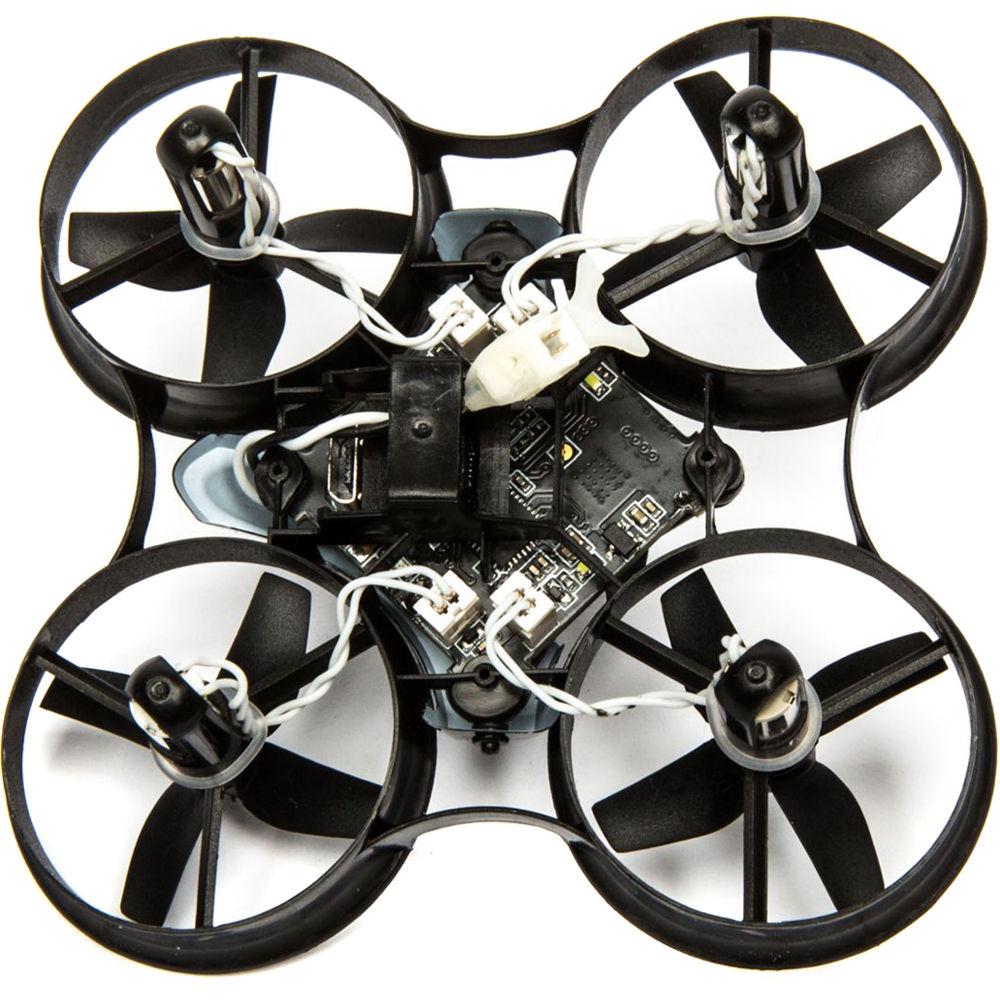

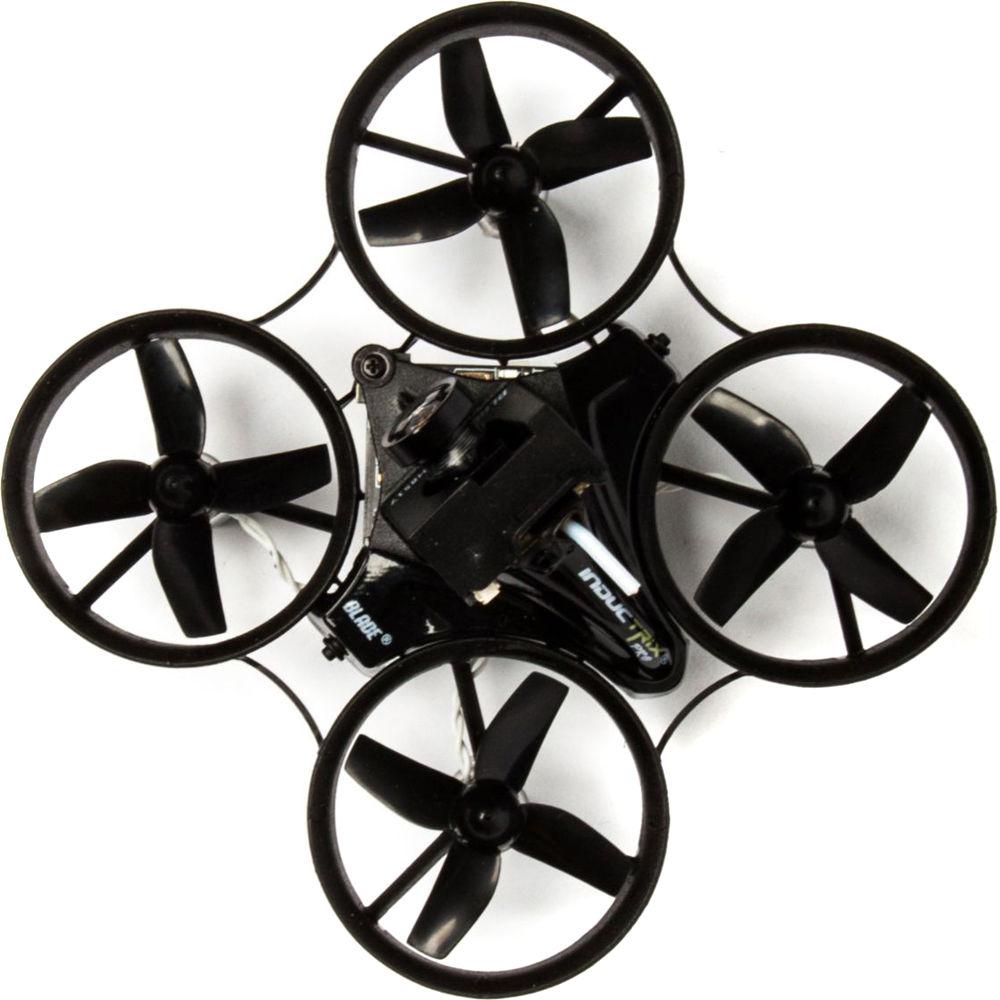

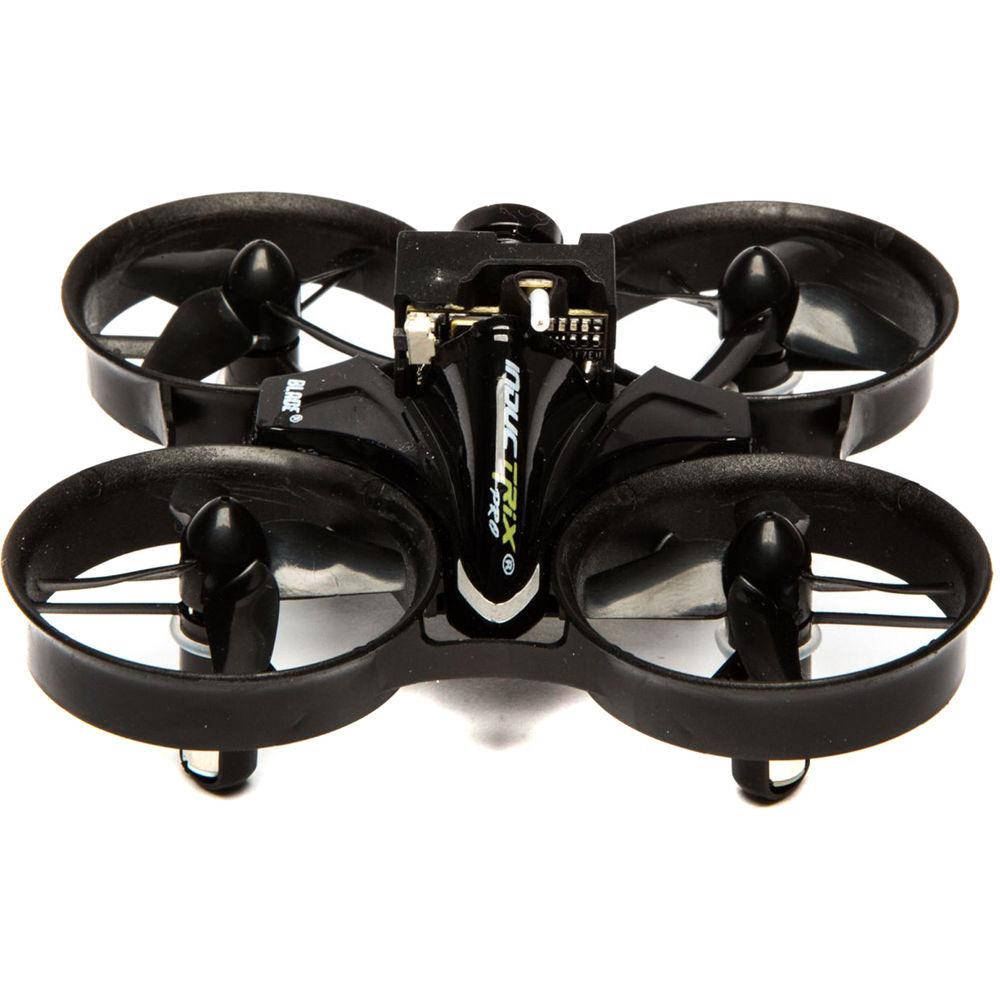

Product description Aerial Photography and Drone Glossary Read More tfrrccwzsvrfycrvdauzszysbswfqeyzqasrq The BNF Inductrix FPV Pro from Blade builds on the previous Inductrix FPV platform, improving both flight performance and overall design. An improved frame enhances the Pro's overall durability, while still allowing it to fly in the smallest of places with ease. Speaking of flight: the Inductrix FPV Pro now features 19,000Kv motors for improved power and speed, and its included 200mAh battery yields flight times up to 4 minutes. The Inductrix Pro also boasts an upgraded camera and VTX system that includes a smaller monopole antenna and lighter profile while still providing more frequencies and bands to choose from than previous models. The canopy can also be removed, giving the quad a sharp look without hindering performance.
This is a Bind-and-Fly (BNF) bundle that comes with everything you need except a transmitter (radio controller) and optional FPV monitor and/or headset. To fly the Inductrix FPV Pro, purchase and bind any compatible 6+-channel transmitter. To use the quad's FPV features, you will also need an FPV monitor (e.g. a transmitter with an integrated display) and/or an FPV headset. - High Performance FPV System
- The Inductrix Pro utilizes a sophisticated 25mW camera and VTX system to deliver powerful First-Person-View (FPV) performance. The improved VTX system includes a smaller monopole antenna, which reduces overall profile while still adding more bands and frequencies to choose from.
- Improved Frame
- The Pro's updated frame design features added reinforcements in addition to stronger construction materials for a more durable craft.
- High Speed Motors
- The Pro's 19,000Kv motors offer rapid throttle response and high top speed while still maintaining stability.
- Betaflight Configurable
- The flight controller comes pre-flashed and tuned with Betaflight firmware, yet allows a pilot to adjust all flight characteristics, modes, rates, and gains to their preference.
- Detachable Canopy
- The new canopy design offers protection for the flight controller and components while staying unobtrusive and extremely lightweight. You can even remove it for a sleeker look.
- BNF Completion
- Even though it's a BNF aircraft, the Inductrix Pro doesn't require any soldering or assembly. Simply bind a compatible transmitter and you're ready to fly.
UPC: 605482083796 In the Box BLADE Inductrix FPV Pro Racing Drone (BNF) Flight Battery Charger Limited 6-Month Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 tfrrccwzsvrfycrvdauzszysbswfqeyzqasrq User Manual PDF 2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the BLADE Inductrix FPV Pro Racing Drone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the BLADE Inductrix FPV Pro Racing Drone can be downloaded in PDF format at the link stated below.
Technical parametersBLADE BLH8570 Specs | | | Maximum Flight Time | 4 Minutes | | | | Model | Betaflight | | GNSS Support | None | | Vision System | None | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 200 mAh / .74 Wh | | Battery Configuration | 1 S / 3.7 V | | | | Type | Brushless | | Velocity Constant | 19000 Kv | | | | Number of Rotors | 4 | | Overall Dimensions | 0.3 x 1.1 x 2.6" / 8.3 x 28.0 x 65.0 mm | | Weight | 0.85 oz / 24 g (Including Propellers, Battery, Camera) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.8 x 3.8 x 2.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
