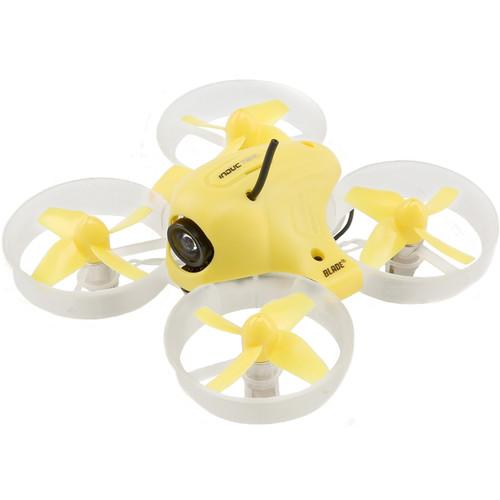

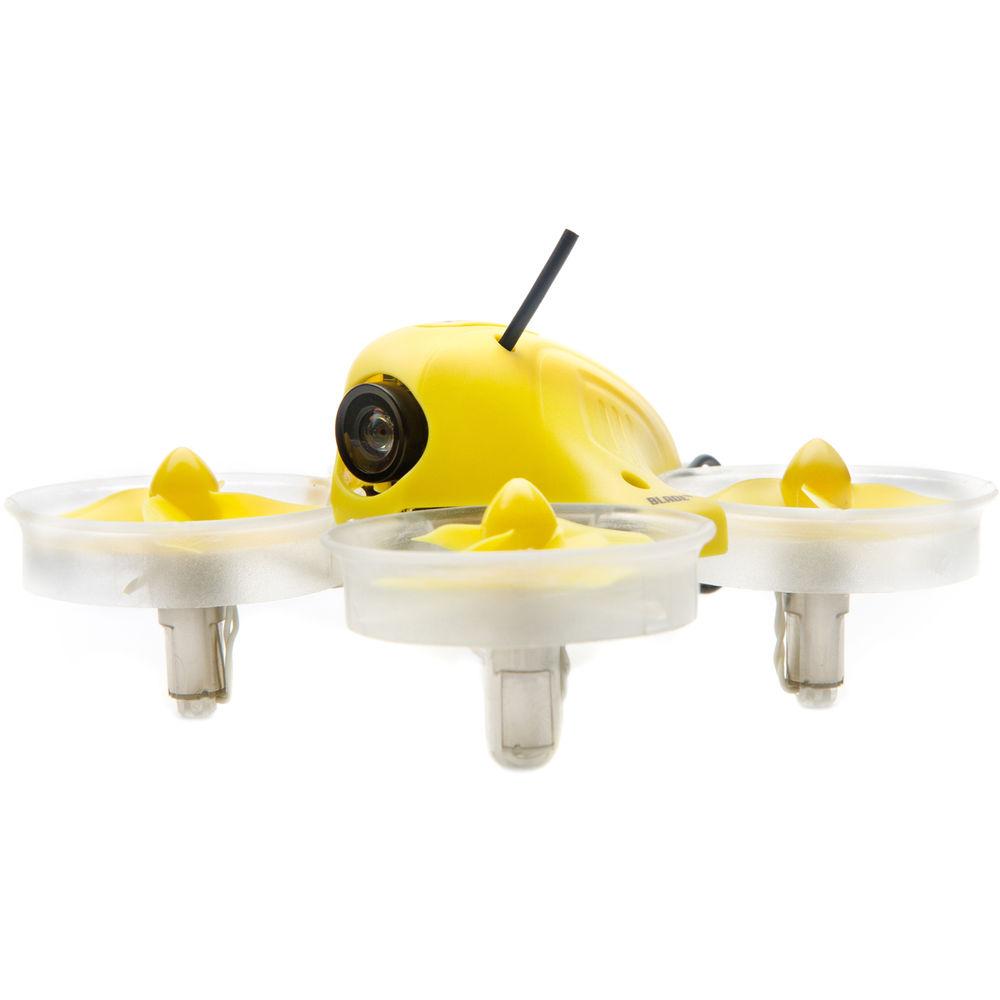

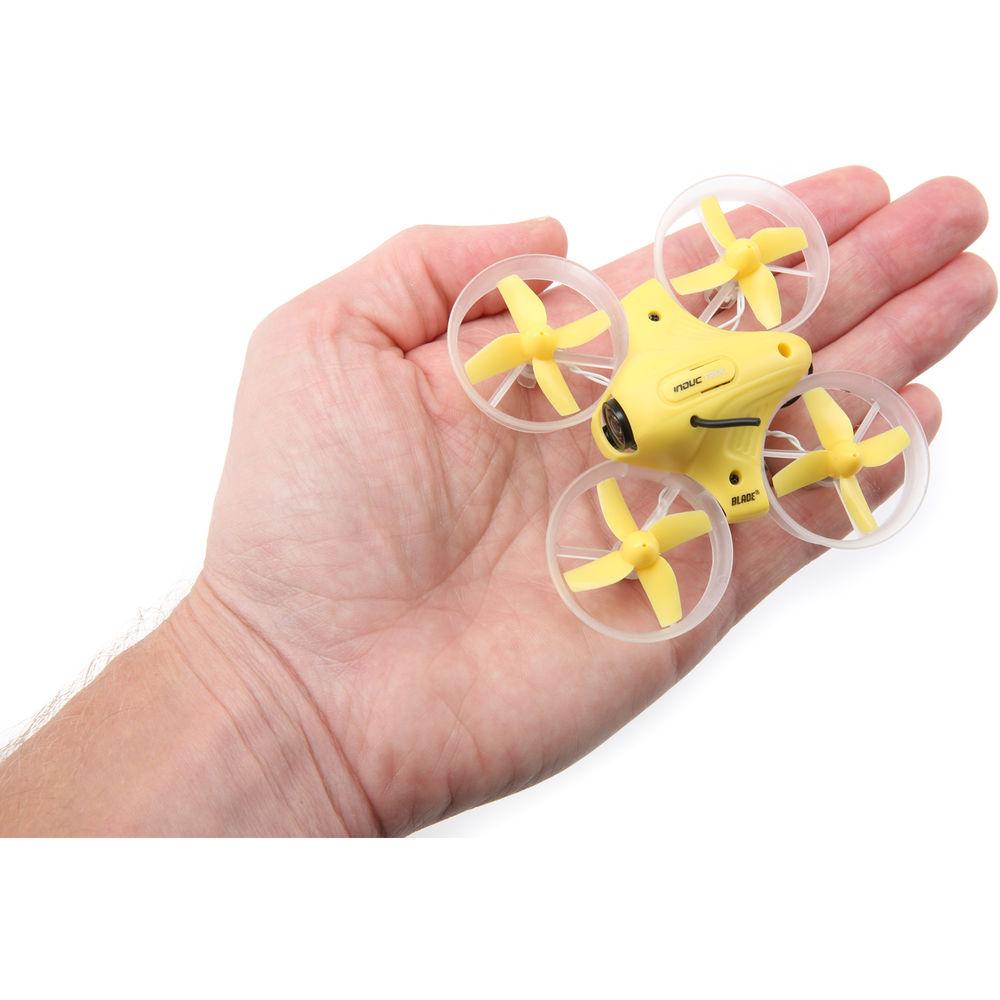

User Manual for BLADE Inductrix FPV Racing Drone Click to enlarge the picture
Contents of the user manual for the BLADE Inductrix FPV Racing Drone
- Product category: See All Drones BLADE
- Brand: BLADE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLADE See All Drones
 |
User manual for the BLADE Inductrix FPV Racing Drone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLADE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLADE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLADE product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More ycfxvvqazscazxuseswwzsrxefrzrur The BNF Inductrix FPV from Blade builds on the Inductrix platform and transforms flying it into first-person experience. With its integrated 25mW video transmitter, FPV camera, high-performance motors, and 200mAh battery, the Inductrix FPV is designed to fly in the smallest of places with ease. SAFE technology helps makes flying simple for beginners, while the ducted propeller design allows means collisions with walls and objects won't be the end of the world.
This is a Bind-n-Fly (BNF) model. A 4+ channel BNF-compatible transmitter is required (available separately). - FPV Equipped
- The Inductrix FPV is equipped with a 25mW video transmitter capable of transmission on Fat Shark channels 1 through 8 and all Raceband channels, enabling you to race several pilots at once without interference. You can choose channels from a selection button at the top of the drone. The camera is encased in a housing for added protection, while the dipole antenna has been chosen for video transmission with durability in mind. Video range of the Inductrix FPV is nearly 100 yards line-of-sight
Note: A HAM (Amateur Radio) License is required to use the FPV transmitter in the US - High-Performance Motors
- The Inductrix FPV requires additional horsepower to fly with the added weight of the camera. It comes equipped with four high-performance 14,300 Kv motors
- Quiet Ducted Fans
- Each rotor is housed in a true duct and is extremely quiet during flight. The benefit of using ducted fans instead of propellers is that they fully protect the fans during a crash and prevent the Inductrix from causing any damage to walls
- LED Lighting
- With brilliant white and red LED lighting illuminating each Inductrix FPV, it's easy to follow friends while flying together or even see if the battery is getting low when they begin to blink. The lights are mounted inside each frame, so they too will be protected in a crash

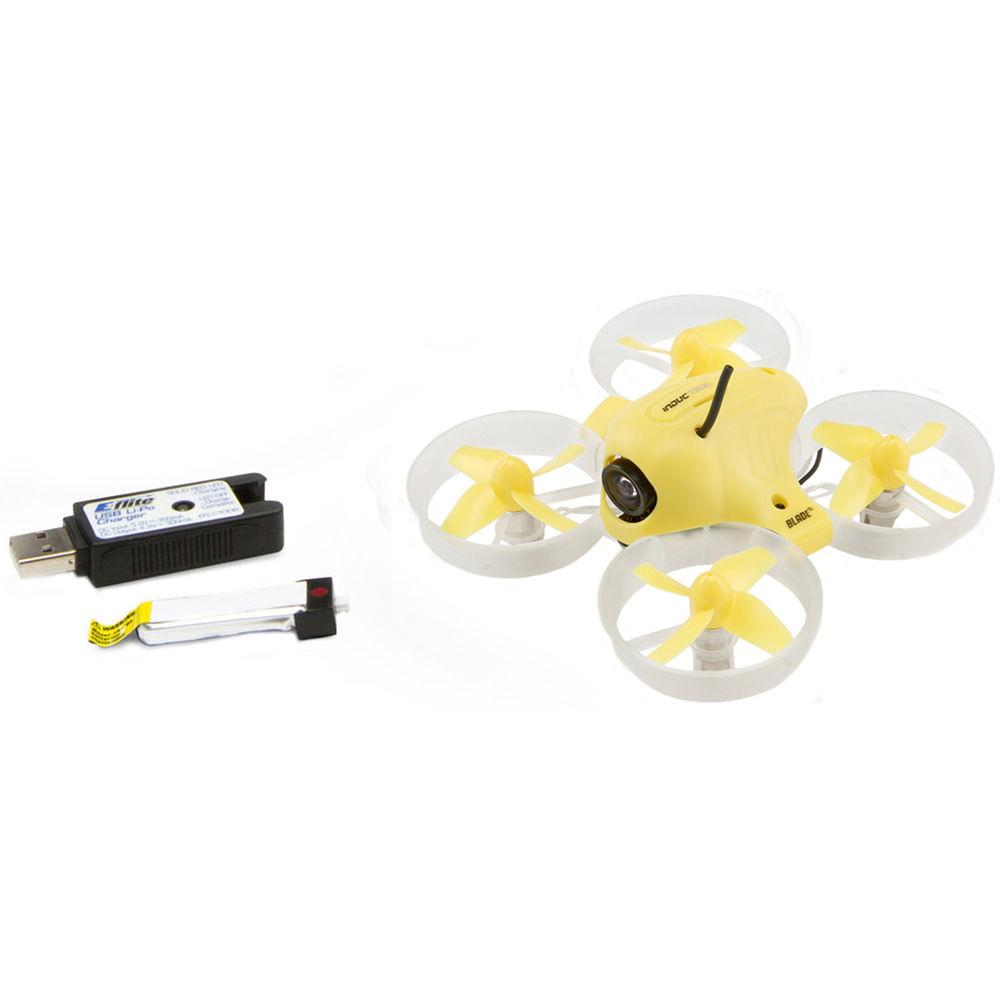

UPC: 605482030431 In the Box BLADE Inductrix FPV Racing Drone (BNF) 1S USB LiPo Charger - 300mA EFLB2001S45 200mAh LiPo Flight Battery mLP TX Smart Phone Holder Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 8.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the BLADE Inductrix FPV Racing Drone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLADE BLH8580G Specs | | | Flight Time | 3 to 4 minutes | | | | Signal System | NTSC | | Video Transmitter | Frequency: 5.8 GHz
Number of Channels: 7 | | Power Requirements | 3.0 to 5.5 V (1S battery) | | Dimensions | Excluding Protrusions: 0.5 x 0.7 x 0.4" / 13.2 x 17.6 x 9 mm
Lens: 0.4 (length) x 0.4" (diameter) / 9 (length) x 10 mm (diameter) | | Weight | 0.2 oz / 5 g (with housing) | | | | Display | Size: 4.3"
Resolution: 480 x 272
Aspect Ratio: 16:9 | | Signal System | NTSC | | Power Requirements | 500 mA at 5 V | | Video Receiver | Frequency Range: 5645 to 5945 MHz
Number of Channels: 32 (8 channels / 4 bands) Audio: 6.0 to 6.5 MHz
Note: Compatibility guaranteed only with Fat Shark and ImmersionRC transmitters | | Battery | Chemistry: Lithium-ion Capacity: 1800 mAh
Charging Method: USB
Battery Life: Approximately 2 hours | | Dimensions | 4.8 x 3.1 x 0.6" / 122.7 x 80 x 14.5 mm | | | | Chemistry | Lithium-ion polymer (LiPo) | | Capacity | 200 mAh | | | | Motor Velocity Constant | 14,300 Kv | | | | Configuration | Quadcopter | | Completion Level | Bind-n-Fly (BNF) | | Construction | Main Blade Material: Plastic
Main Frame Material: Plastic | | Dimensions (H x L x W) | 1.1 x 3.3 x 3.3" / 28 x 83 x 83 mm | | Flying Weight | 0.8 oz / 24 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.8 x 3.7 x 2.7" |
