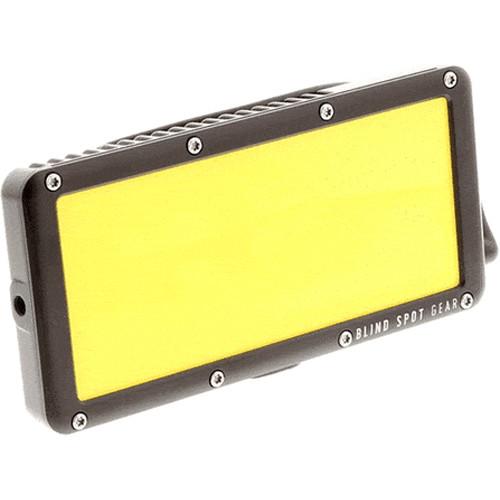

User Manual for Blind Spot Gear Tile Light Duo Click to enlarge the picture
Contents of the user manual for the Blind Spot Gear Tile Light Duo
- Product category: On Camera Lights Blind Spot Gear
- Brand: Blind Spot Gear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blind Spot Gear On Camera Lights
 |
User manual for the Blind Spot Gear Tile Light Duo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blind Spot Gear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blind Spot Gear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blind Spot Gear product will considerably shorten its lifespan!
|

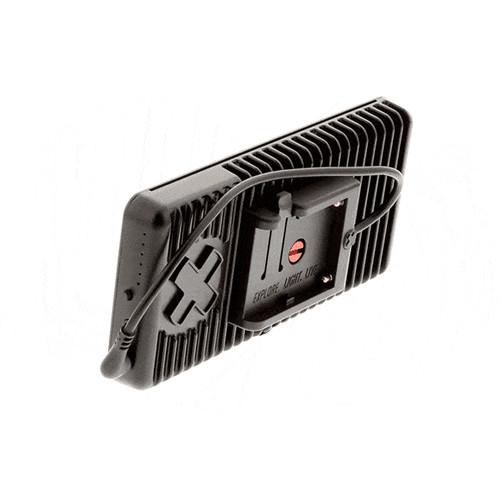

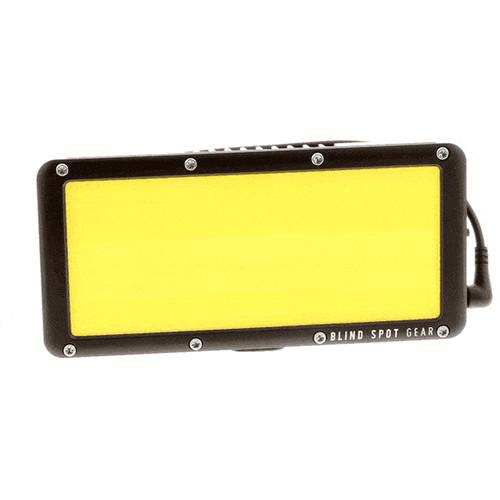

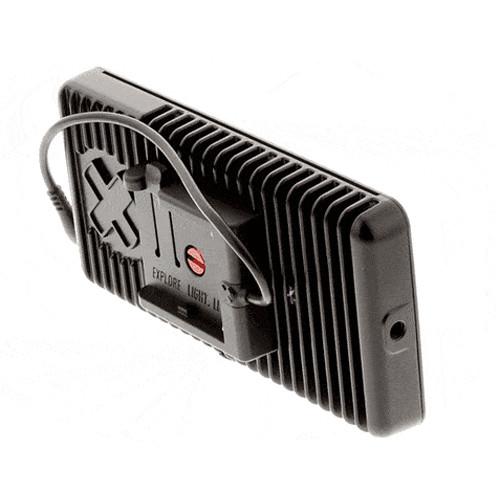

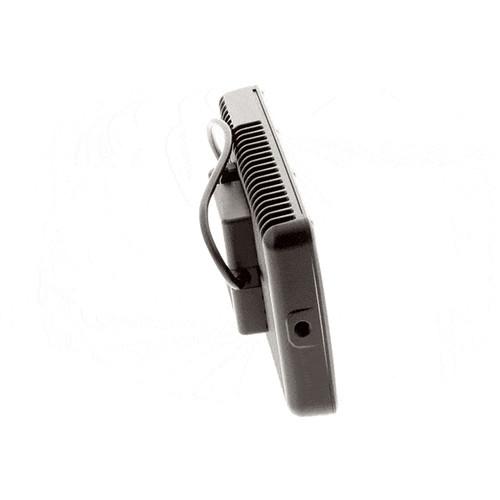

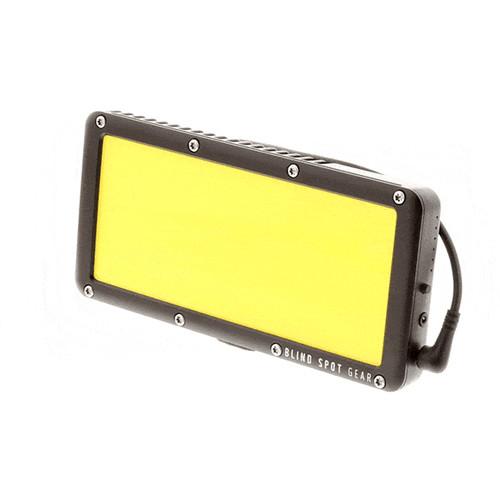

Product description The Blind Spot Gear Tile Light Duo combines two Tile Light Solo LED lights with a variety of accessories and compact carry case as a portable, battery-powered LED solution for cinematography. Accessories include remote dimmers, CTO gels, ball mounts, and international power supplies.

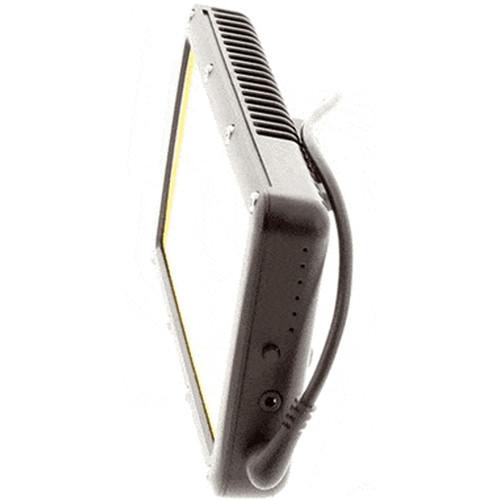

Each Tile Light features an equivalent light output of a 150W tungsten light fixture. The Tile Light takes advantage of single surface emitter technology, which uses high-density blue LEDs to excite a phosphor-coated diffusion sheet, producing a soft bright white output with 120° beam spread and a color temperature of 5700K. It is capable of flicker-free dimming from 0 to 100%. The fixture's on/off button is also a five-step dimmer control, plus an included analog thumbwheel remote dimmer plugs into the side of the light to provide remote dimming control. Six embedded LEDs on the side of the fixture indicate the Tile Light's power level.
The Tile Light draws a mere 22W and can be powered using an L-series type battery or AC power supply, both included for each unit. The included CTO correction gels conveniently attach to the emitting surface using static electricity, so no clips or frames are required. Two 1/4"-20 threaded mounting holes, one on the bottom and one on the side of each unit, enable mounting the fixture and/or attaching accessories to it. - Portable Cinematography LED Light Kit
-
- Two Tile Light LED lights, each 150W tungsten equivalent and featuring 120° beam
- Remote dimmers, L-series type batteries, static-attached CTO gels, ball mounts, carry case, and other accessories
- Single surface emitter technology (SSE)
- 5700K color temperature
- 0 to 100% flicker-free dimming
- Six dimming indicator LEDs on each unit
- 1/4"-20 threaded mounting and accessory holes
- USB battery charging using the charging plate
- Photometrics
-
- 5742 lux at 1.0'
- 2067 lux at 1.6'
- 517 lux at 3.3'

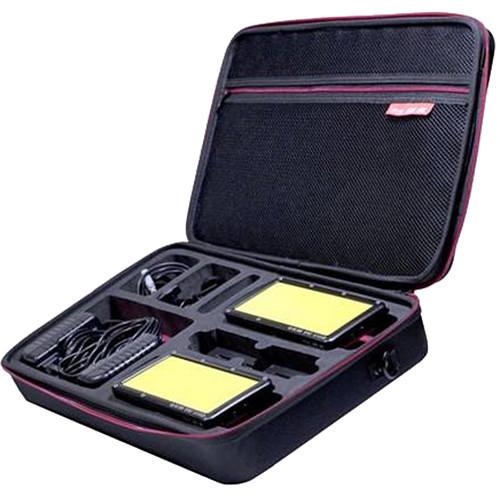

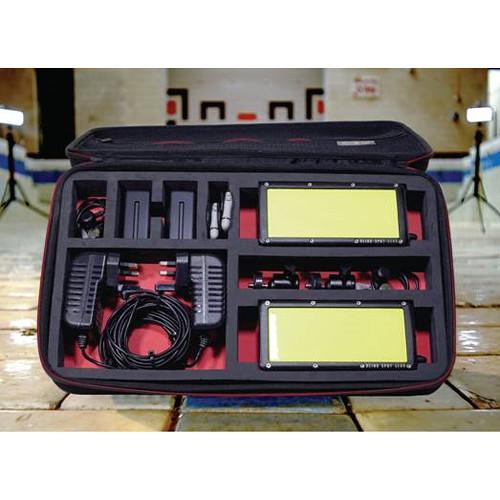

UPC: 724190316191 In the Box Blind Spot Gear Tile Light Duo 2 x Tile Light Solo 2 x Remote Dimmer 2 x Dimmer Extension Cable 2 x AC Power Supply with International Plug Adapters 2 x Battery Adapter 2 x NP-F550 L-Series Battery 2 x CTO Gel USB Battery Charger 2 x Ball Mount Cold Shoe Adapter EVA Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blind Spot Gear Tile Light Duo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlind Spot Gear Tile Duo Specs | | | Beam Angle | 120° | | Color Temperature | 5700K | | Lumens | 1700 | | Dimming | Yes, 0 to 100% (Stepped) | | | | Capacity (mAh) | 2600 mAh | | Battery Chemistry | Lithium-Ion | | Battery Runtime | 45 Minutes | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | Max Power Consumption | 22 W | | Power Input Connector | Barrel | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 6.5 x 3.1 x 0.7" / 164 x 78 x 19 mm | | Weight | 10.58 oz / 300 g | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 18.0 x 11.5 x 3.5" |
