Product description - Blind Spot Gear - Tile Light
- Blind Spot Gear - Tile Light Demonstration #3
- Blind Spot Gear - Tile Light Demonstration #1

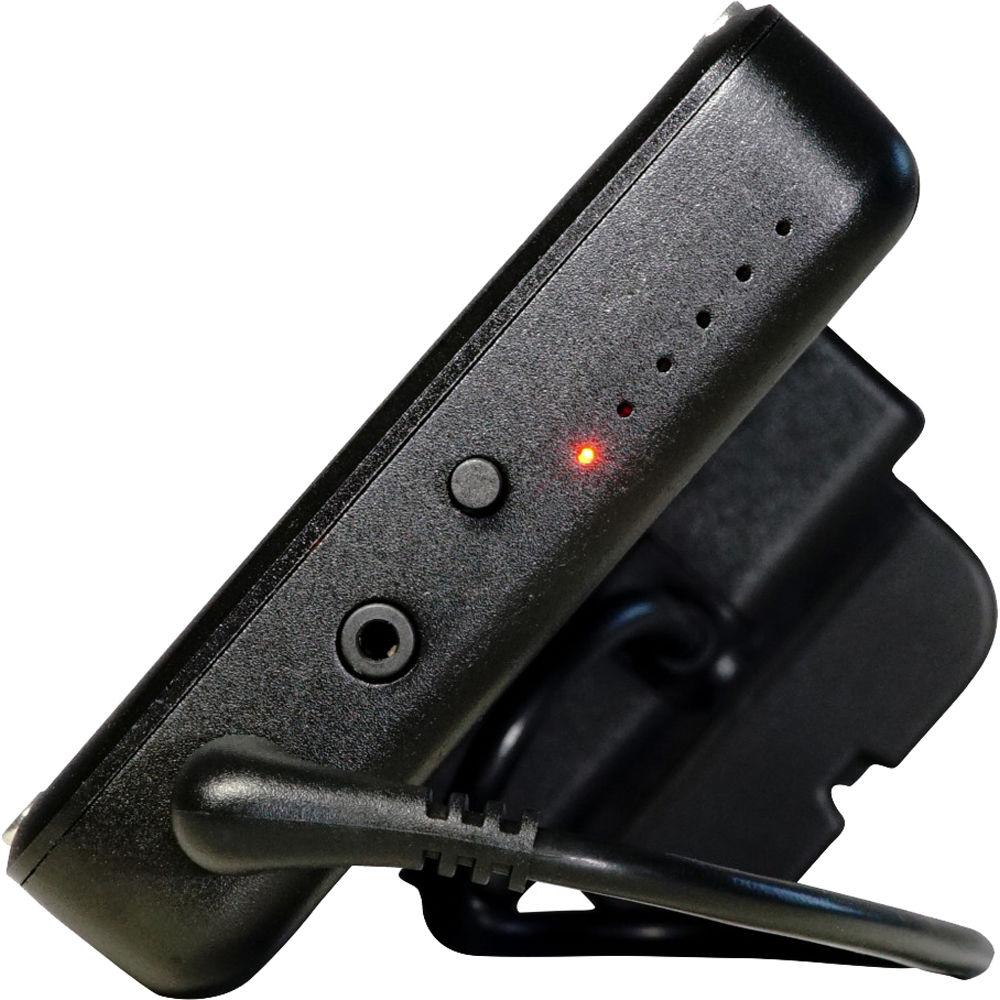

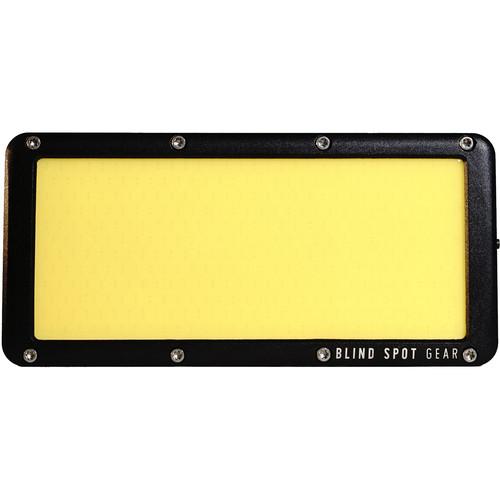

Featuring an equivalent light output of a 150W tungsten light fixture, this Blind Spot Gear Tile Light Solo takes advantage of single surface emitter technology, which uses high-density blue LEDs to excite a phosphor coated diffusion sheet producing a soft bright white output with a 120° beam spread and a color temperature of 5700K. It is capable of flicker free dimming from 0 to 100%, and the fixture's integrated on/off button is also a 5-step dimmer control. An analog thumbwheel remote dimmer plugs into the side of the fixture, and the 6 embedded LEDs on the side of the fixture indicate the light's power.

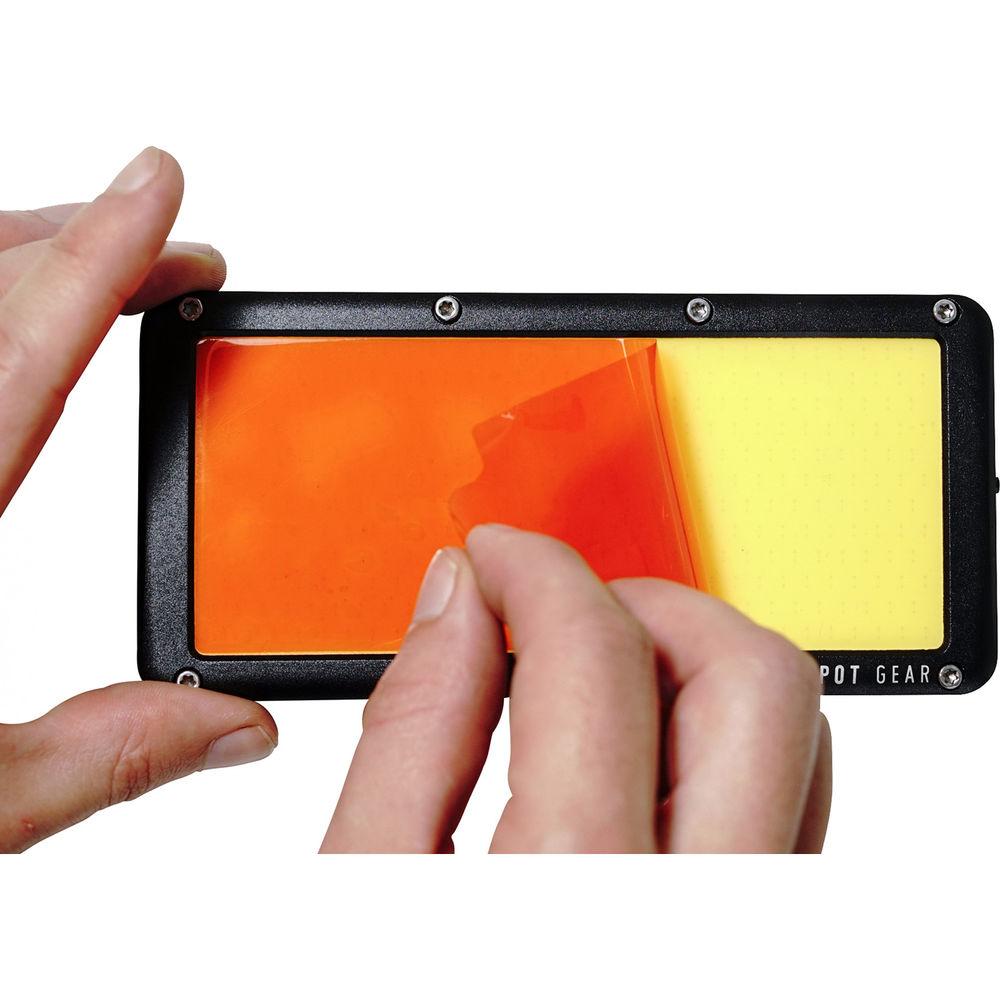

The fixture draws a mere 22W and can be powered remotely by a 3.5mm connector or by an L-series type battery. The fixture is daylight balanced at 5700K, and it includes a CTO correction gel that attaches to the fixtures emitting surface using static electricity, so no clips or frames are needed. Two 1/4"-20 threaded mounting holes, one on the bottom and one on the side enable mounting of the fixture, or can be used to attach accessories to the fixture itself. An included carry bag protects your fixture during transport and storage. - The SSE (single source emitter) works in a similar fashion as remote phosphor technology, with high-density blue emitters exciting phosphors embedded in a sheet of diffusion. However, the Tile Light Solo is much thinner than traditional remote phosphor fixtures, and it features a 120° beam spread.
- The fixture can be dimmed from 100 to 0% brightness without suffering from flicker at normal and even high-speed shooting.

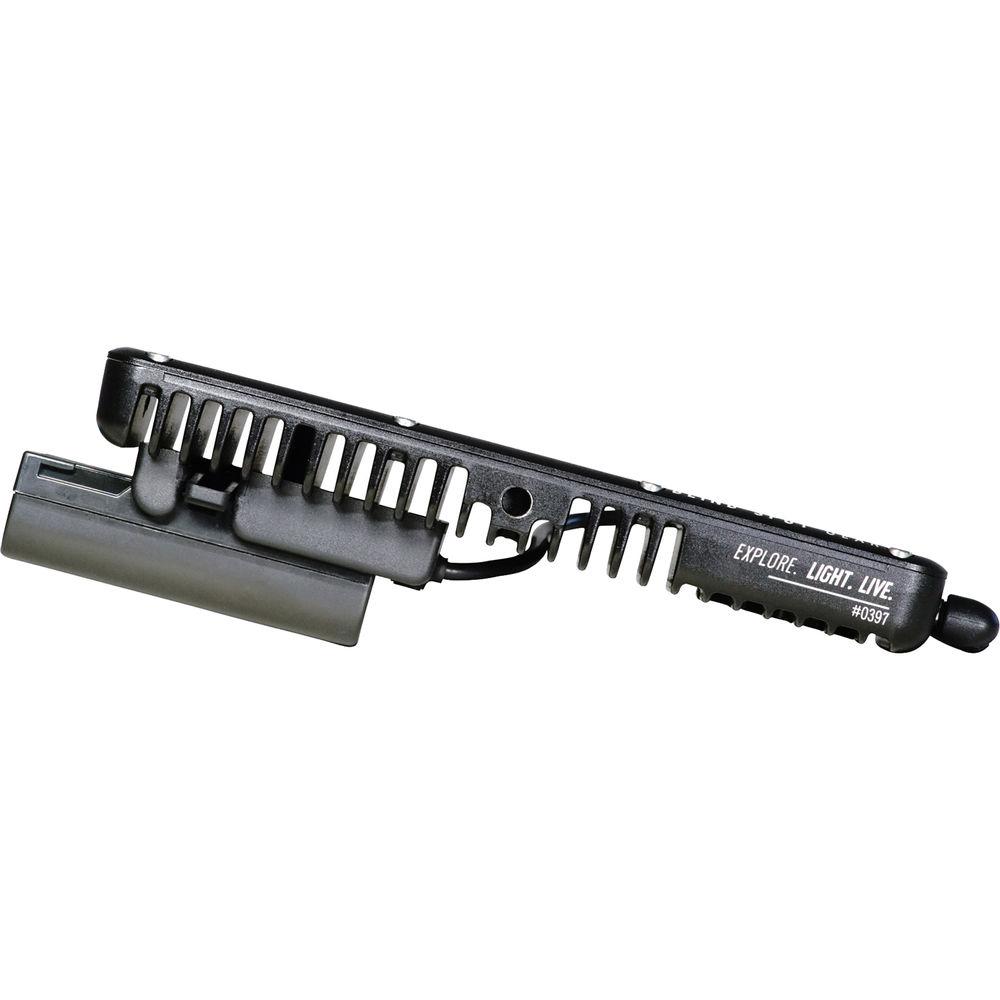

- The back of the fixture features two 1/4"-20 threaded holes, which can be used to mount accessories including the L-series type battery plate. Blind Spot Gear recommends mounting the dimmer knob to the side of the unit, and not the back.

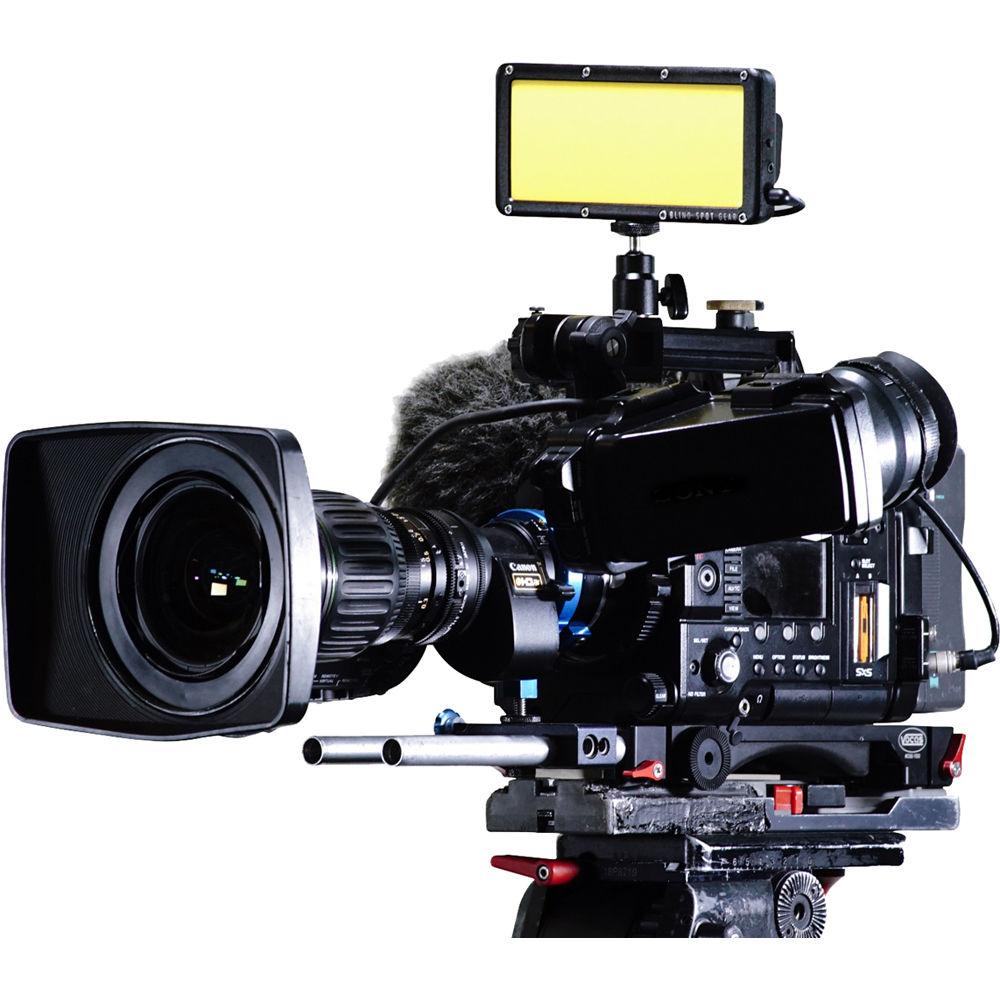

- An included ball joint accessory shoe to 1/4"-20 adapter enables mounting the fixture to a camera with an accessory shoe.
- The included power supply supports international voltage and frequencies, and comes with interchangeable plugs.
- The included charging plate connects to an included USB cable and permits charging of the battery by USB port.

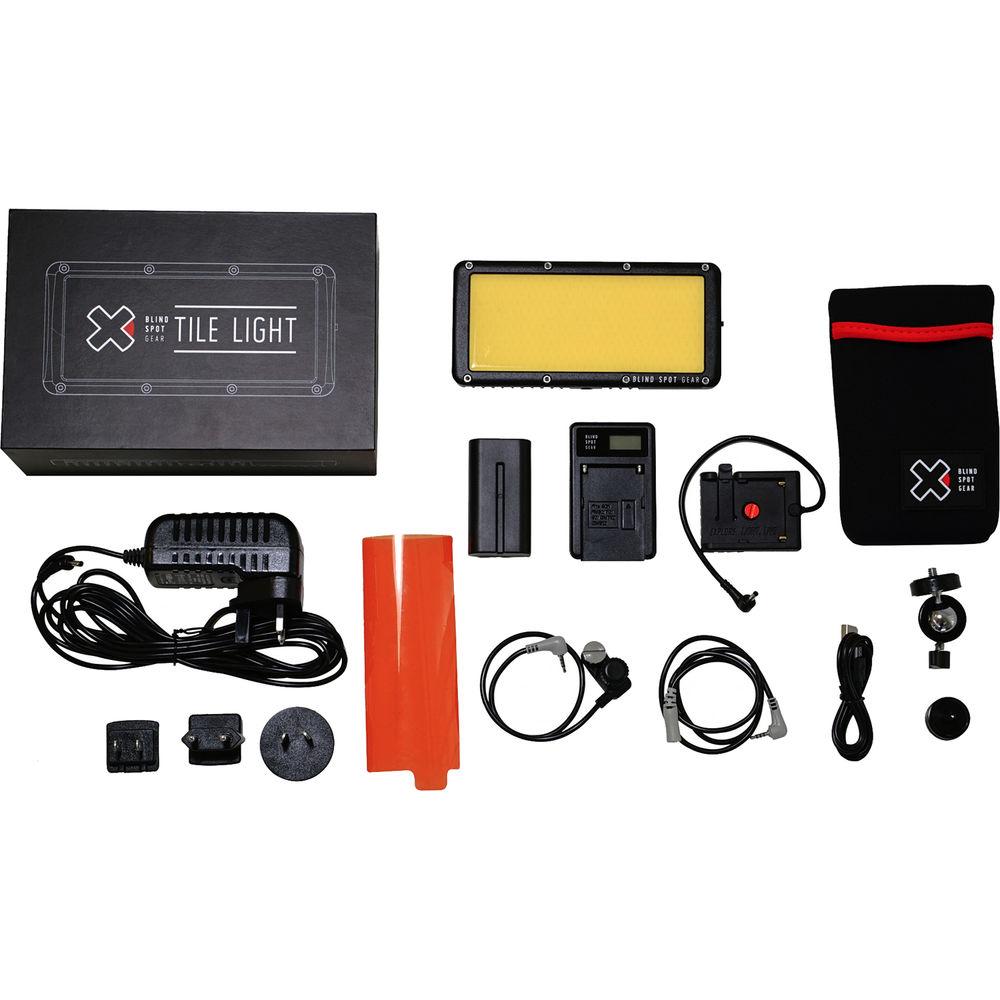

UPC: 724190316184 In the Box Blind Spot Gear Tile Light Solo Remote Dimmer Dimmer Extension Cable International AC Power Supply Battery Adapter L-Series Type Battery CTO Gel USB Battery Charger Ball Mount Cold Shoe Adapter Carry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blind Spot Gear Tile Light Solo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlind Spot Gear Tile Light Solo Specs | | | Beam Angle | 120° | | Dimming | Yes, 0 to 100% | | | | Max Power Consumption | 22 W | | Power Input Connector | Barrel | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 6.5 x 3.1 x 0.7" / 16.4 x 7.8 x 1.9 cm | | Weight | 10.58 oz / 300 g | | | | Package Weight | 2.935 lb | | Box Dimensions (LxWxH) | 8.8 x 5.9 x 5.5" |
