User Manual for Blizzard 2-Fer 2-Way Power and DMX Signal Splitter Click to enlarge the picture
Contents of the user manual for the Blizzard 2-Fer 2-Way Power and DMX
- Product category: DMX Devices Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DMX Devices
 |
User manual for the Blizzard 2-Fer 2-Way Power and DMX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

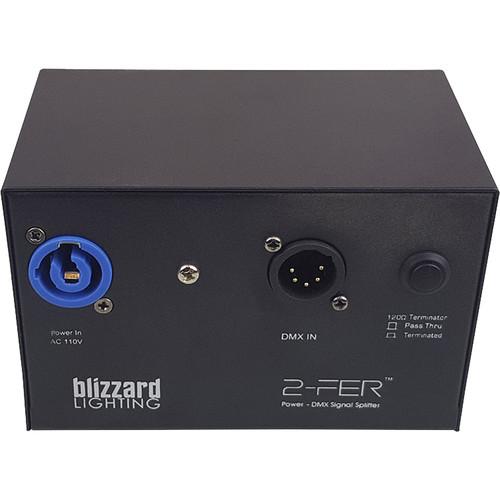

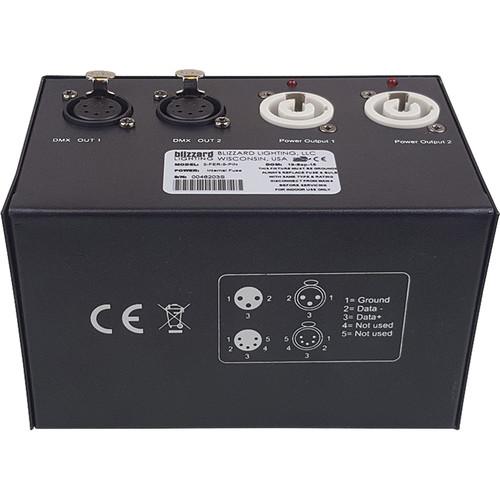

Product description The 5-Pin 2-Fer 2-Way DMX Signal Splitter from Blizzard Lighting is a 2-way power splitter and 2-way DMX splitter in a steel housing that is a valuable asset in situations where powerCON and DMX cables are frequently used. The unit has 1 x 5-Pin DMX input and 2 x 5-Pin outputs to split the signal. Additionally, it has 1 x 20A powerCON input and 2 x powerCON outputs to split the power. The 100% optically isolated splitters also have a built-in 120Ω terminator/pass thru switch to complete the DMX chain and a threaded hole in the splitter box for mounting to truss, pipe, etc. - Benefits
-
- 1 x DMX signal input
- 2 x DMX signal outputs
- 1 x powerCON compatible input
- 2 x powerCON compatible outputs
- Optically isolated XLR connectors
- Flush-mounted power connectors
- 5-Pin XLR connectors
- 120 Ohm Terminator/pass thru switch
- 12/14 AWG internal wiring
- Output power/signal LED status indicators
- Steel housing
- Threaded clamp mounting hole (M10)
- Sturdy, reliable build
UPC: 685450870726 In the Box Blizzard 2-Fer 2-Way Power and DMX Signal Splitter (5-Pin) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard 2-Fer 2-Way Power and DMX Signal Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard 2-FER 5 PIN Specs | Operating Voltage | 110-240 VAC, 50/60 Hz | | DMX Connectors | 1 x 5-Pin XLR input
2 x 5-Pin XLR outputs | | Power Connectors | 1 x powerCON-compatible input
2 x powerCON-compatible outputs | | Dimensions (L x W x H) | 5.4 x 3.3 x 3.5" (136 x 82 x 88 mm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 8.3 x 6.3 x 4.5" |
