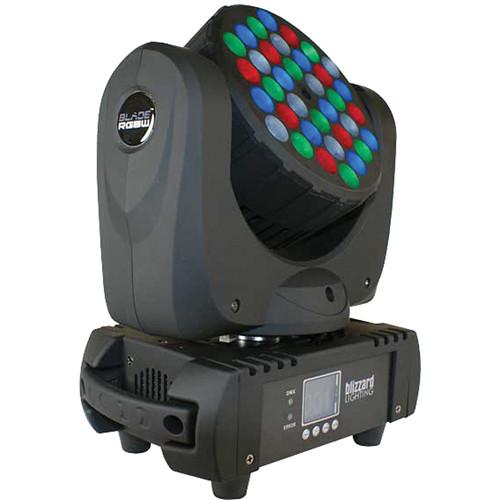

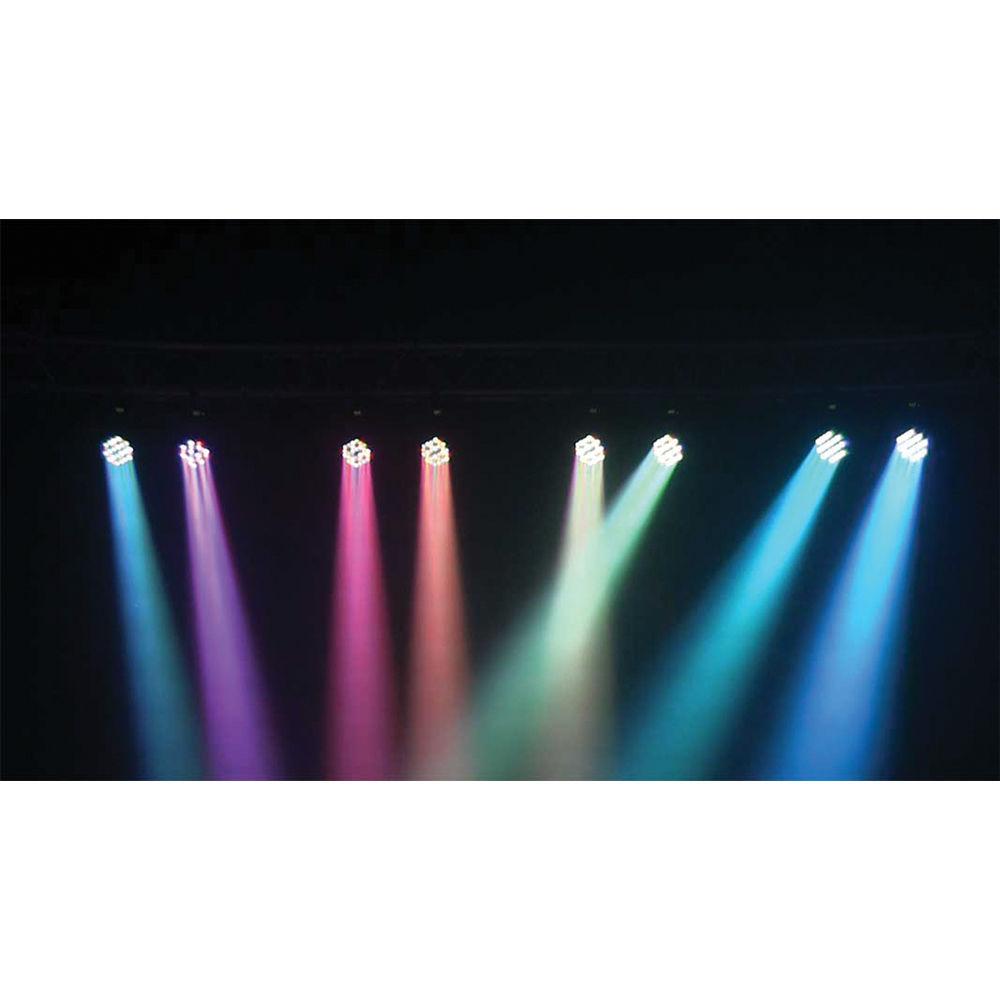

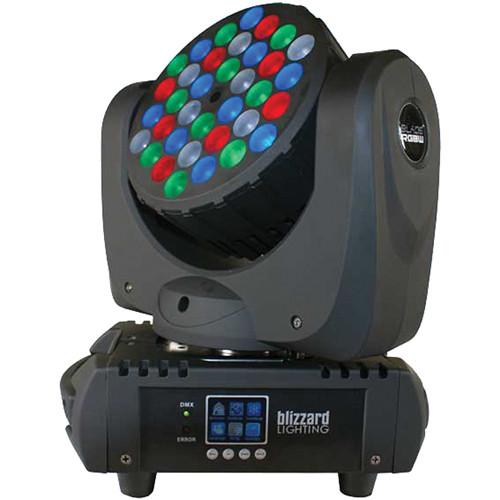

Product description The Blade RGBW Moving Head Beam from Blizzard Lighting is a dramatic effect with a 1.1 degree beam angle optic system and a LCD-TFT display with icon-based navigation that makes programming easy. The Blade features DMX control, 0-100% 16-bit dimming, 3-pin inputs and outputs and full color mixing in Stand-alone, DMX and Master/Slave. The PowerCon-compatible fixture can be converted into an 8.8° soft-edged wash fixture by attaching the included diffuser lens. - Attributes
-
- 36x 5W R/G/B/W CREE LED's
- User-selectable 11 or 15 DMX channels
- Sharp 1.1° beam angle and attachable 8° diffuser lens
- 4-Button menu with LCD-TFT icon-based display
- Full color mixing in Stand-alone, Master/Slave and DMX modes
- Built-in automated programs including sound-activated via Master/Slave
- User-selectable 16-bit dimming
- Defeatable pan/tilt correction with trim adjustment
- Auto standby after DMX signal loss
- Fixture ID addressing
- 3-Pin male input and 3-pin female output
- PowerCon compatible AC power In/Out connectors
- Compact, sturdy housing
- Luminous Intensity
- lux @ 6,5' (2.0 m) Diffuser / No Diffuser
Red: 530 / 6,600
Green: 740 / 8,070
Blue: 1,030 / 13,520
White: 1,000 / 12, 670
All: 2,920 / 41,000 UPC: 662425052004 In the Box Blizzard Blade RGBW Moving Head Beam Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard Blade RGBW Moving Head Beam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard Blade RGBW Specs | Light Source | 36x 5W R/G/B/W CREE LED's | | Optical | Beam angle: 1.1° (8° with diffuser lens) | | Operating Temperature | 104°F (40°C) | | Dimming | 0-100% | | Voltage | Operating Voltage: AC 120 VAC, 60 Hz
Power consumption: 148 W, 1.84 A (full white)
Power factor: 0.67 | | Dimension | 13.4 x 9.5 x 14.8" (34 x 24 x 37.5 cm) | | Weight | 11.5 lb (5.2 kg) | | | | Package Weight | 14.3 lb | | Box Dimensions (LxWxH) | 15.512 x 13.228 x 10.079" |
