User Manual for Blizzard Hotbox EXA RGBAW UV LED Light Click to enlarge the picture
Contents of the user manual for the Blizzard Hotbox EXA RGBAW UV LED
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard Hotbox EXA RGBAW UV LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

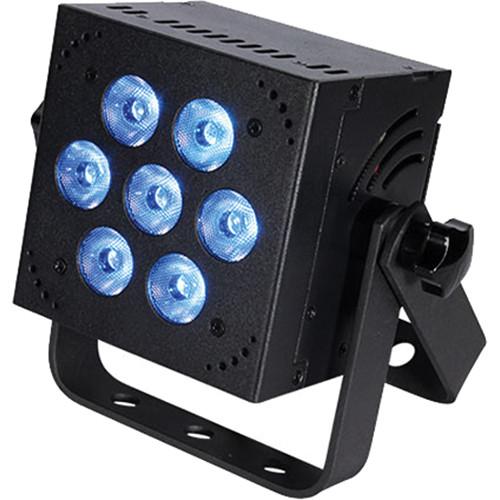

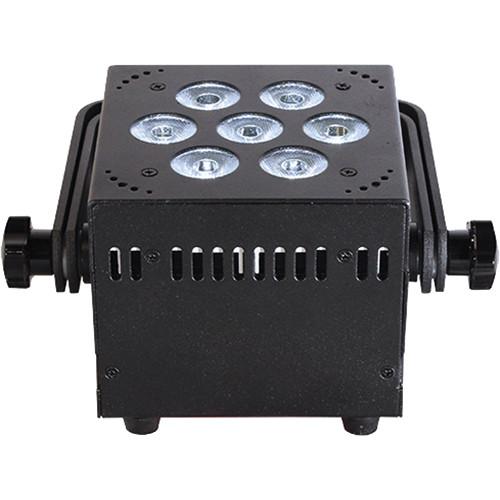

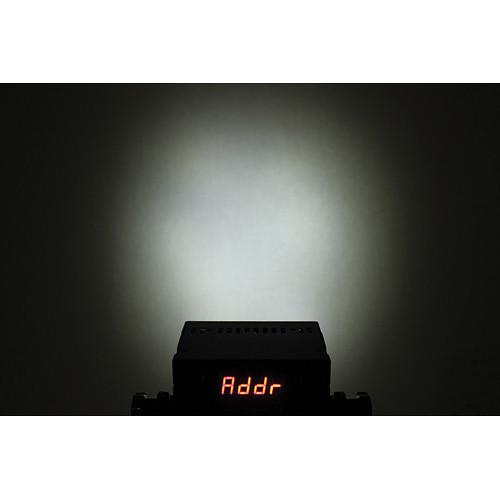

Product description The Hotbox EXA RGBAW + UV LED Light from Blizzard Lighting offers color mixing, advanced electronics, and high output in a 4 x 5 x 5" package. It employs 6-in-1 + 395-400nm UV LEDs, 3, 6, 8, 10 or 11 user selectable DMX channel modes, and an aluminum casing supported by dual hanging brackets and secure grip locking knobs. The Hotbox EXA boasts DMX control of built-in programs, flicker-free 32-bit dimming and HSV color mixing. Other operating modes include the Master/Slave, Sound Active mode, and Color Preset. - Attributes
-
- 395-400nm UV LEDs
- RGBAW + UV color mixing via 7x 15W 6-in-1 LEDs
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via Master/Slave
- Built-in Sound Active programs
- RGBAW + UV color mixing ability in Stand-alone mode
- HSV (3-Ch), RGBAW+UV (6-Ch), RGBAW+UV/Dim/Strobe (8-Ch), Extended (10-Ch), and Extended w/32-bit dimmer (11-Ch) DMX profiles
- Quiet variable-speed internal fan cooling

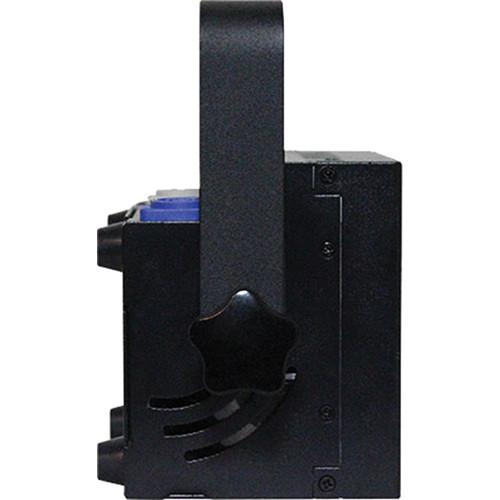

- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400Hz LED driver

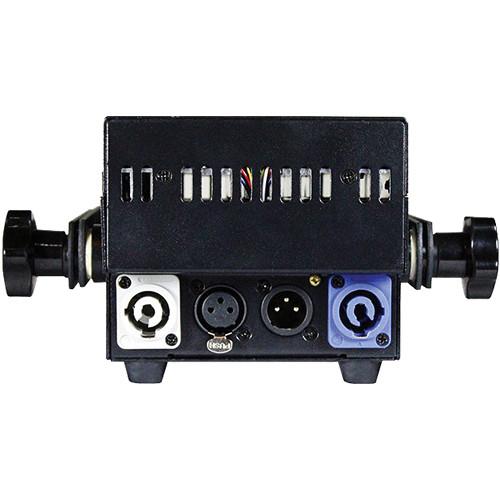

- 3-Pin male input and 3-pin female output
- PowerCon compatible AC power In/Out connectors
UPC: 852659766130 In the Box Blizzard Hotbox EXA RGBAW + UV LED Light DMX Quick Reference Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard Hotbox EXA RGBAW UV LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard HotBox EXA Specs | Light Source | 7x 15 W 6-in-1 LEDs, 100,000 hr lamp life | | Optical | Beam angle: 25° optics standard, 26° beam, 30° field | | Operating Temperature | 104°F (40°C) ambient | | Dimming | 32-bit Dimming with 5 user-selectable dimming curves | | Control | Protocol: USITT DMX512
DMX channels: 3, 6, 8, 10, 11
Input: 3-Pin XLR male
Output: 3-Pin XLR female
Stand-alone, Master/Slave, Sound Active, Color Preset
HSV (3-Ch), RGBAW + UV (6-Ch), RGBAW + UV/Dim/Strobe (8-Ch), Extended (10-Ch) and Extended + 32-bit dimmer (11-Ch) DMX profiles dimming (10-Ch) | | Luminous Intensity | 11,250 lux @ full RGBAW + UV @ 3.28' (1.0 m) | | Voltage | Operating Voltage: AC 100-250 VAC, 40-60 Hz
Fuse: 2 A, 50 V Power consumption: 58 W, 083 A (full white)
Power factor: 0.56 | | Dimension | 5.0 x 4.0 x 5.0" (12.7 x 10.2 x 12.7 cm) | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 9.9 x 9.1 x 6.3" |
