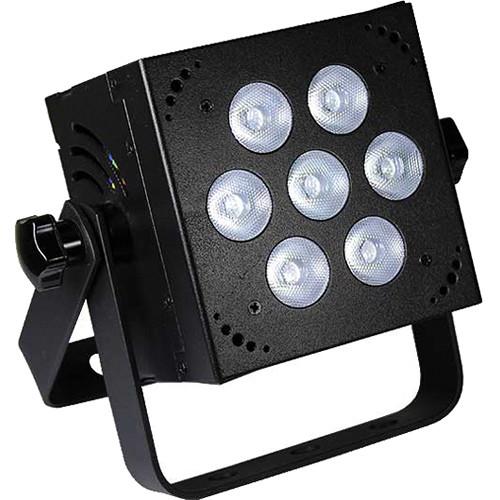

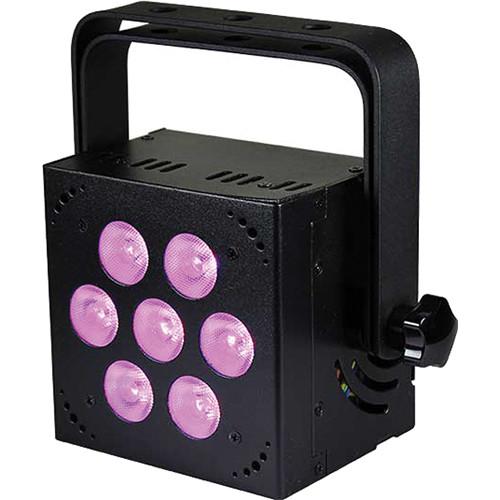

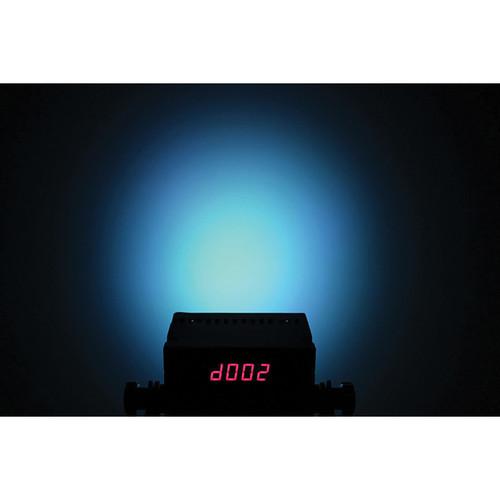

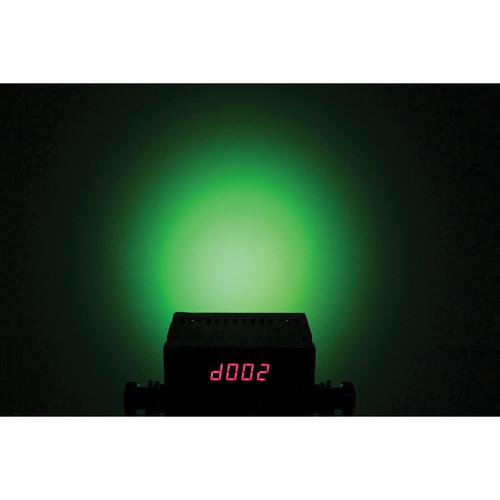

Product description The HotBox RGBW Effects Light from Blizzard Lighting offers 4-in-1 LEDs with an aluminum housing, dual hanging brackets and secure grip locking knobs. At just 3.5 pounds and 4 x 5 x 5", the HotBox RGBW is ideal for tours, mobile DJs and placement in tight spaces. The unit's 10W 4-in-1 LEDs, and their user selectable 3, 4, 5, 8 or 9 DMX channel modes ensure compatibility with any type of controller, including popular 3-channel controllers. The HotBox RGBA offers full control of color mixing, 31 built-in programs, smooth flicker-free 32-bit dimming, and easy HSV color mixing ability in DMX 3-channel mode. A built-in 4-button LED panel also allows local control over the fixture including master/slave settings, sound active mode, built-in programs, auto mode, custom color mixing, and user-adjustable fade/strobe effects. Connections include industry standard powerCON compatible power in/out and 3-pin DMX connectors. Alternatively, the unit's wiCICLE-enabled jacks allow wireless DMX control without needing an external power source. - Attributes
-
- RGBW color mixing via 7x 10W 4-in-1 LEDs
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via master/slave
- Built-in sound active programs
- Color mixing ability in standalone mode
- Quiet variable-speed internal fan cooling
- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400Hz LED driver
- 3-pin male input and 3-pin female output
- powerCon compatible AC power in/out connectors
- wiCICLE wireless DMX enabled
UPC: 852659765775 In the Box Blizzard HotBox RGBW LED Effects Light Dual Hanging Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard HotBox RGBW LED Effects Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard HotBox RGBW Specs | Light Source | 7x 10 W 4-in-1 LEDs, 100,000 hr lamp life | | Optical | 25° Optics standard Beam angle: 26° Field angle: 30° | | Control | Protocol: USITT DMX-512
DMX Channels: 3, 4, 5, 8, 9
Input: 3-pin XLR male
Output: 3-pin XLR female
Standalone, Master/Slave, Sound Active, Color Preset
HSV: 3-Ch, RGBW: 4-Ch, RGBW + Dim: (5-Ch), Extended: (8-Ch), Extended + 32-bit dimming: (9-Ch) | | Thermal | Max. Operating Temperature: 104°F (40°C) ambient | | Photometrics | Red: 4,500 lux @ 3.28' (1.0 m)
Green: 4,040 lux @ 3.28' (1.0 m)
Blue: 4,510 lux @ 3.28' (1.0 m)
White: 4,250 lux @ 3.28' (1.0 m)
All: 15,000 lux @ 3.28' (1.0 m)
Red: 1,320 lux @ 6.56' (2.0 m)
Green: 1,200 lux @ 6.56' (2.0 m)
Blue: 1,390 lux @ 6.56' (2.0 m)
White: 1,340 lux @ 6.56' (2.0 m)
All: 4,390 lux @ 6.56' (2.0 m) | | Dimensions | Without Brackets: 5.0 x 4.0 x 5.0" (127 x 101.6 x 127 mm)
With Brackets: 5.0 x 4.0 x 7.25" (127 x 101.6 x 184 mm) | | Weight | 3.5 lb (1.6 kg) |
