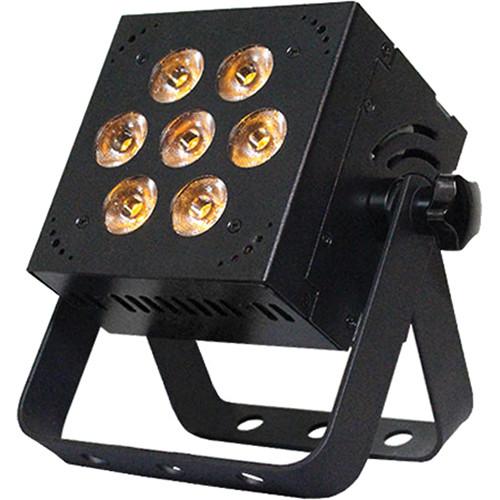

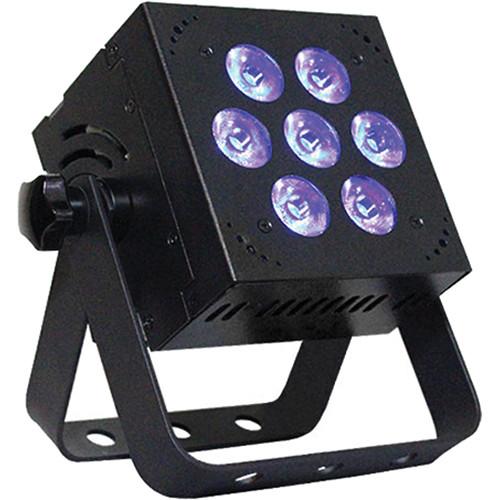

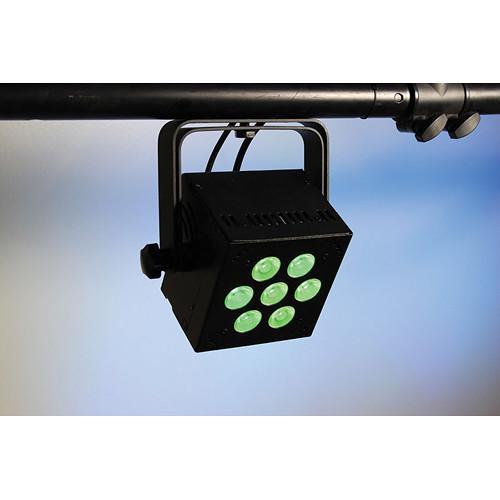

Product description The Hotbox5 RGBAW LED Light from Blizzard Lighting offers color mixing, advanced electronics, and high output in a 4 x 5 x 5" package. It employs 5-in-1 LEDs, 4, 5, 9, or 10 user selectable DMX channel modes, full compatibility with 4-channel controllers and an aluminum casing supported by dual hanging brackets and secure grip locking knobs. The Hotbox5 boasts DMX control of RGBAW color mixing, 31 built-in programs, flicker-free 32-bit dimming with 5 user-selectable dimming curves, and HSV color mixing ability in 4-channel mode. A 4-button LED control panel also offers local control of the fixture's Master/Slave settings, Sound Active mode, built-in programs, Auto Mode, custom color mixing, and user adjustable fade/strobe effects. - Attributes
-
- RGBAW color mixing via 7x 15W 5-in-1 LEDs
- 5 User-selectable 32-bit dimming curves
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via Master/Slave
- Built-in Sound-Active programs
- Quiet variable-speed internal fan cooling

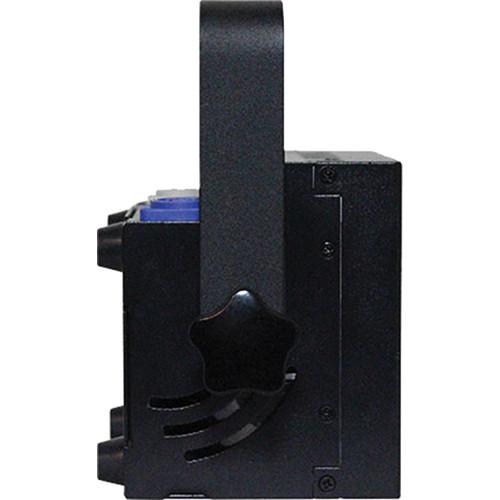

- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400Hz LED driver

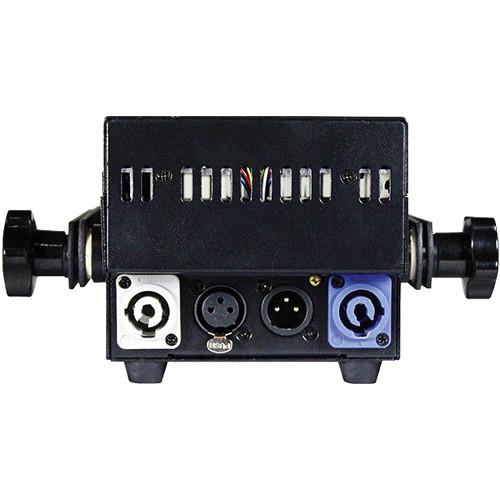

- 3-Pin male input and 3-pin female output
- PowerCon compatible AC power In/Out connectors
- Luminous Intensity
- lux @ 6.5' (2.0 m)
Red: 800
Green: 780
Blue: 850
Amber: 410
White: 1,010
All: 3,260 UPC: 852659765997 In the Box Blizzard Hotbox5 RGBAW LED Light DMX Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard Hotbox5 RGBAW LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard HotBox 5 RGBAW Specs | Light Source | 7x 15W 5-in-1 LEDs, 100,000 hr lamp life | | Optical | Beam angle: 25° optics standard, 26° beam, 30° field | | Operating Temperature | 104°F (40°C) ambient | | Dimming | 32-bit Dimming with 5 user-selectable dimming curves | | Control | Protocol: USITT DMX-512
DMX Channels: 4,5,9, 10
Input: 3-Pin XLR male
Output: 3-Pin XLR female
Stand-alone, Master/Slave, Sound Active, Color Preset
HSV (4-Ch), RGBAW (5-Ch), Extended 9Ch and Extended + 32-bit dimming (10-Ch) | | Voltage | Operating Voltage: AC 100-250 VAC, 40-60 Hz
Fuse: 2 A, 50 V Power consumption: 58 W, 083 A (full white)
Power factor: 0.56 | | Dimension | 5.0 x 4.0 x 5.0" (127 x 101.7 x 127 cm) without brackets
5.0 x 4.0 x 7.25" (127 x 101.7 x 184 cm) with brackets | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 9.9 x 9.2 x 6.1" |
