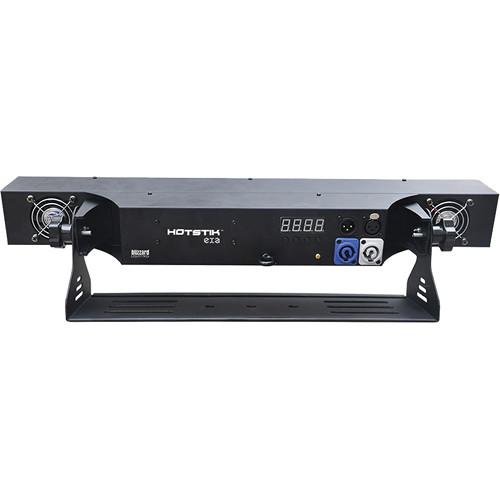

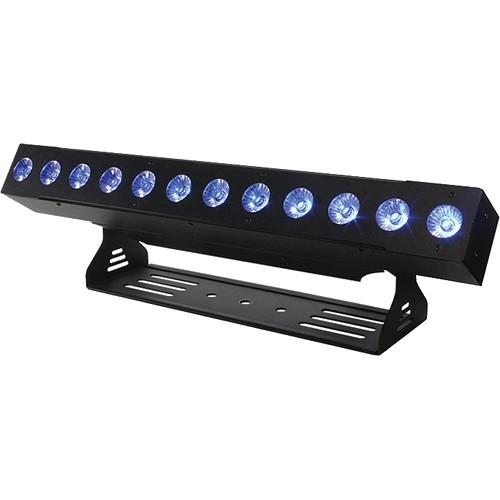

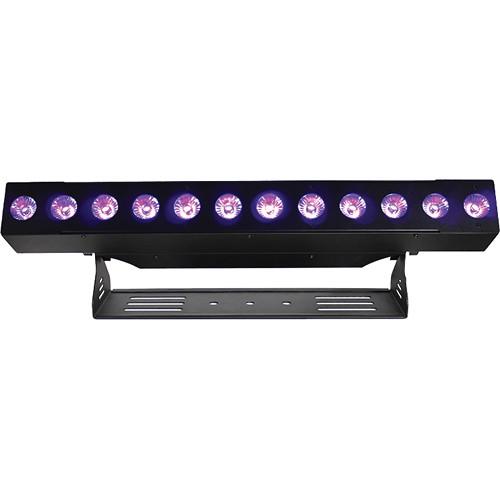

User Manual for Blizzard HotStik EXA RGBAW UV LED Wash Fixture Click to enlarge the picture
Contents of the user manual for the Blizzard HotStik EXA RGBAW UV LED
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard HotStik EXA RGBAW UV LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

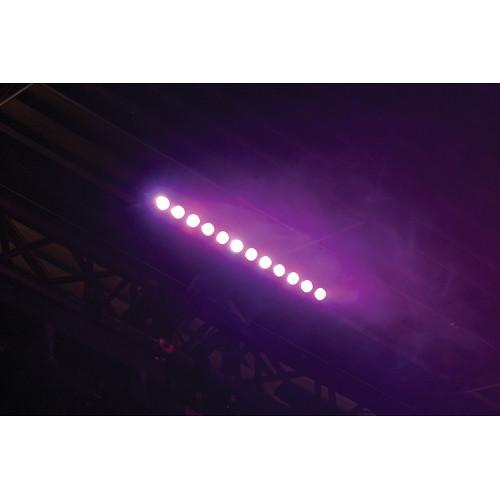

Product description The HotStik EXA RGBAW+UV LED Wash Fixture from Blizzard Lighting offers 15W RGBAW+UV 6-in-1 LEDs that allow you to create rich, vibrant colors that can be further customized with the addition of ultraviolet light to give them an unique hue. With a large array of built-in color macros, automated programs, plus Sound Active mode via Master/Slave, the HotStik EXA is an ideal 25 degree accent light, while its 3, 6, 8, 10 and 11-channel DMX modes make it a theatrical and production asset as well. The HotStik EXA's DMX channel modes, work with any type of controller. In 6-channel mode it's a great fit for Blizzard's Kontrol 6 and Kontrol 6 Skywire controllers each of which offer have six dedicated RGBAW+UV sliders. Extended Mode, in particular, offers control of key functions like as RGBAW+UV color mixing, 35 built-in programs, ultra smooth flicker-free 32-bit dimming with 5 user-selectable dimming curves, and easy HSV color mixing in 3-channel mode. The built-in 4-button LED control panel allows total local control of the fixture including Master/Slave settings, Sound-Active mode, built-in programs, Auto Mode, custom RGBAW+UV color mixing, and user-adjustable fade/strobe effects. The HotStik EXA comes with industry standard powerCON compatible power In/Out connections as well as 3-pin wiCICLE-enabled DMX In/Out connections that supply power directly to the wiCICLe wireless DMX system. - Attributes
-
- RGBAW + UV color mixing via 12x 15W 6-in-1 LEDs
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via Master/Slave
- RGBAW + UV color mixing ability in Stand-alone mode
- 3-Pin male input and 3-pin female output
- User selectable 3, 6, 8, 10, 11-channel DMX modes
- Able to directly power the wiCICLE wireless system via DMX
- Easy to use LED control panel
- PowerCon compatible AC power In/Out connectors
- Luminous Intensity
- lux @ 6.56' (2.0 m)
Red: 670
Green: 985
Blue: 991
Amber: 506
White: 1,167
UV: 225
All: 3,725 UPC: 852659766703 In the Box Blizzard HotStik EXA RGBAW+UV LED Wash Fixture Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard HotStik EXA RGBAW UV LED Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard HotStik EXA Specs | Light Source | 12x 15 W 6-in-1 LEDs, 100,000 hr lamp life | | Optical | Beam angle: 25° optics standard | | Operating Temperature | 104°F (40°C) ambient | | Dimming | 32-bit Dimming with 5 user-selectable dimming curves | | Control | Protocol: USITT DMX512
DMX channels: 3, 6, 8, 10, 11 (user-selectable)
Input: 3-pin XLR male
Output: 3-pin XLR female
Stand-alone, Master/Slave, Sound Active, Color Preset | | Voltage | Operating voltage: AC 100-264 VAC, 47-63 Hz
Power consumption: 104 W, 1.36 A
Power factor: 0.63 | | Dimension | 16.2 x 8.2 x 4.9" (41 x 20.7 x 12.4 cm) | | Weight | 10.4 lb (4.7 kg) | | | | Package Weight | 13.35 lb | | Box Dimensions (LxWxH) | 25.591 x 8.504 x 7.874" |
