User Manual for Blizzard Hypno Beam LED Beam Moving Head Click to enlarge the picture
Contents of the user manual for the Blizzard Hypno Beam LED Beam Moving
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard Hypno Beam LED Beam Moving contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|
Product description - Blizzard's Mind-Bending Hypno Beam + Spot [OFFICIAL DEMO]

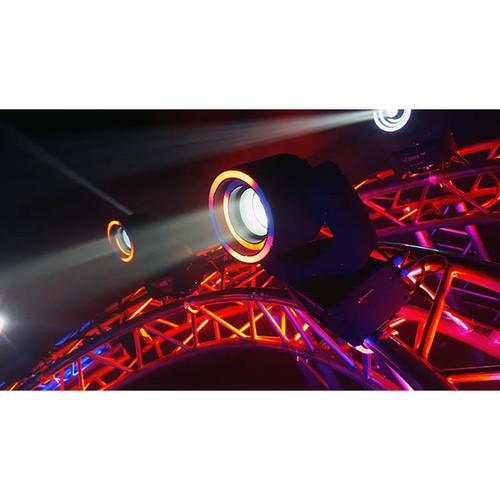

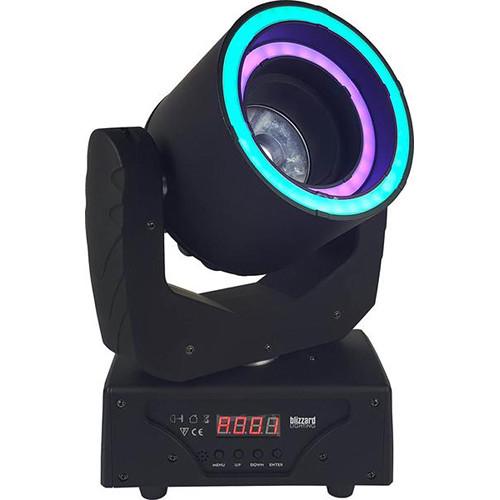

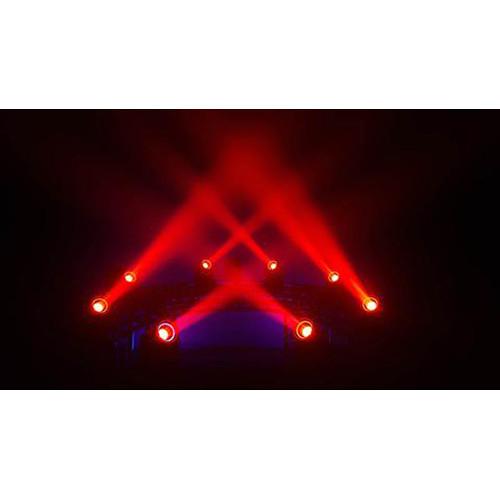

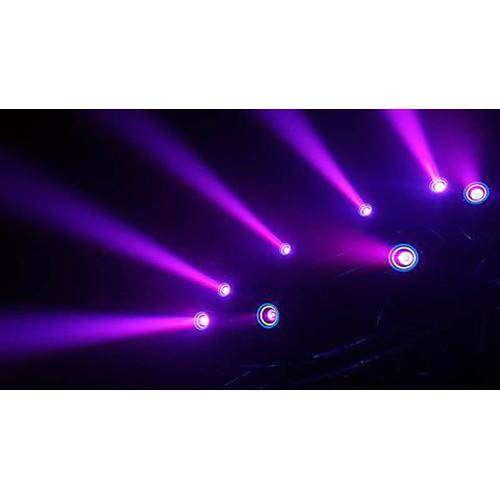

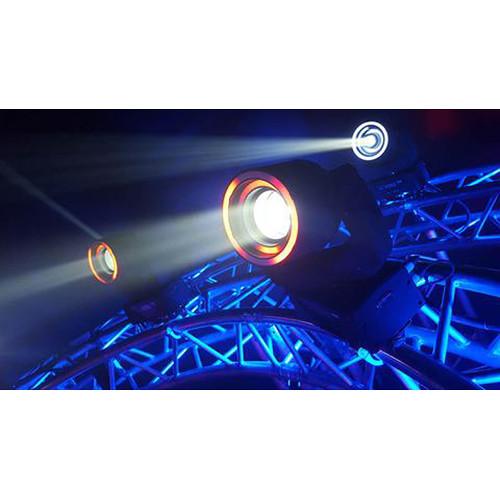

Transfix your crowd with the Hypno Beam from Blizzard Lighting. Boasting a high-output 60W RGBW LED surrounded by two RGB LED rings, the Hypno Beam delivers an 8° moving beam enclosed within two layers of chase and strobe effects. The beam and the LED ring effects can be controlled independently of one another via DMX for maximum freedom.
The Hypno Beam offers 14- and 23-channel DMX modes, as well as an easy-to-use four-button LED control panel. The power input and output connections are industry-standard powerCON-compatible. The fixture is equipped with a 3-pin DMX interface and a quarter-turn Omega quick-connect clamp bracket. - 8° beam effects via 60W RGBW 4-in-1 LED
- Two LED rings with 60 RGB 3-in-1 LEDs each
- Compact and lightweight at 11 lb
- Independent DMX control of beam and LED ring effects
- 540/630° pan and 200° tilt at 8-16 bit resolution
- Built-in auto and sound-active programs
- User-selectable 14- and 23-channel DMX modes
- Easy-to-use four-button LED control panel menu
- 3-pin DMX input and output connections
- PowerCON-compatible AC power input and output
UPC: 685450871372 In the Box Blizzard Hypno Beam LED Beam Moving Head Power Cord Mounting Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard Hypno Beam LED Beam Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard Hypno Beam Specs | Light Source | 1 x 60 W RGBW 4-in-1 LED
2 x SMD5050 LED rings, each with 60 x RGB 3-in-1 LEDs | | Beam Angle | 8° | | Luminous Intensity | 77,372 lux @ 3.3' (1 m)
15,330 lux @ 8.2 (2.5 m)
3747 lux @ 16.4' (5 m) | | DMX Channels | 14/23-channel DMX modes | | Input | 3-pin XLR male | | Output | 3-pin XLR female | | Operating Modes | Standalone, master/slave, sound active, color preset | | Control | 4-button LCD control panel | | Operating Voltage | 100-240 VAC, 50-60 Hz | | Power Consumption | 106 W, 0.89 A, PF: 0.98 | | Fuse | 2 A, 250 V | | Movement | Pan: 540/630° (8-16 bit resolution)
Tilt: 200° (8-16 bit resolution) | | Max Operating Temperature | 104°F (40°C) | | Protocol | USITT DMX-512 | | Dimensions | 10.5 x 6.6 x 11.9" (26.5 x 16.8 x 30.1 cm) | | Weight | 11 lb (5 kg) |
