Product description - Blizzard's Mind-Bending Hypno Beam + Spot [OFFICIAL DEMO]

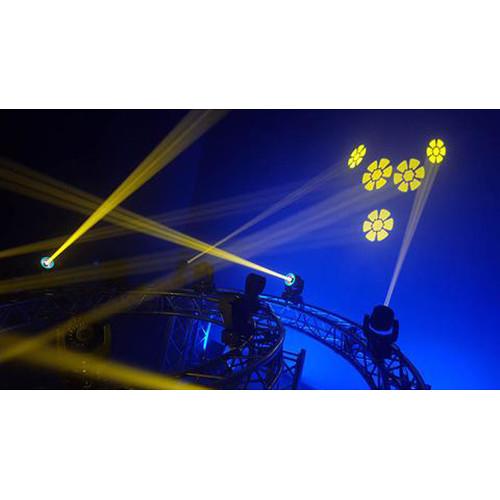

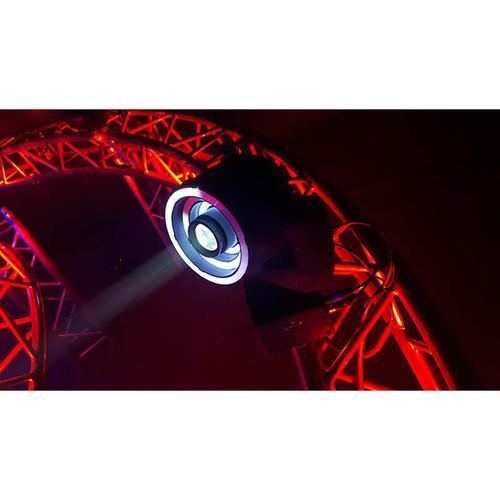

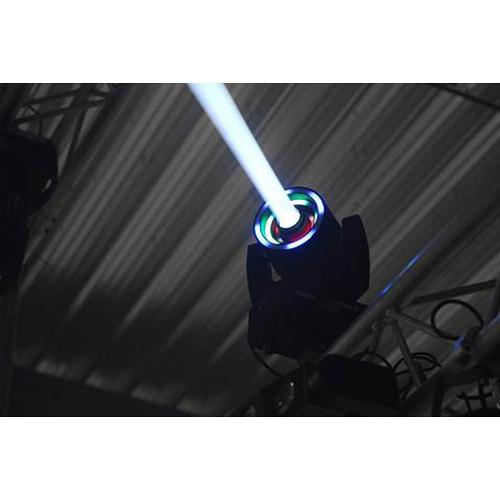

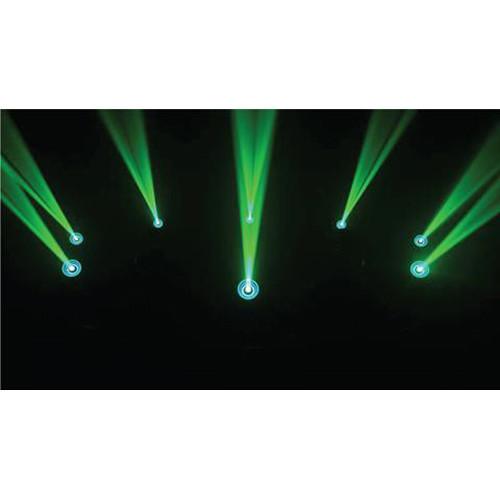

Transfix your crowd with the Hypno Spot from Blizzard Lighting. Boasting a high-output 30W white LED surrounded by three RGB LED rings, the Hypno Spot delivers a 4.7° moving beam enclosed within three layers of chase and strobe effects. Built-in gobo and a color wheels, each with nine positions plus open, allow you to shape and color the beam to your liking. For maximum freedom, the beam and the LED ring effects can be controlled independently of one another via DMX.
The Hypno Spot offers 12- and 23-channel DMX modes, as well as an easy-to-use four-button LED control panel. The power input and output connections are industry-standard powerCON-compatible. The fixture is equipped with a 3-pin DMX interface and a quarter-turn Omega quick-connect clamp bracket. - 4.7° spot effects via 30W white LED
- Three LED rings with 76 RGB 3-in-1 LEDs each
- Gobo wheel with nine gobos + open
- Color wheel with nine colors + open
- Compact and lightweight at 11 lb
- Independent DMX control of beam and LED ring effects
- 540/630° pan and 200° tilt at 8-16 bit resolution
- Built-in auto and sound-active programs
- User-selectable 12- and 23-channel DMX modes
- Easy-to-use four-button LED control panel menu
- 3-pin DMX input and output connections
- powerCON-compatible AC power input and output
UPC: 685450871389 In the Box Blizzard Hypno Spot LED Moving Head Power Cord Mounting Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard Hypno Spot LED Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard Hypno Spot Specs | Light Source | 1 x 30 W white LED
3 x SMD5050 LED rings, each with 76 x RGB 3-in-1 LEDs | | Beam Angle | 4.7° | | Color Temperature | CCT: 6500K | | Luminous Intensity | 63,163 lux @ 3.3' (1 m)
9480 lux @ 8.2' (2.5 m)
2185 lux @ 16.4' (5 m) | | DMX Channels | 12/23-channel DMX modes | | Input | 3-pin XLR male | | Output | 3-pin XLR female | | Operating Modes | Standalone, master/slave, sound active, color preset | | Control | 4-button LCD control panel | | Operating Voltage | 100-240 VAC, 50-60 Hz | | Power Consumption | 84 W, 1.11 A
PF: 0.66 | | Fuse | 2 A, 250 V | | Movement | Pan: 540/630° (8-16 bit resolution)
Tilt: 200° (8-16 bit resolution) | | Max Operating Temperature | 104°F (40°C) | | Protocol | USITT DMX-512 | | Dimensions | 10.5 x 6.6 x 11.9" (26.5 x 16.8 x 30.1 cm) | | Weight | 11 lb (5 kg) | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 15.2 x 13.25 x 10.5" |
