User Manual for Blizzard Laser Blade G Green Moving Head Laser Click to enlarge the picture
Contents of the user manual for the Blizzard Laser Blade G Green Moving
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard Laser Blade G Green Moving contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

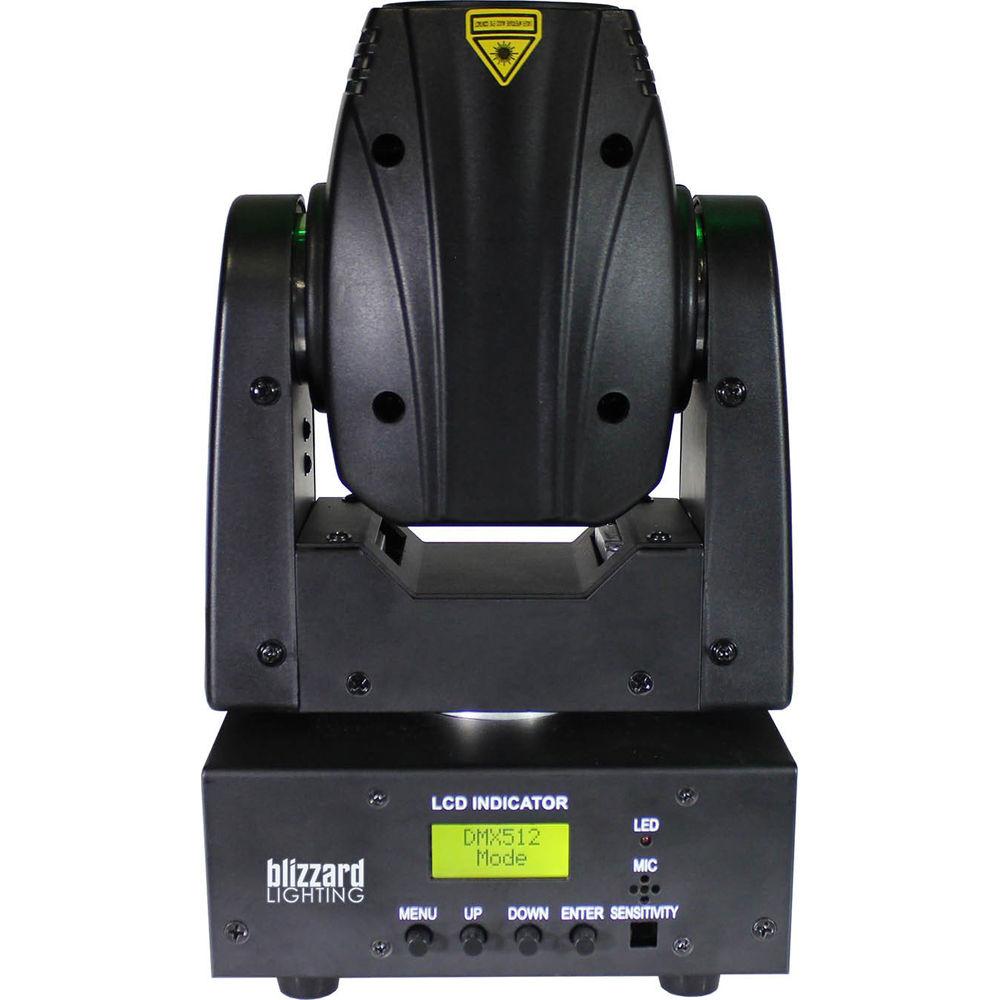

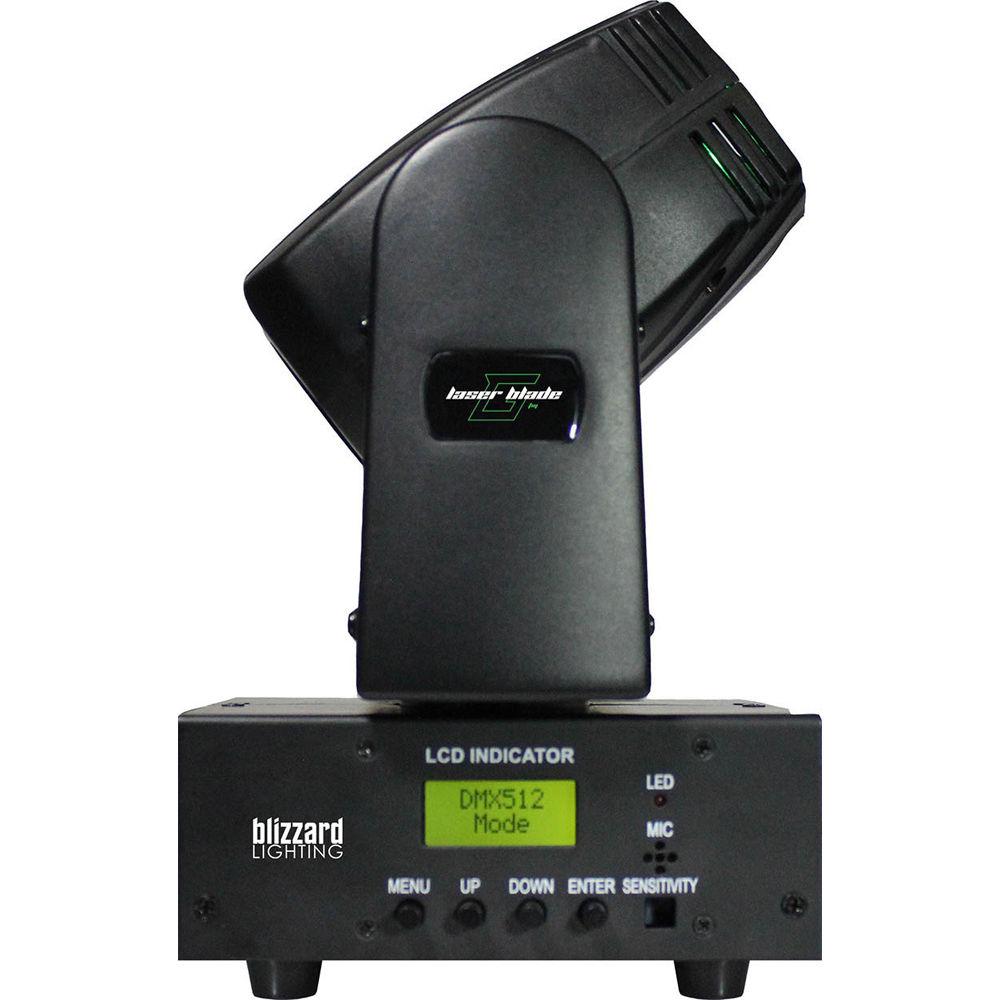

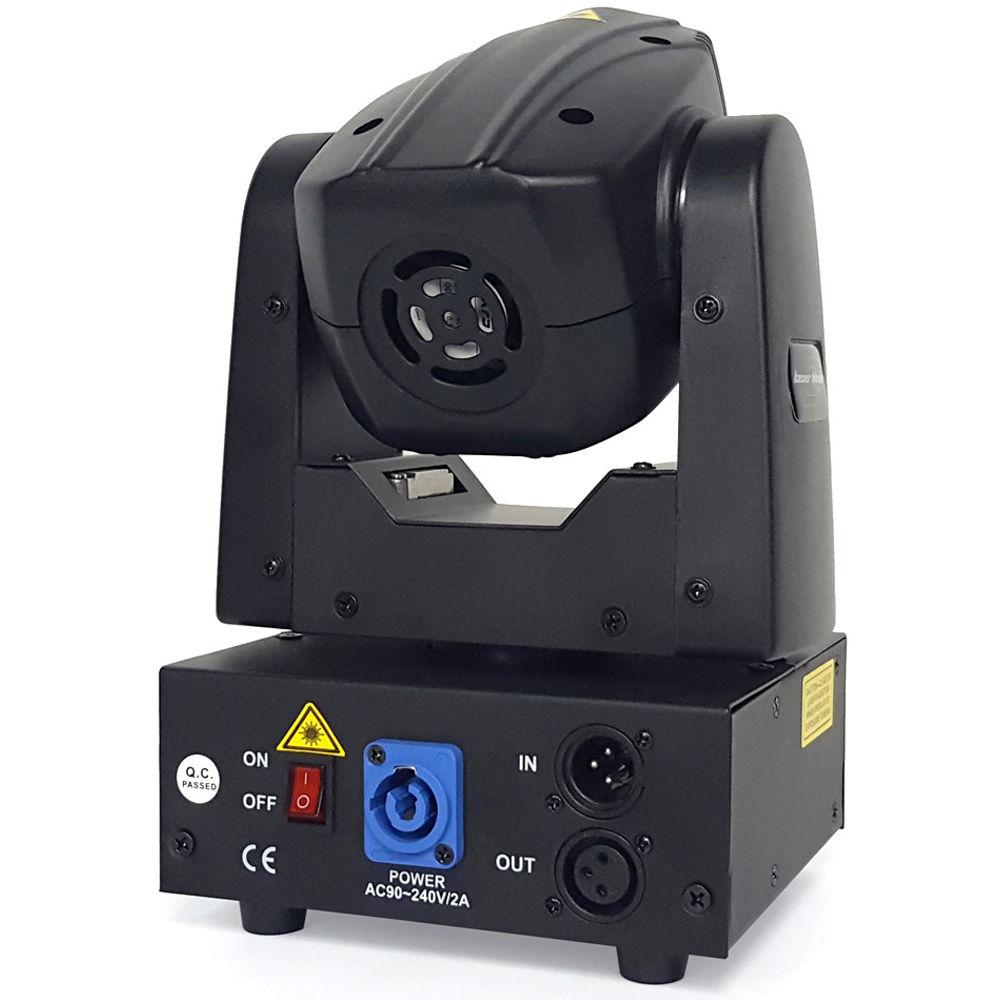

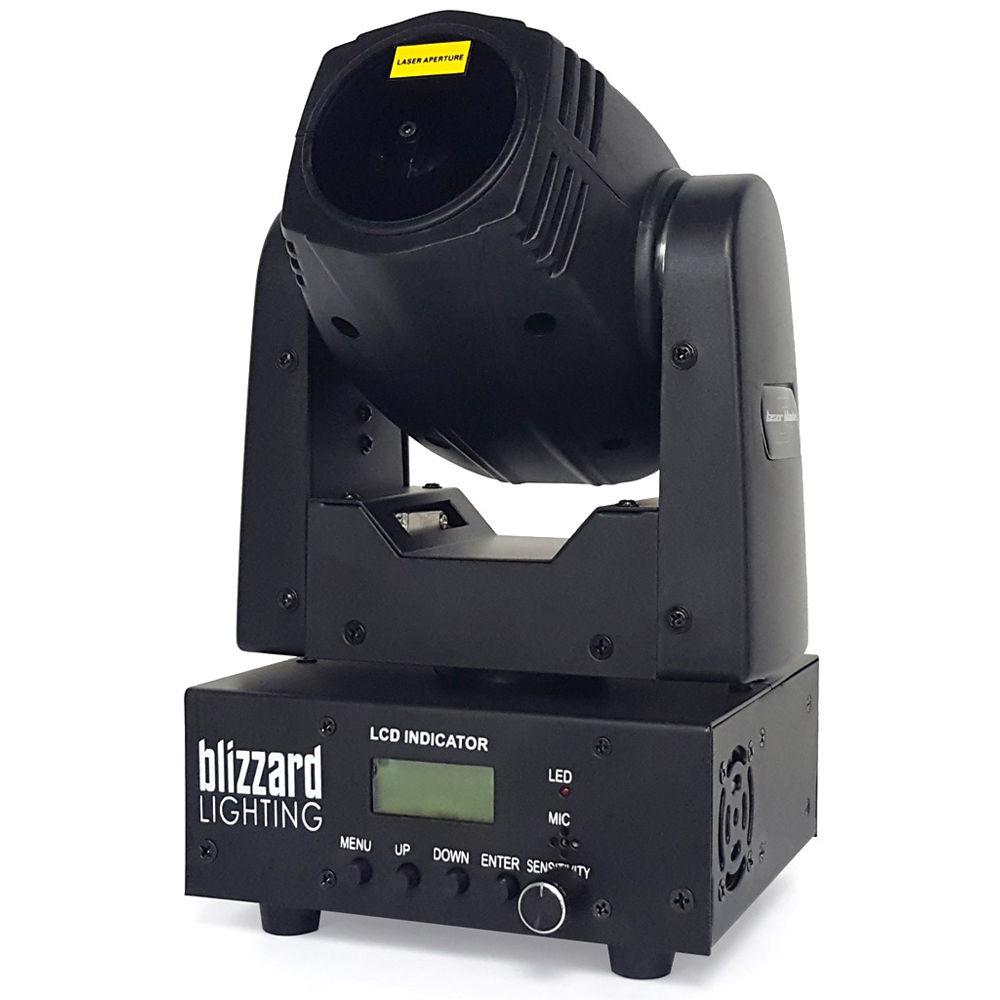

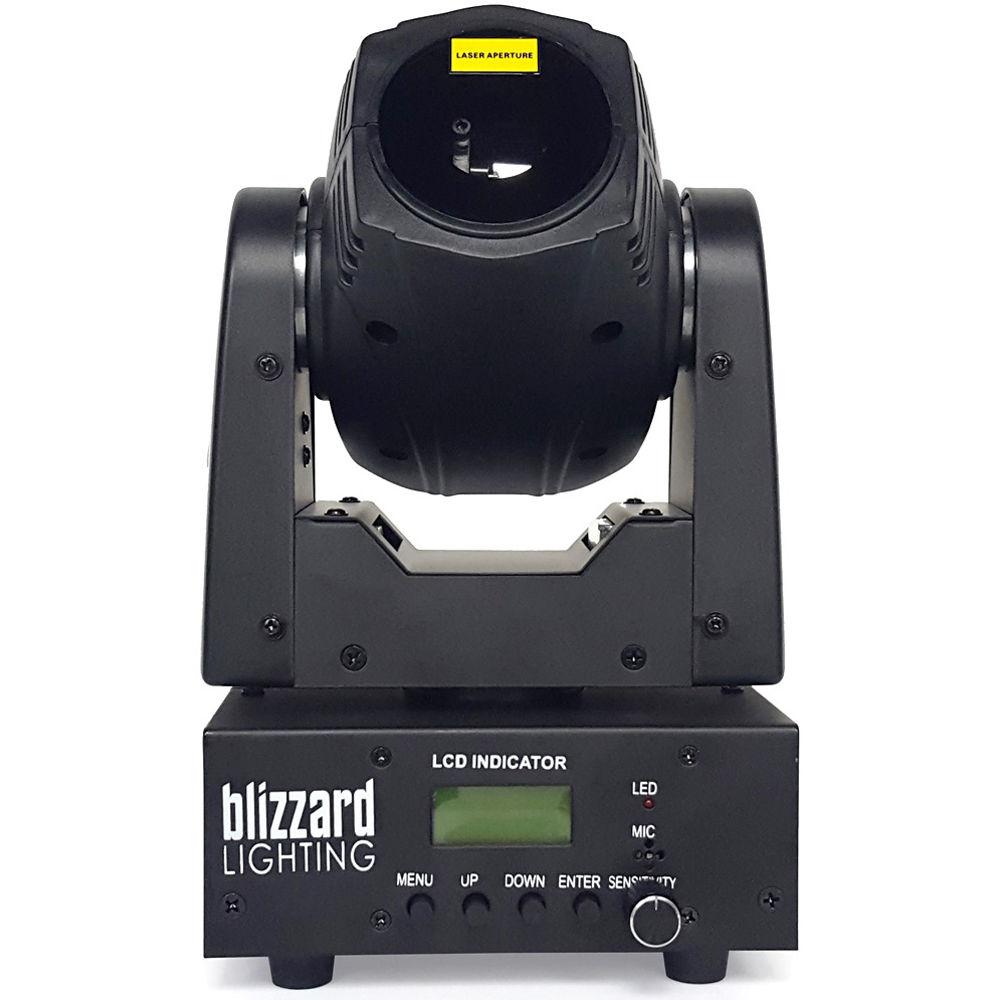

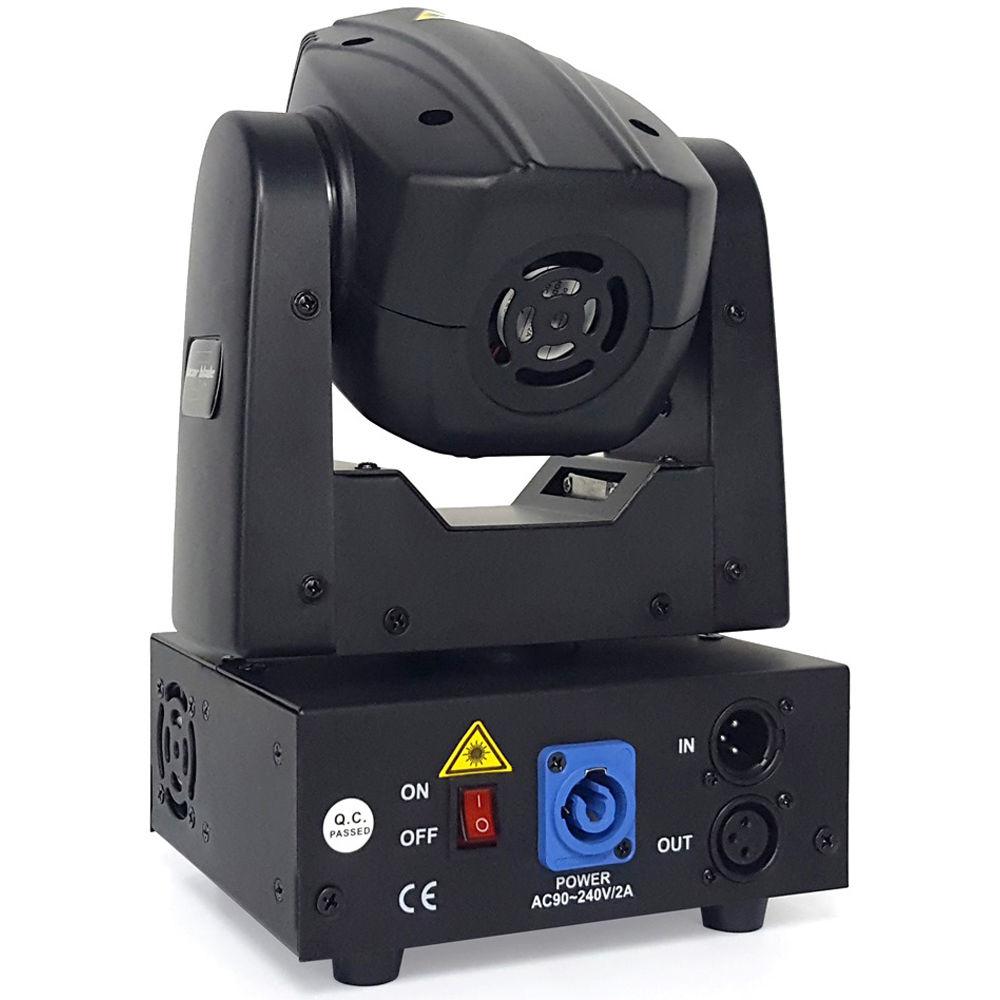

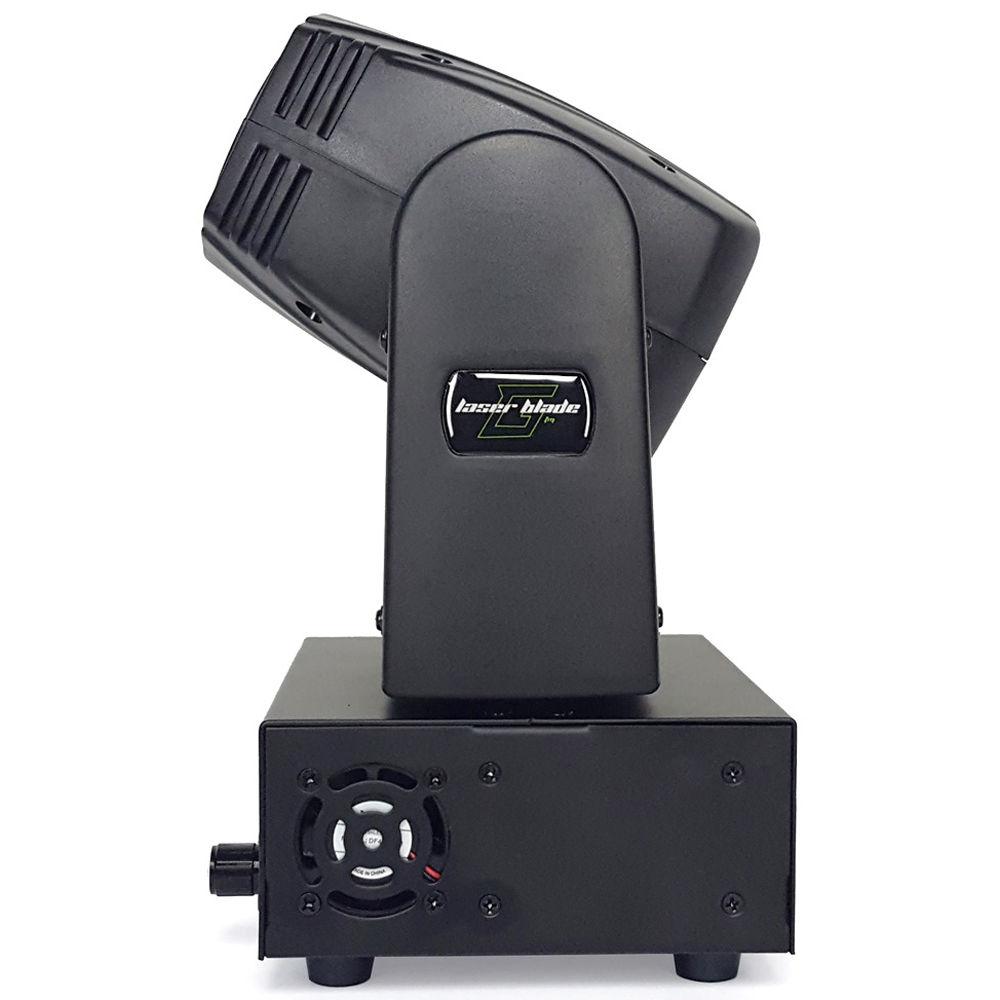

Product description The Blizzard Lighting Laser Blade G is a powerful, compact moving head fixture equipped with a 50mW, Class 3R wide beam laser with 15 kpps galvo scanners. The laser can produce smooth shapes, animations, and other eye-catching effects including 133 geometric figures, 14 animations, and 76 types of beam patterns. The ultra-fast 540° pan and 270° tilt allow for the laser animations to move about the room.
The Laser Blade G can be operated in standalone mode, auto-beam, auto-animation, and sound-active modes, or via 18-channel DMX with the capability to take full control of pan/tilt, zoom in/out, rotating, drawing, billowing, speed, and animation selection. -
- 50mW, Class 3R fat beam laser + 15 kpps galvo scanners
- Pre-programmed with 133 geometric figures, 14 animations, and 76 beam patterns
- 540º pan, 270º tilt
- Easy-to-use, four-button LCD control panel menu
- Built-in auto-beam, auto-animation, and sound-activate programs
- In DMX mode, two animations in one frame can be operated separately
- 3-pin male input and 3-pin female output
- IEC power input connector
- Lightweight and easily portable
- Clamp mounting bracket included
UPC: 685450870023 In the Box Blizzard Laser Blade G Green Moving Head Laser Mounting Bracket Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard Laser Blade G Green Moving Head Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard Laser Blade G Specs | Light Source | Laser: Fat beam 50 mW 532 nm green DPSS
Scanner: 15 kpps high-speed optical scanner
Laser Class: 3R | | Control | Protocol: USITT DMX-512
DMX Channels: 18
Input: 3-pin XLR, male
Output: 3-pin XLR, female
Other Operating Modes: Sound-active, auto-beam, auto-animation, DMX512, master/slave | | Maximum Operating Temperature | 104°F / 40°C | | Power | Operating Voltage: 110 to 250 VAC, 50/60 Hz
Fuse: 2 A, 250 V
Power Consumption: 20 W | | Dimensions (L x W x H) | 7.1 x 5.5 x 10.6" / 18.0 x 13.9 x 26.9 cm | | Weight | 6.7 lb / 3.0 kg | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 14.0 x 9.0 x 8.0" |
