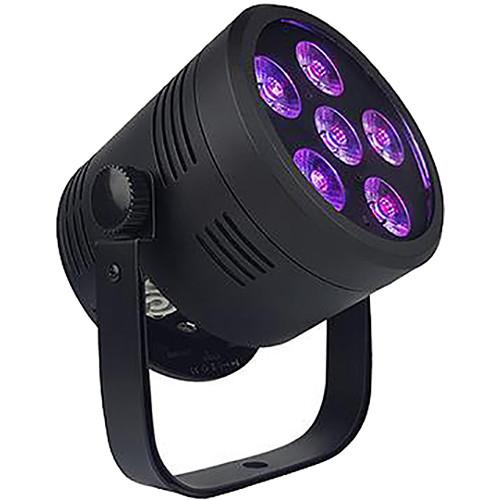

Product description Designed for smooth color mixing, the battery-powered Blizzard LB Hex Unplugged is a PAR fixture with six, 6W (6-in-1) Hex RGBAW+UV (red, green, blue, amber, white, and ultraviolet) LEDs. Featuring a 25° beam angle and a rechargeable, Intelion lithium-ion battery system, it produces wide and vibrant amber- and UV-infused color washes for up to 15 hours on a single charge, great for dance floors, stages, installations, and mobile events. For fast setup in standalone mode, the LB Hex Unplugged offers automated programs such as sound active, auto, color macros, strobe, and electronic dimming with 32-bit dimming curves, all accessible from the 4-button LED control panel. It can also be controlled via DMX with two channel modes or with the IR-3 wireless remote (included). The master/slave option lets you coordinate multiple units without the need for a controller. In addition, the fixture is wiCICLE-enabled, allowing you to use the wiCICLE Skywire and wiCICLE AnyFi wireless DMX receivers without any external power needed. Other features include flicker-free LEDs for video applications, advanced convection cooling for silent operation, power-save mode, real-time battery monitoring, and a universal power supply. The dual scissor yoke can be used for conventional mounting to a truss or to create a variable-angle floor stand. - Key Features
-
- Wash light PAR fixture with 6 x 6W RGBAW + UV (6-in-1) Hex LEDs—red, green, blue, amber, white, and ultraviolet
- 25° beam angle
- Rechargeable Intelion lithium-ion battery system with power-save mode
- Battery lasts 4 hours (all on) and up to 15 hours (single color)
- Standalone, master/slave, auto, sound active modes
- Variable electronic dimming with user-selectable 32-bit dimming curves
- Color macros and color presets
- LED strobe effect—1 to 20 Hz
- DMX channel modes: 8 or 13
- Selectable power-saving modes

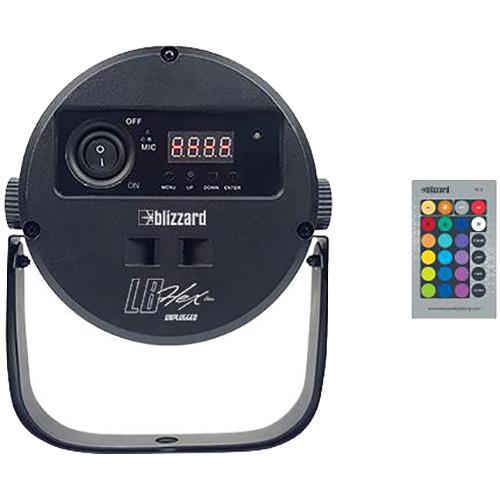

- 4-button LED control panel for easy programming
- wiCICLE-enabled—powers wiCICLE Skywire and wiCICLE AnyFi wireless DMX receivers
- powerCON connectors for secure power connections
- Real-time battery-life monitoring
- Flicker-free, constant-current LED driver
- Convection-cooled housing for silent operation
- Heavy-duty cast-aluminum enclosure

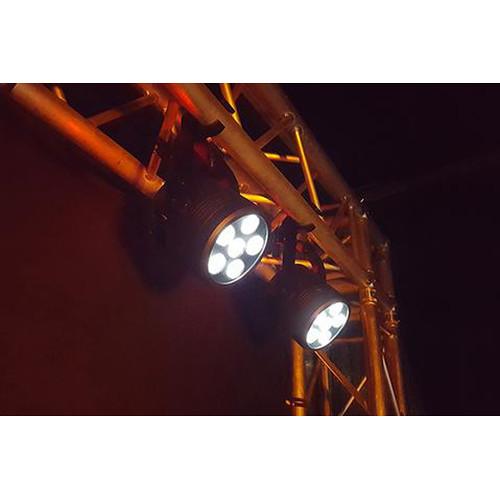

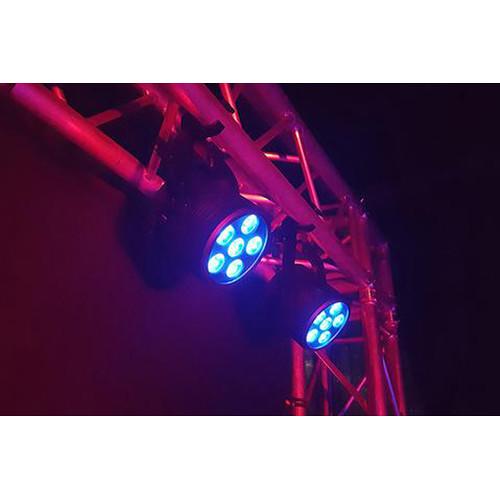

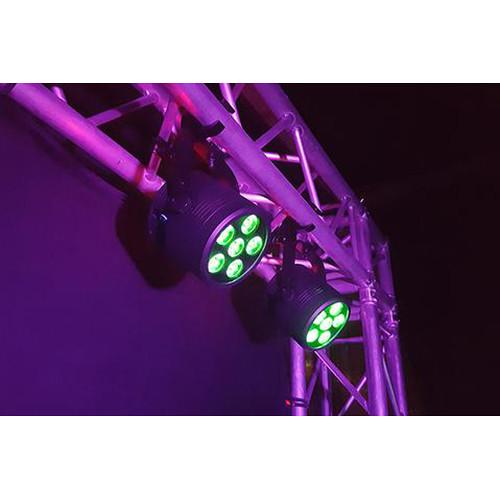

- Dual scissor yokes to hang fixture on truss, mount on a wall, or set on the ground
- Multi-voltage operation: 100-240 VAC
- Includes IR-3 wireless IR remote
UPC: 685450872041 In the Box Blizzard LB Hex Unplugged RGBAW+UV Battery-Powered LED PAR Fixture IR-3 Wireless IR Remote IEC to powerCON Power Cord Limited 2-Year Warranty (Excluding Malfunction Caused by Damage to LEDs) Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard LB Hex Unplugged RGBAW UV Battery-Powered LED PAR Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard LB Hex Unplugged Specs | Optical | 6 x 6 W (6-in-1) RGBAW+UV LEDs (red, green, blue, amber, white, ultraviolet)
Beam Angle: 25°
Photometric Data:
4319 lux / 401.2 fc at 3.2' / 1 m
883 lux / 82.1 fc at 6.5' / 2 m
488 lux / 45.4 fc at 9.8" / 3 m
242 lux / 22.5 fc at 13.1' / 4 m | | Control | DMX:
Protocol: USITT DMX-512
Channels: 8 or 13
Connectors: 3-pin I/O
Manual Control:
4-button LED control menu display
Wireless:
IR remote
wiCICLE-enabled
Modes:
Standalone
Master/slave
Auto
Sound active | | Effects | Electronic Dimming: 0-100%, 32-bit dimming curves
Variable Strobe: 1 to 20 Hz
Built-in color macros and presets
5 x Auto effects | | Power and Current | Operating Voltage: 110-240 VAC, 50/60 Hz
Power Consumption: 21 W, 0.24 A
Power Factor: 0.66
Power Connectors: powerCON I/O
Battery:
Intelion lithium-ion battery system with power-save mode
Capacity: 4.4 Ah
Battery Run Time: Over 4 hours (all on), up to 15 hours (single color)
Recharge Time: 3.5 hours
Onboard battery-level monitor | | Material | Heavy-duty cast-aluminum enclosure | | Mounting | Dual mounting yokes | | Operating temperature | 104°F / 40°C (maximum ambient temperature) | | Cooling | Convection | | Dimensions (W x D x H) | 5.6 x 7 x 8.3" / 14.1 x 17.7 x 21.1 cm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 6.23 lb | | Box Dimensions (LxWxH) | 10.85 x 8.6 x 8.4" |
