Product description - Blizzard Lighting NAMM 2015 LB Par Quad RGBW/RGBA/Hex
- LB PARs - The Show Must Go On

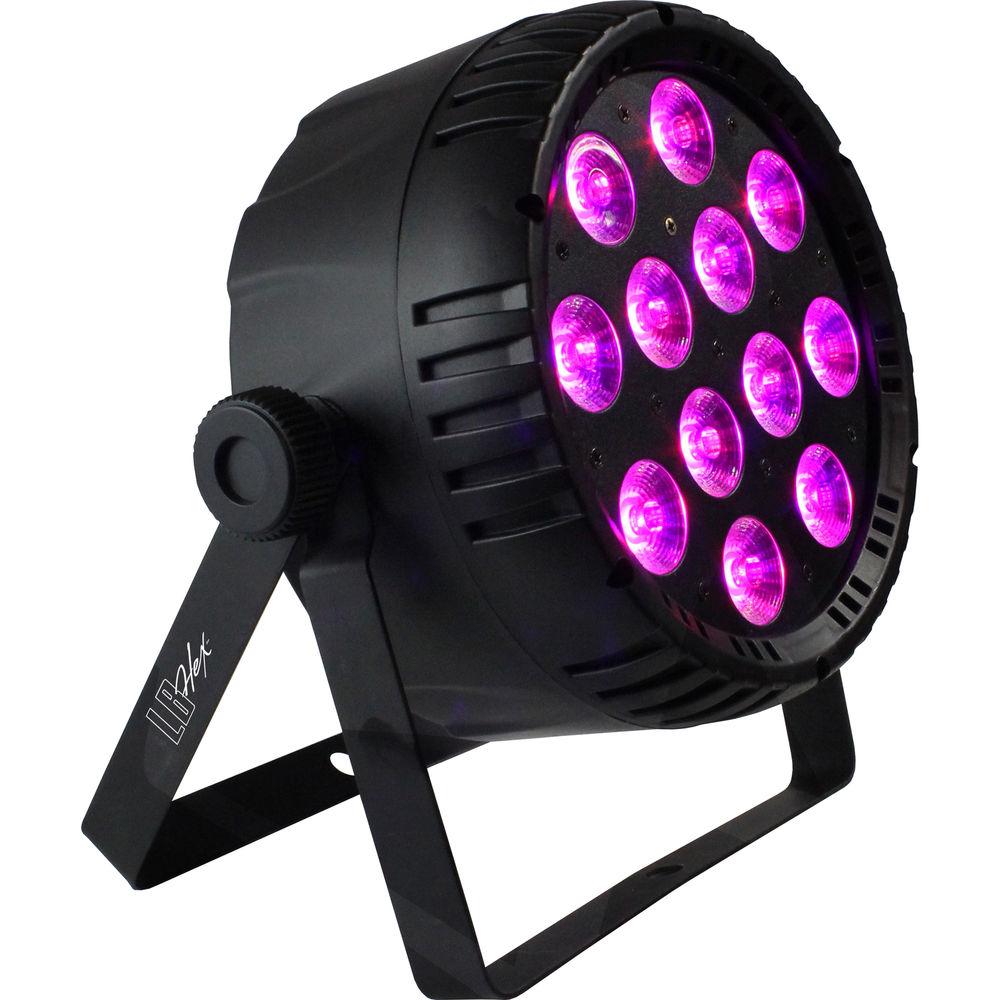

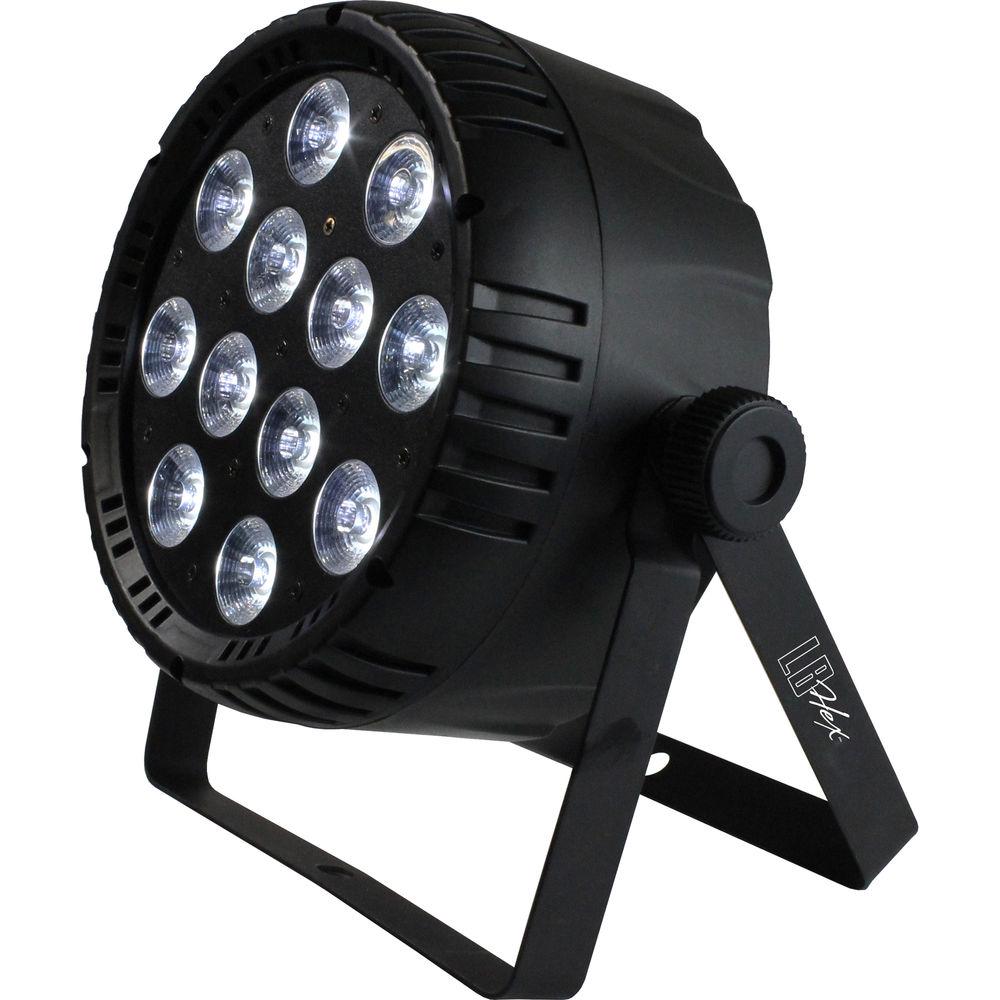

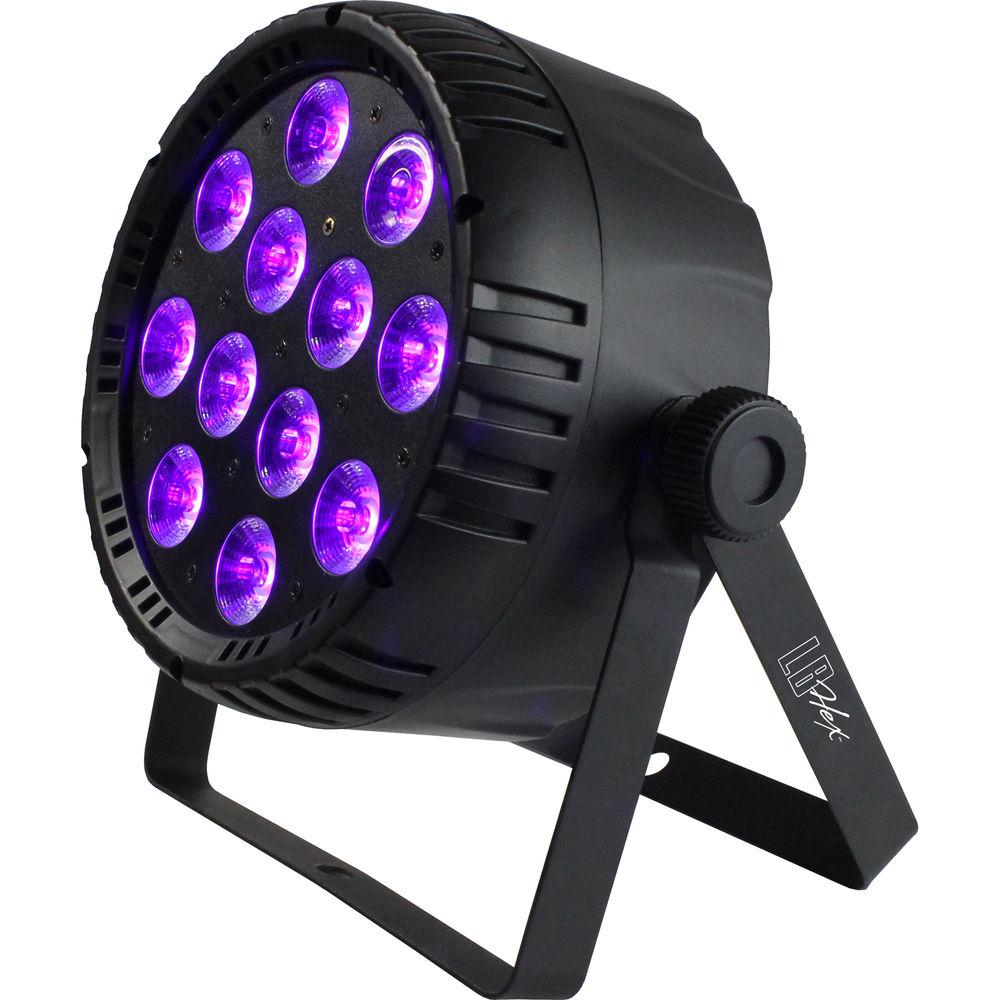

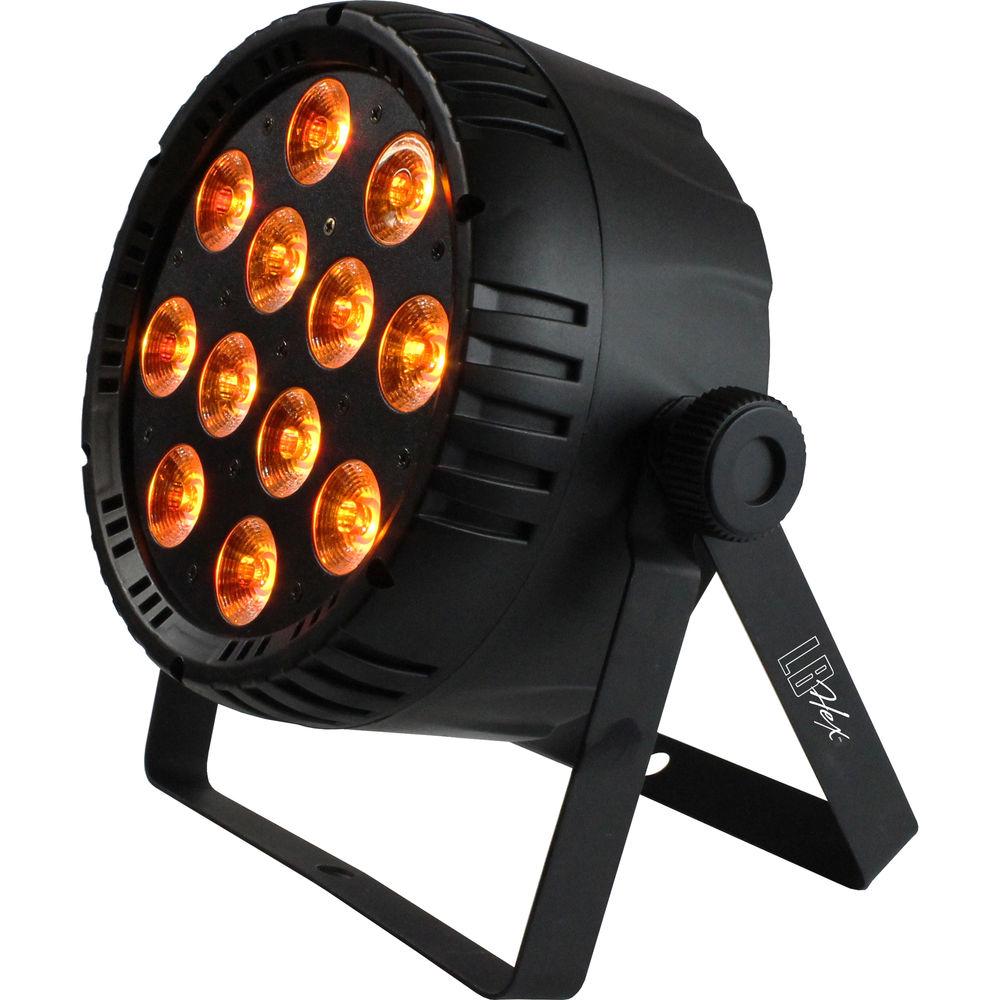

The LB-Par Hex RGBAW+UV from Blizzard Lighting is a 6-in-1 LED PAR lighting fixture with 12x red, green, blue, amber, white, and ultra-violet colored LEDs that offer the ability to create rich, vibrant colors for entertainment venues, clubs, theaters, mobile DJs, and more.

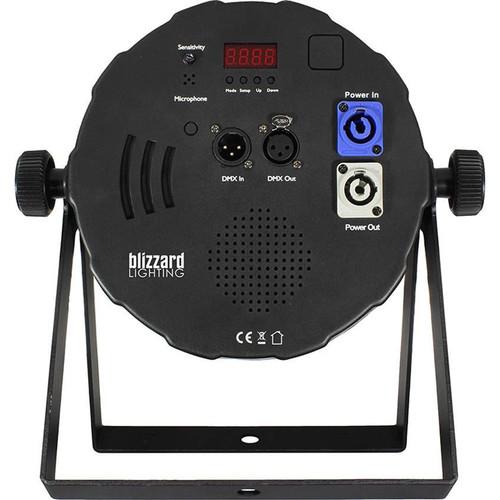

The fixture features 12 built-in programs with Auto mode, Sound Active mode, strobe effects, and 8-bit or three user selectable, 32-bit dimming curve options. Additionally, the fixture can be controlled by 6 or 11 channels of DMX or via the 4-button LED control panel. The fixture is enclosed in a durable, scratch-resistant composite housing, and features powerCON compatible AC in/out and 3-pin XLR in/out jacks for DMX. The LB-Par Hex ships with a dual-yoke mounting bracket and a power cord. -
- User selectable 6 or 11 DMX channels
- Full color mixing in Standalone, Master/Slave and DMX modes
- Built-in automated programs via Master/Slave
- Built-in sound activated programs via Master/Slave
- Easy to use LED digital control panel
- 16-/32-bit dimming modes
- 3-pin male XLR input and 3-pin female XLR output
- Dual mounting yoke allows flexibility in positioning
- Durable, scratch-resistant composite housing
UPC: 852659767359 In the Box Blizzard LB-Par Hex RGBAW+UV LED Light Dual-Yoke Mounting Bracket Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard LB-Par Hex RGBAW UV LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard LB PAR Hex Specs | Light Source | 12x 15 W 6-in-1 RGBAW+UV LEDs | | Optical | Beam Angle: 25°
Luminous Intensity: 8000 lux @ 1 m | | Control | Protocol: USITT DMX-512
DMX Channels: 6 or 11
3-pin XLR Male / 3-pin XLR Female | | Operating Modes | Standalone, Master/Slave, Auto, Sound Active | | Power | Operating Voltage: 100 to 240 VAC, 50/60 Hz
Power Consumption: 42 W, .36 A, PF .96 | | Thermal | Maximum Operating Temperature: 104°F / 40°C ambient | | Dimensions (L x H x W) | 11.0 x 10.5 x 4.25" / 27.9 x 26.7 x 10.8 cm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 12.5 x 11.9 x 6.2" |
