Product description - Blizzard Lighting NAMM 2015 LB Par Quad RGBW/RGBA/Hex

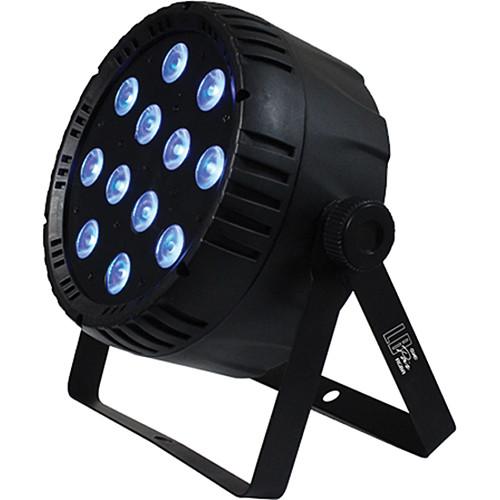

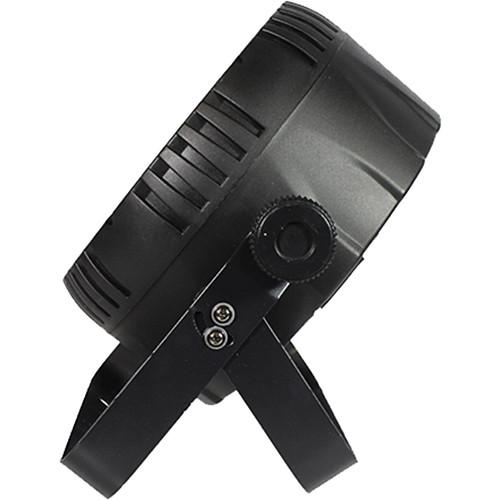

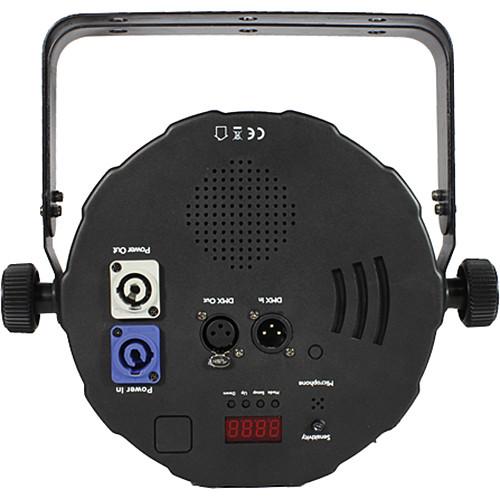

The LB-Par Quad RGBA from Blizzard Lighting is a 4-in-1 LED PAR can that is specifically designed to keep up with the rigorous demands of life on the road, whether you are a mobile DJ, in a working band, or just want quality lighting for any permanent installation.Features include twelve high-output, 10W RGBA LEDs in a durable, scratch-resistant composite housing with dual mounting brackets for flexible positioning. Additional features include 12 built-in programs with Auto mode, Sound Active mode, Strobe Effects, and 8-bit or three user-selectable 32-bit dimming-curve options (compatible with 16-bit controllers). It can perform full RGBA color mixing with 4- or 9-channels of DMX, or simply be controlled via its easy-to-use 4-button LED control panel. The LB-Par Quad RGBA also comes equipped with powerCON compatible AC in/out and DMX in/out connections. - Attributes
-
- User-selectable 4 or 9 DMX channels
- Full color mixing in Standalone, Master/Slave and DMX modes
- Twelve built-in programs via Master/Slave with Auto and Sound Active mode
- Easy to use LED digital control panel
- 8-/32-bit dimming modes (compatible with 16-bit controllers)
- 3-pin XLR male input and 3-pin XLR female output
- Dual mounting yoke allows flexibility in positioning
- Durable, scratch-resistant composite housing
UPC: 852659767342 In the Box Blizzard LB-Par Quad RGBA LED Light Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard LB-Par Quad RGBA LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard LB PAR Quad RGBA Specs | Light Source | 12x 10 W 4-in-1 RGBA LEDs | | Beam Angle | 25° | | Luminous Intensity | 17,000 lux @ 3.28' (1.0 m) | | Operating Temperature | Max: 104°F (40°C) ambient | | Control | Protocol: USITT DMX-512
DMX Channels: 4/9
Input: 3-pin XLR male
Output: 3-pin XLR female
Operating Modes: Standalone, Master/Slave, Auto, Sound Active | | Power | Operating Voltage: 100-240 VAC, 50/60 Hz
powerCON in/out | | Power Consumption | 77 W, 0.65 A, PF 0.99 | | Dimensions | 11 x 10.5 x 4.25" (28 x 25.4 x 10.8 cm) | | Weight | 5.0 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 13.0 x 12.0 x 7.0" |
