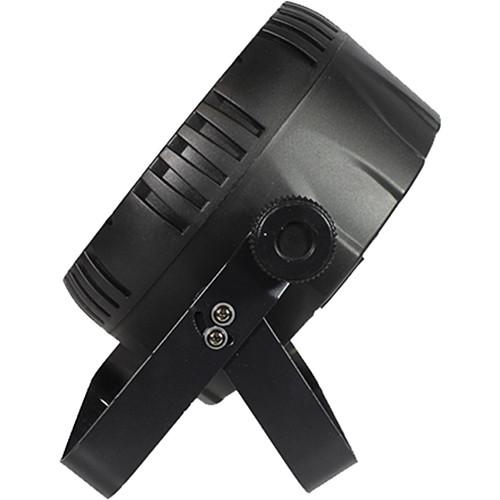

User Manual for Blizzard LB-Par Quad RGBW LED Light Click to enlarge the picture
Contents of the user manual for the Blizzard LB-Par Quad RGBW LED Light
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard LB-Par Quad RGBW LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|
Product description - Blizzard Lighting NAMM 2015 LB Par Quad RGBW/RGBA/Hex

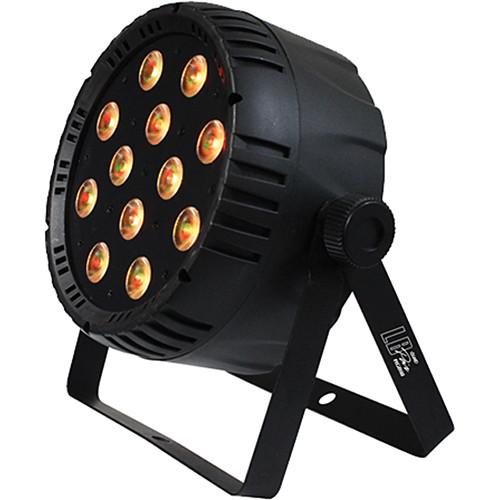

The LB-Par Quad RGBW from Blizzard Lighting is a 4-in-1 LED PAR lighting fixture with 12x red, green, blue, and white colored LEDs that offer the ability to create rich, vibrant colors for entertainment venues, clubs, theaters, mobile DJs, and more.

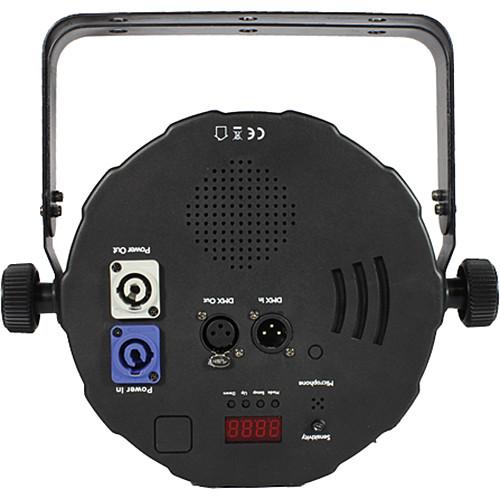

The fixture features 12 built-in programs with Auto mode, Sound Active mode, strobe effects, and 8-bit or three user selectable, 32-bit dimming curve options. Additionally, the fixture can be controlled by 4 or 9 channels of DMX or via the 4-button LED control panel. The fixture is enclosed in a durable, scratch-resistant composite housing, and features powerCON compatible AC in/out and 3-pin XLR in/out jacks for DMX. The LB-Par Quad ships with a dual-yoke mounting bracket and a power cord. -
- User selectable 4 or 9 DMX channels
- Full color mixing in Standalone, Master/Slave and DMX modes
- Built-in automated programs via Master/Slave
- Built-in sound activated programs via Master/Slave
- Easy to use LED digital control panel
- 16-/32-bit dimming modes
- 3-pin male XLR input and 3-pin female XLR output
- Dual mounting yoke allows flexibility in positioning
- Durable, scratch-resistant composite housing
UPC: 852659767335 In the Box Blizzard LB-Par Quad RGBW LED Light Dual-Yoke Mounting Bracket Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard LB-Par Quad RGBW LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard LB PAR Quad RGBW Specs | Light Source | 12x 10 W 4-in-1 RGBW LEDs | | Optical | Beam Angle: 25°
Luminous Intensity: 21,230 lux @ 1 m | | Control | Protocol: USITT DMX-512
DMX Channels: 4 or 9
3-pin XLR Male / 3-pin XLR Female | | Operating Modes | Standalone, Master/Slave, Auto, Sound Active | | Power | Operating Voltage: 100 to 240 VAC, 50/60 Hz
Power Consumption: 77 W, .65 A, PF .99 | | Thermal | Maximum Operating Temperature: 104°F / 40°C ambient | | Dimensions (L x H x W) | 11.0 x 10.5 x 4.25" / 27.9 x 26.7 x 10.8 cm | | Weight | 5.0 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 13.0 x 12.0 x 7.0" |
