User Manual for Blizzard LightCaster AnyFi Wireless DMX Transceiver Click to enlarge the picture
Contents of the user manual for the Blizzard LightCaster AnyFi Wireless DMX Transceiver
- Product category: DMX Devices Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DMX Devices
 |
User manual for the Blizzard LightCaster AnyFi Wireless DMX Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

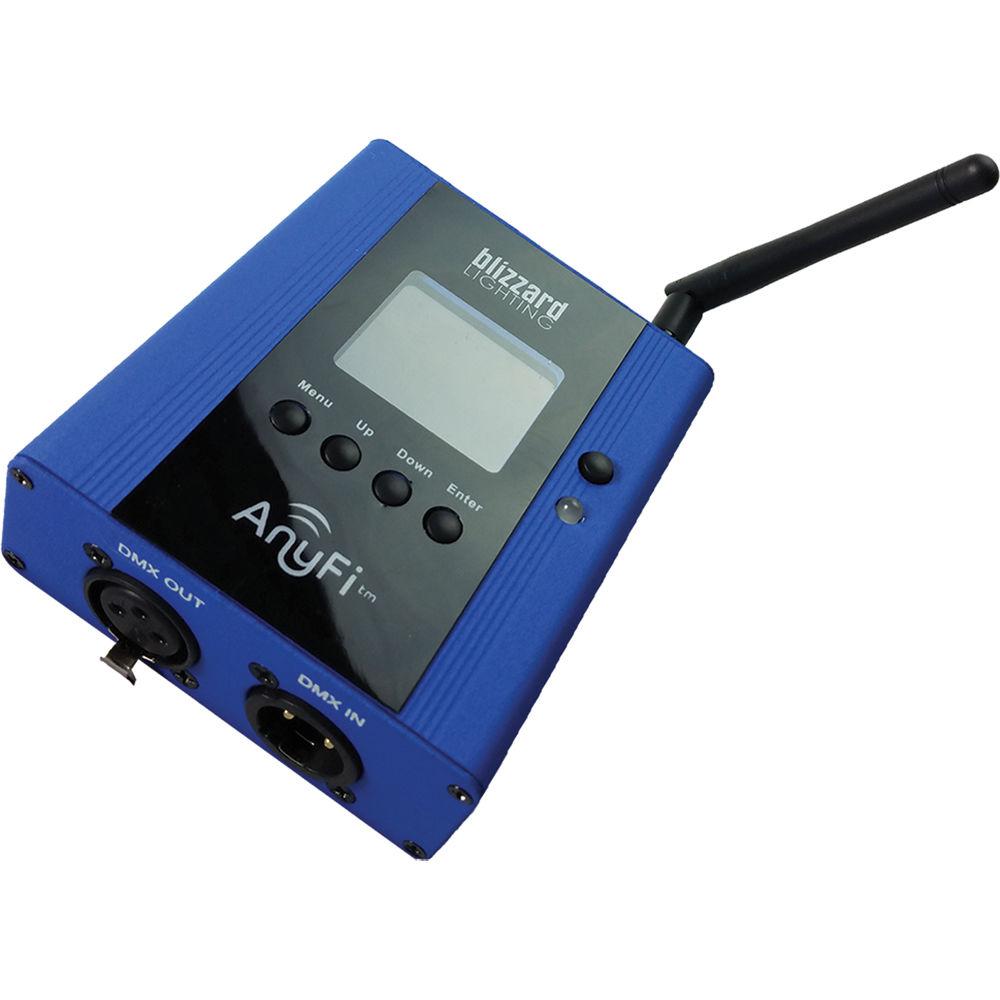

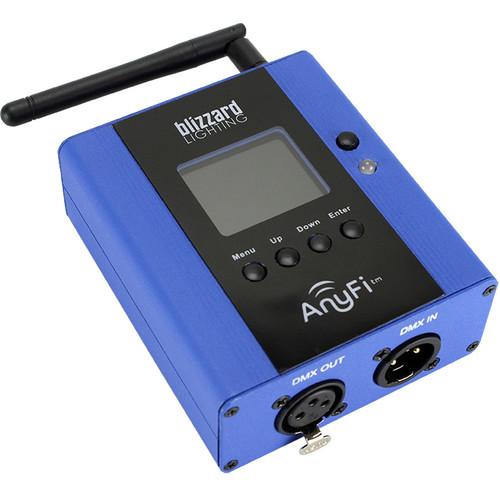

Product description The LightCaster AnyFi Wireless DMX Transmitter is a rechargeable, battery-powered wireless DMX transceiver that can transmit or receive Wireless Solutions AB W-DMX 2.4 GHz ISM (AFHSS) wireless DMX signals or the Blizzard Lighting Skywire's 2.4 GHz band frequencies. It's compatible with Blizzard wiCICLE and Skywire 7-channel products and also any other AnyFi product in 6-channel mode. The transmitter employs Frequency Hopping Spread Spectrum (FHSS) that allows it jump quickly from one sub-channel to another to maintain a strong signal. The LightCaster features a TFT display and has a line-of sight range of over 1,000'. - Benefits
-
- Built-in W-DMX transceiver
- Built-in Skywire 6-/7-channel transceiver
- Built-in lithium battery

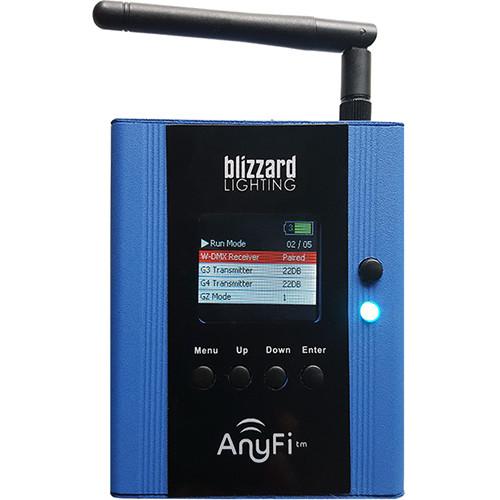

- TFT display and friendly menu interface
- Adaptive frequency hopping spread spectrum (AFHSS)
- 32-bit ARM Processor, DMA transfer without delay
- Standard 3-pin XLR In/Out connections
- 4-Button status menu and LED frequency/status indicator
- Plug-and-play operation, pairing mode, supports more transmitter universes
UPC: 685450870221 In the Box Blizzard LightCaster AnyFi Wireless DMX Transceiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard LightCaster AnyFi Wireless DMX Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard LIGHTCASTER ANYFI Specs | | | Radio Range | 1000' / 305 m (line-of-sight) | | Radio Frequency | 2.402-2.480GHz, ISM | | Radio Channels | 79 | | Spread Spectrum | FHSS, 1100 hops/second | | Modulation | GFSK | | Maximum Transmit Power | 23 dBm | | Receiver Sensitivity | -94 dBm | | | | DMX Connectors | Input: 3-pin XLR

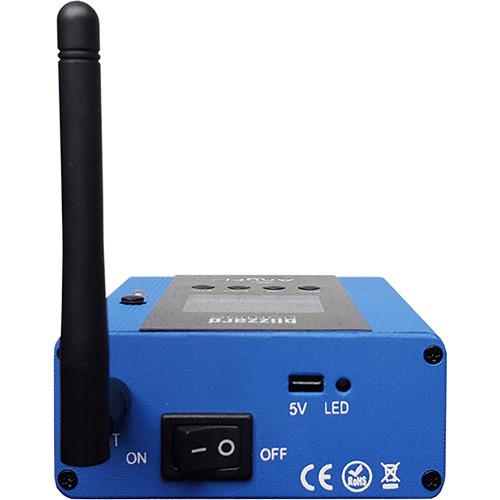

Output: 3-pin XLR | | | | Input Voltage | Power Input: 5 VDC, ±5% | | Power Consumption | 350 mA @ 5 VDC (max.) | | | | Dimensions | 4.0 x 3.5 x 1.6" (103 x 88 x 40 mm) | | Weight | 8.8 oz (250 g) |
