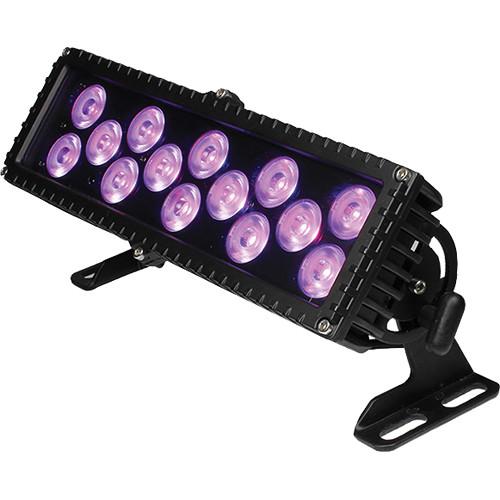

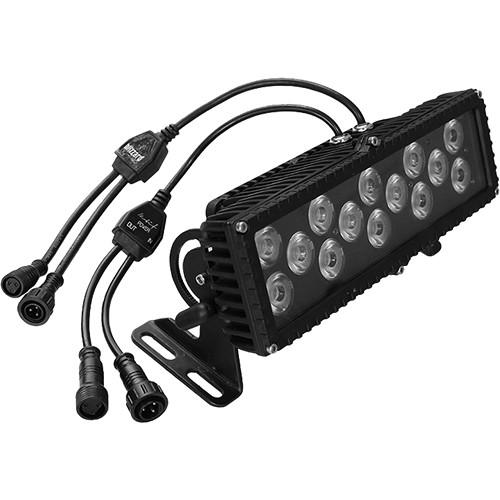

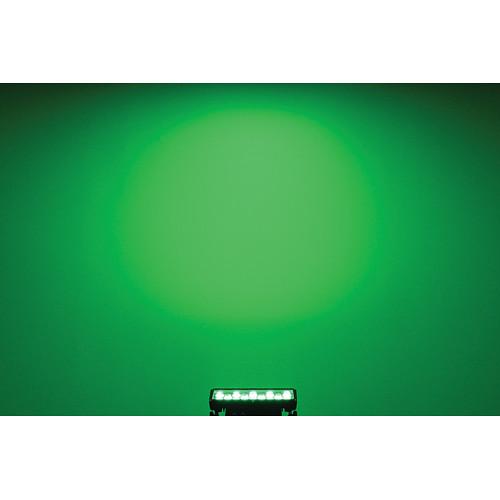

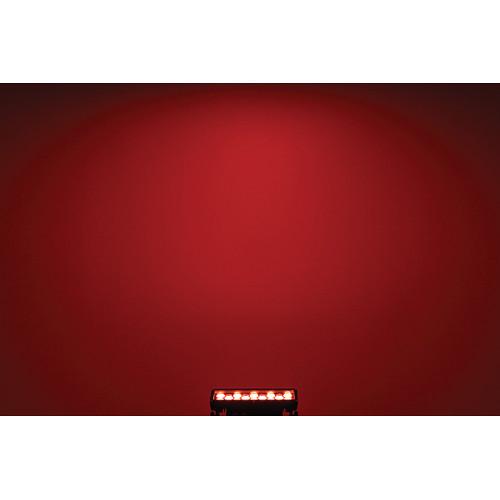

Product description The Motif Fresco Outdoor LED Wash Fixture from Blizzard Lighting is an IP65-rated luminaire with a water-resistant power cable that employs fourteen 3W LEDs to create rich, vibrant colors. The light offers built-in programs, static colors, Master/Slave and Stand-alone Modes. You can control RGB color mixing and 0-100% dimming remotely via DMX or an optional IR remote or make manual adjustments locally. The Motif Fresco's 25 degree beam angle make it a good choice for an accent light, while its 3, 5, or 7-channel DMX modes and silent convection cooling make it a theatrical and production asset as well, especially for location shooting. The light comes with an IP-rated AC power cord with cable cap and mounting brackets. - Attributes
-
- RGB color mixing from 14x 3W TRI-color LEDs

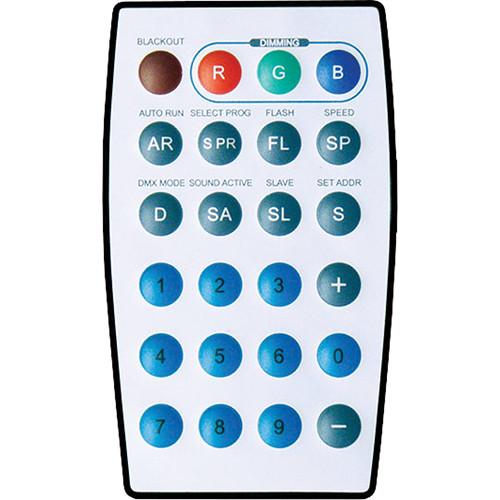

- Fully controllable via optional IR remote control
- Advanced heat sink design for zero fan noise
- Secure mounting brackets
- Multiple built-in color presets and auto programs
- User adjustable program speed and fade times
- 0-100% Variable electronic dimmer
- Variable electronic strobe
- Durable cast aluminum housing
- Tempered glass lens and watertight internal gaskets
- Luminous Intensity
- lux @ 6.56' (2.0 m)
Red: 515
Green: 820
Blue: 900
All: 2,010 UPC: 852659766369 In the Box Blizzard Motif Fresco Outdoor LED Wash Fixture IP-Rated AC Power Cord with Cable Cap 2 x Mounting Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard Motif Fresco Outdoor LED Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard Motif Fresco Specs | Light Source | 14x 3.0 W Tri-color LEDs, 100,000 hr lamp life | | Optical | Beam angle: 28° | | Operating Temperature | 104°F (40°C) ambient | | Dimming | 0-100%, Electronic | | Control | Protocol: USITT DMX512
DMX channels: 3, 5, 7
Input: 3-pin XLR male
Output: 3-pin XLR female
Stand-alone, Master/Slave | | Voltage | Operating voltage: AC 100-240 VAC, 50/60 Hz
Power consumption: 44 W, 0.68 A
Fuse: 2 A, 250 V | | IP Rating | IP65 | | Dimensions | 11.8 x 3.15 x 3.5" (30 x 8.0 x 9.0 cm) | | Weight | 5.6 lb (2.6 kg) | | | | Package Weight | 7.75 lb | | Box Dimensions (LxWxH) | 14.173 x 6.85 x 5.748" |
