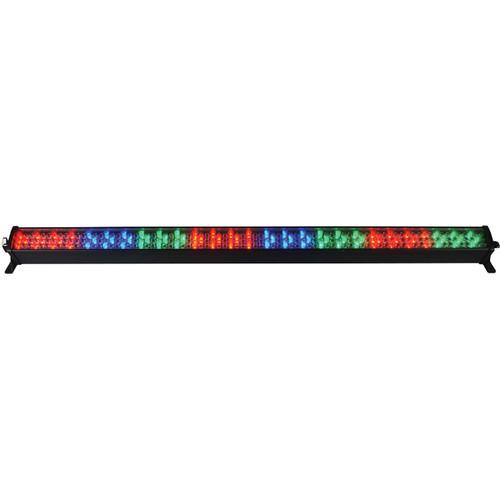

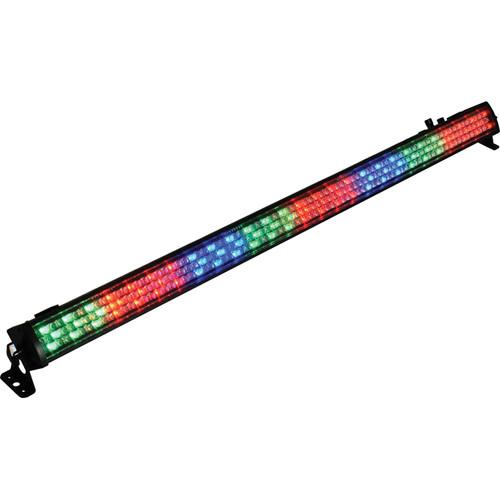

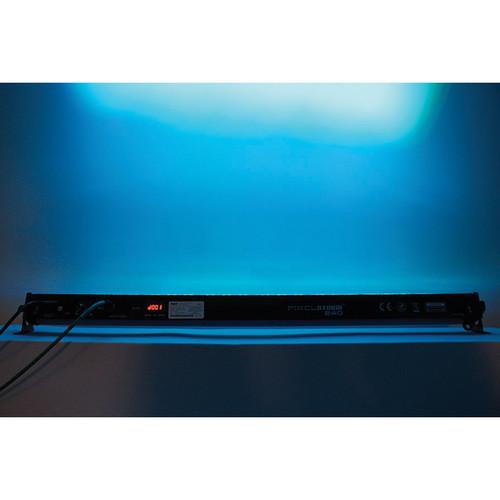

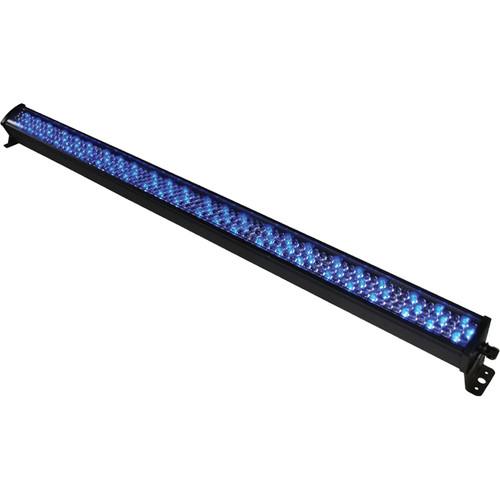

Product description The PixelStorm 240 Color Pixel Bar from Blizzard Lighting is a 39.37" (1.0 m) wash fixture with a narrow 25 degree beam angle, an impressive host of pixel and strobe effects, and 240 bright R/G/B 10mm LEDs. Seven DMX channel modes allow for a vast amount of lighting permutations to customize and personalize your show with unique effects. Besides remote DMX operation, the PixelStorm 240 can be controlled locally from its easy-to-read, 3-button LED display. You can quickly switch from master/slave settings to built-in standalone programs, or a sound-activated light show. And that's just scratching the surface. The PixelStorm has a total of 25 built-in programs, auto-run, and color and chase macros as well. -
- RGB color mixing via 240 high-power 10mm red/green/blue LEDs
- 8 pixels, each with 30 LEDs
- 7 DMX modes for ultimate control flexibility
- 3-pin and 5-pin DMX connectors
- Each fixture can display 1, 2, or 3 different colors simultaneously
- Built-in color and chase macros via DMX
- 13 user-definable, built-in programs/colors in standalone mode
- Easy-to-use, 4-button LED control panel
UPC: 852659765188 In the Box Blizzard PixelStorm 240 Color Pixel Bar Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard PixelStorm 240 Color Pixel Bar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard PixelStorm 240 Specs | Light Source | LED: 240x 10 mm LEDs, 96 red, 72 green, 72 blue
400 Hz flicker-free LED drivers
8 pixels, each with 30 LEDs

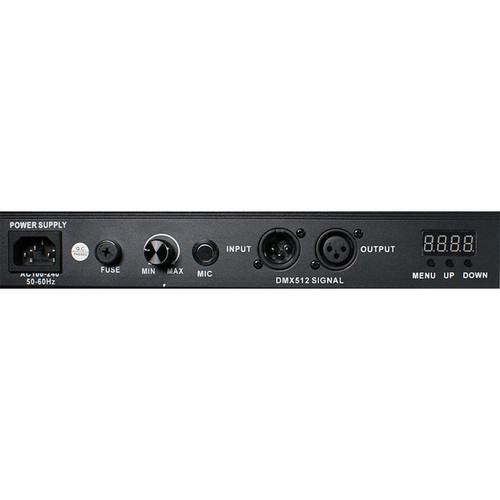

100,000 hours lamp life expectancy | | DMX Channels | 3, 4, 7, 10, 16, 24, 28 | | Beam Angle | 25° | | Data Ports | Input: 3-pin XLR male
Output: 3-pin XLR female | | Operating Modes | Standalone, Master/Slave, DMX | | Programs | 25, including 13 user-definable built-in programs/colors in standalone mode | | Control | DMX512, 4-button LED control panel | | Luminous Intensity | Red: 310 @ 3.28' (1.0 m), 180 @ 6.56' (2.0 m)
Green: 350 @ 3.28' (1.0 m), 200 @ 6.56' (2.0 m)
Blue: 510 @ 3.28' (1.0 m), 260 @ 6.56' (2.0 m) | | Input Voltage | 120 VAC, 60 Hz | | Dimensions | 39.37 x 2.37 x 2.37" (100 x 6.0 x 6.0 mm) | | Weight | 4.41 lb (2.0 kg) | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 42.0 x 4.25 x 4.0" |
