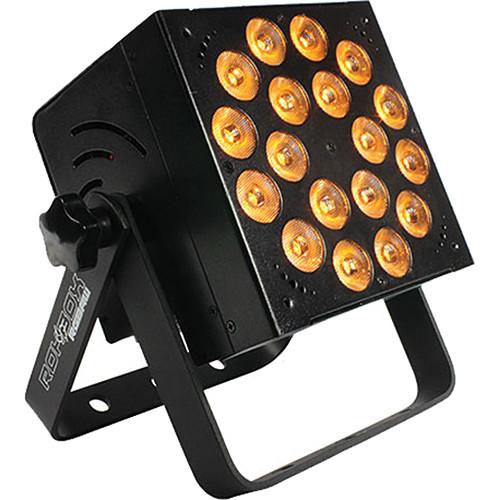

User Manual for Blizzard RokBox 5 RGBAW Color Wash LED Fixture Click to enlarge the picture
Contents of the user manual for the Blizzard RokBox 5 RGBAW Color Wash
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard RokBox 5 RGBAW Color Wash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

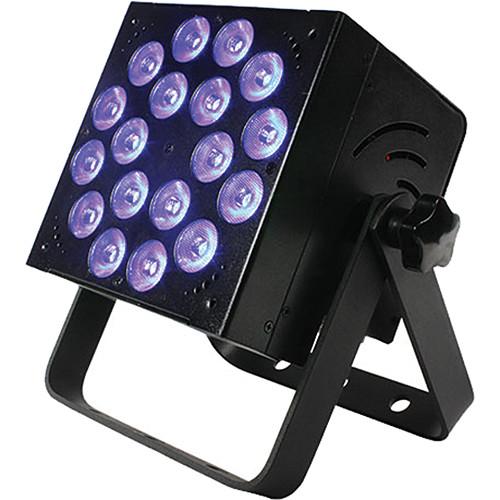

Product description The RokBox 5 RGBAW LED Wash Fixture from Blizzard Lighting has 18x 10W RGBW quad color 5-in-1 LEDs and a 4-button onboard control panel for local adjustment of Master/Slave Settings, Sound-Active mode, built-in programs, Auto mode, custom RGBAW Color Mixing and user adjustable fade/strobe effects. Its 4, 5, 9 or 10-channel DMX modes allow it to work with any type of console for remote control of the functions above, as well as RGBAW color mixing, 31 built-in programs, 32-bit 0-100% dimming, and easy HSV color mixing ability in 4-channel mode. The RokBox 5 RGBAW has a 26-degree beam angle for accurate positioning and has industry standard PowerCon connections as well as DMX 3-pin In/Out. The included dual mounting brackets permit floor standing or truss mounting. - Attributes
-
- RGBAW color mixing via 18x 10W Red, Green, Blue, White 5-in-1 LEDs
- DMX controllable RGBAW pixels effects
- Built-in color and chase macros via DMX
- Built-in automated and sound active programs via Master/Slave
- RGBAW color mixing ability in standalone mode
- 3-Pin male input and 3-pin female output
- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400 Hz LED driver
- PowerCon compatible AC power In/Out connectors
- Luminous Intensity
- lux @ 3.28' (1.0 m)
Red: 6,300
Green: 6,700
Blue: 8,000
Amber: 4,300
White: 7,700
Full RGBW: 27,000 UPC: 852659765805 In the Box Blizzard RokBox 5 RGBAW Color Wash LED Fixture Set Dual Mounting Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard RokBox 5 RGBAW Color Wash LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard RokBox 5 RGBAW Specs | Material | Aluminum | | Light Source | 18x 10 W 5-in-1 LEDs, 100,000 hr lamp life | | Beam Angle | Beam angle: 25° optics, 26° beam, 30° field | | Operating Temperature | 104°F (40°C) ambient | | Dimming | 0-100%, Electronic | | Control | Protocol: USITT DMX512
DMX channels: 4, 5, 9 or 10
Input: 3-pin XLR male
Output: 3-pin XLR female
Stand-alone, Master/Slave, Auto mode, custom RGBAW Color Mixing | | Voltage | Operating voltage: AC 90-230 VAC, 50/60 Hz
Power consumption: 58 W, 0.83 A @ 120 VAC, 154 W max. | | Dimensions | 9.02 x 6.5 x 8.98" (23 x 16.5 x 22.8 cm) | | Weight | 7.28 lb (3.3 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 11.9 x 11.9 x 8.1" |
