User Manual for Blizzard SkyBox 5 RGBAW LED Light Click to enlarge the picture
Contents of the user manual for the Blizzard SkyBox 5 RGBAW LED Light
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard SkyBox 5 RGBAW LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

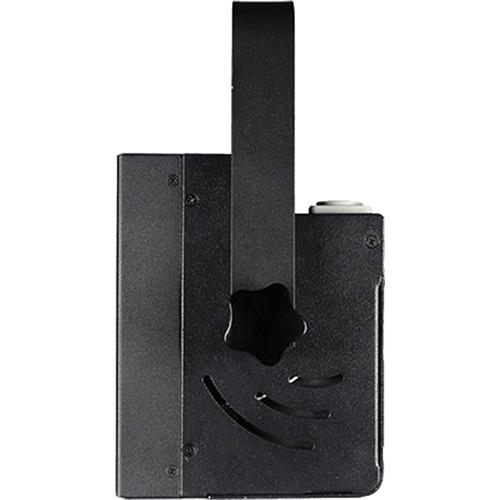

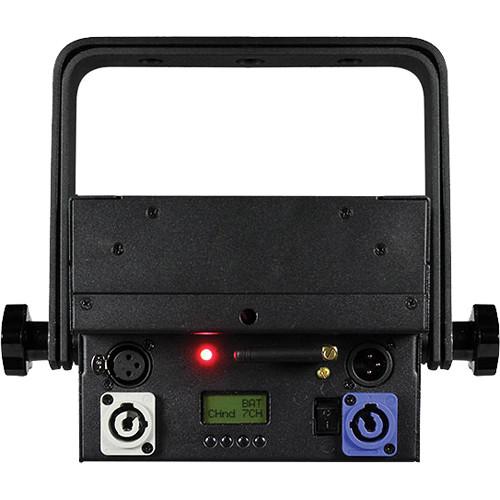

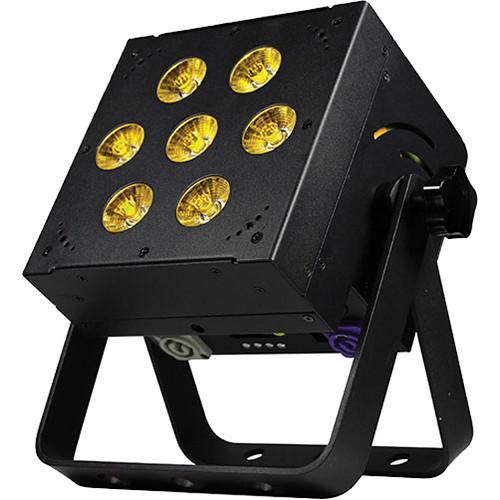

Product description The SkyBox5 RGBAW LED Light from Blizzard Lighting is a box-shaped LED par fixture that employs seven 5-in-1 RGBAW LEDs, a built-in Skywire wireless DMX receiver, and an internal Li-ion battery system with three power output modes. It also features 5, 6, 7, or 10 user selectable DMX channel modes, and a casing that is supported by dual hanging brackets with locking knobs.
The SkyBox5 boasts DMX control of RGBAW color mixing, built-in automated programs via master/slave, and flicker-free 32-bit dimming with 5 user-selectable dimming curves. A 4-button LED control panel also offers local control of the fixture's master/slave settings, sound active mode, built-in programs, auto mode, custom color mixing, and user adjustable fade/strobe effects. - Attributes
-
- RGBAW color mixing via 7x 15W 5-in-1 LEDs
- 5 user-selectable 32-bit dimming curves
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via Master/Slave
- Built-in sound active programs
- RGBAW color mixing ability in standalone mode
- Quiet variable-speed internal fan cooling
- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400 Hz LED driver
- 3-Pin male input and 3-pin female output
- PowerCon compatible AC power In/Out connectors
UPC: 852659766673 In the Box Blizzard SkyBox 5 RGBAW LED Light Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard SkyBox 5 RGBAW LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard SkyBox 5 Specs | Light Source | 7x 15 W 5-in-1 LEDs, 100,000 hr lamp life | | Optical | Beam Angle: 25° optics standard, 26° beam, 30° field | | Operating Temperature | Max: 104°F (40°C) ambient | | Control | Protocol: USITT DMX-512
DMX Channels: 5/6/7/10
Input: 3-Pin XLR male
Output: 3-Pin XLR female
Operating Modes: Stand-alone, Master/Slave, Sound Active, Color Preset | | Voltage | Operating Voltage: 100-264 VAC, 47-63 Hz | | Wireless | Transmission Band: 2.4 GHz ISM (2.4 - 2.525 GHz)
Channels: 512
Frequency Groups: 7
Receiver Sensitivity: -94 dBm | | Connections | DMX In
DMX Out
AC Power In
AC Power Out | | Dimensions | Without Bracket: 6.5 x 5.1 x 6.5" (16.5 x 13.0 x 16.5 cm)
With Bracket: 9.0 x 6.5 x 9.0" (22.9 x 16.5 x 22.9 cm) | | Weight | 9.3 lb (4.2 kg) | | | | Package Weight | 12.3 lb | | Box Dimensions (LxWxH) | 11.811 x 11.732 x 7.638" |
