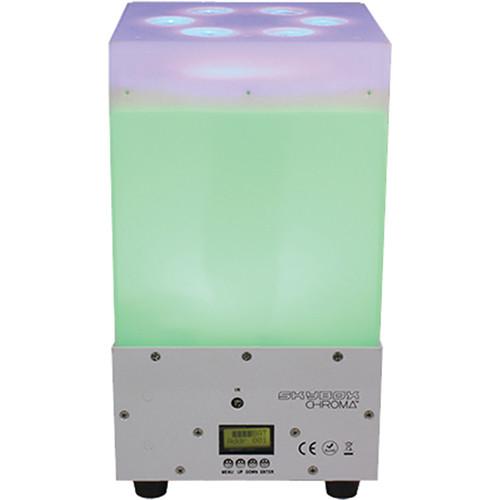

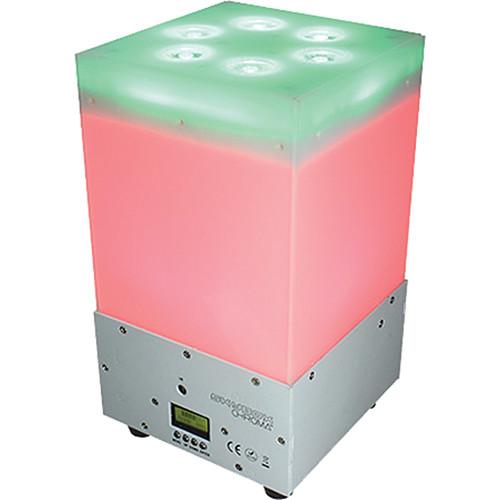

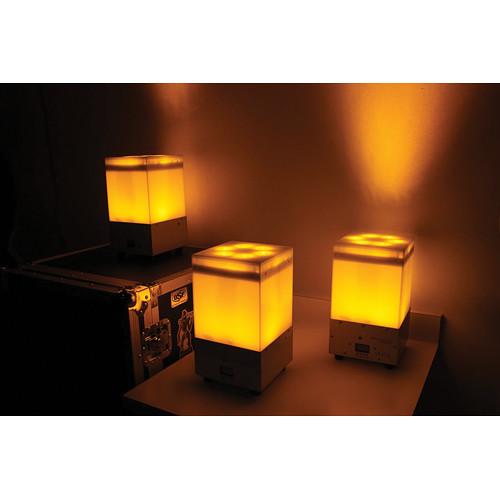

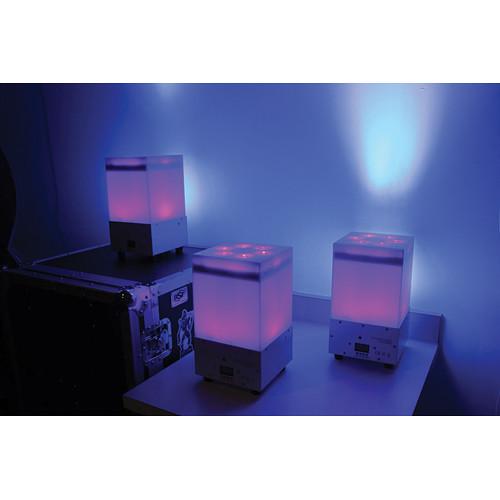

Product description The SkyBox Chroma LED Uplight from Blizzard Lighting uses dual-layered, separately controllable 6-in-1 RGBAW+UV LEDs. There are a total of nine 15w LED lights, three on the bottom and six on top. A 2.4Ghz built-in wireless DMX, and a long-life Intelion battery system allows for portability.
The uplight can be controlled on either 6, 11, 15, or 18 DMX channel modes. It has an internal Li-ion battery with three user-selectable power modes: High Power, Medium Power, or Battery Saver Mode. - Battery Saver Mode allows the fixture to run for a longer time at lower output.

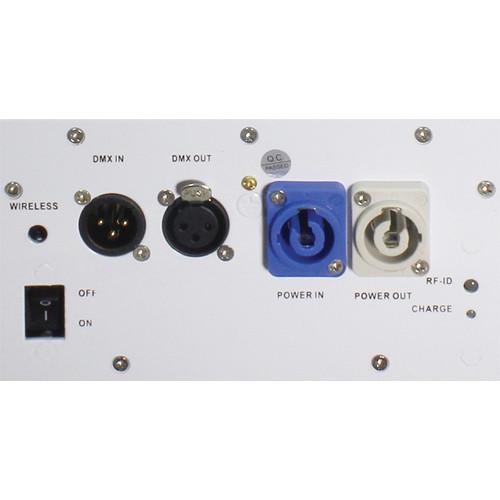

- The uplight features built-in PowerCon compatible AC power In/Out connectors, 3-pin DMX in/out connections, a main power switch, and an LED illuminated battery power gauge which illuminates red during charge, and green when fully charged
- The built-in Skywire wireless receiver with an internal antenna provides wireless communication for over 1000' when in line-of-sight.
- 512 auto-assigning frequencies in 7 color-coded groups allow up to 7 systems to run simultaneously in the same space.
- Outer casing illuminates via three internal, separately controllable LEDs.
- Variable electronic dimming & strobe.
- Built-in color & chase macros via DMX.
- Built-in automated programs via master/slave.
- Built-in sound active programs.
- RGBAW+UV color mixing ability in standalone mode.
- Power charging LED indicator.
- Quiet variable-speed internal cooling fan.
- Dual mounting brackets for positioning flexibility.
- Flicker-free constant-current 600hz LED driver.
- Luminous Intensity
lux @ 6.5' (2 m) - Red: 380
Green: 462
Blue: 489
Amber: 262
White: 629
All: 1,000 UPC: 852659766710 In the Box Blizzard SkyBox Chroma LED Uplight Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard SkyBox Chroma LED Uplight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard SkyBox Chroma Specs | Light Source | 9x 15W 5-in-1 LEDs, 100,000 hr lamp life | | Optical | Beam Angle: 25° optics standard, 26° degree beam, 30° degree field | | Operating Temperature | Max: 104°F (40°C) ambient | | Control | Protocol: USITT DMX-512
DMX Channels: 6/11/15/18
Input: 3-Pin XLR male
Output: 3-Pin XLR female
Stand-alone, Master/Slave, Sound Active, Color Preset | | Voltage | Operating Voltage: 100-240 VAC, 50-60 Hz
Power Consumption: 40 W, 0.57 A, pf: 0.62 | | Wireless | Transmission Band: 2.4 Ghz ISM (2.4 - 2.525 Ghz)
Channels: 512
Frequency Groups: 7
Receiver Sensitivity: -94 dBm | | Connections | DMX In
DMX Out
AC Power Out | | Dimensions | 6.8 x 6.8 x 12" (17.3 x 17.3 x 30.5 cm) | | Weight | 9.3 lb (4.2 kg) | | | | Package Weight | 12.6 lb | | Box Dimensions (LxWxH) | 15.6 x 10.1 x 9.9" |
