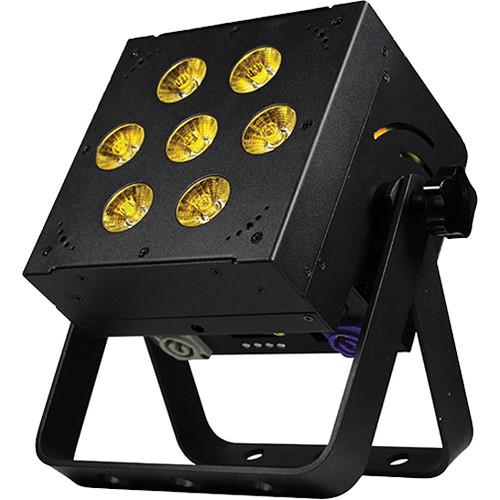

Product description The SkyBox EXA RGBAW+UV LED Light from Blizzard Lighting is a box-shaped LED par fixture that employs seven 6-in-1 RGBAW+UV LEDs, a built-in Skywire wireless DMX receiver, and an internal Li-ion battery system with three power output modes. It also features 6, 7, 8, or 10 user selectable DMX channel modes, and a casing that is supported by dual hanging brackets with locking knobs.
The SkyBox EXA boasts DMX control of RGBAW+UV color mixing, built-in automated programs via master/slave, and flicker-free 32-bit dimming with 5 user-selectable dimming curves. A 4-button LED control panel also offers local control of the fixture's master/slave settings, sound active mode, built-in programs, auto mode, custom color mixing, and user adjustable fade/strobe effects. - Attributes
-
- RGBAW+UV color mixing via 7x 15W 6-in-1 LEDs
- 5 user-selectable 32-bit dimming curves
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via Master/Slave
- Built-in sound active programs
- RGBAW+UV color mixing ability in standalone mode
- Quiet variable-speed internal fan cooling

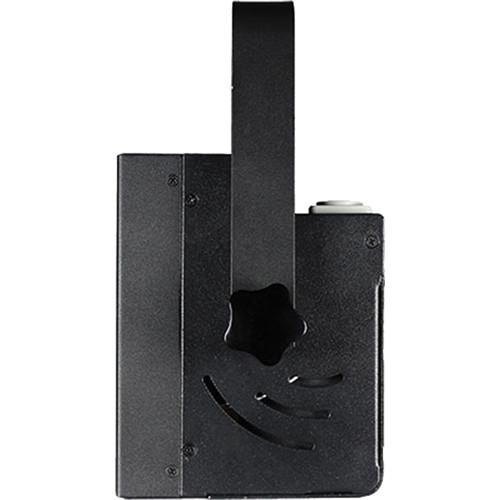

- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400 Hz LED driver

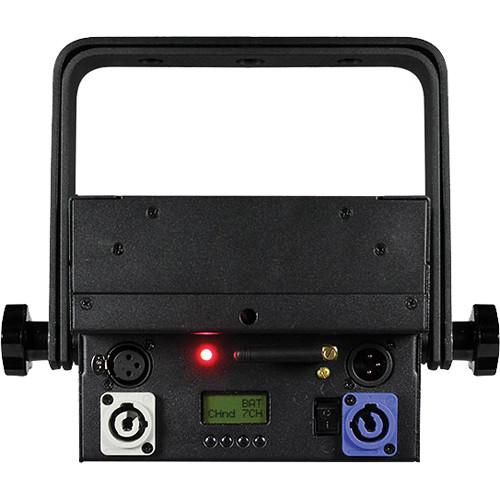

- 3-Pin male input and 3-pin female output
- PowerCon compatible AC power In/Out connectors
UPC: 852659766383 In the Box Blizzard SkyBox EXA RGBAW+UV LED Light Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard SkyBox EXA RGBAW UV LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard SkyBox EXA Specs | Light Source | 7x 15 W 6-in-1 LEDs, 100,000 hr lamp life | | Optical | Beam Angle: 25° optics standard, 26° beam, 30° field | | Luminous Intensity | 10,300 Lux @ 3.3' (1 m), 2,850 Lux @ 6.6' (2 m) | | Operating Temperature | Max: 104°F (40°C) ambient | | Control | Protocol: USITT DMX-512
DMX Channels: 6/7/8/11
Input: 3-Pin XLR male
Output: 3-Pin XLR female
Operating Modes: Stand-alone, Master/Slave, Sound Active, Color Preset | | Voltage | Operating Voltage: 100-264 VAC, 47-63 Hz
Power Consumption: 84 W | | Wireless | Transmission Band: 2.4 GHz ISM (2.4 - 2.525 GHz)
Channels: 512
Frequency Groups: 7
Receiver Sensitivity: -94 dBm | | Connections | DMX In
DMX Out
AC Power In
AC Power Out | | Dimensions | Without Bracket: 6.5 x 5.1 x 6.5" (16.5 x 13.0 x 16.5 cm)
With Bracket: 9.0 x 6.5 x 9.0" (22.9 x 16.5 x 22.9 cm) | | Weight | 9.3 lb (4.2 kg) | | | | Package Weight | 12.35 lb | | Box Dimensions (LxWxH) | 12.0 x 11.7 x 7.6" |
