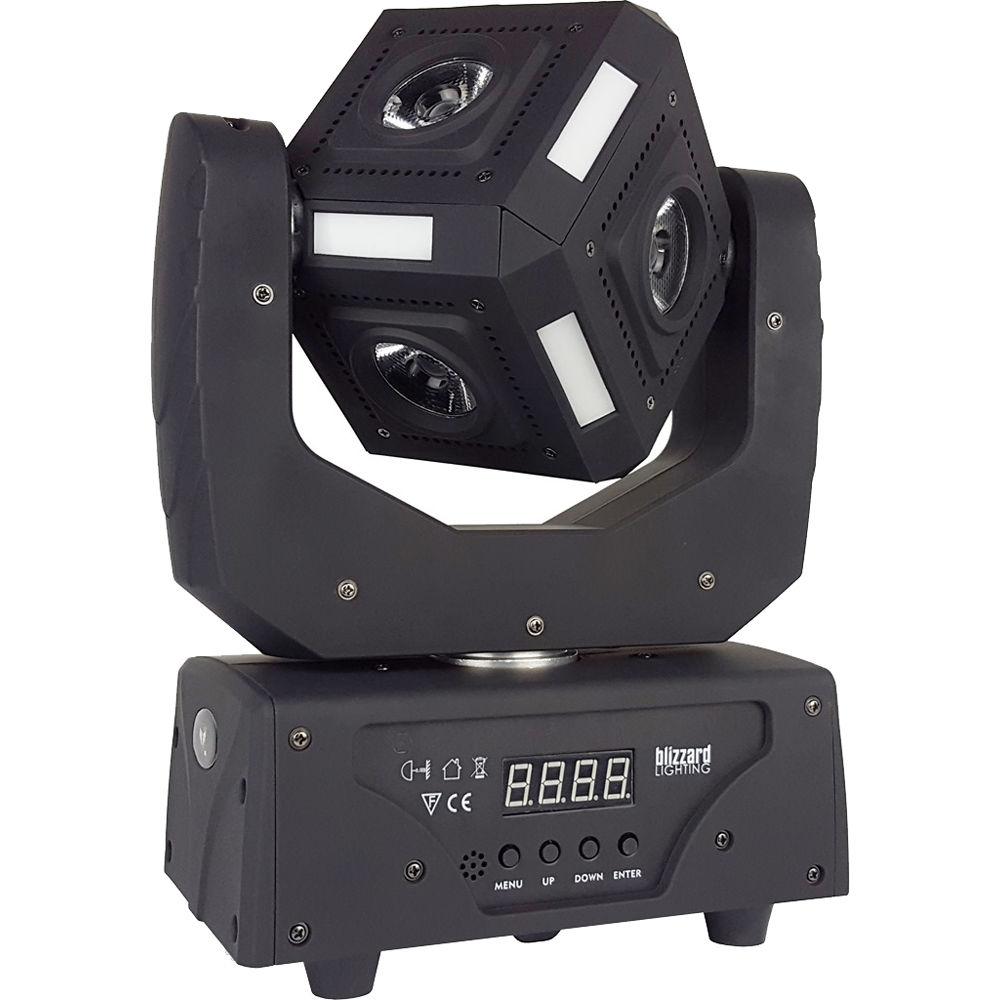

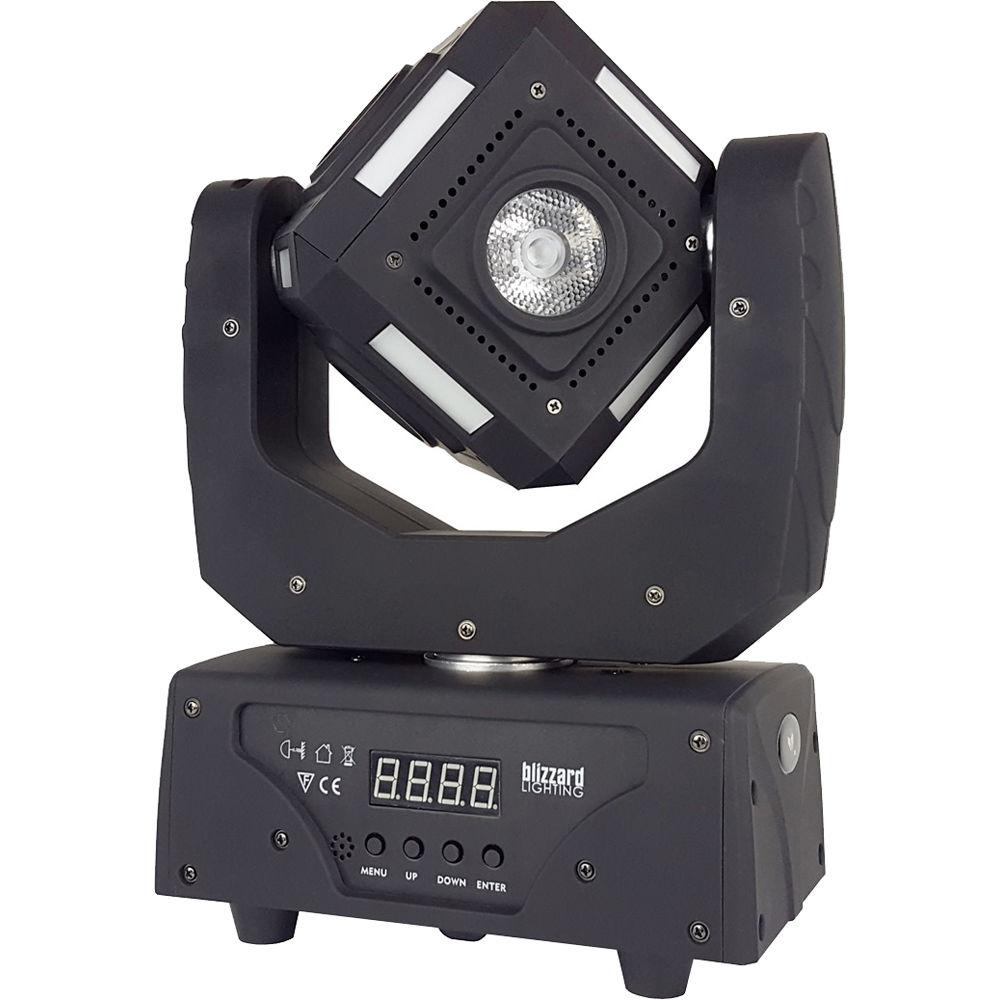

Product description Building on the success of the original Snake Eyes, the smaller "fun-sized" Blizzard Lighting Snake Eyes Mini is a moving head fixture well suited for smaller clubs, event halls, bars, and mobile DJ setups. The fixture is loaded with six CREE RGBW 10W LEDs, each with a 9° beam angle, and twelve RGB strips, which highlight each edge of the head and can perform color chases in audio mode or via DMX with a separate, dedicated strip chase speed control channel.

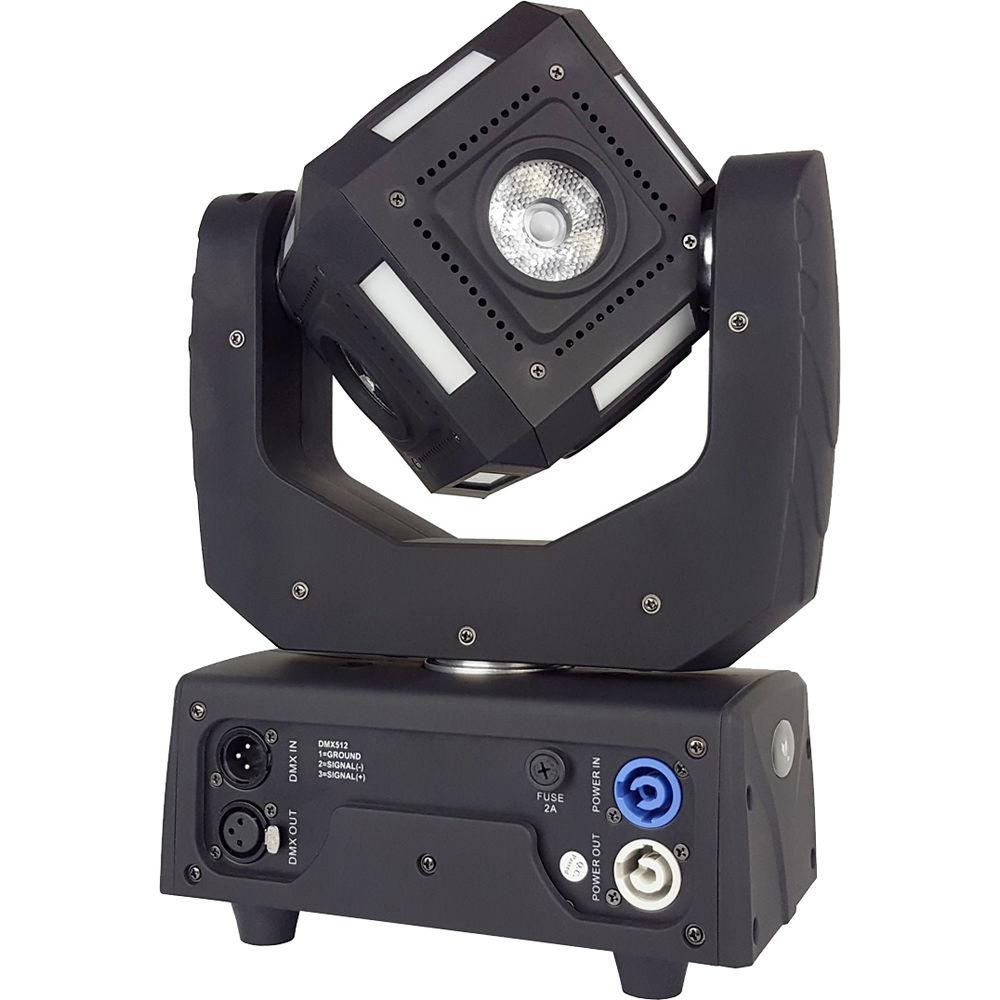

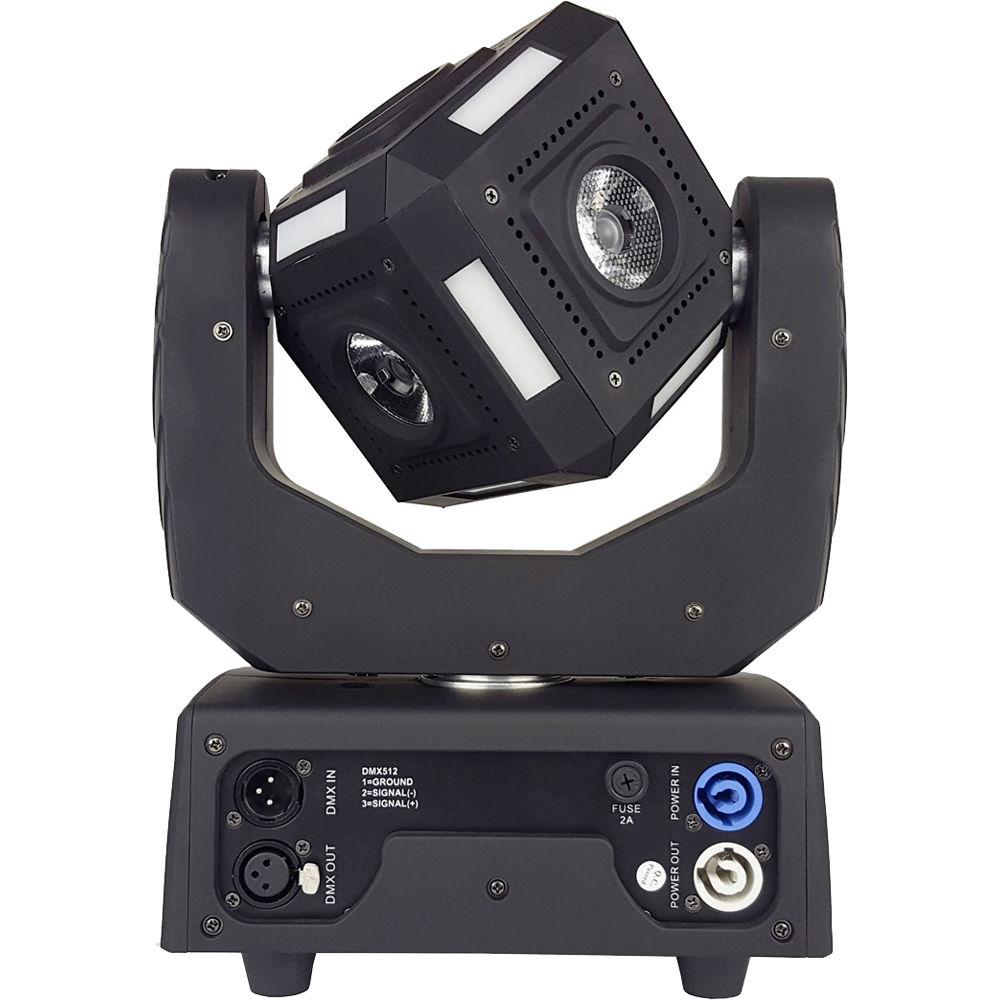

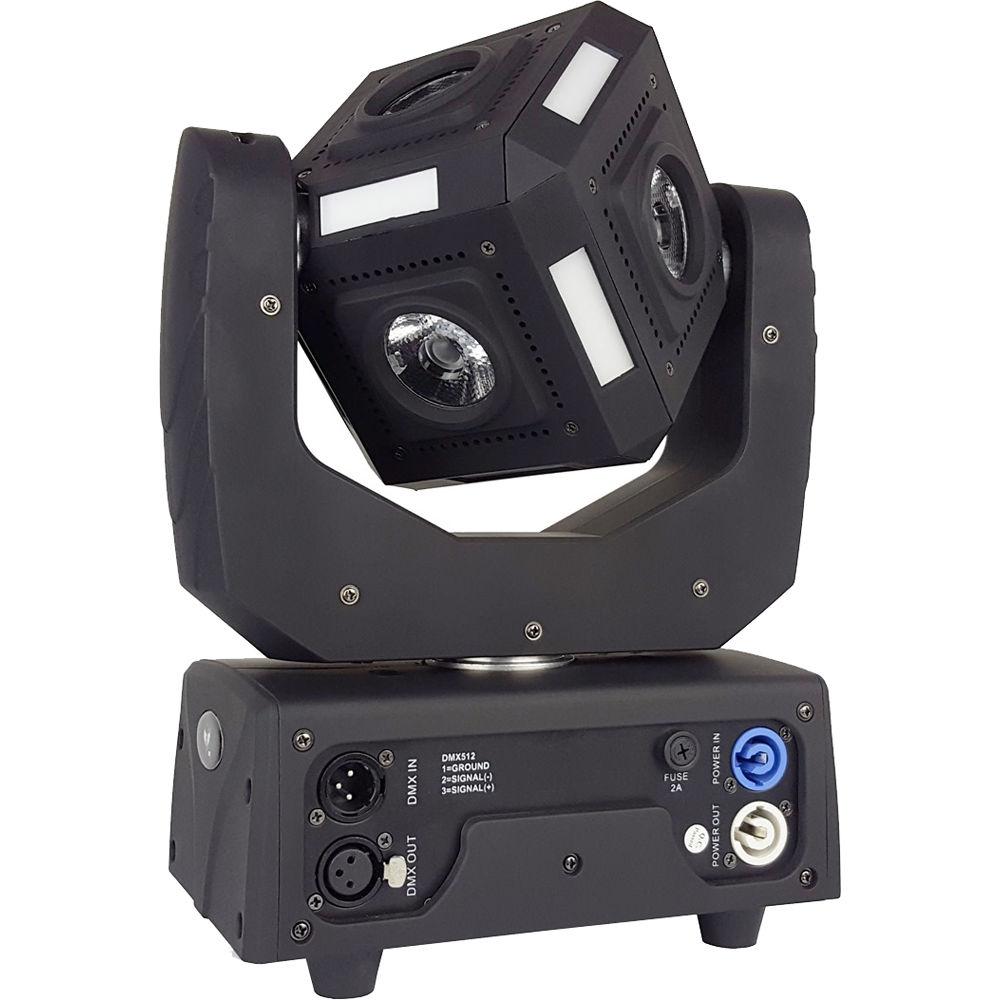

The Snake Eyes Mini creates crisp and brightly colored beams which project in all directions, with user-selectable 630°/540° pan and never-ending infinite tilt. The unit offers two DMX channel modes (14 or 16), which allow for ease and flexibility in programming, as does the easy-to-read four-button LED control panel. The rear panel offers standard DMX 3-pin XLR input and outputs, as well as standard powerCON compatible in and out jacks. The Blizzard Lighting Snake Eyes Mini ships with a power cord, an Omega mounting bracket, a safety cable, and a DMX cable. - Key Features
-
- Six 10W CREE RGBW 4-in-1 LEDs
- Twelve DMX-controllable RGB strips
- 630/540° pan, infinite tilt
- User-selectable 14- or 16-channel DMX modes
- Built-in, auto-/sound-active programs
- 0-100% linear LED dimmer
- Pan/tilt invert
- 1-25 Hz strobe
- 3-pin male and female DMX in/out
- powerCON compatible AC power in/out
- Easy-to-use, four-button LED control panel menu
- Single 1/4-turn mounting bracket
UPC: 685450870665 In the Box Blizzard Snake Eyes Mini Moving Head Fixture Mounting Bracket Power Cord Safety Cable DMX Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard Snake Eyes Mini Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard Snake Eyes Mini Specs | Light Source | 6 x 10 W LEDs, 4-in-1, CREE RGBW
12 x RGB strips, DMX-controllable | | Optical | Beam Angle: 9°
Luminous Intensity: 1521 lux @ 6.5' / 2 m | | Control | Protocol: USITT DMX-512
DMX Channels: 14 or 16
Input: 3-pin XLR, male
Output: 3-pin XLR, female
Other Operating Modes: Standalone, master/slave, sound-active, color preset | | Maximum Operating Temperature | 104°F / 40°C | | Power | Operating Voltage: 100 to 240 VAC, 50/60 Hz
Power Consumption: 81 W, 1.1 A, PF: .63 | | Dimensions (L x W x H) | 10.5 x 6.7 x 11.9" / 26.67 x 17.0 x 30.2 cm | | Weight | 9.5 lb / 4.3 kg | | | | Package Weight | 14.15 lb | | Box Dimensions (LxWxH) | 16.5 x 13.5 x 10.5" |
