User Manual for Blizzard SnowBlind LED Strobe Blinder Fixture Click to enlarge the picture
Contents of the user manual for the Blizzard SnowBlind LED Strobe Blinder Fixture
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard SnowBlind LED Strobe Blinder Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

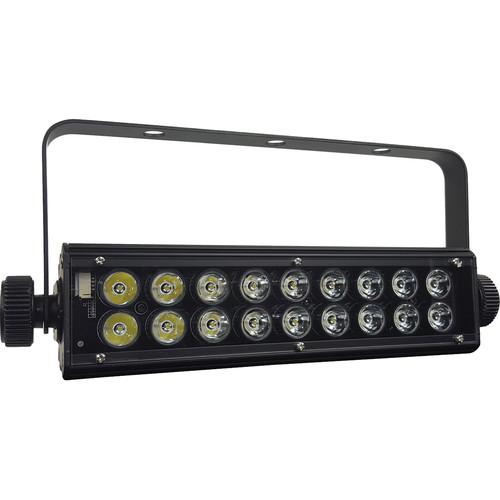

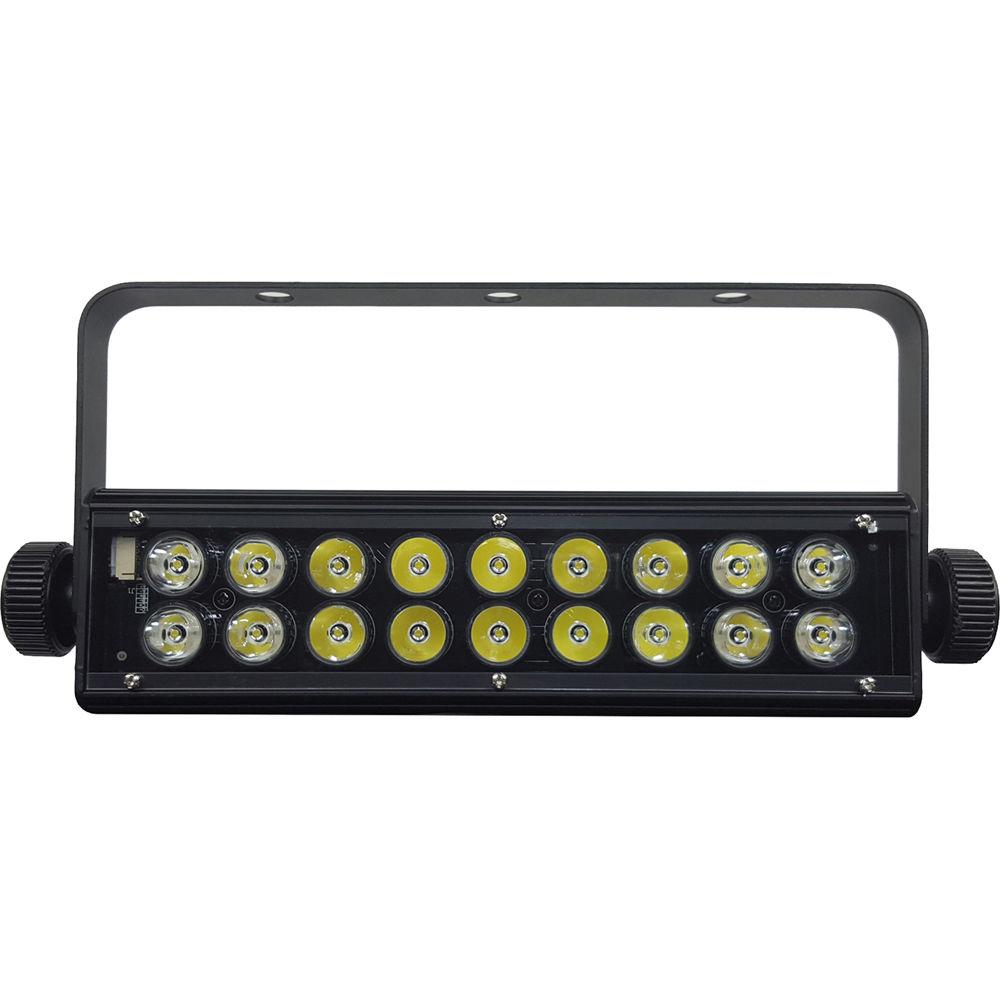

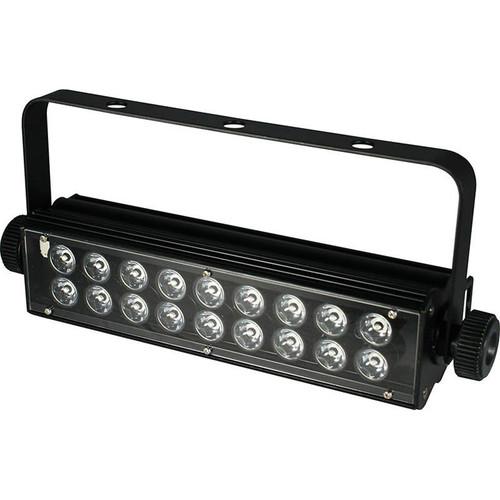

Product description The Blizzard Lighting SnowBlind is a super-bright cool white LED strobe/blinder fixture designed to cover a large area and well suited for clubs, event halls, mobile DJs, and more. The fixture is fitted with 18 high-powered 1W cool white LEDs, and features a full range of brightness and intensity adjustment, as well as rate of strobe (speed) and an internal microphone with adjustable sensitivity, which works in conjunction with the standalone or DMX modes. Additionally, two or more SnowBlind units can be run together in master/slave mode to make a brilliant array of strobe fixtures.

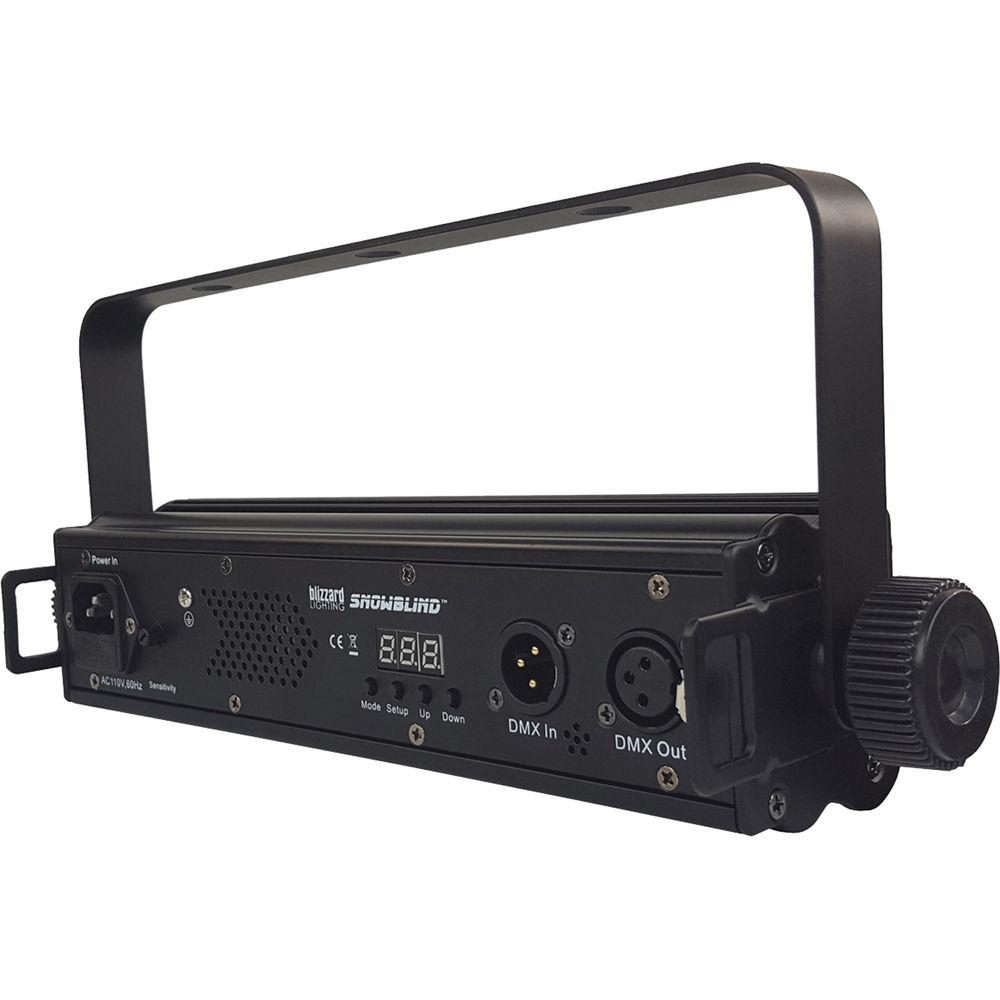

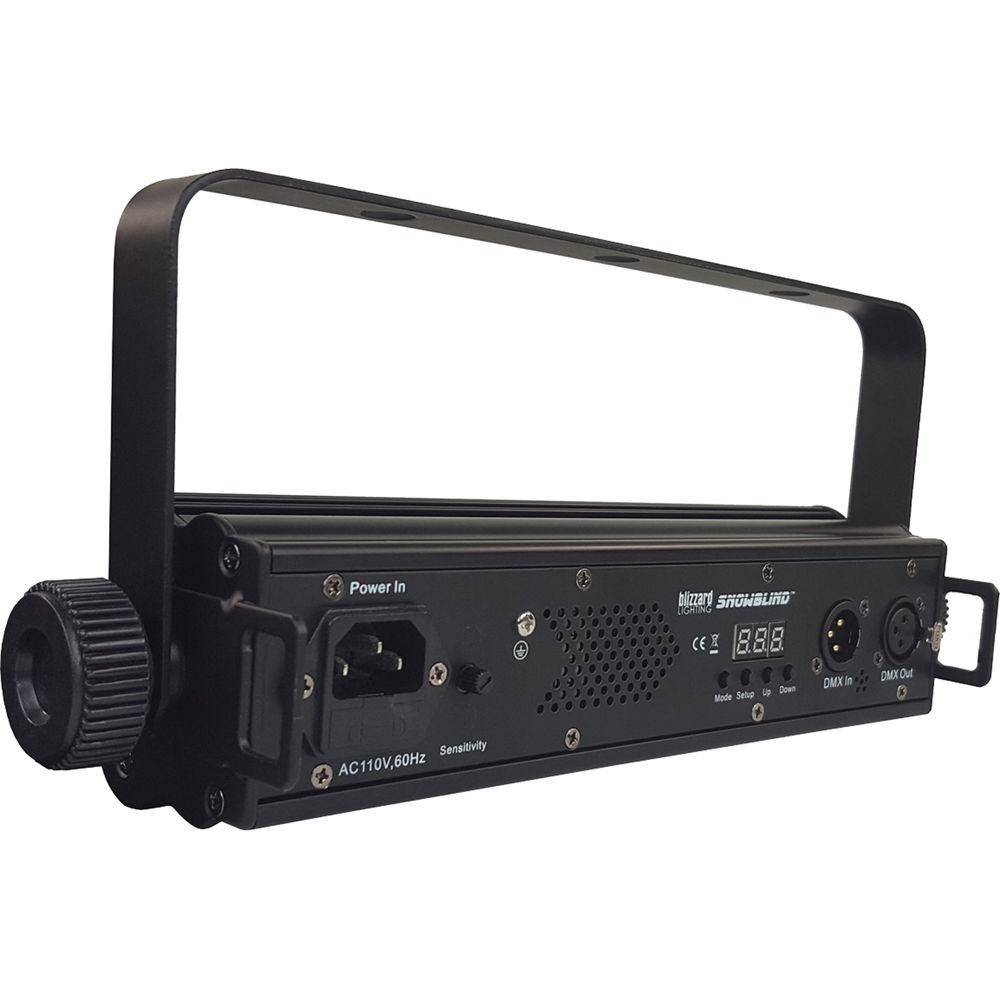

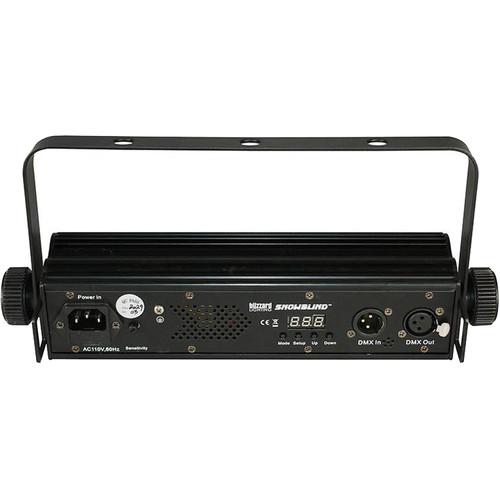

The SnowBlind only uses 25W of power and is packed into a lightweight, black aluminum housing with a mounting bracket with dual locking knobs for easy installation. The rear panel offers an easy-to-use, four-button LED control panel and standard 3-pin DMX in/out connectors. Additionally, the SnowBlind can directly power the wiCICLE wireless system via DMX. The Blizzard Lighting SnowBlind ships with a power cord. -
- Powered by 18 1W white LED’s
- Variable electronic strobe
- Variable electronic dimmer
- Controlled via 3-channel DMX and master/slave
- Sound-active mode in standalone and DMX modes
- Microphone sensitivity adjustment in standalone and DMX modes
- Four-button, easy-to-use LED control panel menu

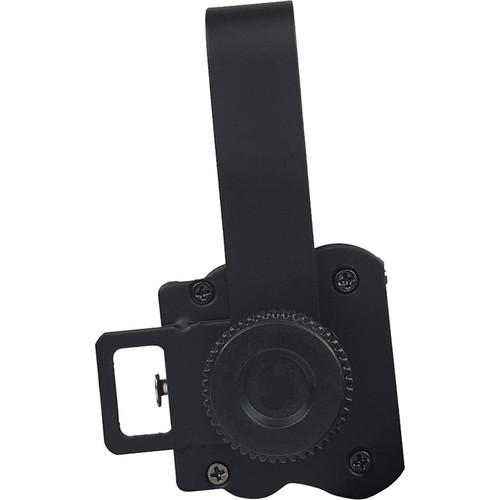

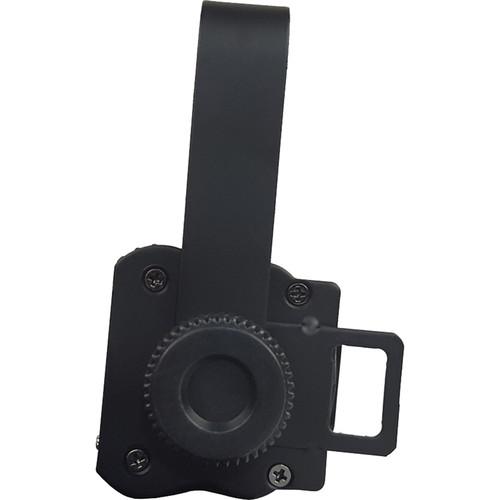

- Aluminum mounting bracket with locking knobs
- Able to directly power the wiCICLE wireless system via DMX
UPC: 662425051915 In the Box Blizzard SnowBlind LED Strobe/Blinder Fixture (CW) Mounting Bracket Power Cord Safety Cable DMX Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard SnowBlind LED Strobe Blinder Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard SnowBlind Specs | Light Source | 18 x 1 W LEDs (cool white), 100,000 hours. | | Optical | Beam Angle: 15° | | Control | Protocol: USITT DMX-512
DMX Channels: 3
Input: 3-pin XLR, male
Output: 3-pin XLR, female
Operating Modes: Sound-active, master/slave, DMX | | Maximum Operating Temperature | 104°F / 40°C | | Power | Operating Voltage: 100 to 240 VAC, 50/60 Hz
Power Consumption: 25 W | | Dimensions (L x W x H) | 12.6 x 5.5 x 3.5" / 32.0 x 14.0 x 9.0 cm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 16.0 x 8.0 x 6.0" |
