User Manual for Blizzard StormChaser RGBW LED Strip Wash Pixel Effect Fixture Click to enlarge the picture
Contents of the user manual for the Blizzard StormChaser RGBW LED Strip Wash
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard StormChaser RGBW LED Strip Wash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

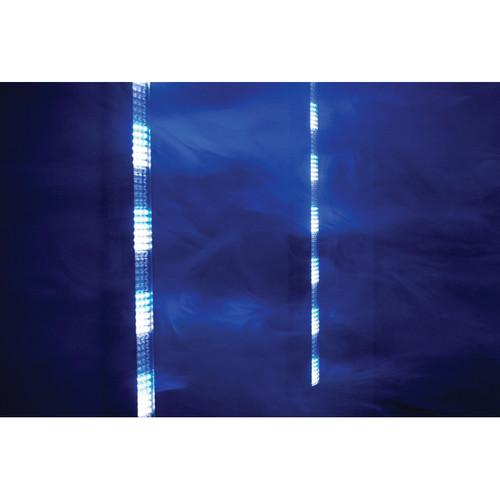

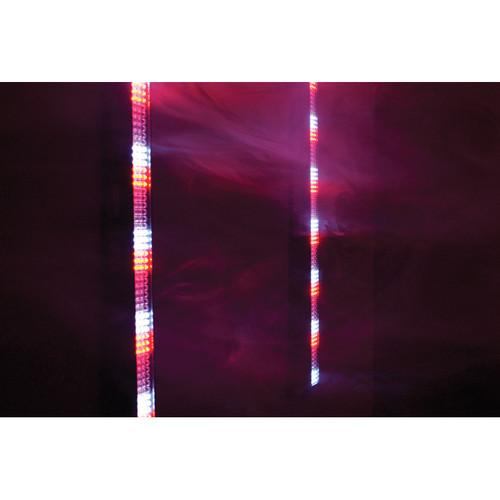

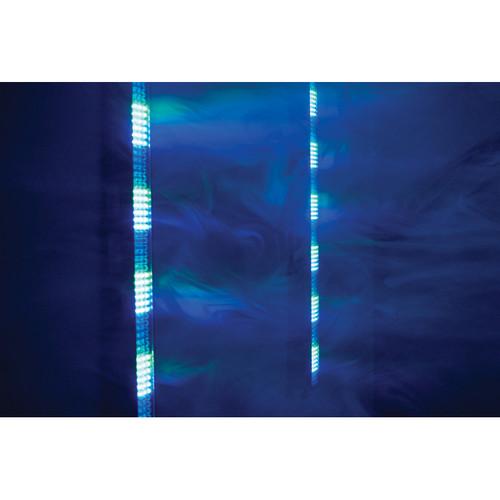

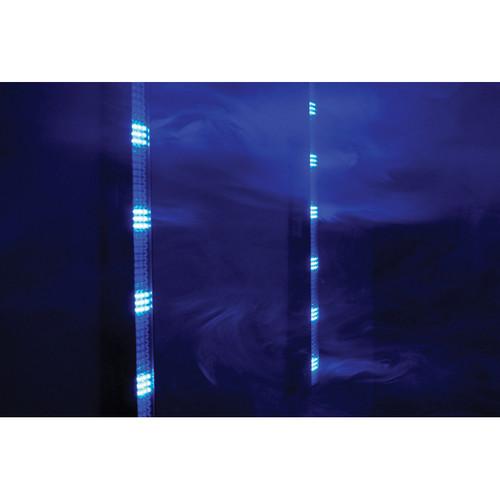

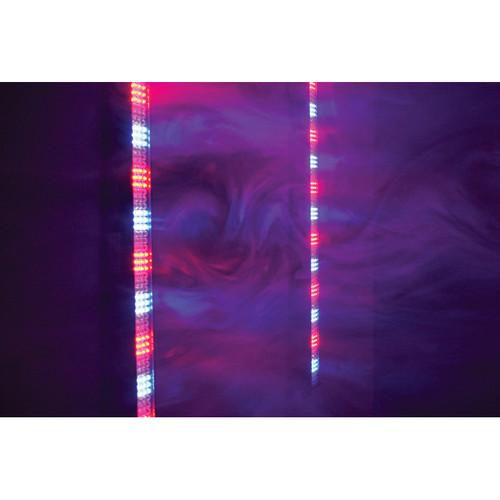

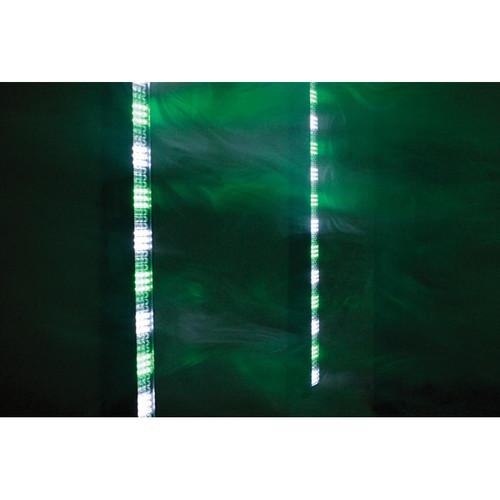

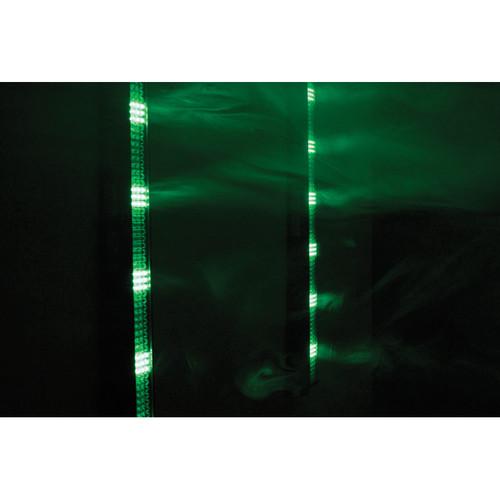

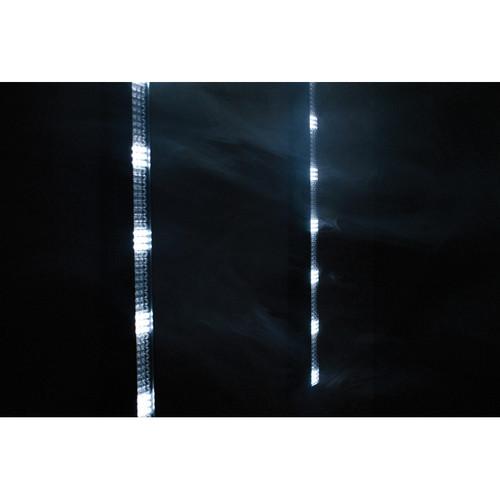

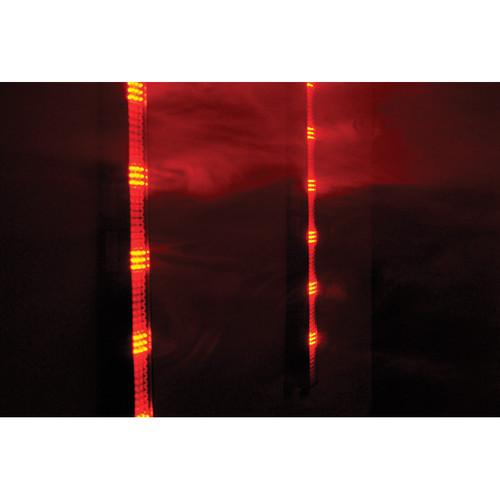

Product description The StormChaser RGBW LED Strip Wash Pixel Effect Fixture from Blizzard Lighting is a 42.3" combination fixture with a narrow 30 degree beam angle and an impressive host of effects via 240 bright 10mm RGBW LEDs. Four DMX channel modes allow for a wide array of lighting choices to customize and personalize your show with unique effects. You can quickly and easily switch from 2 DMX channel sound-active mode to 7- and 10-channel modes for RGBW color mixing or 7-pixel dimming control. Switch to 31-channel mode for full RGBW, 7-pixel control. Besides remote DMX operation, the StormChaser RGBW can be controlled locally from its easy-to-read LED display. The StormChaser RGBW has a 100-230 VAC power supply for worldwide use and a projected lamp life of 100,000 hours, making it virtually maintenance-free. -
- RGBW color mixing via 252 high-power 10mm red/green/blue/white LEDs
- Variable electronic strobe
- Flexible 2/7/10/31-channel selectable-on-the-fly DMX architecture
- 16 built-in chase patterns with variable speed control
- 7 fixture segments are independently or globally controllable for flexibility in creating chases and nearly infinite color palettes
- Built-in color and chase macros via DMX
- Built-in automated and sound activated programs via master/slave and DMX
UPC: 662425035564 In the Box Blizzard StormChaser RGBW LED Strip Wash Pixel Effect Fixture 2 x Mounting Brackets with Bolts Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard StormChaser RGBW LED Strip Wash Pixel Effect Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard STORMCHASER RGBW Specs | Light Source | LED: 252x 10 mm LEDs, 63 red, 63 green, 63 blue, 63 white
7 individually controllable RGBW pixels
100,000 hr lamp life expectancy | | DMX Channels | 2, 7, 10, 31 | | Beam Angle | 30° | | Operating Modes | Standalone, Master/Slave, DMX | | Programs | Built-in automated and sound activated programs via master/slave and DMX
16 variable speed chase patterns
Built-in color and chase macros via DMX | | Strobe | Yes, variable | | Control | DMX512
LED control panel
7 pixel dimming control | | Connectors | 3-pin female output
5-pin male input | | Operating Temperature | 104°F (40°C) ambient max. | | Light Intensity | 3,250 lux @ 3.28' (1.0 m) | | Input Voltage | 100-230 VAC 50/60 Hz | | Power and Current | 30 W, 0.2 A @ 120 VAC, 60 HZ operating
0.225 A inrush, PF 0.9 | | Dimensions | 42.3 x 3.5 x 2.5" (1,074 x 88 x 65 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 41.2 x 6.0 x 6.0" |
