User Manual for Blizzard SwitchBlade Micro - RGBW LED Moving Head Light Click to enlarge the picture
Contents of the user manual for the Blizzard SwitchBlade Micro - RGBW LED
- Product category: DJ & Effect Lights Blizzard
- Brand: Blizzard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blizzard DJ & Effect Lights
 |
User manual for the Blizzard SwitchBlade Micro - RGBW LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blizzard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blizzard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blizzard product will considerably shorten its lifespan!
|

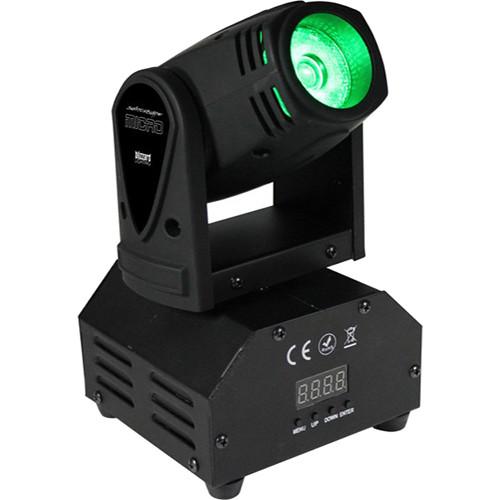

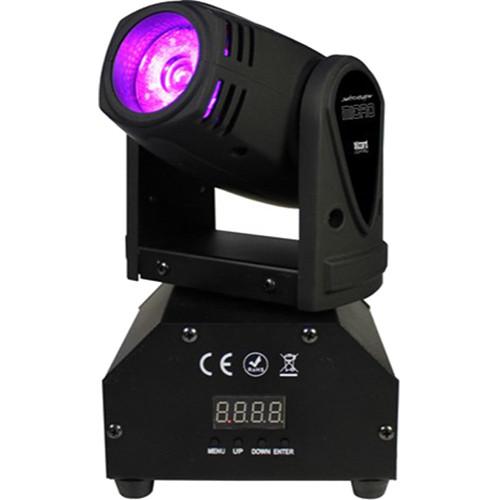

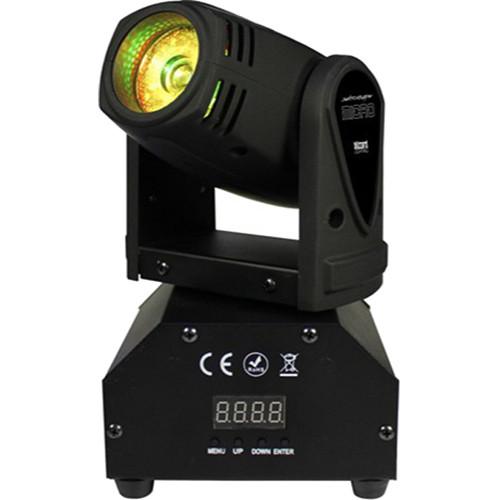

Product description The SwitchBlade Micro from Blizzard Lighting is a lightweight and compact moving head fixture powered by a 15W quad-color RGBW CREE LED. Featuring color mixing, a pan range of 540°, a tilt range of 270°, 16-bit pan/tilt resolution, rapid movement, and an 8° beam angle, this fixture provides versatile options for both color and movement effects.

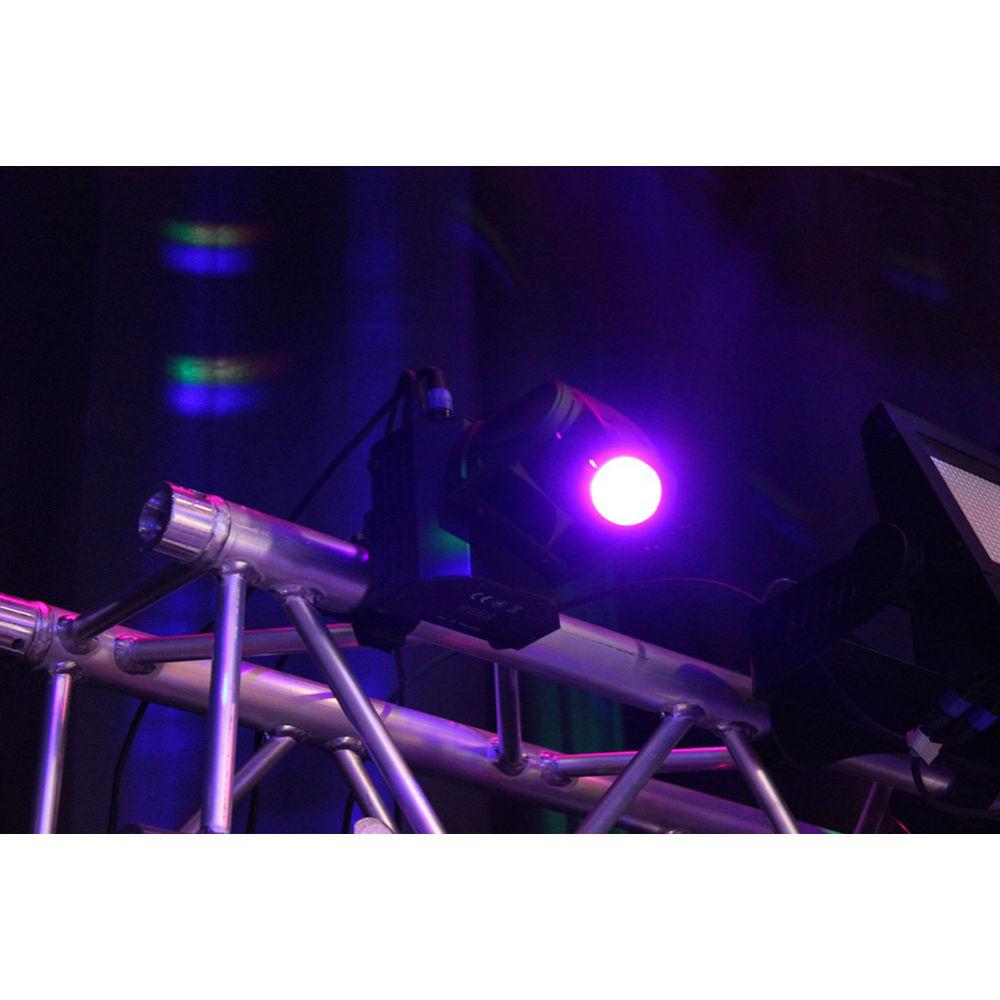

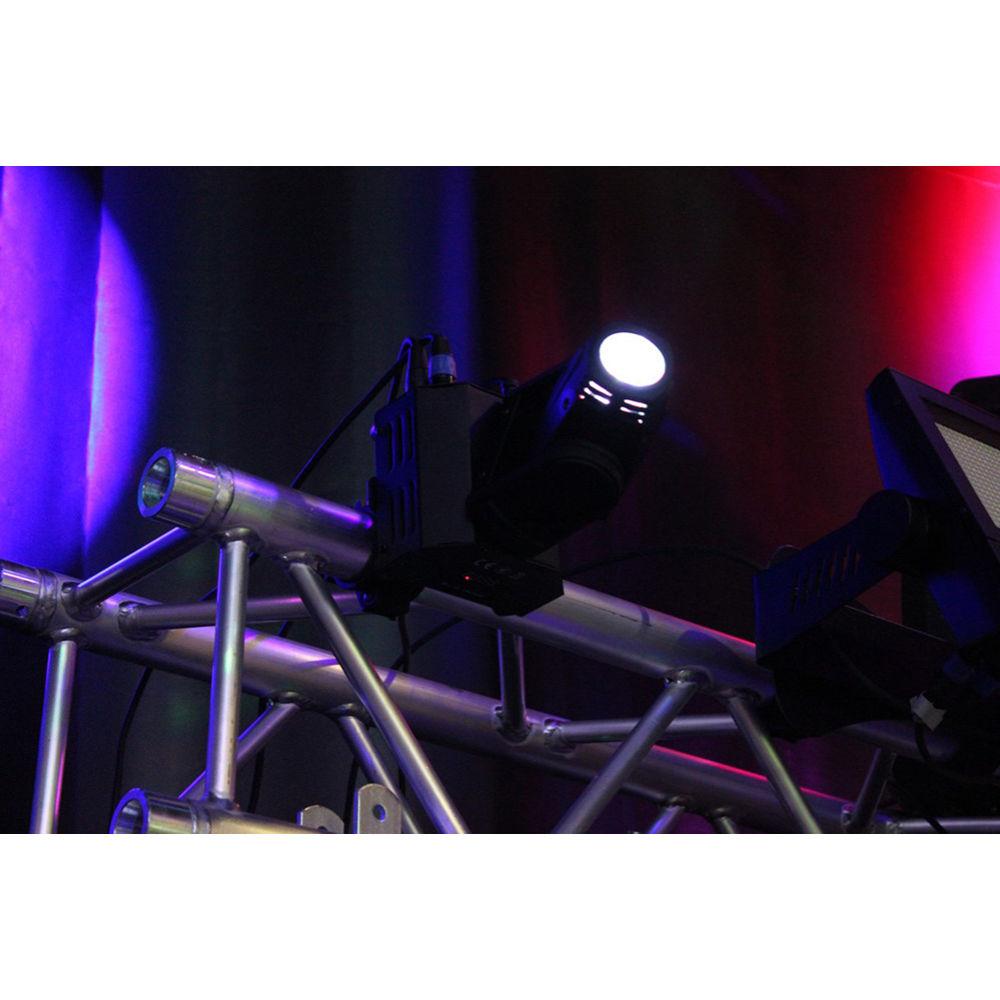

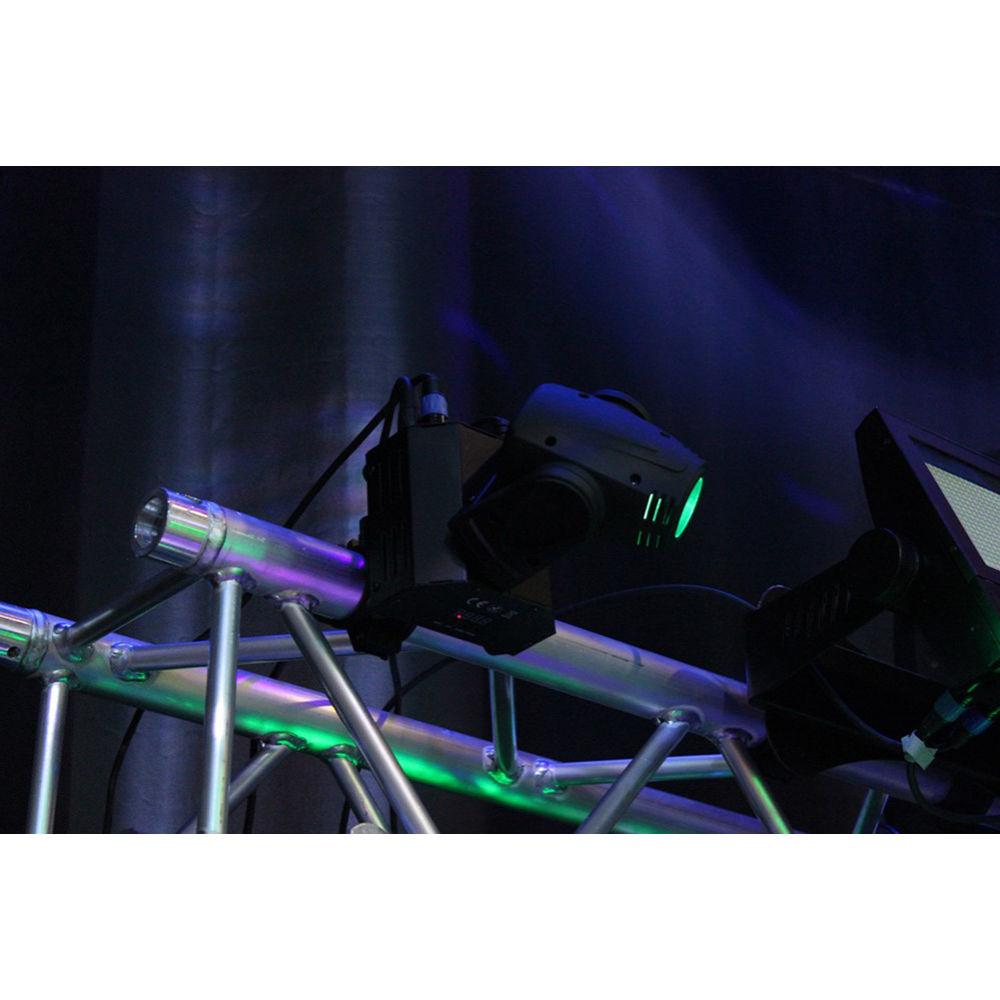

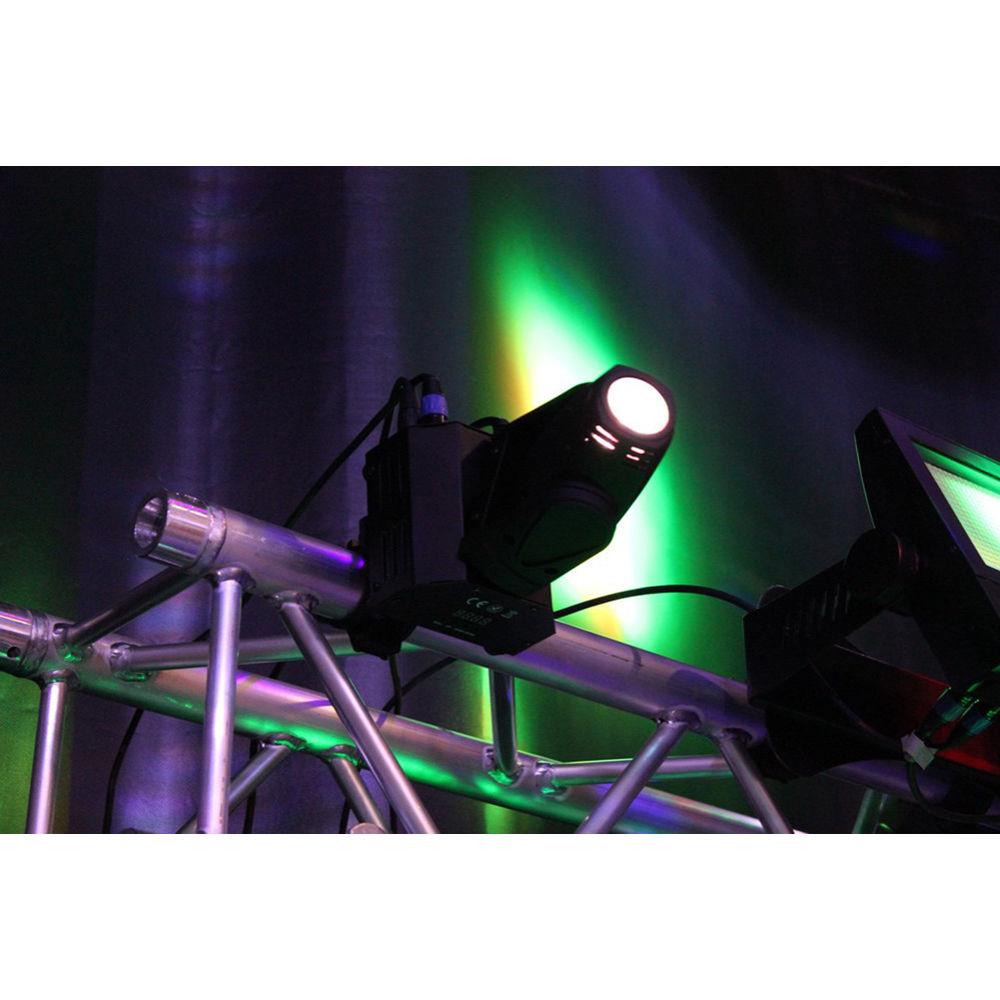

The SwitchBlade Micro has an easy-to-use LED display and 4-button control panel, allowing for configuration of DMX operation, built-in programs, master/slave mode, standalone color mixing, and other settings. There are two DMX channel modes, either 11- or 13-channel mode, but sound-active program and automatic programs can create light shows without DMX control. The unit receives power via an industry-standard IEC input connector and ships with a power cable, while XLR 3-pin connectors provide DMX input and output connectors. For mounting to trussing, a mounting bracket is included with this unit but a separately available clamp is still required. -
- Mini moving head powered by one 15W RGBW 4-in-1 CREE LED
- Rapid 540° pan and 270° tilt
- Full RGBW color mixing in standalone and DMX mode
- Sharp 8° beam angle
- 16-bit movement resolution
- Strobe control
- Control over 11 or 13 DMX channels
- Built-in automated and sound-active programs with master/slave option
- XLR 3-pin input and output for DMX
UPC: 852659766796 In the Box Blizzard SwitchBlade Micro - RGBW LED Moving Head Light Power Cable Mounting Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard SwitchBlade Micro - RGBW LED Moving Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard SWITCHBLADE MICRO Specs | Light Source | 1 x RGBW LED, 15 W | | Life Expectancy | 50,000 hours | | Beam Angle | 8° | | Illuminance | 16,890 lux at 3.3' / 1 m (Full On)
6,710 lux at 3.3' / 1 m (Full On) | | Pan Range | 540° | | Tilt Range | 270° | | Movement Resolution | 8-bit, 16-bit | | Color Mixing | RGBW | | Protocol | DMX | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 11 or 13 channels | | Power | 100 to 240 VAC 47 to 63 Hz | | Power Connectors | Input: IEC
Output: none | | Power Consumption | 35 W | | Operation Temperature | 104°F / 40°C | | Mounting | Mounting bracket (included) | | Working Position | Any safe position | | Dimensions (L x W x H) | 4.9 x 5.0 x 9.4" / 12.3 x 12.4 x 23.7 cm | | Weight | 4.4 lb / 2.0 kg |
