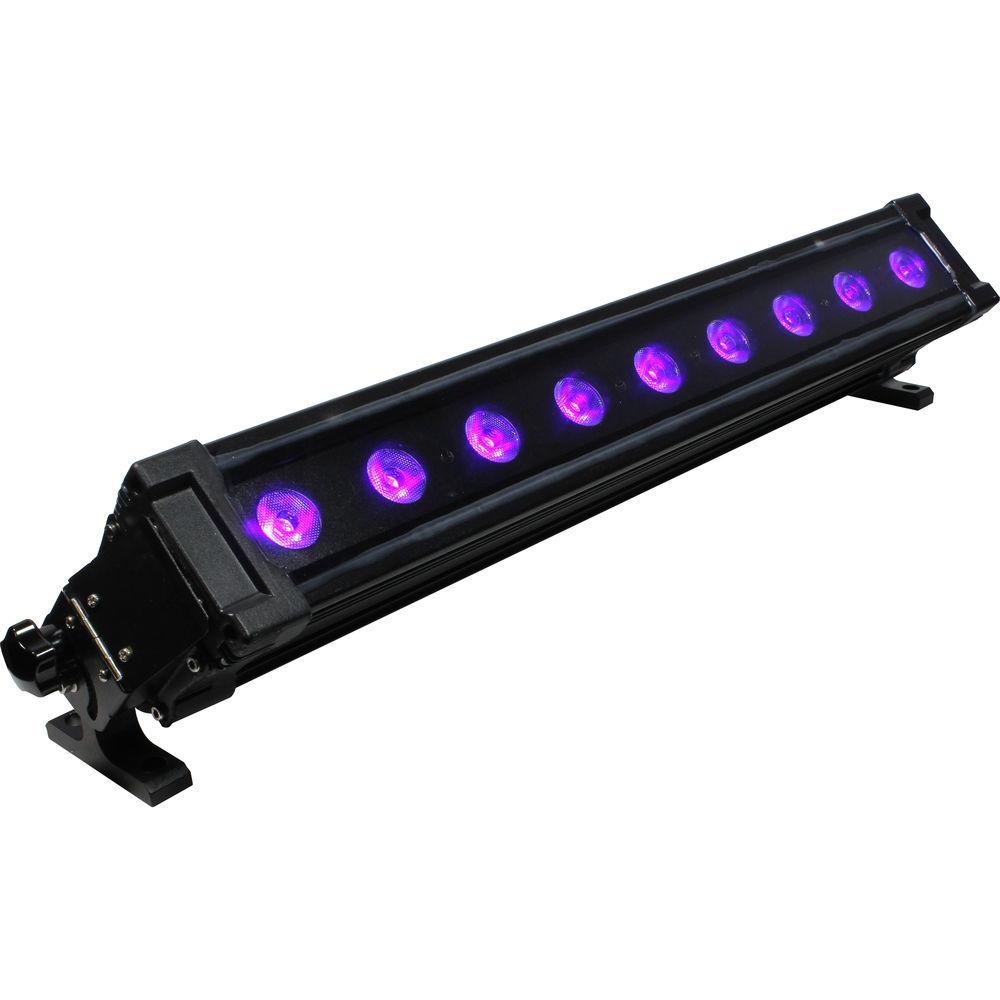

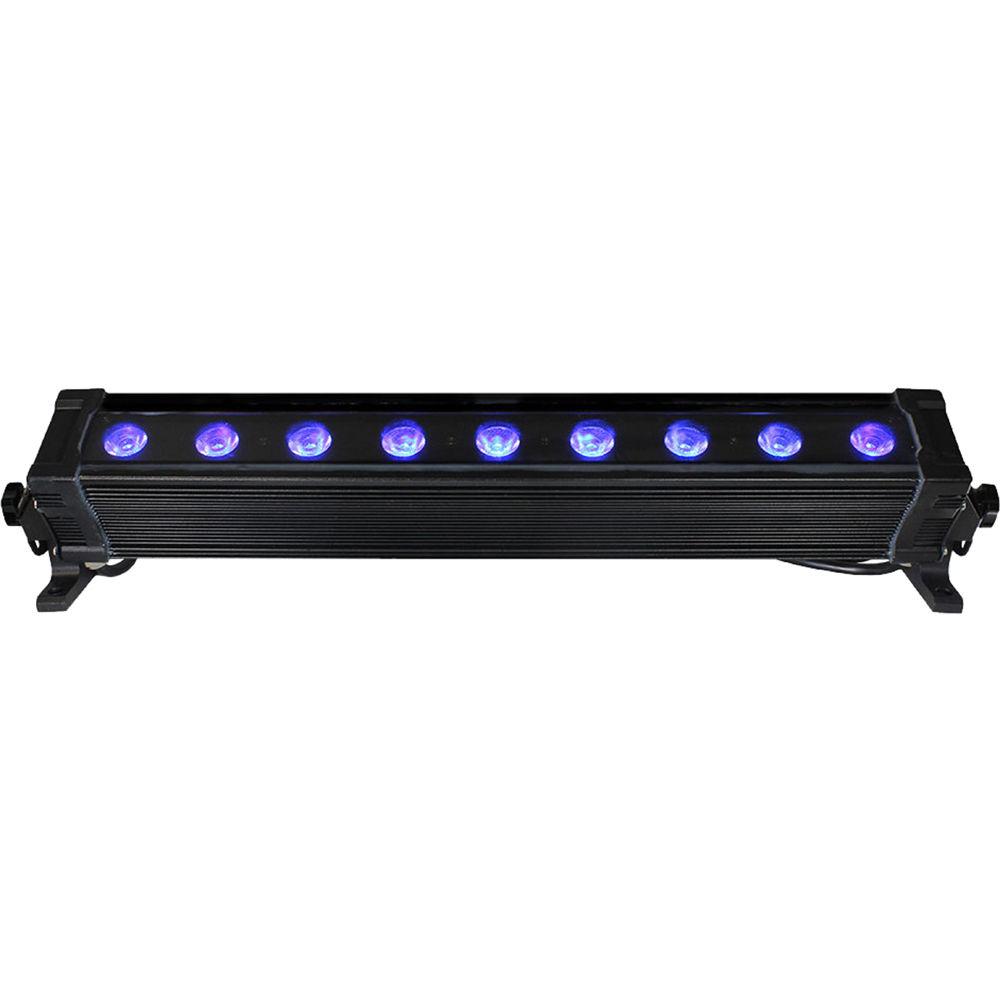

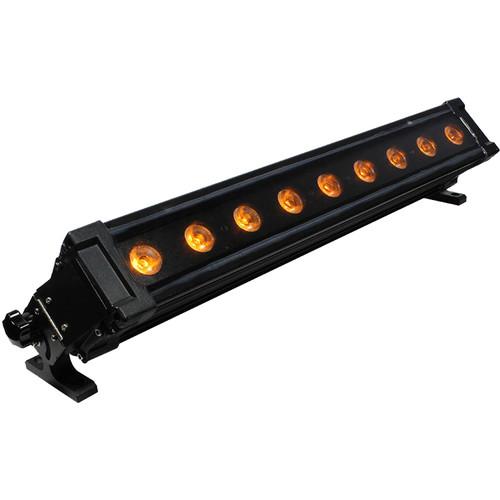

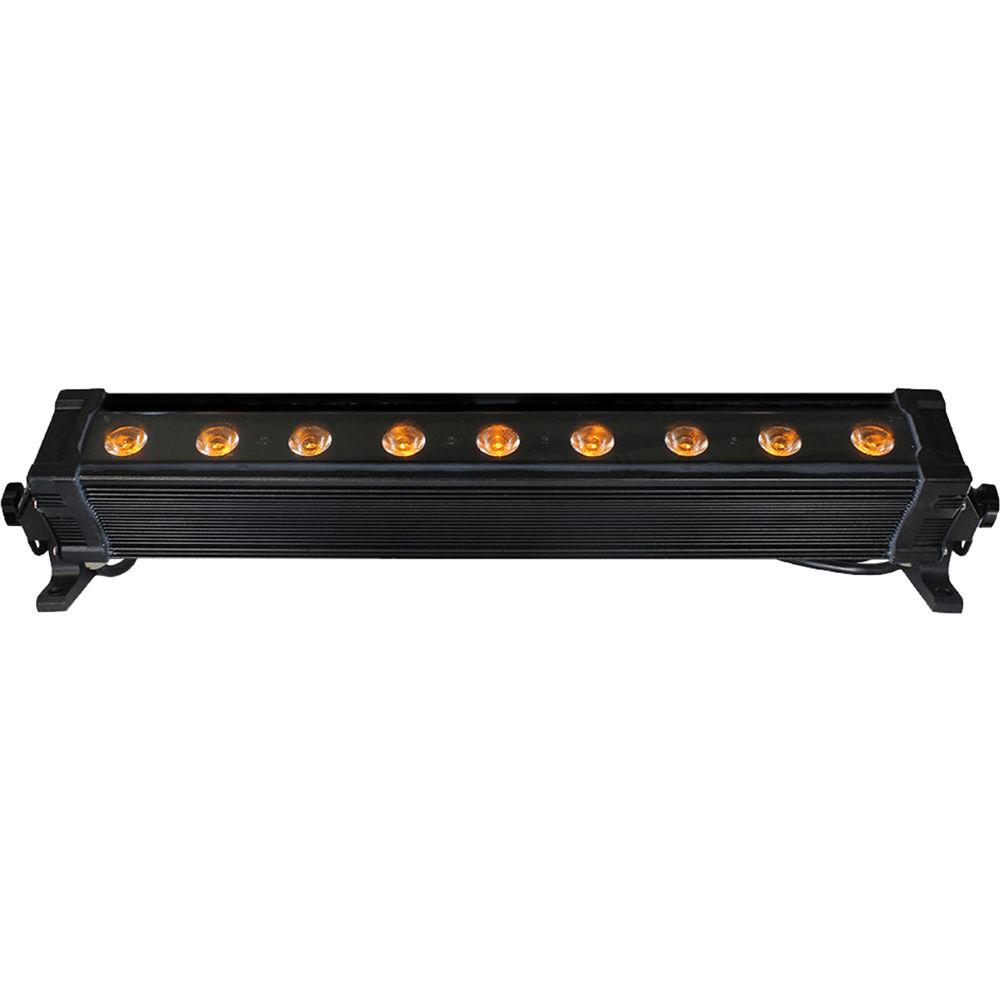

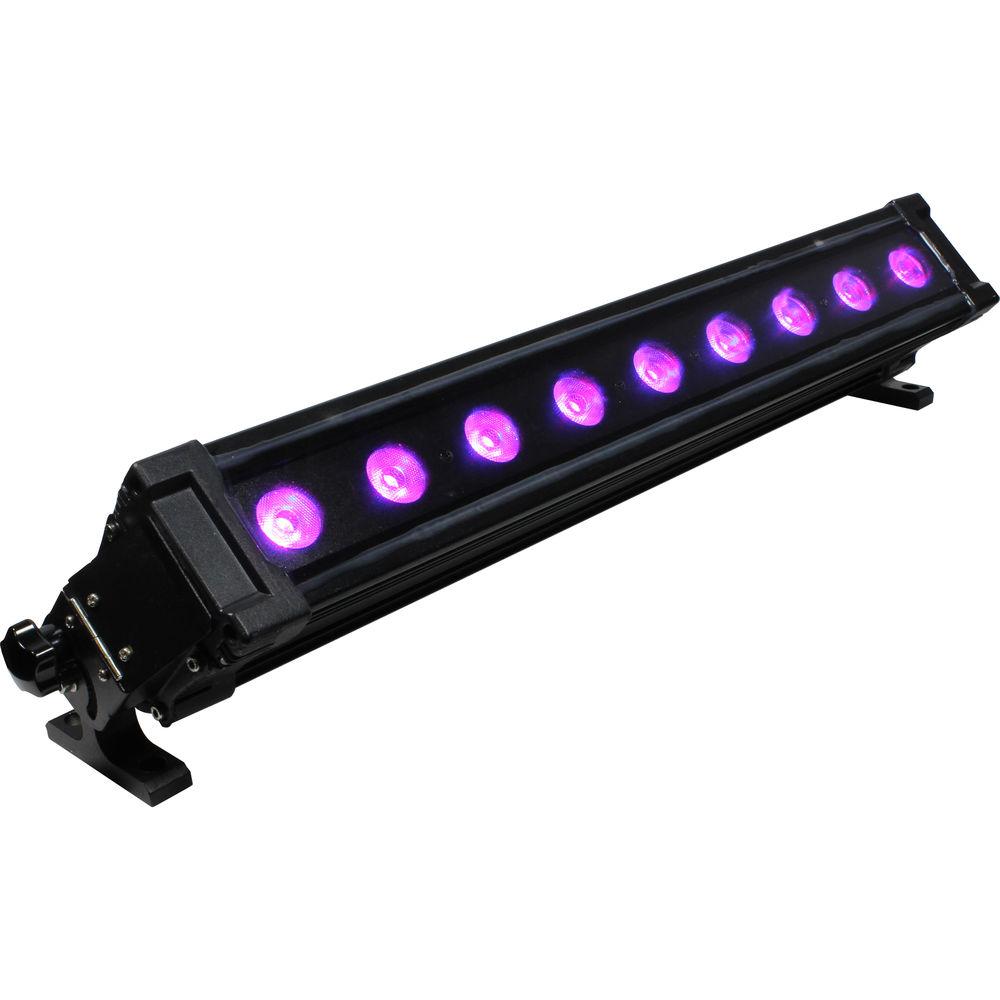

Product description The ToughStick EXA Outdoor LED Wash Fixture from Blizzard Lighting is an IP65-rated luminaire with waterproof power and DMX cables that employs nine 15W RGBAW+UV 6-in-1 LEDs that create rich, vibrant colors that can be further customized with the addition of ultraviolet light to give them a unique hue. The light has an array of built-in color and chase macros, automated programs and modes including Sound Active mode, Master/Slave, Stand-alone and Color Preset, as well as RGBAW+UV color mixing, and ultra smooth flicker-free, 0-100% 32-bit dimming. The ToughStick EXA makes an ideal 25 degree accent light, while its 3, 6, 8, 10 and 11-channel DMX modes and silent convection cooling make it a theatrical and production asset as well, especially for location shooting. The light comes with an IP-rated AC power cord with cable cap, IP rated DMX In/Out cables, and dual mounting brackets with locking knobs for secure positioning and versatility. - Attributes
-
- RGBAW + UV color mixing via 9x 15W 6-in-1 LEDs
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via Master/Slave
- RGBAW + UV color mixing ability in Stand-alone mode
- 3-Pin male input and 3-pin female output
- User selectable 3, 8, 10, 11-channel DMX modes
- Easy to use, 4-button LED control panel
- Flicker-free constant-current 400Hz LED driver
- Totally silent convection cooling
- IP-rated AC power cord with cable cap
- IP Rated DMX In/Out cables
- Dual mounting brackets for positioning flexibility
- Luminous Intensity
- lux @ 6.56' (2.0 m)
Red: 570
Green: 540
Blue: 550
Amber: 260
White: 880
UV: 130
All: 2,490 UPC: 852659766772 In the Box Blizzard ToughStick EXA Outdoor LED Wash Fixture Waterproof Power Cable 2 x Waterproof DMX Cable (In/Out) 2 x Mounting Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard ToughStick EXA Outdoor LED Wash Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard ToughStick EXA Specs | Light Source | 9x 15 W RGBAW+UV 6-in-1 LEDs, 50,000 hr lamp life | | Optical | Beam angle: 25° optics | | Operating Temperature | 104°F (40°C) ambient | | Dimming | 0-100% 32-bit Dimming | | Control | Protocol: USITT DMX512
DMX channels: 3, 6, 8, 10, 11 (user-selectable)
Input: 3-pin XLR male
Output: 3-pin XLR female
Stand-alone, Master/Slave, Sound Active, Color Preset | | Voltage | Operating voltage: AC 100-240 VAC, 50/60 Hz
Power consumption: 104 W, 1.36 A
Power factor: 0.63
Drive current: 400 mA | | IP Rating | IP65 | | Dimension | 26.5 x 3.37 x 5.35" (67 x 8.5 x 13.6 cm) | | Weight | 7.8 lb (3.5 kg) | | | | Package Weight | 12.05 lb | | Box Dimensions (LxWxH) | 26.0 x 10.6 x 7.2" |
