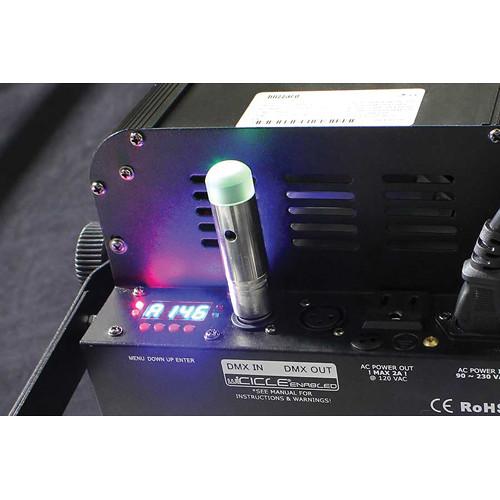

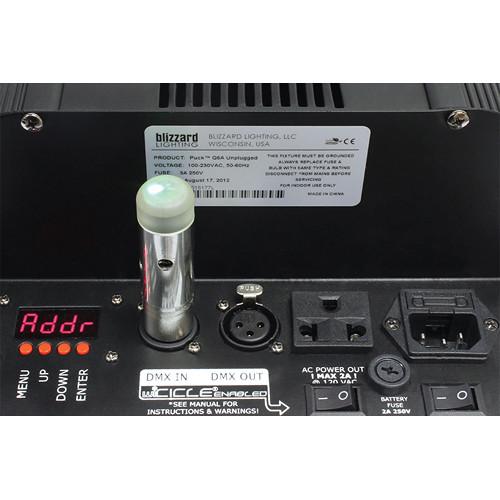

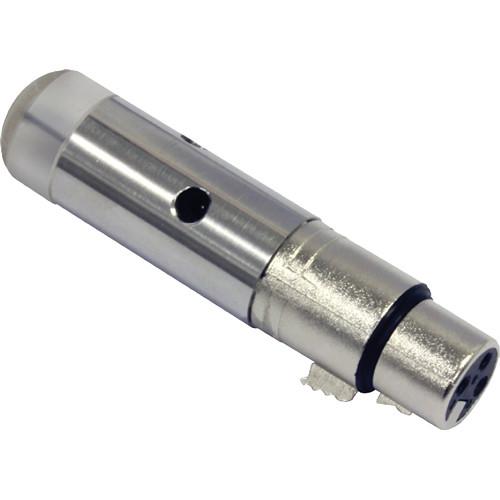

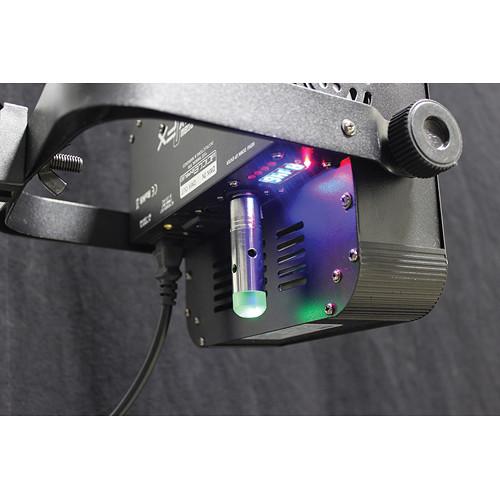

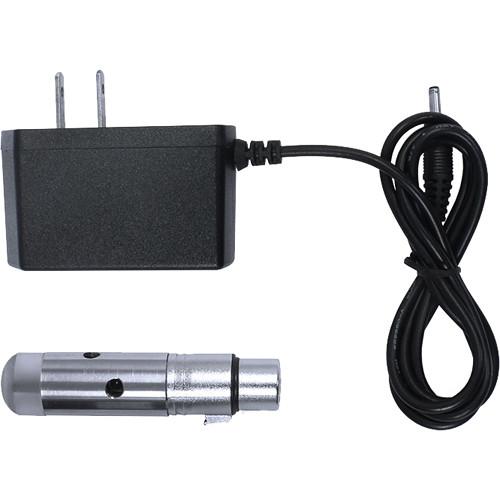

Product description The wiCICLE Skywire Wireless DMX Receiver from Blizzard Lighting is a plug and play accessory that picks up DMX signals at line-of-sight distances up to 1,000' with no lag time from an optional transmitter or transceiver. wiCICLE runs on the stable 2.4 GHz frequency, has an internal antenna and selects channels automatically. Up to 7 systems can run simultaneously. A 7-color LED on the unit identifies the channel in current use. UPC: 662425034932 In the Box Blizzard wiCICLE Skywire Wireless DMX Receiver wiCICLE Skywire Wireless DMX Receiver AC Power Adaptor (5 VDC, 1000 ma) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blizzard wiCICLE Skywire Wireless DMX Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlizzard WICICLE SKYWIRE Specs | Material | Stainless steel | | Connector | 3-Pin locking Female XLR | | Protocol | USITT DMX512 | | Power | Voltage: 5.0 VDC, 1000 ma Power supplied by included 100 - 240 VAC, 50/60 Hz adaptor or by wiCICLE enabled fixtures | | Operating Bandwidth | 2.4 GHz ISM | | Sensitivity | -94 dBm | | Range | 1,000' (305 m) Line-of-sight | | Duty Cycle | None | | Working Position | Any safe, secure position | | Dimensions | Length: 3.35" (8.5 cm)
Diameter: 0.78" (2.0 cm) | | Weight | 0.1 lb (0.05 kg) | | | | Package Weight | 0.38 lb | | Box Dimensions (LxWxH) | 6.15 x 4.15 x 2.55" |
