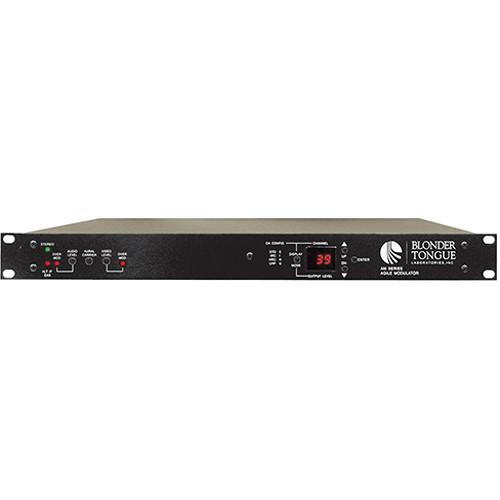

User Manual for Blonder Tongue AM-60-860 AM Series Agile Modulator Click to enlarge the picture
Contents of the user manual for the Blonder Tongue AM-60-860 AM Series Agile
- Product category: RF Equipment Blonder Tongue
- Brand: Blonder Tongue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blonder Tongue RF Equipment
|
User manual for the Blonder Tongue AM-60-860 AM Series Agile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blonder Tongue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blonder Tongue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blonder Tongue product will considerably shorten its lifespan!
|
Product description The AM-60-860 AM Series Agile Modulator from Blonder Tongue is an RF modulation system for analog CATV applications. It supports an output frequency range of 54 to 860. In addition, it features Emergency Alert System (EAS) and Secondary Audio Programming (SAP). - Sub Channel capability for Remote Origination applications
- Suitable for school security camera applications
In the Box Blonder Tongue AM-60-860 AM Series Agile Modulator Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue AM-60-860 AM Series Agile Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue AM-60-860 Specs | | | Input | RF Connector
1 x F type female
Impedance: 75 ohm
Return Loss: 18 dB return loss
Video Input Level: 0.7 V peak-to-peak - 87.5% depth of modulation
Video-to-RMS Hum Ratio: 65 dB peak-to-peak
Signal-to-Noise Ratio: 58 dB - weighted at 4 MHz bandwidth
Differential Gain: 2%
Differential Phase: 1°
Over-modulation Indicator: 87 to 92%
Mono Audio
1 x Terminal strip
Impedance: 600 ohm, balanced
Level: 0.5 to 0.4 V peak-to-peak
Frequency Range: 50 Hz to 15 kHz
Frequency Response: ± 0.5 dB
Total Harmonic Distortion: 1% at 25 kHz deviation
Signal-to-Noise Ratio: 59 dB
Over-modulation Threshold: 25 ± 2 kHz peak deviation | | Output | RF Connector
1 x F type female
Impedance: 75 ohm
Return Loss: 12 dB return loss
Frequency Range: 54 to 860 MHz
NTSC Channel Modes: UHF, VHF, CATV (standard, HRC, IRC)
Power Level: +60 dBmV
Power Level Range: +50 to +60 dBmV - in 0.2 dB increments
Video Flatness: fv-0.5 to fv+4.2 MHz - 1.0 dB peak-to-valley
Carrier-to-Noise: (In Channel): 63 dB
Broadband Noise (4 kHz bandwidth): -77 dBc at +45 / 60 dBmV output level
Spurious Outputs: -63 dBc
Aural / Visual Carrier Ratio: -15 ±5 dB
4.5 MHz Aural Inter-carrier Frequency Tolerance: ±150 Hz; 32 to 122°F / 0 to 50°C
Channel Selectivity:
Adjacent Aural and Below: -40 dB
Adjacent Picture and Above: -40 dB ±5 dB
Visual Carrier Frequency Tolerance:
Standard Channels: ±5.0 kHz; 32 to 122°F / 0 to 50°C
FCC Aeronautical Channels: ±2.5 kHz; 32 to 122°F 0 to 50°C
Intermediate Frequency (IF)
Input / Output Connector: F type female / : F type female
Aural Frequency: 41.25 MHz
Visual Frequency: 45.75 MHz
Composite IF Output:
Aural Carrier Level: +20 dBmV
Visual Carrier Level: +35 dBmV
Input / Output Impedance: 75 ohm
Input / Output Return Loss: 16 / 15 dB
EAS Alternative IF:
Connector: F type female
Input Level: +38 dBmV at 45.75 MHz
Switch Isolation: > 60 dB | | | | Alarms / Monitoring / Control | Front-Panel Indicators
Channel / Mode / RF Output: 3-digit LED display
Video Over-modulation: Red LED
Audio Over-modulation: Red LED
SAP Audio Over-modulation: Red LED
EAS / Alternative IF: Red LED
Stereo: Green LED
Front-Panel Controls
Channel / Mode / RF Output: Navigation key-pad
Video Level: Potentiometer
Audio Level: Potentiometer
Aural Carrier Level: Potentiometer
SAP Audio Level: Potentiometer | | Power Requirement | 117 VAC ±10% at 60 Hz - fuse: 0.40 A | | Power Consumption | 28 W maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -13 to 158°F / -25 to 70°C | | Humidity | 0 to 95% RH at 95°F (35°C) maximum, non-condensing | | Dimensions | 19 x 14.3 x 1.8" / 483 x 362 x 44 mm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 20.9 x 20.0 x 2.9" |
