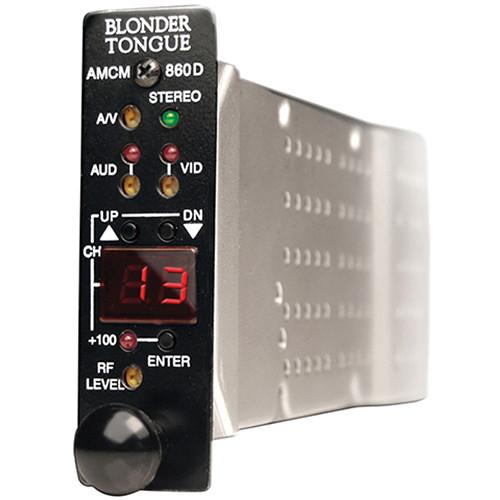

User Manual for Blonder Tongue AMCM Series Agile Micro Channel Modulator Click to enlarge the picture
Contents of the user manual for the Blonder Tongue AMCM Series Agile Micro
- Product category: RF Equipment Blonder Tongue
- Brand: Blonder Tongue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blonder Tongue RF Equipment
|
User manual for the Blonder Tongue AMCM Series Agile Micro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blonder Tongue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blonder Tongue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blonder Tongue product will considerably shorten its lifespan!
|
Product description The AMCM Series Agile Micro Channel Modulator from Blonder Tongue is a module that installs in the MIRC-4D or MIRC-12D rack chassis, not included. It forms part of an RF modulation system for analog CATV applications, and supports an output frequency range of 54 to 860MHz. - Audio Auto Gain Control (AGC)
-
- Prohibits commercials that accompany broadcast programs from having modulation levels substantially higher than the broadcast program; and having an average maximum loudness substantially higher than that of the broadcast program
- Provides consistent audio levels among all broadcast programs on different channels and among different programs within the same channel
- Modular design allows for deployment of 12 channels in a single 2RU rackmount chassis
- Utilizes SAW filters for improved performance
- Die-cast chassis for RFI immunity
In the Box Blonder Tongue AMCM Series Agile Micro Channel Modulator Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue AMCM Series Agile Micro Channel Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue AMCM-860D Specs | | | Input | RF Connector
1 x F type female
Impedance: 75 ohm
Return Loss: 24 dB return loss
Input Level: 1.0 V peak-to-peak - 87.5% depth of modulation
Frequency Response: 1.0 dB peak-to-valley - fv to fv+4.2 MHz Video-to-RMS Hum Ratio: 65 dB peak-to-peak
Signal-to-Noise Ratio: 62 dB - weighted at 4 MHz bandwidth
Differential Gain: 2.0%
Differential Phase: 1.0° - 87.5% depth of modulation
Chrominance / Luminance Delay: Per FFC requirements
Mono Audio
1 x RCA female
Impedance: > 10 ohm unbalanced / 600 ohm balanced
Input Level: 0.5 to 4.0 V peak-to-peak - for 25 kHz deviation; constant AGC range
Frequency Range: 50 Hz to 15 kHz
Frequency Response: ۫ dB
Total Harmonic Distortion: 1% at 25 kHz deviation
Signal-to-Noise Ratio: 66 dB
Over-modulation Threshold: 25 ± 2 kHz peak deviation | | Output | RF Connector
1 x F type female
Impedance: 75 ohm
Return Loss: 12 dB return loss
Frequency Range: 54 to 860 MHz - NTSC CATV channels 2 to 135
Power Level: +45 dBmV
Power Level Range: 10 dB continuously adjustable
Carrier-to-Noise: (In Channel): 63 dB
Broadband Noise (4 kHz bandwidth): -75 dBc at +45 dBmV output level
Spurious Outputs: -60 dBc
Aural / Visual Carrier Ratio: -11 to -19 dB continuously adjustable
4.5 MHz Aural Inter-carrier Frequency Tolerance: ±150 Hz; 32 to 122°F / 0 to 50°C
FCC Aeronautical Channels: ±5 kHz; 32 to 122°F 0 to 50°C | | | | Alarms / Monitoring / Control | Front-Panel Indicators
Channel Number and Mode: 2-digit red LED display
+100 Channels: Red LED
Video Over-modulation: Red LED
Audio Over-modulation: Red LED
Front-Panel Controls
Output Level: Potentiometer
Video Level: Potentiometer
Audio Level: Potentiometer
Aural Carrier Level: Potentiometer | | Power Requirement | 100 to 240 VAC at 50 or 60 Hz | | Power Consumption | 5 W maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -13 to 158°F / -25 to 70°C | | Humidity | 0 to 95% RH at 95°F (35°C) maximum, non-condensing | | Dimensions | 1 x 7.8 x 3.5" / 25 x 198 x 89 mm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.5 x 4.3 x 1.2" |
