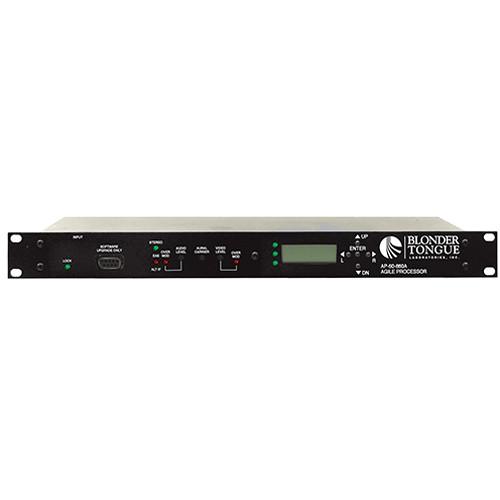

Product description The AP-60-860A Three-Mode Agile Processor from Blonder Tongue is a digital and analog heterodyne processor. It features three modes: Analog RF, QAM, and QAM / 8VSB; and can output +60 dBmV analog RF and +55 dBmV QAM. The unit is housed in a rackmount chassis that fits in a 1RU rack space. - Accepts one analog RF input: CATV sub-band channels T7-T13, CATV standard channels 2 to 135, VHF channels 2 to 13, and UHF channels 14 to 69; and delivers one Analog RF output: CATV standard channels 2 to 135
- Accepts one digital off-air 8VSB or digital cable QAM input: CATV standard channels 2 to 135, VHF channels 2 to 13, and UHF channels 14 to 69; and delivers one analog RF output: CATV standard channels 2 to 135
- Equipped with EAS interface which can also be used as an IF (Intermediate Frequency) input
- Supports EIA-608 closed captions
In the Box Blonder Tongue AP-60-860A Three-Mode Agile Processor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue AP-60-860A Three-Mode Agile Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue AP-60-860A Specs | | | Input | Connector: 1 x F type female
Analog Mode (Mode 1):
Standard: NTSC
Tuning: CATV: 2 to 135; broadcast: 2 to 69; Sub: T7 to T13
Bandwidth: 6 Mhz
Power Level: -20 to +30 dBmV
QAM Mode (Mode 2):
Standard: ITU-T J.83 - Annex B (64 and 256 QAM) Tuning Range: CATV channels 2 to135; T7 to T13
Data Rate: 38.8 Mbps (QAM 256); 26.97 Mbps (QAM 64)
Bandwidth: 6 MHz
Power Level: --20 to +30 dBmV
QAM / 8VSB Mode (Mode 3):
Standard: 8VSB: ATSC Digital Television A / 53E; QAM: ITU-T J.83 - Annex B (64 and 256 QAM)
Tuning Range: 8VSB: VHF (NTSC channels 2 to 13), UHF (NTSC channels 14 to 69); QAM: CATV channels 2 to 135 / T7 to T13
Data Rate: 8VSB: 19.392 Mbps; QAM: 38.8 MBps (QAM 256), 26.97 Mbps (QAM 64)
Bandwidth: 6 MHz
Power Level: -20 to +30 dBmV | | Intermediate Frequency (IF) | Connector: F type female
Input / Output Impedance: 75 ohm
Input Return Loss: 16 dB
Output Return Loss: 15 dB
EAS / ALT IF:
Input Level: +38 dBmV at 45.75 MHz
Switch Isolation: > 60 dB
Standby Carrier: +35 dBmV - RF input < -25 dBmV
Modes 1 and 3
Aural Frequency: 41.25 MHz
Visual Frequency: 45.75 MHz
Composite Loop Output:
Aural Carrier Level: +20 dBmV
Visual Carrier Level: +35 dBmV
Mode 2
Center Frequency: 44 MHz
Output Level: +30 dBmV | | Output | Modes 1 and 2
Connector: F type female
Frequency Range: 54 to 864 MHz
Channels: UHF, VHF, CATV (standard, HRC IRC)
Power Level: Mode 1 (analog): +60 dBmV; Mode 2 (QAM): +55 dBmV
Power Level Range: Mode 1 (Analog): +50 to +62 dBmV (in 0.2 dB increments); Mode 2 (QAM): +45 to +57 dBmV (in 0.2 dB increments)
Broadband Noise: Mode 1 (Analog) -77 dBc (at +60 dBmV output level, 4 MHz bandwidth); Mode 2 (QAM) -75 dBc (at +55 dBmV output level, 6 MHz bandwidth)
Spurious: -63 dBc
Impedance: 75 ohm
Return Loss: 15 dB
Aural / Visual Carrier Ratio (Mode 1): -15 dB ±2
Frequency Tolerance: ±20 kHz; 32 to 122°F (0 to 50°C) Adjacent Channel Rejection: 65 dB
Mode 3
Connector: F type female
Frequency Range: 54 to 864 Mhz
Channels: UHF, VHF, CATV (standard, HRC IRC)
Power Level: +60 dBmV Power Level Range: +50 to +62 dBmV (in 0.2 dB increments)
Broadband Noise: -77 dBc (at +60 dBmV output level, 4 MHz bandwidth)
Spurious: -63 dBc
Impedance: 75 ohm
Return Loss: 15 dB
Aural / Visual Carrier Ratio (Mode 1): -15 dB ±2
Visual Frequency Tolerance:
Standard Channels: ±20 kHz; 32 to 122°F (0 to 50°C)
FCC Aeronautical Channels: ±5 kHz; 32 to 122°F (0 to 50°C)
Video Frequency Response: 1.5 dB peak-to valley (fv-0.5 to fv+4.2 MHz)
Video-to-RMS Hum Ratio: 65 dB
Signal-to-Noise Ratio: 58 dB (weighted)
Differential Gain: 2.0% at 87.5%
Differential Phase: 1.0°
Over-modulation Indicator: 87.5%
Chrominance / Luminance Delay: Per FCC requirements
Audio:
Frequency Response: ±1.0 dB
Frequency Range: 50 Hz to 15 kHz
Signal-to-Noise Ratio: 59 dB
Total Harmonic Distortion: 1.0% at 55 kHz deviation
Over-modulation Indicator: 55 kHz ±2
4.5 MHz Audio Carrier Tolerance: ±150 Hz; 32 to 122°F (0 to 50°C) | | | | Alarms / Monitoring / Control | Indicators:
Lock: Green LED
Stereo Audio: Green LED
EAS or Alternative IF Activated: Red LED
Audio Over-modulation: Red LED
Video Over-modulation: Red LED
Local Monitoring: Front-panel, 16-channel, 2-line LCD screen
Local Control: Front-panel, 16-character, 2-line LCD screen; front-panel navigational key-pad; audio and video modulation adjustment; aural carrier adjustment | | Power Requirement | 110 VAC at 60 Hz - fuse: 1 A, 250 VDC, SloBlo | | Power Consumption | 36 W maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -13 to 158°F / -25 to 70°C | | Humidity | 0 to 95% RH at 95°F (35°C) maximum, non-condensing | | Dimensions | 19 x 18.6 x 1.8" / 483 x 473 x 44 mm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 23.3 x 23.1 x 3.6" |
