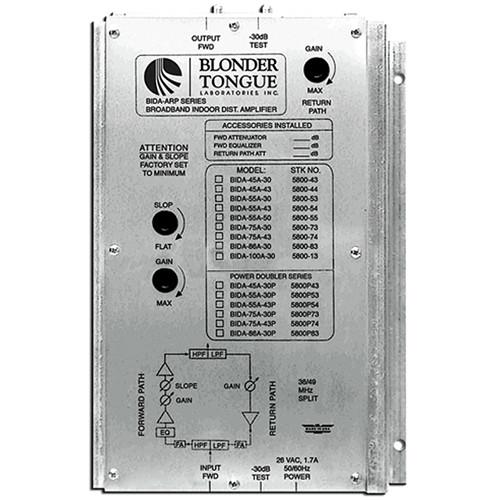

User Manual for Blonder Tongue BIDA 550-50 Broadband Indoor Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Blonder Tongue BIDA 550-50 Broadband Indoor
- Product category: RF Equipment Blonder Tongue
- Brand: Blonder Tongue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blonder Tongue RF Equipment
|
User manual for the Blonder Tongue BIDA 550-50 Broadband Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blonder Tongue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blonder Tongue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blonder Tongue product will considerably shorten its lifespan!
|
Product description The BIDA 5400 series, BIDA 550-50 Broadband Indoor Distribution Amplifier by Blonder Tongue features a 47 to 550 MHz RF bandpass and a flat operating gain of 50 dB. This self-contained broadband indoor distribution amplifier is designed specifically for CATV and SMATV signal distribution systems which use a cable drop as a signal source. The basic amplifier is configured for one-way operation. Optional field installable diplexers and return amplifiers will provide you two-way capability with either a passive or active 5-30 MHz bandpass return. Passive return configurations require only the diplexers, whereas active return requires installation of both the diplexers and the amplifier.
The BIDA 550-50 amplifier has a flat operating gain of approximately 50 dB. Lower operating gains can be achieved by adjusting the variable attenuator. This model can be attenuated over a range of 15 dB. Gain and slope controls are located on the front panel for easy set-up and adjustment. Two -30 dB back-matched test points are provided to allow testing without service interruption.
In applications where input signals are too high or where greater cable equalization is necessary, this BIDA amplifier can be reconfigured by using optional plug-in attenuators and cable slope equalizers to meet particular requirements. Push-pull hybrid IC modules enable the amplifier to operate at high output levels while retaining low distortion characteristics. The aluminum chassis is designed to provide excellent heat dissipation thus allowing operation at high ambient temperatures with no degradation of performance. - Hybrid IC circuitry for high output with low distortion
- Temperature stability range of -20°C to +60°C
- Designed for critical applications requiring high gain
- Front panel gain and slope controls for easy adjustments
- Field installable options provide two-way capability (passive or active)
- Externally accessible test points permit in-service testing
- Aluminum chassis designed for superior heat dissipation to insure component reliability
- Exceeds FCC specs for both conducted and radiated interference at full output level
- External fuse for ease of replacement
- Line transient protection
- 5-30 MHz return capability with optional plug-ins
- Dual push-pull hybrid modules
- Optional plug-in fixed equalizer and attenuator capability for input signal conditioning
In the Box Blonder Tongue BIDA 550-50 Broadband Indoor Distribution Amplifier (50dB, 47-550 MHz) External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue BIDA 550-50 Broadband Indoor Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue BIDA 550-50 Specs | Gain | 50 dB approximately | | Frequency Range | 47 - 550 MHz | | Test Point Level | -30 dB (input and output) | | Test Point Return Level | -20 dB (input and output) | | Gain Control Range | 15 dB | | Slope Control Range | 10 dB | | Hum Modulation | -70 dB | | Impedance | 75 Ω (all ports) | | Return Loss | Input: 14 dB
Output: 14 dB | | Channel Loading | 77 | | Flatness | ±0.75 dB | | Noise Figure | 7.0 dB measured at full gain with 0 dB slope | | Hybrid Technology | Push-pull | | Output Level | +44 dBmV | | Operating Temperature Range | -4 to 140°F (-20 to 60°C) | | Composite Triple Beat | -64 dB | | Cross Modulation | -64 dB | | Second Order Intermodulation | -70 dB | | Composite Second Order | -64 dB at rated output capability and channel loading | | Indicators | Power On: LED, red | | Controls | Gain: Control
Slope: Control | | Connectors | 1 x RF Input: "F" female
1 x RF Output: "F" female
1 x Input Test Port: "F" female
1 x Output Test Port: "F" female | | Power Supply | 105 - 130 VAC, 60 Hz | | Fuse | 0.375 A | | Power | 21 W | | Dimensions (W x H x D) | 7.13 x 11.50 x 3.25" (18.11 x 29.21 x 8.25 cm) | | Weight | 5.75 lb (2.61 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.2 x 4.1" |
