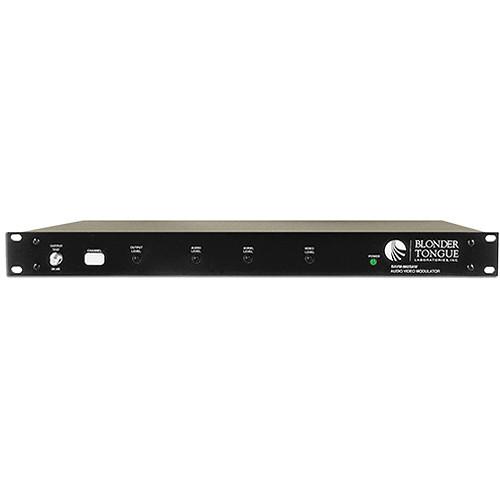

User Manual for Blonder Tongue CATV Channelized Audio Video Modulator with SAW Filtering Click to enlarge the picture
Contents of the user manual for the Blonder Tongue CATV Channelized Audio Video
- Product category: RF Equipment Blonder Tongue
- Brand: Blonder Tongue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blonder Tongue RF Equipment
|
User manual for the Blonder Tongue CATV Channelized Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blonder Tongue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blonder Tongue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blonder Tongue product will considerably shorten its lifespan!
|
Product description The CATV Channelized Audio/Video Modulator, Channel 27, from Blonder Tongue is an all-solid-state audio/video modulator that provides a modulated visual and aural RF carrier output on one specific CATV channel. The unit modulates the audio and video inputs and provides the requested RF CATV channel output for use in a CATV, MATV or SMATV system. The modulator accepts standard (sync negative) polarity video at a 0.7-2.5V peak to peak level from sources such as a TV camera, video tape recorder, TV demodulator or satellite receiver.
The modulator features a +55dBmV RF output level, and an IF SAW filtering for adjacent channel operation. All aeronautical channels are offset positive with a tolerance of ±5kHz as required by FCC 21006. All level controls are located on the front panel. The RF level control provides up to +55dBmV output. The video modulator control sets the depth of modulation for 87.5% over an input video level range from 0.7VP/p to 2.5VP/p. An audio modulation control permits adjustment for ±25kHz peak deviation of the aural carrier. - Meets FCC docket 21006 aeronautical frequency offset requirements
- Fully compatible with BTSC encoded stereo audio
- Front panel accessible level controls for easy set-up and adjustments
In the Box Blonder Tongue CATV Channelized Audio/Video Modulator with SAW Filtering (Channel 27) Screws for Standard 19" EIA Rack Unit Installation Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue CATV Channelized Audio Video Modulator with SAW Filtering in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue BAVM-860SAW-860-27 Specs | | | Frequency Range | CATV channel 27 | | Output Level | 55 dBmV, minimum | | Output Level Range | 15 dB | | Audio/Video Carrier Ratio Control | -7 dB to -20 dB | | Frequency Tolerance | ±10 kHz standard channels, ±5 kHz FCC 21006 offsets | | Audio Carrier Frequency Setting | ±1 kHz maximum, 4.5 MHz above video carrier | | RF to Video Response | 1 dB P/V from Fv -0.5 MHz to Fv +4.2 MHz | | Broadband Noise | -90 dBc | | Spurious Output | -60 dBc in 50 to 860 MHz Range @ +55 dBmV output | | Output Match (Return Loss) | 12 dBc | | Vestigial Sideband Response | @ channel edge -20 dB, @ adjacent channel -40 dB | | | | Input | 0.7 to 2.5 V peak to peak for 87.5% modulation | | Input Return Loss | 18 dB | | Carrier-to-Noise Ratio | 62 dB in 4 MHz bandwidth | | Hum Ratio | 60 dB peak to peak video to 60 Hz RMS | | Differential Gain | 5% at 87.5% modulation | | Differential Phase | 5° at 87.5% modulation | | Group Delay | 170 ±50 nS | | | | Input Impedance | 10 kΩ, unbalanced | | Input | 140 mV RMS for 25 kHz peak deviation | | Frequency Response | ±1.0 dB (50 Hz - 15 kHz referent to standard 75 msec pre-emphasis) | | Intercarrier Stability | 4.5 MHz at ±5.0 kHz | | | | Power Requirements | 105 - 130 VAC, 60 Hz, 10.5 W | | Temperature Range | 0 to +50°C | | | | Audio In | F-type female | | Video In | F-type female | | RF Output | F-type female | | RF Output Test | F-type female -30 dB | | AC Outlet | Female AC outlet 600 VA maximum | | | | Line Cord | 6' power cable: 3 wire grounded, 3 wire convenience outlet | | Dimensions (W x H x D) | 19 x 1.75 x 3" (48.26 x 4.44 x 7.62 cm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 21.5 x 5.6 x 3.3" |
