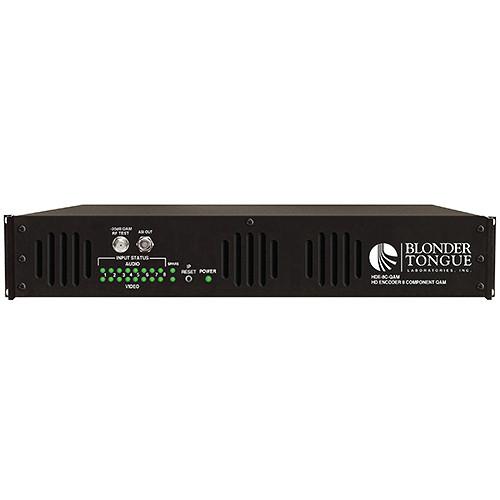

Product description This Component and Composite to MPEG-2 HD QAM Encoder by Blonder Tongue accepts up to 8 video analog programs either in component or composite format, as well as 8 audio analog unbalanced programs. The encoder is equipped with a spare input interface to replace any one of the primary 8 inputs in the event of a failure. All inputs are digitized, MPEG-2 encoded and multiplexed, and made simultaneously available in the following output formats: 4 adjacent QAM (2 programs per QAM), and 1 ASI (any of the 4 QAM output streams). - Accepts up to 8 programs from any of the 8 component and 8 composite inputs available
- Supports one additional spare input to replace any one of the primary 8 inputs in the event of a failure
- Digitizes, MPEG-2 encodes, and multiplexes up to 8 inputs into 4 QAM output channels (2 programs per QAM channel)
- Provides any 1 of the 4 QAM output streams in ASI format
- Compatible with ITU annex A and B digital QAM formats
- Provides comprehensive GUI-based monitoring and control via standard Web browsers
- Provides a front-panel RF test point (at 20dB below primary QAM output)
- Equipped with EAS interface (analog video + L/R audio)
- Supports real-time Dolby Digital audio encoding
- Supports closed captioning EIA-608
- Supports user-defined PSIP configuration
In the Box Blonder Tongue Component and Composite to MPEG-2 HD QAM Encoder (8 Programs) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue Component and Composite to MPEG-2 HD QAM Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue HDE-8C-QAM Specs | | | Component | Primary Connectors: 8 sets each 3 x RCA for video (Y, Pb, Pr), 8 sets each 2 x RCA for analog audio (L, R)
Spare Connectors: 3 x RCA for video (Y, Pb, Pr), 2 x RCA for analog audio (L, R)
Video Resolution: 480i, 720p, & 1080i
Video Aspect Ratio: 4:3 & 16:9 | | Composite Video | Primary Connectors: 8 sets each 1 x RCA for video (Y), 8 sets each 2 x RCA for analog audio (L,R) (shared with component connectors)
Spare Connectors: 1 x RCA for video (Y), 2 x RCA for analog audio (L,R)(shared with component connectors)
Video Resolution: 480i | | Emergency Alert System (EAS) | Connectors: 3 x RCA (video, audio L & R)
Trigger Mechanism: 5-12 VDC & dry contact closure (terminal strip) | | | | Video | Output Format: MPEG-2 HD MP@ML; ISO 13818-2
Chroma: 4:2:0
Resolution: 480i, 720p, & 1080i
Frame Rate: 29.97 fps (480i); 29.97 fps (1080i); 59.97 fps (720p)
Aspect Ratio: 4:3 & 16:9
GOP Structure: I & P frames (user-selectable)
Transport Rate: Variable (user-selectable)
Video Bit Rate: Variable (user-selectable)
Video Pre-Filter: Variable (user-selectable) | | Audio | Output Format: Dolby Digital
Sampling Rate: 48 kHz
Bit Rate: Variable; 128 - 320 Kbps (user-selectable) | | Closed Captioning | Component: EIA-608; 1 x RCA (CC)
Composite: EIA-608 | | | | QAM | Connector: 1 x "F" female (rear panel; up to 4 x RF QAM channels combined)
Modulation: QAM 16, 32, 64, 128, and 256
Standards: ITU-T J.83; annex A and B
DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
Frequency Range: 54 - 1002 MHz
Tuning: CATV channel selectable (channels 2 to 158)
Channel Bandwidth: 24 MHz (4 x adjacent 6 MHz)
RF Level: +40 dBmV ± 1 dB (4 channels combined)
RF Level Adjustment Range: +35 to +45 dBmV, 1 dB increment
Frequency Tolerance: ± 0.5 kHz @ 77°F (25°C)
Frequency Stability: ± 5 kHz over 32 to 122°F (0 to 50°C)
Amplitude Flatness: ±0.25 dB (over 6 MHz channel)
Phase Noise: -98 dBc (@ 10 kHz)
Spurious: -60 dBc
Broadband Noise: -70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
Impedance: 75 Ω
Spectral Inversion: Auto recognition
Carrier Suppression: 45 dB
Return Loss: 14 dB typical
Signal-to-Noise Ratio: 40 dB typical
MER: 39 dB typical
I/Q Phase Error: Less than 1 degree
I/Q Amplitude Imbalance: Less than 1% | | ASI | Connector: 1 x BNC (front-panel)
Output Assignment: Any 1 of 4 QAM output streams
Format: DVB-ASI
Standard: ETSI EN 50083-9 | | | | Local Monitoring | 16 x input status LED (video 1-8; audio 1-8)
2 x spare LED (video & audio)
1 x power LED | | Local Control | 1 x "F" female RF test port
1 x IP reset button | | Remote Monitoring/Control | GUI-based menu via Web browser (1 x RJ45 connector; 10/100Base-T) | | | | Power | 110 - 230 VAC, 50/60 Hz (fuse: 4.0 A, 250 VDC, Slo Blo) | | Power Dissipation | Approx. 60 W (max.) | | Operating Temperature | 32 to 122 °F (0 to 50 °C) | | Storage Temperature | -13 to 158 °F (-25 to 70 °C) | | Operating Humidity | 0 to 95% RH @ 35 °C max, non-condensing | | Storage Humidity | 0 to 95% RH @ 35 °C max, non-condensing | | Dimensions (W x D x H) | 19.0 x 19.5 x 3.5" (48.3 x 49.5 x 8.9 cm) | | Weight | Approx. 15 lb (6.8 kg) | | | | Package Weight | 13.7 lb | | Box Dimensions (LxWxH) | 24.6 x 22.8 x 7.8" |
