User Manual for Blonder Tongue HDE-4S-QAM MPEG-2 HD Encoder Click to enlarge the picture
Contents of the user manual for the Blonder Tongue HDE-4S-QAM MPEG-2 HD Encoder
- Product category: RF Equipment Blonder Tongue
- Brand: Blonder Tongue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blonder Tongue RF Equipment
|
User manual for the Blonder Tongue HDE-4S-QAM MPEG-2 HD Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blonder Tongue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blonder Tongue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blonder Tongue product will considerably shorten its lifespan!
|

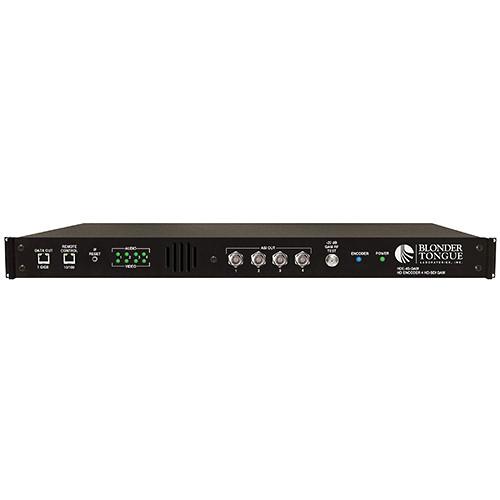

Product description The HDE-4S-QAM MPEG-2 HD Encoder from Blonder Tongue will encode HD-SDI, Component, or Composite video sources along with audio in MPEG-2 for delivery over QAM. It features four HD-SDI, four component, and four composite inputs, and allows you to use either all four of the HD-SDI inputs or a mixture of four Component and Composite inputs at once. Addition, up to four channels can be assigned per QAM output. - Supports EIA-708 closed captioning through SDI and EIA-608 closed-captioning through the analog inputs
- Equipped with an Emergency Alert System (EAS) interface
- Front-panel RF test port for testing and monitoring of QAM output without service interruption
- Ethernet and Web server connection allows the system to be operated remotely using a Web browser
In the Box Blonder Tongue HDE-4S-QAM MPEG-2 HD Encoder Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue HDE-4S-QAM MPEG-2 HD Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue HDE-4S-QAM Specs | | | HD-SDI | Connectors: 4 x BNC female
Standard: SMPTE 292M
Supported Resolutions: 480i, 720p, and 1080i
Audio Support: Embedded PCM and pass-through Dolby Digital only | | Component | Video Connectors: 4 x Sets of 3 x RCA female
Supported Resolutions: 480i, 720p, and 1080i
Aspect Ratios: 4:3 and 16:9
Analog Audio Connectors: 4 x Sets of 2 x RCA female stereo pairs - shared with Composite
Digital Audio Connectors: 4 x RCA female - shared with Composite | | Composite | Video Connectors: 4 x RCA female
Analog Audio Connectors: 4 x Sets of 2 x RCA female stereo pairs - shared with Component
Digital Audio Connectors: 4 x RCA female - shared with Component | | Emergency Alert System (EAS) | Connectors: 3x RCA female (Composite video and stereo analog audio)
Trigger Mechanism: 5 to 12 VDC and dry contact closure (terminal strip) | | Encoding Profile - Video | Output Format: MPEG-2 HD MP@ML; ISO 13818-2
Chroma Sub-sampling: 4:2:0
Supported Resolutions: 480i, 720p, and 1080i
Supported Frame Rates: 29.97, 59.97 (720p only)
Aspect Ratios: 4:3 and 16:9
GOP Structure: I and P frames (user selectable)
Transport Rate: Variable (user selectable)
Video Rate: Variable (user selectable)
Video Pre-filter: Variable (user selectable)
Color Space: YCbCr and RGB | | Encoding Profile - Audio | Output Format: Dolby Digital
Sampling Rate: 48 kHz
Bit Rate: Vaiable: 96 to 448 Kbps (user selectable) | | Closed Captioning | HD-SDI: EIA-708 - embedded in HD-SDI input
Component: EIA-608
Composite: EIA-608 | | | | QAM | Connector: 1 x F type female(rear panel; up to 4 x QAM channels combined)
Modulation: QAM 16, 32, 64, 128, and 256
Standards: ITU-T J.83; Annex A and B
DVM Symbol Rate: Variable; up to 7 MS/Symbol/sec (MBaud)
Frequency Range: 54 to 1002 MHz
Tuning: CATV channel selectable (channel 2 to 158)
Channel's Bandwidth: 24 MHz(4 x adjacent 6 MHz)
RF Level (4 channel combined): +42 to +52 dBmV, 1 dB increment
RF Level (2 channel combined): +42 to +56 dBmV, 1 dB increment
RF Level Accuracy: ± 1 dB
Frequency Tolerance: ± 0.5 kHz at 77°F (25°C)
Frequency Stability: ± 5 kHz over 32 to 122°F (0 to 50 °C)
Amplitude Flatness: ± 0.25 bD (over 6 MHz)
Phase Noise: -98 dBc at 10 kHz
Spurious: -57 dBc
Broadband Noise: -70 dBc at +52 dBmV output level, 5.5 MHz bandwidth
Impedance: 75 ohm
Spectral Inversion: Auto Recognition
Carrier Suppression: 45 dB
Return Loss: 14 bB typical
Signal-to-Noise Ratio: 40 dB typical
MER: 40 dB typical
I/Q Phase Error: < 1°
I/Q Amplitude Imbalance: < 1% | | ASI | Connectors: 4 x BNC female
Format: DVB-ASI
Standard: ETSI EN 50083-9 | | Ethernet | Connector: 1 x RJ-45
Standard: 1000Base-T
UDP/RTP: Supported (user selectable)
Address Assignment: 4 x IPv4 addresses and port numbers (user selectable) | | | | Local Monitoring | 8 x Input status LEDs (video 1 to 4 and audio 1 to 4)
1 x Encoder LED
1 x Power LED
1 x F type female RF test port | | Local Control | 1 x IP reset button | | Remote Monitoring/Control | GUI-based menu via Web browser | | | | Power Requirements | 115 to 230 VAC, 50 or 60 Hz (Fuse: 3 A, 250 VDC, Slo Blo) | | Power Consumption | 60 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -13 to 158°F (-25 to 70°C) | | Humidity | 0 to 95% relative humidity at 95°F (35°C) maximum, non-condensing | | Rack Height | 1 RU | | Dimensions | 19 x 18.1 x 1.8" (483 x 460 x 44 mm) | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 11.9 lb | | Box Dimensions (LxWxH) | 24.5 x 21.0 x 6.0" |
