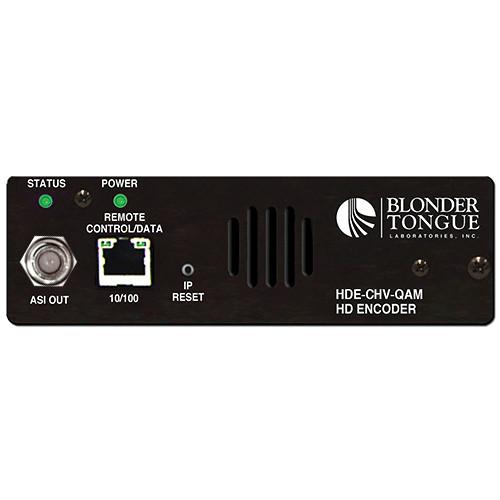

User Manual for Blonder Tongue HDE-CHV-QAM Component HDMI VGA Composite to QAM ASI IP MPEG-2 HD Encoder Click to enlarge the picture
Contents of the user manual for the Blonder Tongue HDE-CHV-QAM Component HDMI VGA
- Product category: RF Equipment Blonder Tongue
- Brand: Blonder Tongue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blonder Tongue RF Equipment
|
User manual for the Blonder Tongue HDE-CHV-QAM Component HDMI VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blonder Tongue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blonder Tongue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blonder Tongue product will considerably shorten its lifespan!
|
Product description This HDE-CHV-QAM MPEG-2 HD Encoder by Blonder Tongue accepts any of the following inputs: component, HDMI (unencrypted), VGA, and composite. MPEG-2 encoded outputs are available in the following formats simultaneously: QAM RF, ASI, and IP (10/100Base-T Ethernet). The encoder features an analog/digital audio input which supports Dolby Digital audio encoding, and Closed Captioning (EIA-608).
The QAM RF output is frequency-agile over the entire CATV frequency range of 54-1002MHz (channels 2 to 158) with an output level of +40dBmV. Comprehensive remote monitoring and control is accomplished using any standard Web browser via a front-panel 10/100Base-T Ethernet connection. A rear-panel VGA output port is available for loop-through applications. - Accepts 1 program from any of the following inputs: component, HDMI (unencrypted), VGA, and composite
- Simultaneously delivers the following outputs: QAM, ASI, and IP
- Provides +40dBmV QAM RF output level
- Provides comprehensive GUI-based monitoring and control via standard Web browsers
- Compact design permits installation of up to 3 encoder modules in 1RU
- Supports real-time Dolby Digital audio encoding
- Supports user-defined PSIP configuration
- Supports closed captioning EIA-608
In the Box Blonder Tongue HDE-CHV-QAM Component/HDMI/VGA/Composite to QAM/ASI/IP MPEG-2 HD Encoder Power Supply +12VDC Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blonder Tongue HDE-CHV-QAM Component HDMI VGA Composite to QAM ASI IP MPEG-2 HD Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlonder Tongue HDE-CHV-QAM Specs | | | Component | Connectors: 3 x RCA for video (Y, Pb, Pr), 2 x RCA for analog audio (L, R), 1 x RCA for digital audio (PCM)
Video Resolution: 480i, 720p, & 1080i
Video Aspect Ratio: 4:3 & 16:9 | | HDMI | Connector: 1 x HDMI
Video Resolution: 480i, 720p, & 1080i
HDCP Encryption: Not supported
Audio: Embedded PCM & pass-through Dolby Digital only | | VGA | Connectors: 2 x female VGA (input + loop-through output)
Video Resolution: 640 x 480 @ 60 fps, 800 x 600 @ 60 fps, 1024 x 768 @ 60 fps
Audio: 2 x RCA for analog audio (L, R), 1 x RCA for digital audio (PCM) | | Composite | Connectors: 1 x RCA for video (Y)
Video Resolution: 480i
Audio: 2 x RCA for analog audio (L, R), 1 x RCA for digital audio (PCM) | | | | Video | Output Format: MPEG-2 HD MP@ML; ISO 13818-2
Chroma: 4:2:0
Resolution: 480i, 720p, & 1080i
Frame Rate: 29.97 fps (480i); 29.97 fps (1080i); 59.97 fps (720p)
Aspect Ratio: 4:3 & 16:9
GOP Structure: I & P frames (user-selectable)
Transport Rate: Variable (user-selectable)
Video Bit Rate: Variable (user-selectable)
Video Pre-Filter: Variable (user-selectable)
Color Space: YCbCr and RGB | | Audio | Output Format: Dolby Digital
Sampling Rate: 48 kHz
Bit Rate: Variable; 96 - 448 Kbps (user-selectable) | | Closed Captioning | Component: EIA - 608; 1 x RCA (CC)
HDMI: EIA - 608; 1 x RCA (CC)
VGA: EIA - 608; 1 x RCA (CC)
Composite: EIA - 608 | | | | QAM | Connector: 1 x "F" female (rear-panel)
Modulation: QAM 16, 32, 64, 128, and 256
Standards: ITU-T J.83; annex A and B
DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
Frequency Range: 54 - 1002 MHz
Tuning: CATV channel selectable (channels 2 to 158)
Channels' Bandwidth: 6 MHz
RF Level: +40 dBmV ±1 dB
RF Level Adjustment: +32 to +42 dBmV, 1 dB increment
Frequency Tolerance: ±0.5 kHz @ 77°F (25°C)
Frequency Stability: ±5 kHz over 32 to 122°F (0 to 50°C)
Amplitude Flatness: ±0.25 dB (over 6 MHz channel)
Phase Noise: -98 dBc (@ 10 kHz)
Spurious: -60 dBc
Broadband Noise: -70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
Impedance: 75Ω
Spectral Inversion: Auto recognition
Carrier Suppression: 45 dB
Return Loss: 14 dB typical
Signal-to-Noise Ratio: 40 dB typical
MER: 40 dB typical I/Q Phase Error: Less than 1 degree
I/Q Amplitude Imbalance: Less than 1% | | ASI | Connector: 1 x BNC (front-panel)
Format: DVB-ASI
Standard: ETSI EN 50083-9 | | IP | Connector: 1 x RJ45 (front-panel)
Standard: 10/100Base-T Ethernet
UDP/RTP: Supported (user-selectable) | | | | Local Monitoring | 1 x status LED
1 x power LED | | Local Control | 1 x IP reset button | | Remote Monitoring/Control | GUI-based menu via standard Web browsers (1 x RJ45 front-pannel connector; 10/100Base-T, also used for IP output) | | | | Power | 115 - 230 VAC / output 12 VDC @ 3 A (external power supply) | | Power Dissipation | 18 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -13 to 158°F (-25 to 70°C) | | Operating Humidity | 0 to 95% RH @ 35°C max, non-condensing | | Storage Humidity | 0 to 95% RH @ 35°C max, non-condensing | | Dimensions (W x D x H) | 5.65 x 12.50 x 1.75" (14.35 x 31.75 x 4.45 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 22.0 x 10.4 x 4.8" |
